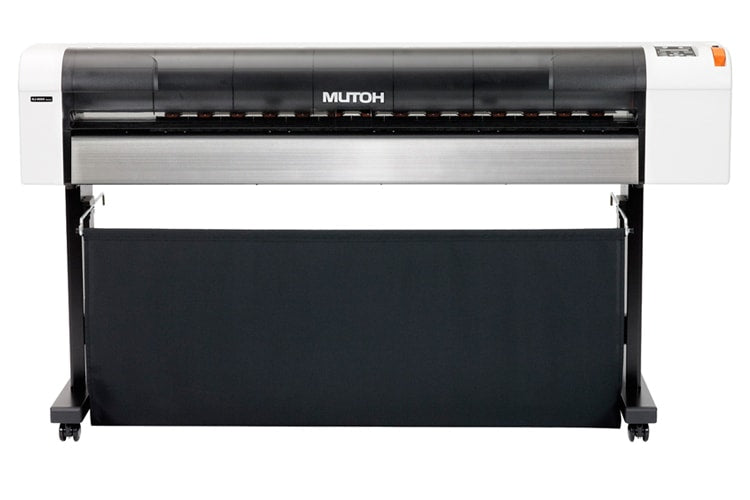

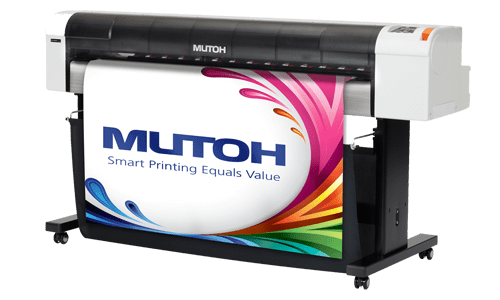

RJ-900X
Tap into your imagination. The RJ-900X is Mutoh's best-selling printer: an open-source printer with no ink chips. Originally designed for architectural and CAD applications with high-quality output, it is an industrial-designed printer with superior paper handling that is ideally suited to dye-sublimation work such as custom t-shirts, apparel, flags, and promotional and personalized items.
The RJ-900X uses a DX-5 print head (4 color sections, 360 nozzles per color) for high-resolution printing up to 2880 dpi. It delivers superior line sharpness and photo-quality images with continuous tones, smooth transitions and a wide color gamut. Various print resolutions suit different applications, with 360 dpi draft printing at up to 676 sq ft per hour. This CMYK printer can be used with a variety of ink sets, all at the user's discretion.
Quick Specs
| Specification | Details |
|---|---|
| Print Width | 42.3" (42.5" max media width) |
| Technology | Dye-sublimation, variable drop-on-demand piezo drive |
| Print Head | 1 DX-5 head (4 color sections, 360 nozzles per color) |
| Ink | CMYK; aqueous, pigment or dye ink |
| Max Resolution | 2880 dpi |
| Max Print Speed | 676 sq ft/hr (360 x 360 dpi draft mode) |
| RIP Software | Wasatch SoftRIP |
| Dimensions (W x D x H) | 69.8" x 26" x 38.7" |
| Weight | Printer 109.1 lbs / Stand 34.2 lbs |
Why Choose the RJ-900X
- Open ink system, no ink chips. Run a variety of ink sets, including aqueous, dye and pigmented inks, at your discretion.
- Sharp, photo-quality output. The DX-5 head prints up to 2880 dpi with superior line sharpness, continuous tones, smooth transitions and a wide color gamut.
- Higher speeds when you need them. New print and effect modes deliver higher speeds, up to 676 sq ft per hour in 360 dpi draft mode.
- Improved paper handling. The new lever-enabled Pressure Roller Cancel feature lets the operator adjust roller pressure by media type.
- Remote printer management. Monitor the printer remotely with VSM and VSM Mobile Support.
- Banding eliminated. Intelligent Interweave (i2) technology eliminates banding.
Key Features
- 42" dye-sublimation printer
- Four color (CMYK)
- Print speeds up to 676 sq ft/hr
- DX-5 print head for printing up to 2880 dpi
- Improved paper handling with individual pressure roller control (Pressure Roller Cancel lever)
- Supports aqueous, dye and pigmented ink types
- No ink chips (the ink delivery warranty is covered by the reseller or ink supplier, not Mutoh)
- Open RIP software architecture
- Remote printer management with VSM and VSM Mobile Support
- Intelligent Interweave (i2) technology eliminates banding
- Automatic sheet off function
- Optional media catch basket
Applications

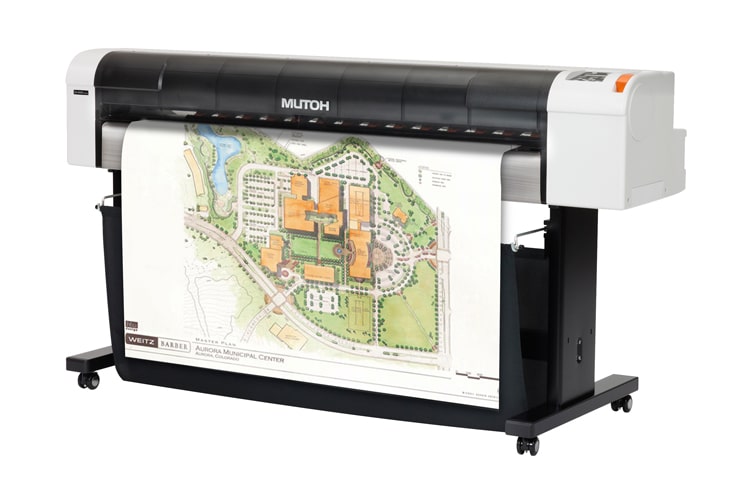

Promotional and personalized items, apparel and custom clothing including t-shirts, banners, flags and posters, and outdoor and indoor signage. The RJ-900X was originally designed for architectural and CAD output.
Full Specifications
| Print Method | Variable drop-on-demand, piezo drive method |
| Number of Print Heads | 1 |
| Number of Nozzles | Black: (180 x 2 rows), Color: (180 x 6 rows) x 1 head |
| Variable Dot | Yes |
| Minimum Droplet Size | 3.2 pl |
| Print Modes | 2880 / 1440 / 720 / 360 dpi, 14 modes |
| Maximum Resolution | 2880 dpi |
| Maximum Print Speed / Resolution | 676 sq ft/hr at 360 x 360 dpi (draft mode) |
| Head Height | Low: 1.2 mm / High: 2.0 mm |
| Maximum Media Width | 42.5" |
| Maximum Print Width | 42.3" |
| Maximum Media Roll Weight | 41.9 lbs |
| Media Roll Diameter / Core | 6" / 2" core (3" optional) |
| Media Catch Basket | Optional |
| Media Auto Cut | Yes |
| Ink Type | Aqueous / Pigment / Dye |
| RIP Software | Wasatch SoftRIP |
| Power Requirements | Rated voltage: AC 100-240V |
| Consumption Current | AC 100-120V: 4.2 A or less; AC 200-240V: 2.6 A or less |
| Operating Temperature | 50°F - 95°F |
| Operating Humidity | 20% - 80% |
| Dimensions (W x D x H) | 69.8" x 26" x 38.7" |
| Shipping Dimensions | 75" x 24.8" x 22.9" (stand: 59.5" x 17.1" x 10.2") |
| Weight | Printer 109.1 lbs / Stand 34.2 lbs |
| Limited Warranty | 1 year |
