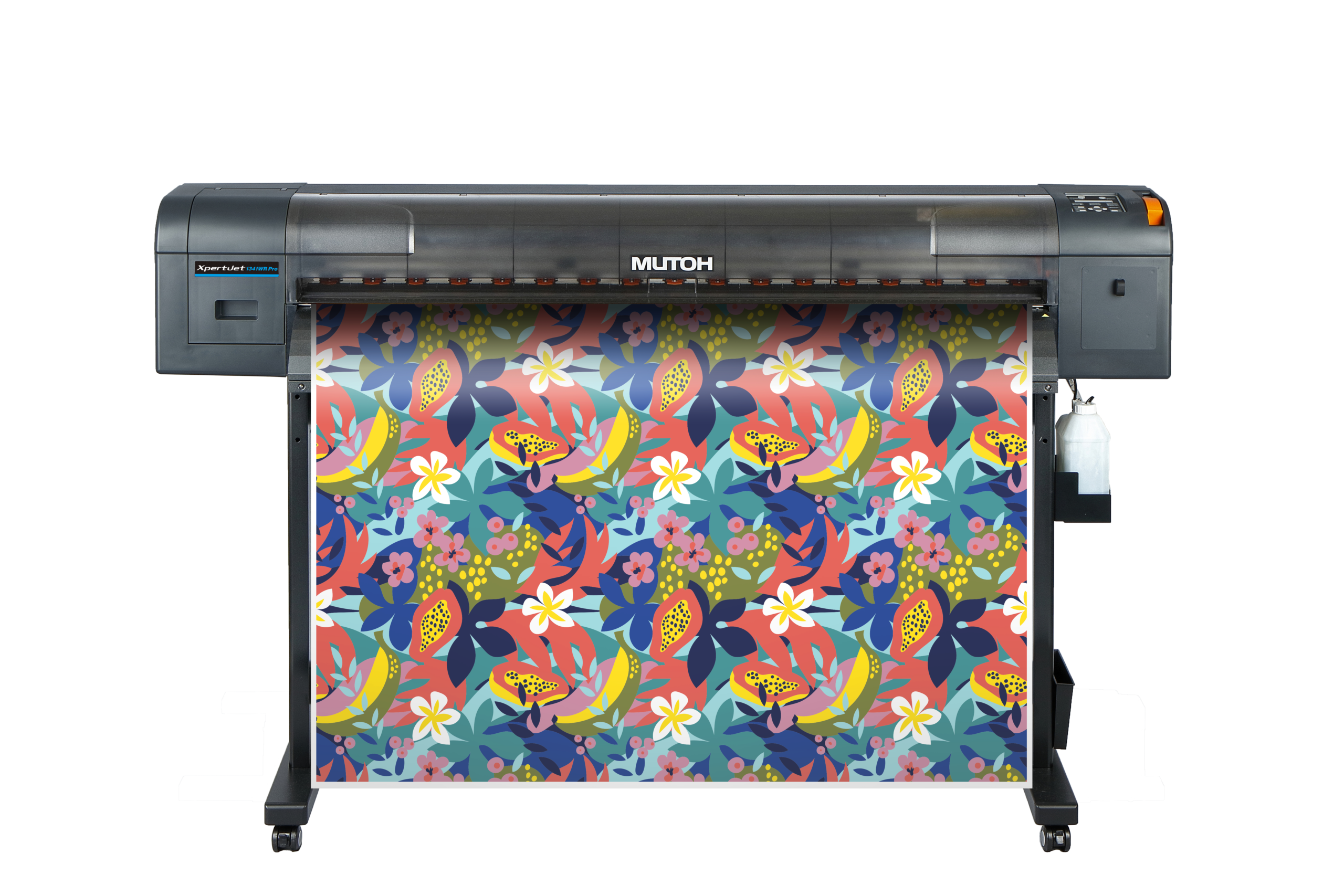

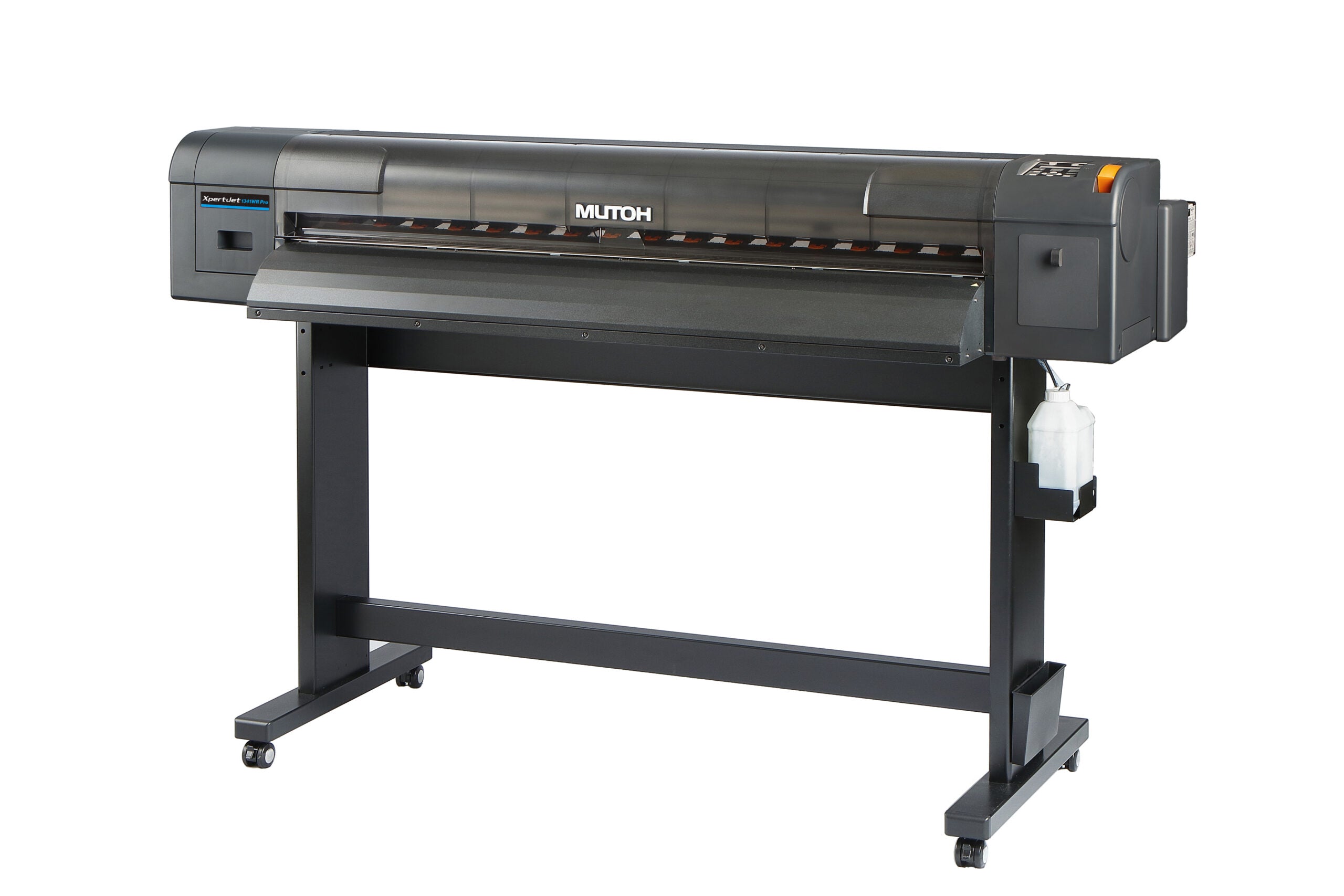

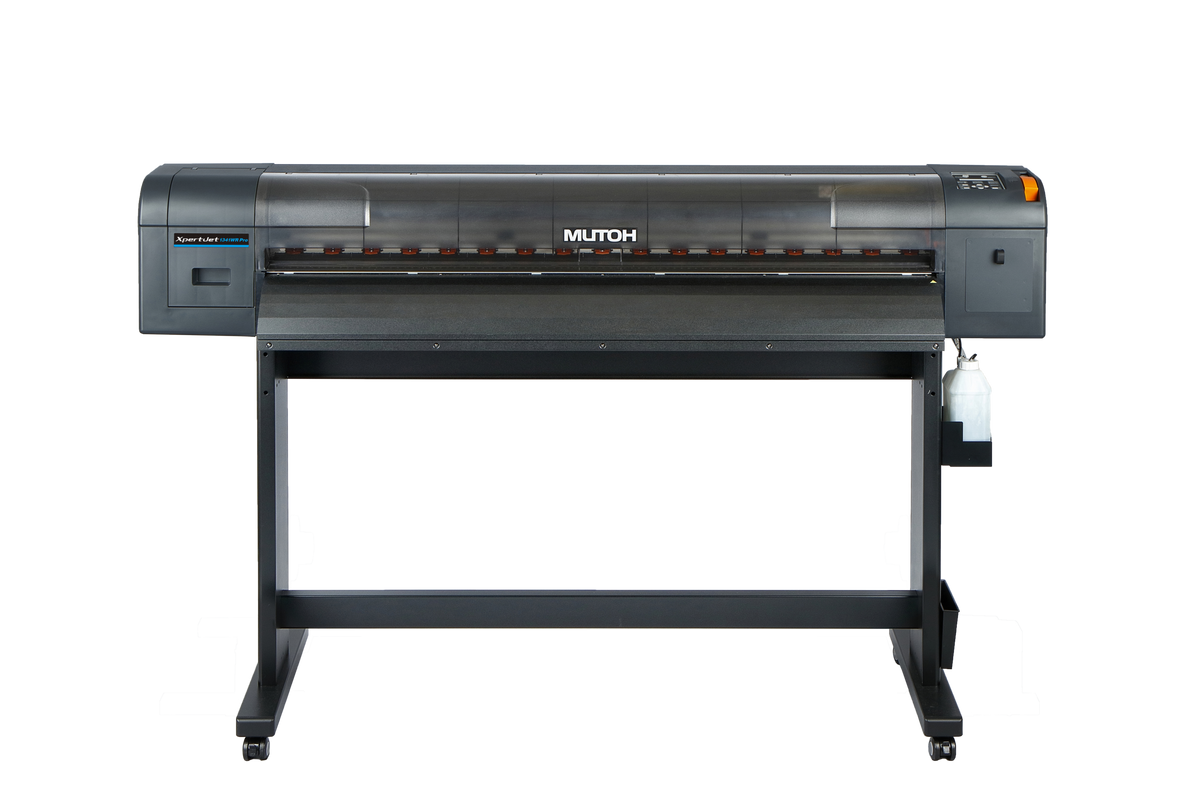

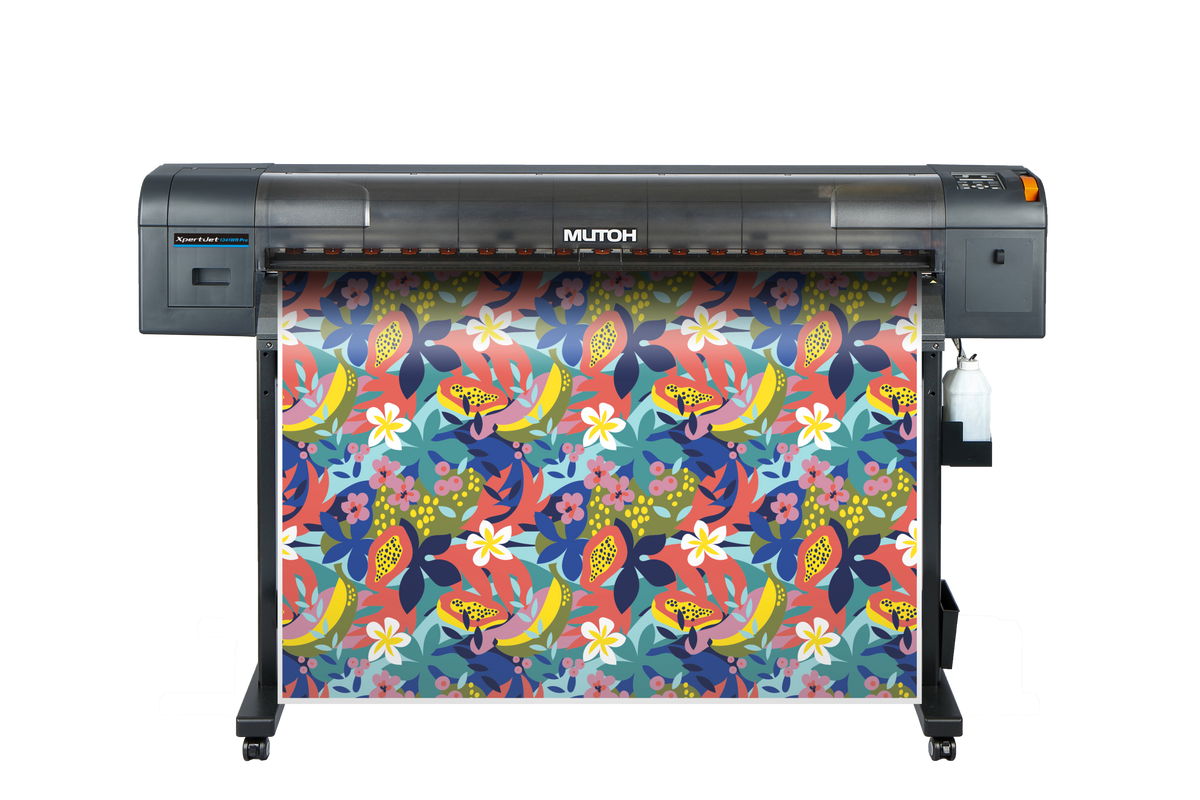

XpertJet 1341WR Pro
The Mutoh XpertJet 1341WR Pro is a high-speed 54" dye-sublimation inkjet printer built on a refined platform that inherits the proven performance of the XpertJet series. It features a MUTOH AccuFine print head with best-in-class dot placement accuracy and i-screen intelligent interweaving technology, delivering smooth, banding-free output at production speeds up to 314 sq ft/hr.
MUTOH DH21 dye-sublimation transfer ink provides optimum media transfer, achieving high-density colors with less ink consumption. Fast ink-drying times enable printing on thinner and lighter transfer papers, and excellent jetting and color stability support prolonged print runs. DH21 ink is available in a CMYK configuration in 1L high-capacity ink bags.
Quick Specs
| Specification | Details |
|---|---|
| Print Width | 53.97" max roll media width (53.58" max printable width) |
| Printer Type | Dye-sublimation, drop-on-demand micro piezo inkjet |
| Print Head | 1 AccuFine print head |
| Ink | DH21 dye-sublimation ink, 4-color (CMYK), 1L ink bags |
| Max Resolution | 1200 x 1200 dpi |
| Print Speed | Up to 314 sq ft/hr |
| Connectivity | Gigabit Ethernet (1000BASE-T), CAT6+ recommended |
| RIP Software | Wasatch SoftRIP (6-month trial) |
| Dimensions (W x D x H) | 75.4" x 26.9" x 47.9" (with cover closed) |
Why Choose the XpertJet 1341WR Pro
- Production speeds up to 314 sq ft/hr. The MUTOH AccuFine print head delivers best-in-class dot placement accuracy at production speeds.
- Smooth, banding-free output. i-screen print effect technology with the latest i-screen interweave patterns reduces banding for smoother prints.
- DH21 dye-sublimation transfer ink. Achieves high-density colors with less ink consumption, and its fast drying times enable printing on thinner and lighter transfer papers.
- Built for long print runs. Excellent jetting and color stability support prolonged print runs, with ink supplied in 1L high-capacity bags.
- Automated, operator-friendly design. DropMaster2, Feed Master, Media Tracker and Nozzle Area Select automate alignment, feed and media tracking, while adjustable pinch rollers, a 3-step carriage height and a maintenance access door simplify setup and care.
- Compact footprint. A 54" production dye-sub printer that fits a 75.4" wide footprint.
Key Features
- MUTOH AccuFine print head with best-in-class dot placement accuracy.
- i-screen print effect technology with the latest i-screen interweave patterns.
- DropMaster2.
- Feed Master.
- Media Tracker.
- Nozzle Area Select.
- DH21 dye-sublimation ink.
- Adjustable pinch rollers.
- 3-step carriage height.
- Maintenance access door.
- Compact footprint.

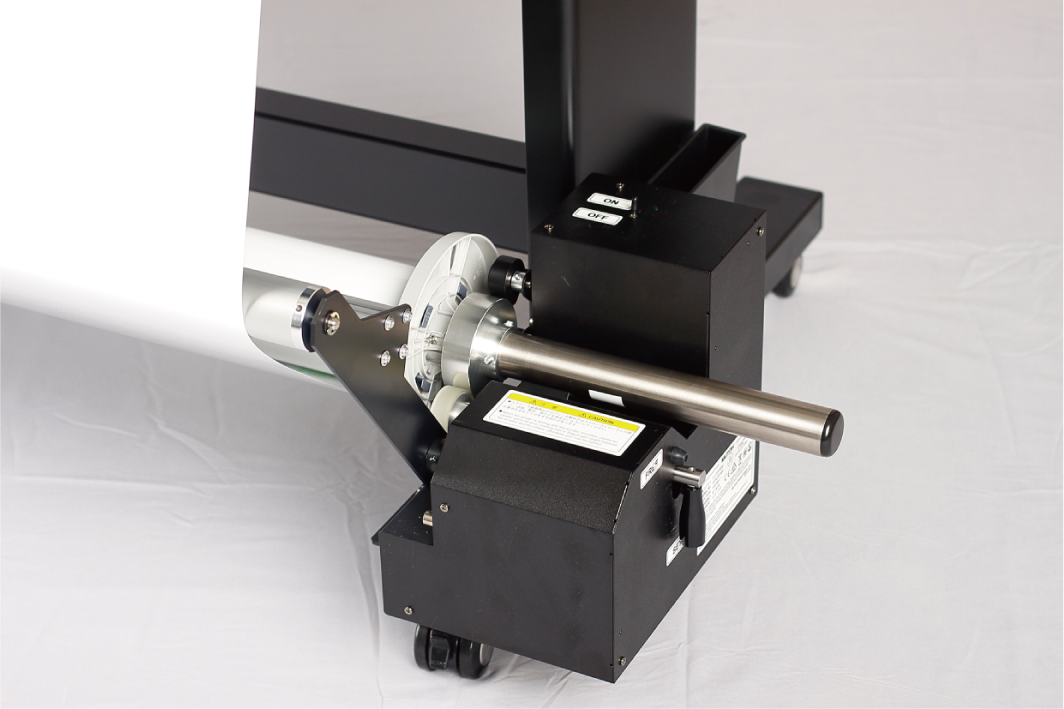

- Optional 44 lb take-up unit.
Applications
High-quality graphics on a wide range of materials, such as apparel, sports uniforms, flags, banners, soft signage, custom home décor and more.
Full Specifications
| Printing Method | Drop-on-demand micro piezo inkjet technology |
| Print Heads | 1 (AccuFine) |
| Print Head Height | Low: 1.5mm, Mid: 2mm, High: 2.5mm |
| Printer Resolution | 1200 x 1200 dpi |
| Print Speed | Up to 314 sq ft/hr |
| Roll Media Width | Max: 53.97", Min: 19.68" |
| Max Printable Width | 53.58" |
| Max Roll Diameter | ø 5.9" |
| Core Diameter | 2" or 3" cores |
| Max Roll Weight | 41.8 lbs |
| Max Media Thickness | 1.3mm |
| Ink Type | DH21 dye-sublimation ink |
| Ink Set | 4-color (CMYK) |
| Ink Volume | 1L ink bag (adapters required) |
| Interface | Gigabit Ethernet (1000BASE-T), CAT6+ recommended |
| Power Requirements | AC 100-120V ± 10% (90V-132V) or 200-240V ± 10% (180V-264V), 50/60Hz ± 1Hz |
| Power Consumption | Operation: 190W or less, Standby: 14W or less |
| Printable Environment | Temperature: 68-89°F, Humidity: 40-60% RH (non-condensing) |
| Recommended Environment | Temperature: 72-86°F |
| Dimensions (W x D x H) | 75.4" x 26.9" x 47.9" (with cover closed) |
| Printer Weight | Body: 134.4 lbs, Stand: 44 lbs |
| RIP Software | 6-month trial of Wasatch SoftRIP |
| Options | 44 lb take-up unit |
