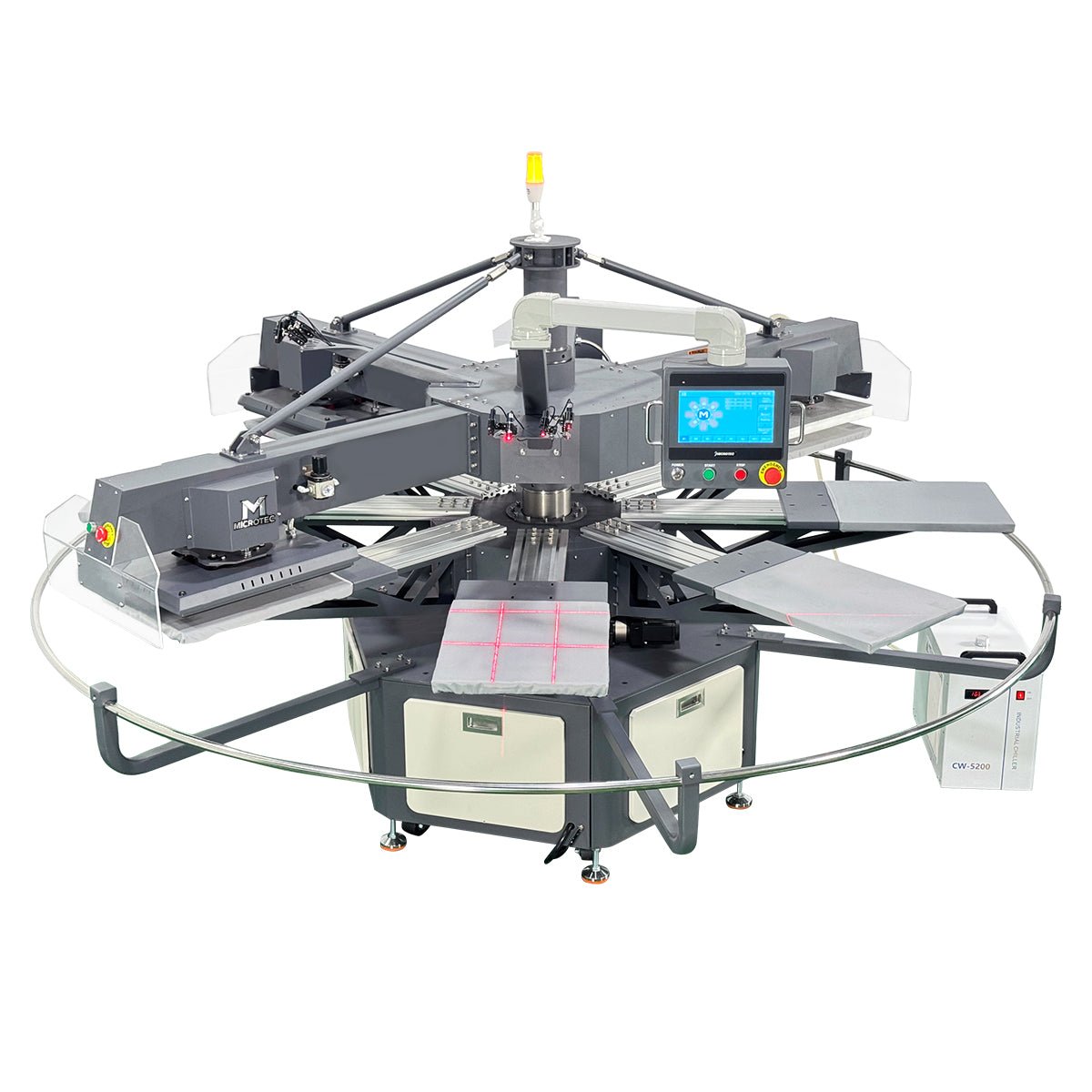

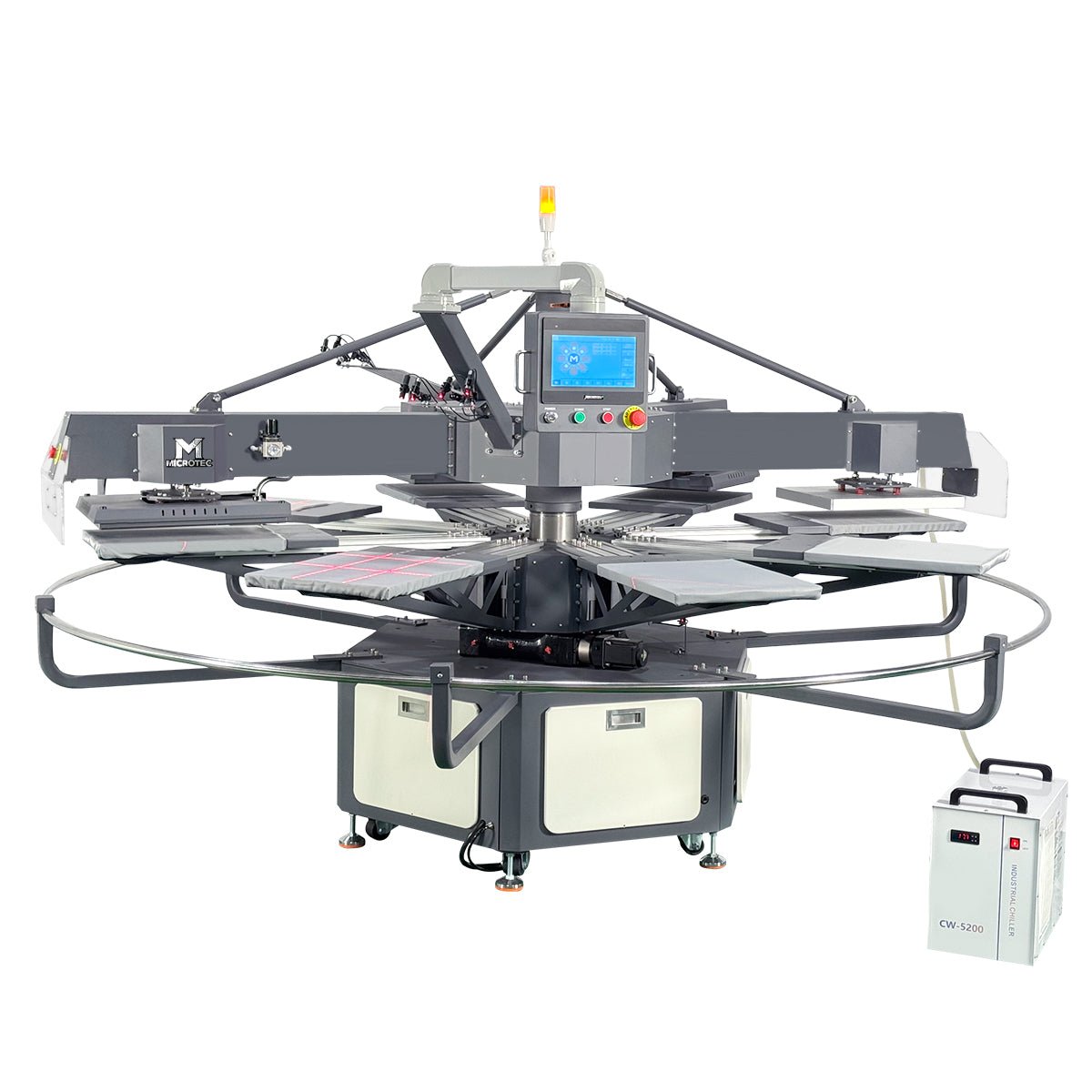

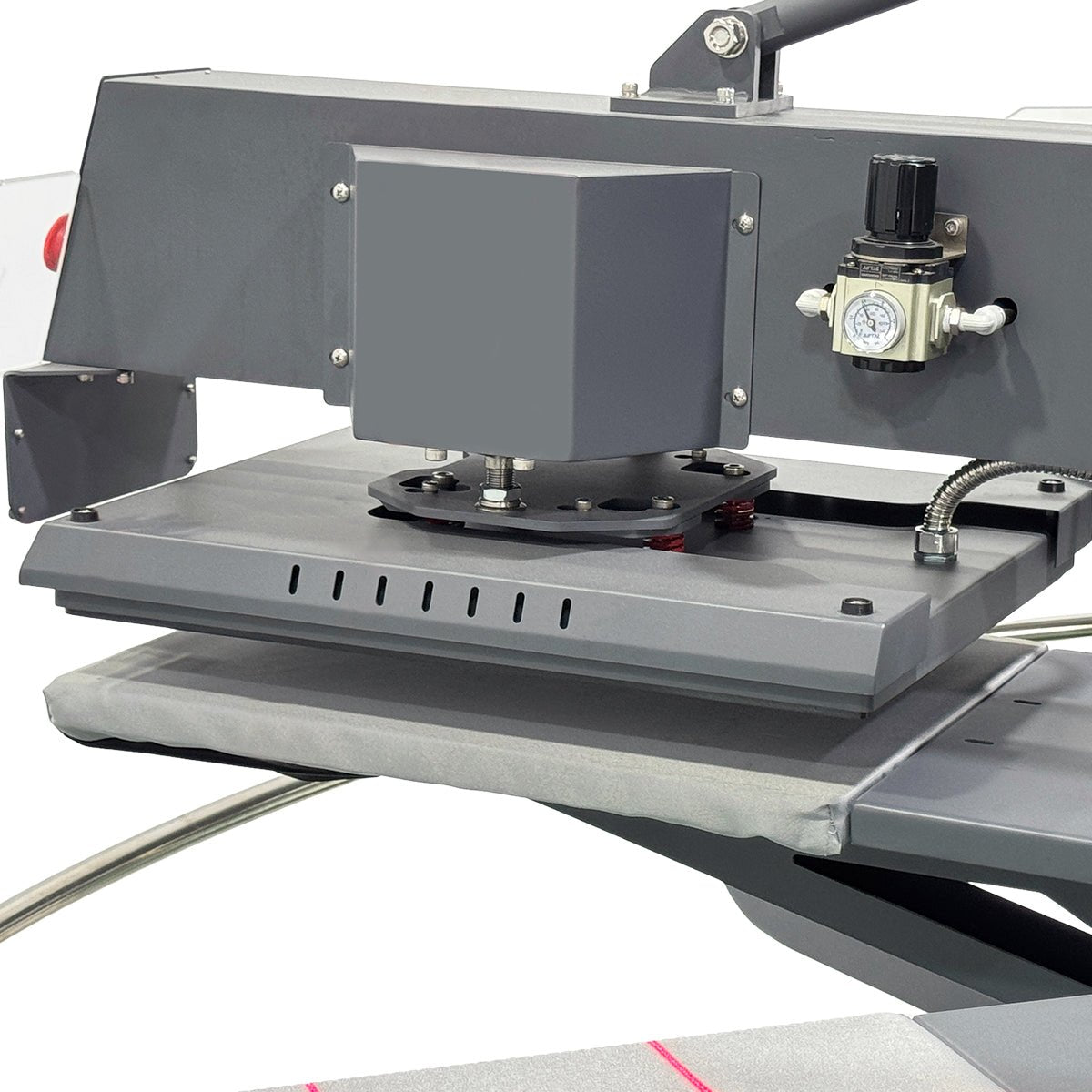

The MicroTec APEX X8 is a fully automatic carousel heat press with 4 heat press heads and 8 rotary-positioned stations, built for high-volume DTF and heat transfer production.
Laser positioning, a touchscreen PLC controller and heavy-duty steel construction keep output fast and repeatable. Includes one cooling platen for the highest-volume shops.
Paired with the APEX X-Feed, X-Peel and X-Pull, it becomes an integrated DTF line with automatic feeding, film peeling and garment collection.
Key Features

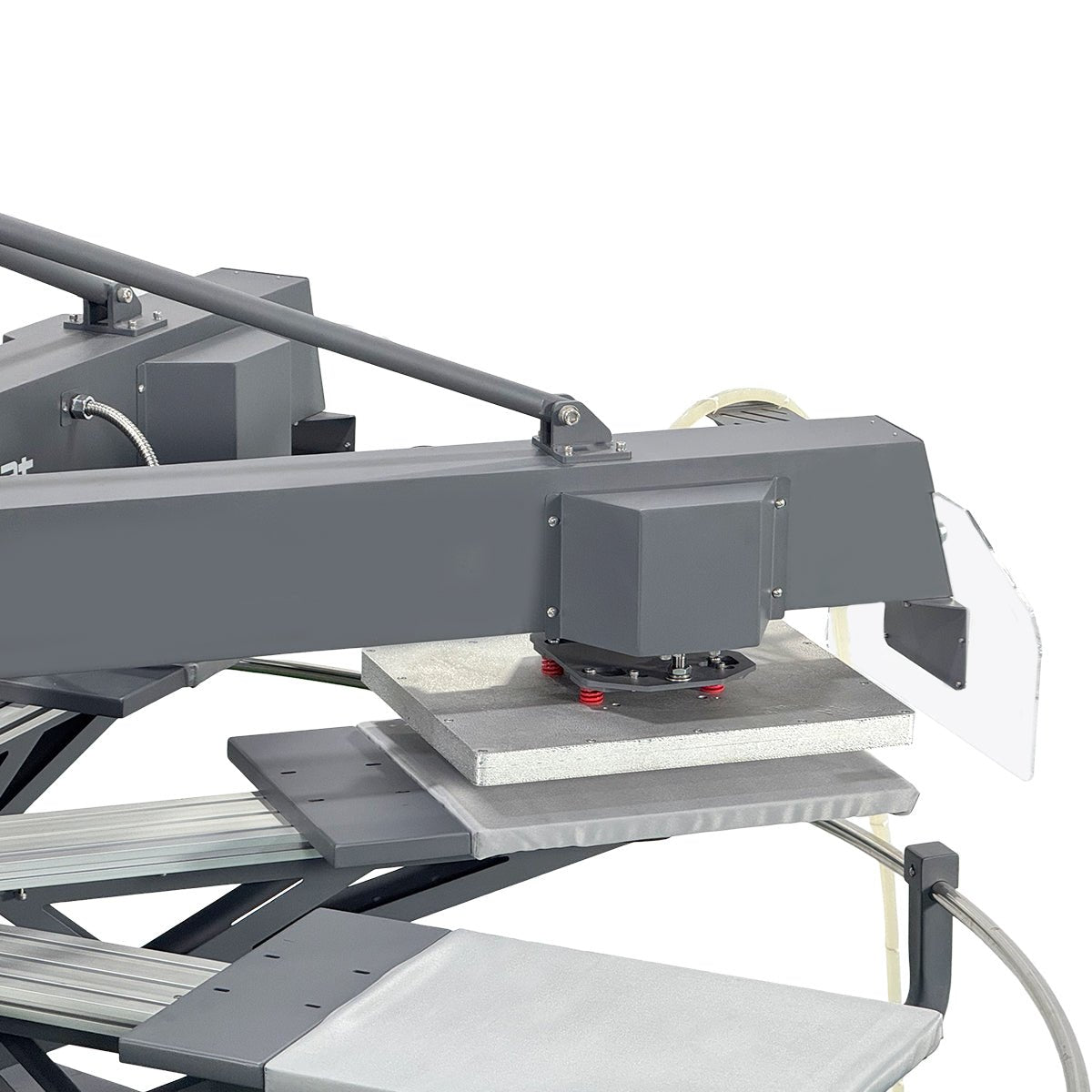

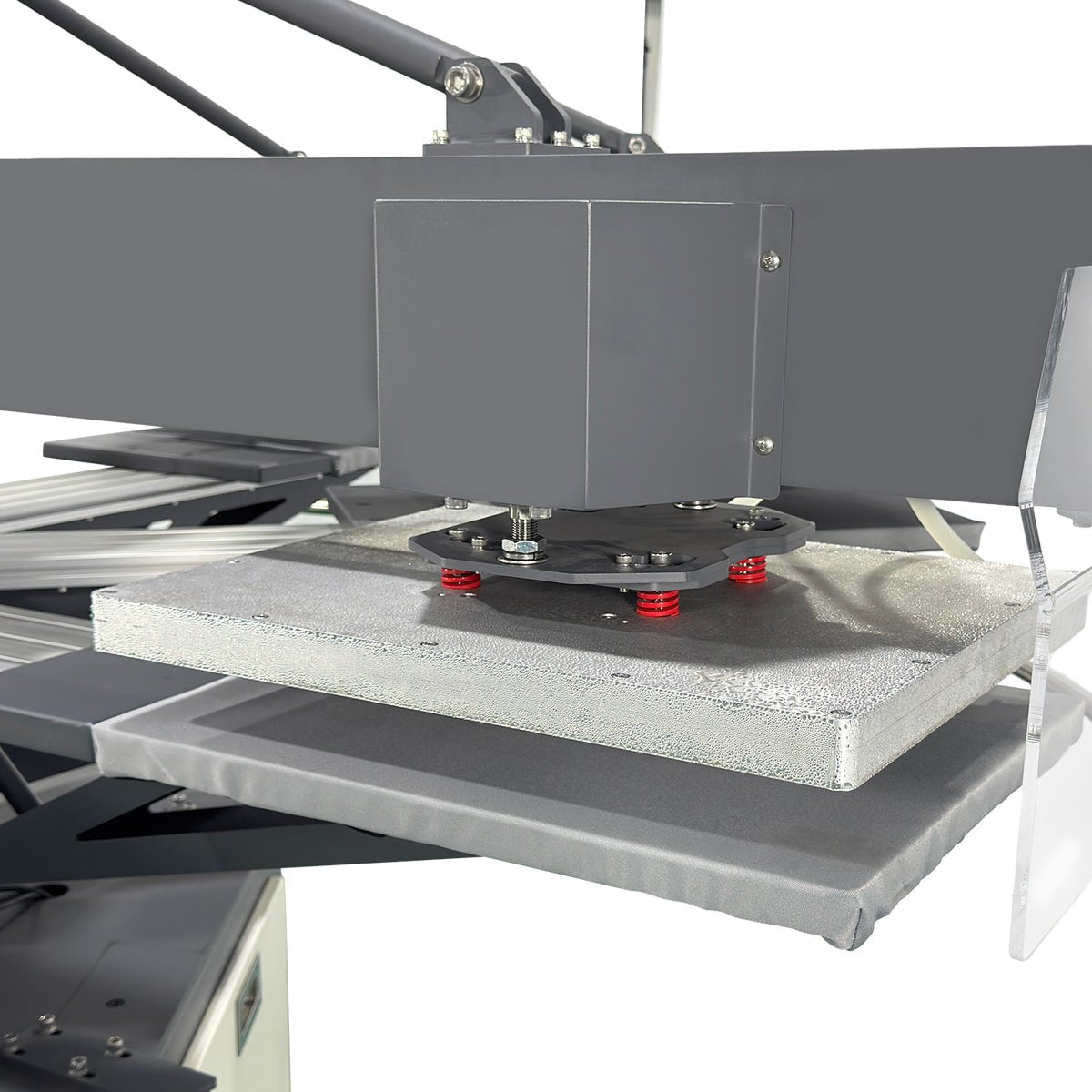

- 4 heads, 8 stations, 16" x 20" (40 x 50 cm) platens

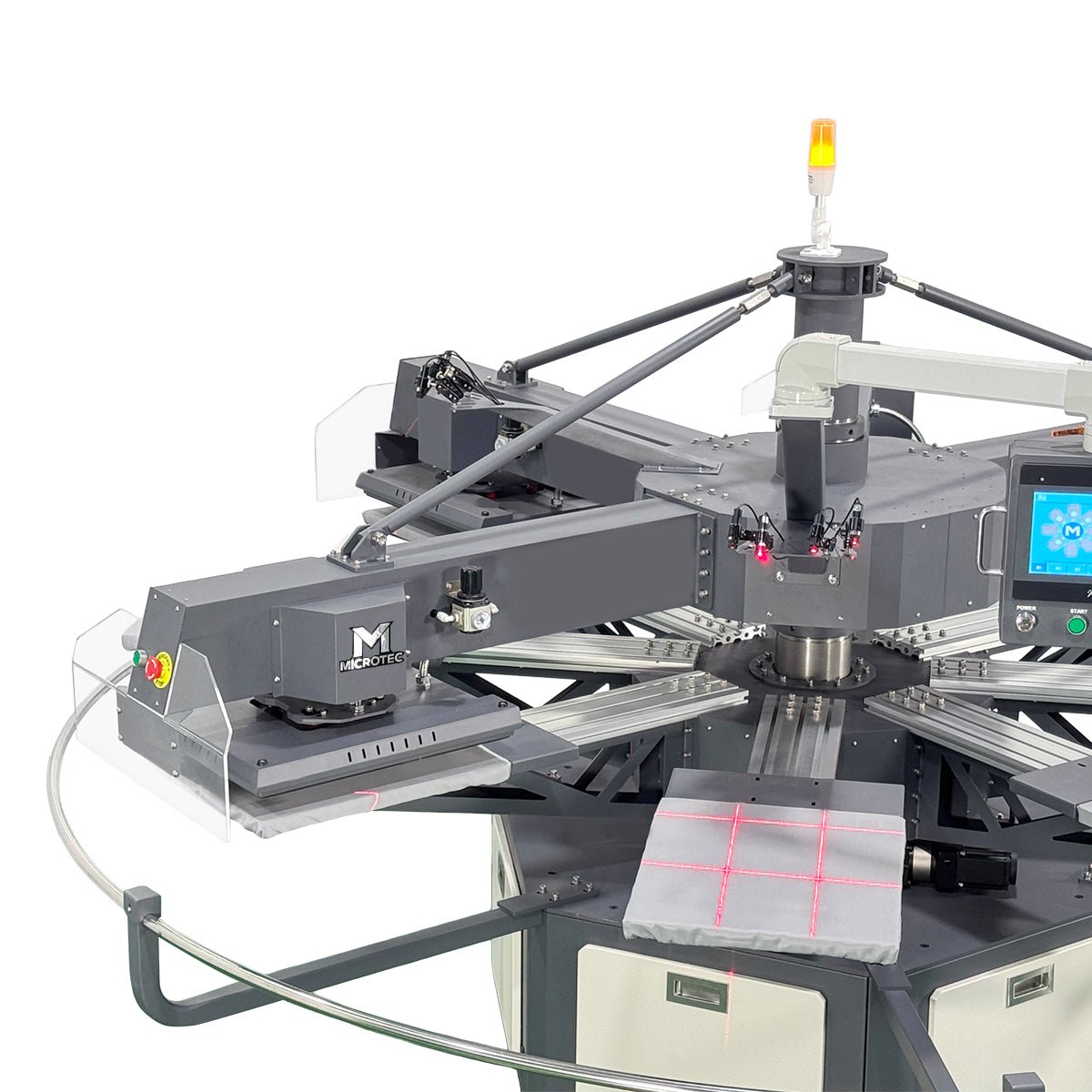

- Laser positioning for accurate garment placement

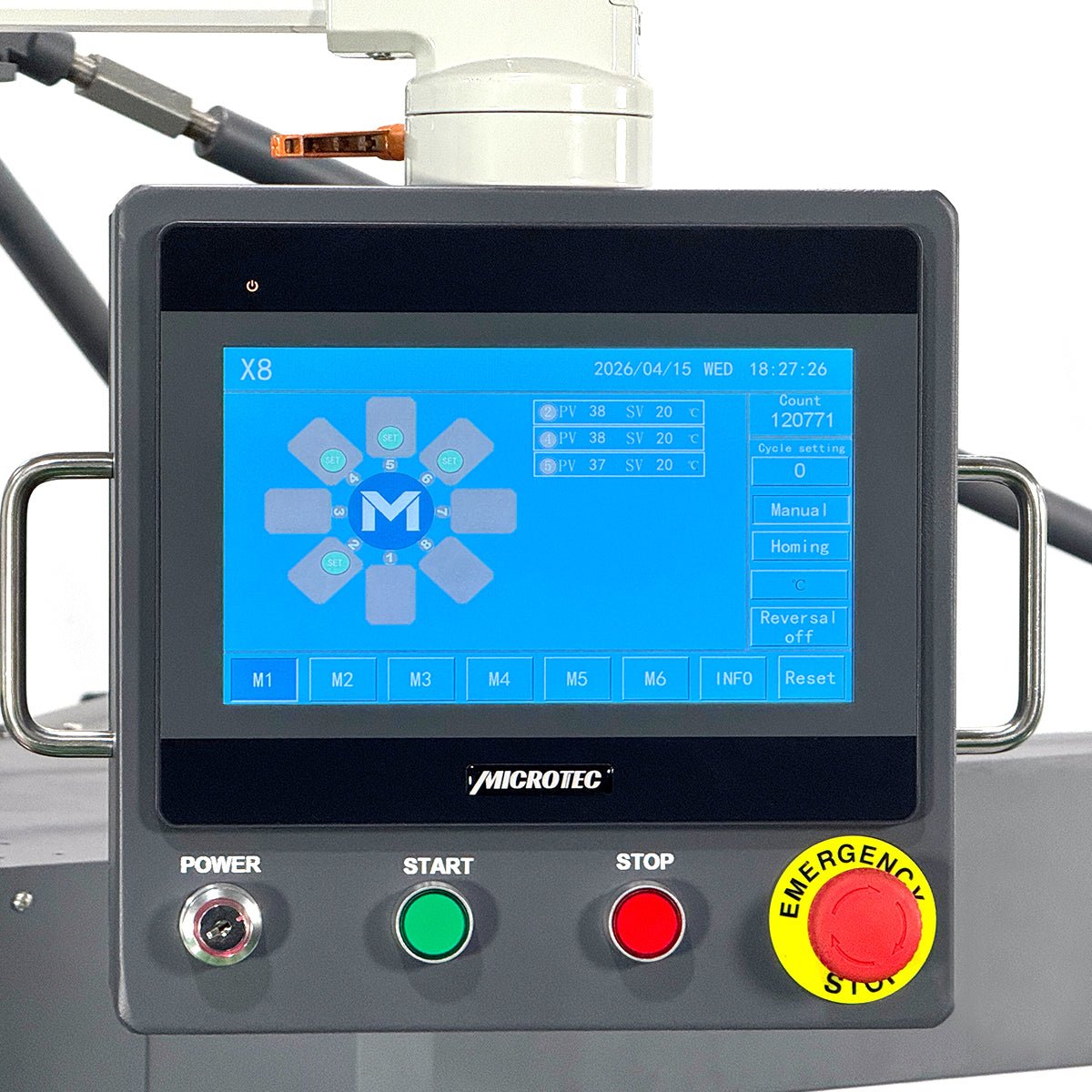

- Touchscreen PLC controller
- Integrated DTF transfer workflow with auto feeding, auto film peeling and auto collection
- Heavy-duty steel frame for continuous industrial use
Specifications
| Machine type | Full automatic carousel, laser positioning |
| Platen size | 16" x 20" (40 x 50 cm) |
| Under plate | 8 pcs 40 x 50 cm, rotary-positioned |
| Controller | PLC touchscreen controller |
| Air compressor required | Yes |
| Voltage | 220V 3 phase / 380V 3 phase |
| Power | 8.5 kW |
| Time range | 0 to 999 sec |
| Maximum temperature | 220°C |
| Machine size | 3000 x 3000 x 2000 mm |
| Cooling platen | 1 included |
| Packing size | 3105 x 2150 x 2250 mm |
| Machine weight | 1095 kg |
| Gross weight | 1350 kg (wooden package) |
Good to Know

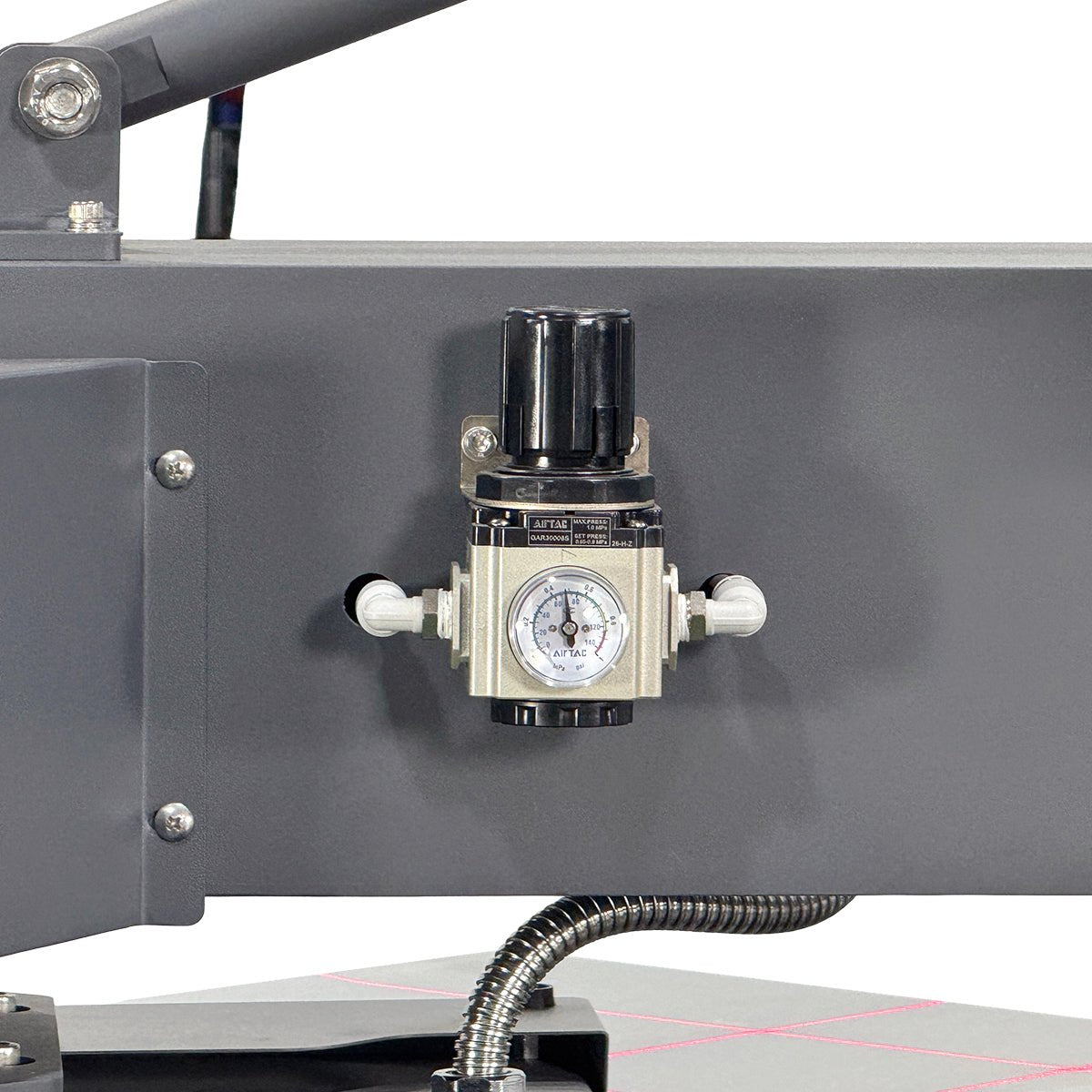

- Requires a compressed air supply.
- Freight shipment; contact us for shipping, installation and training options.
- Supplied under the MicroTec brand.
