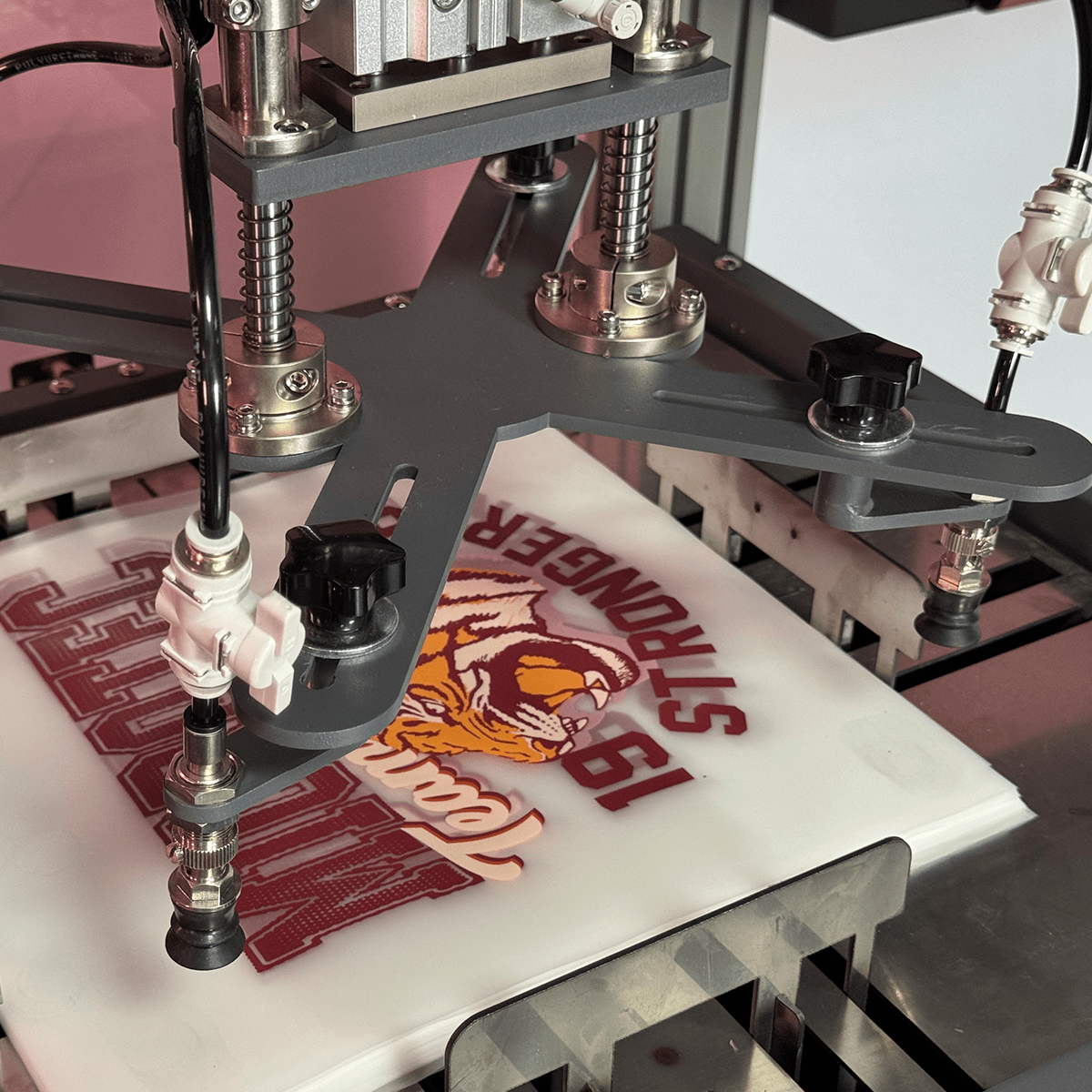

The MicroTec APEX X-Feed automates the start of your DTF workflow. Using vacuum suction and pneumatic power, it lifts, separates and places PET film or pre-cut transfers onto garments before pressing.
It reduces manual handling, improves alignment accuracy and keeps production running in sync with the APEX carousel presses.
Key Features

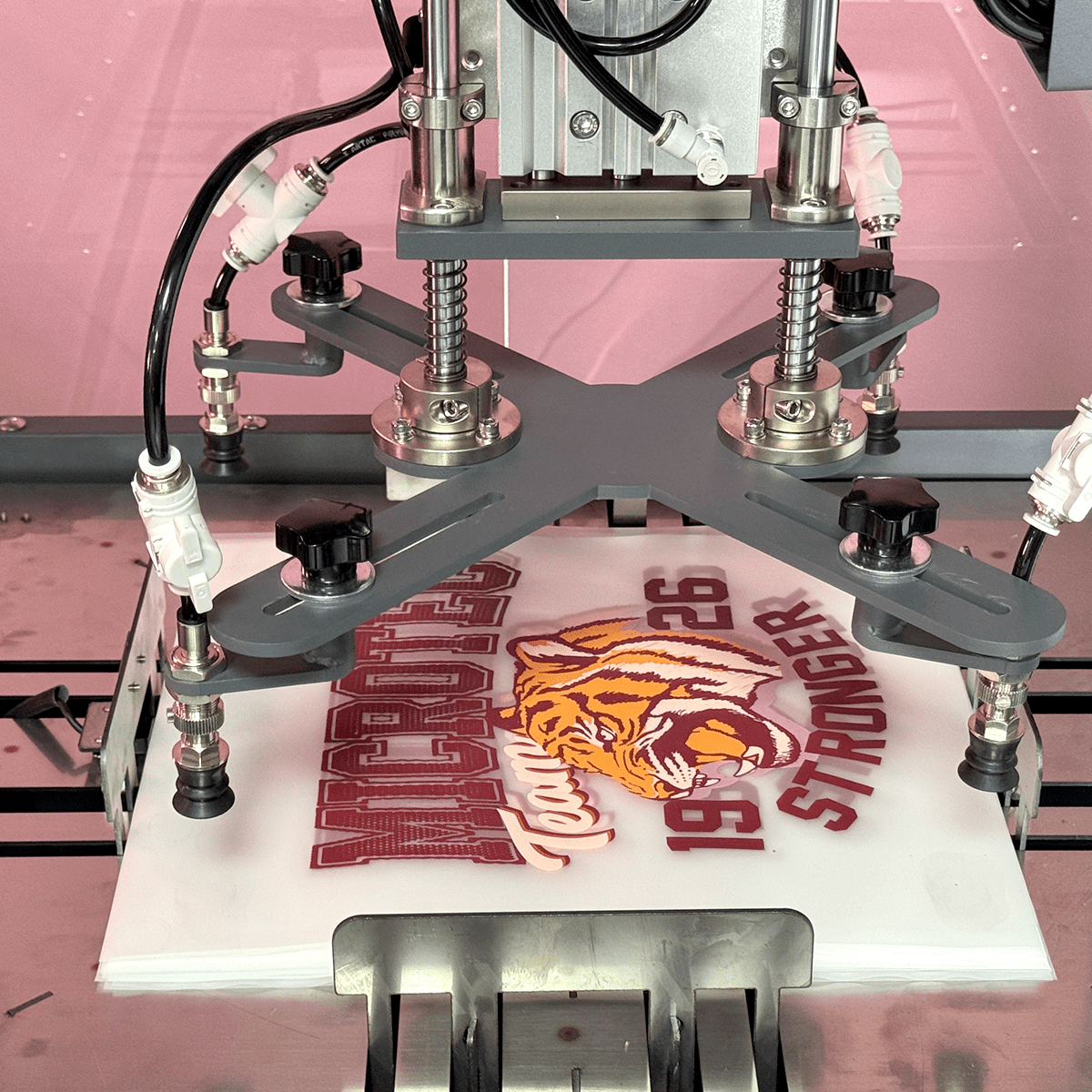

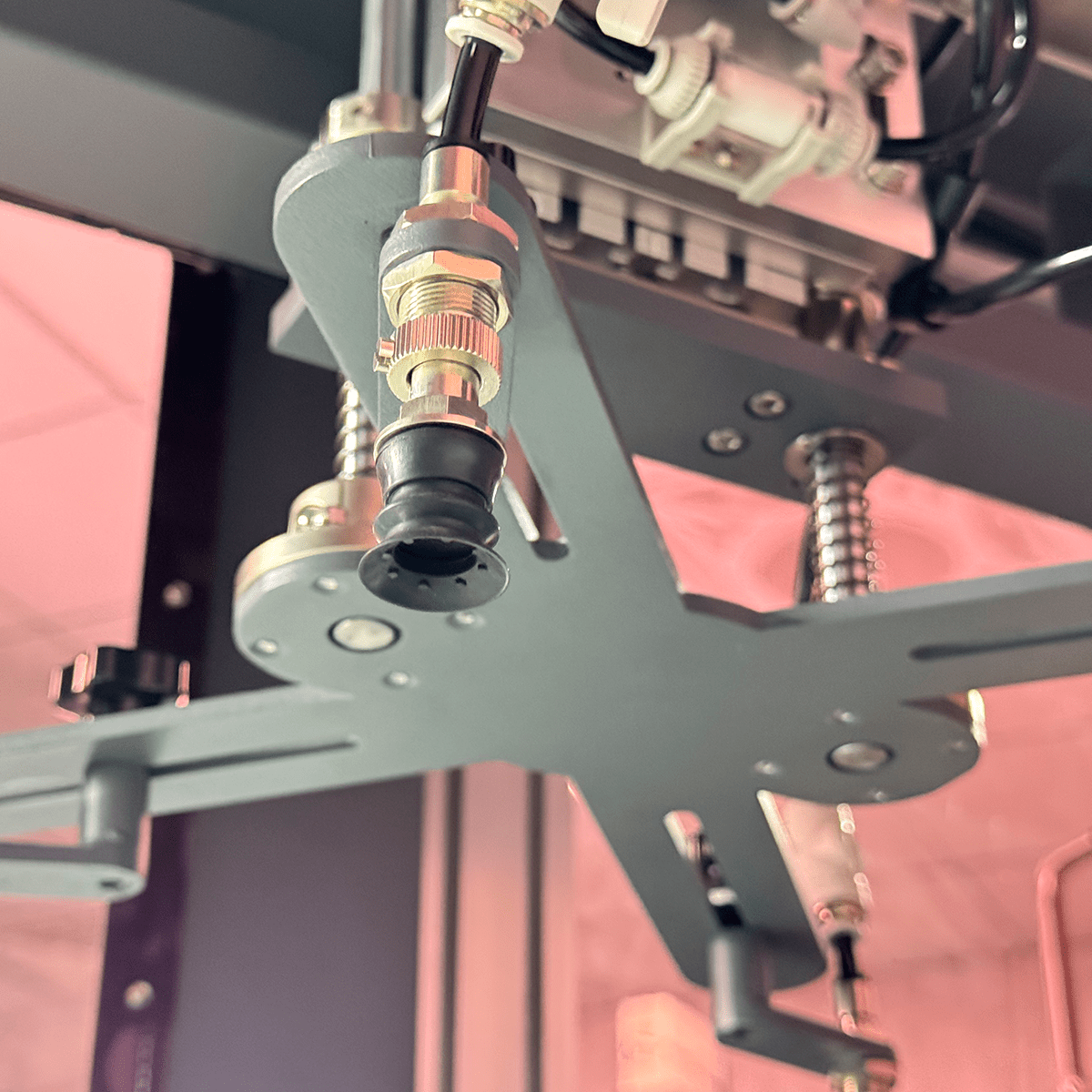

- Vacuum suction film pick-up with pneumatic placement
- Feeding size from 5 x 5 cm up to 40 x 50 cm (2" x 2" to 16" x 20")

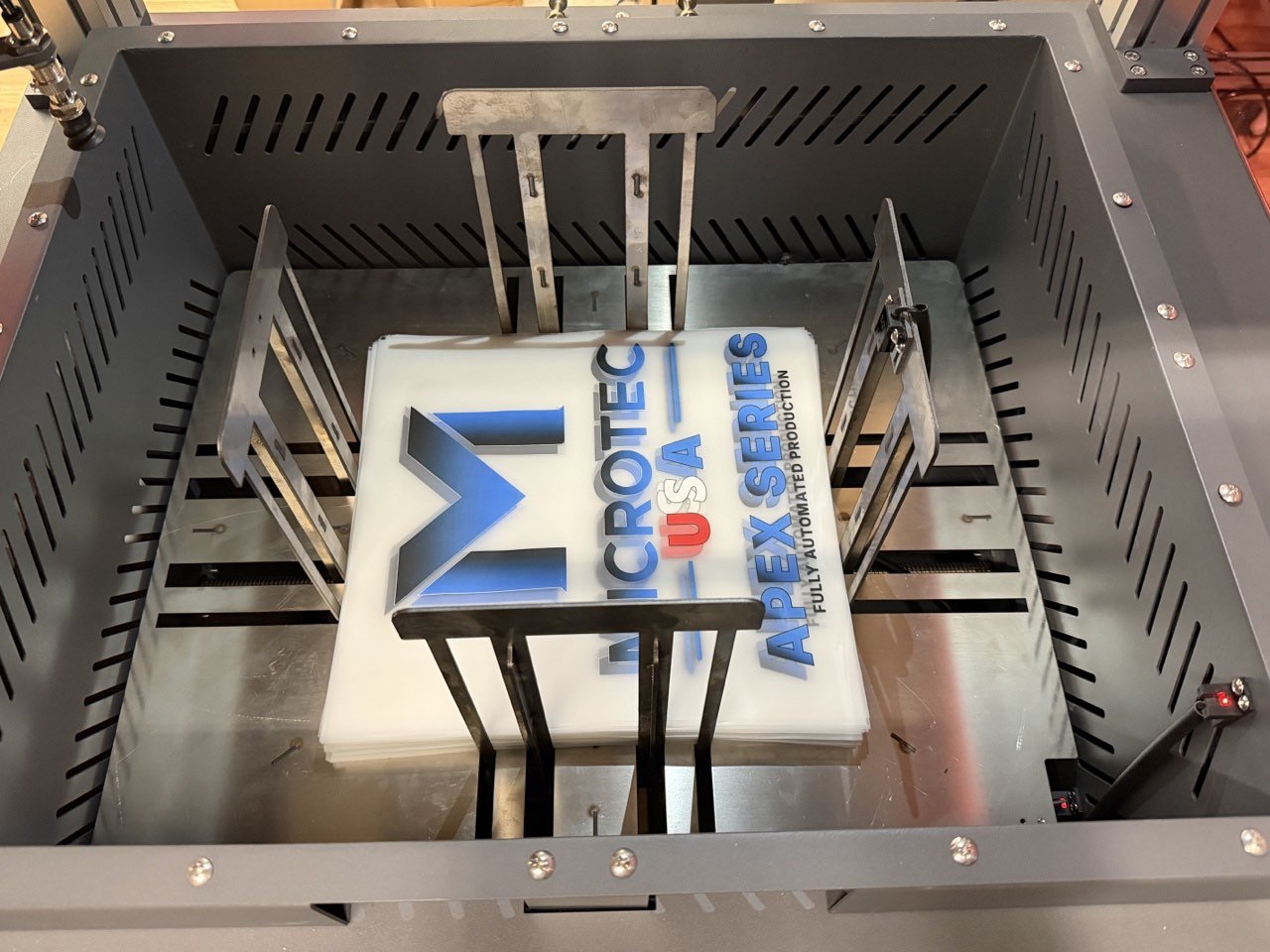

- High-capacity loading holds up to 450 DTF films at a time
- Works on t-shirts, tote bags, golf towels and more
- Runs in sync with the APEX X6 carousel
Specifications

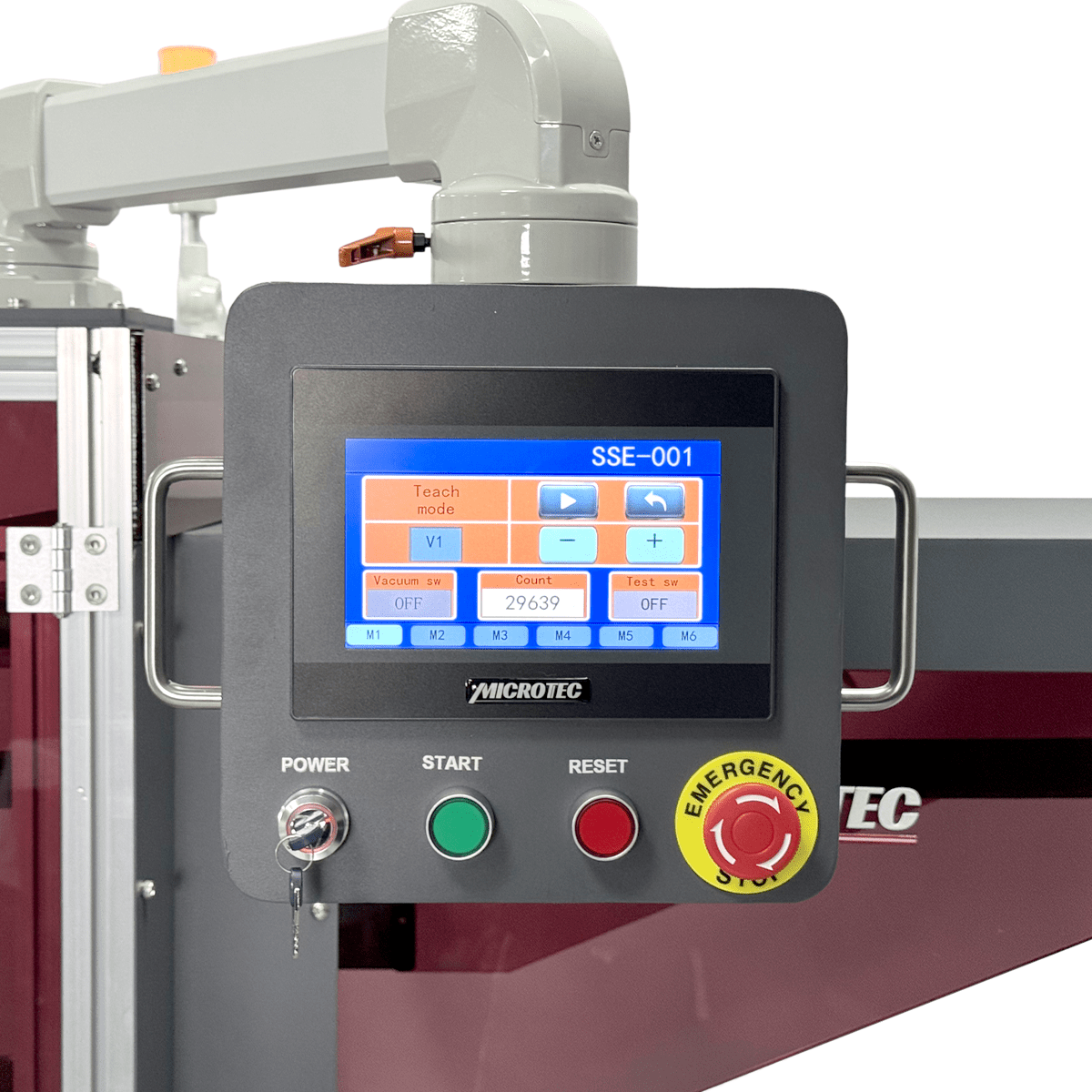

| Controller | PLC touchscreen controller |
| Feeding size | 5 x 5 cm to 40 x 50 cm |
| Air compressor required | Yes |
| Voltage | 220V |
| Power | 2 kW |
| Machine size | 165 x 69.7 x 170 cm |
| Packing size | 180 x 80 x 190 cm |
| Machine weight | 235 kg |
Good to Know
- Requires a compressed air supply.
- Freight shipment; contact us for shipping details.
- Supplied under the MicroTec brand.
