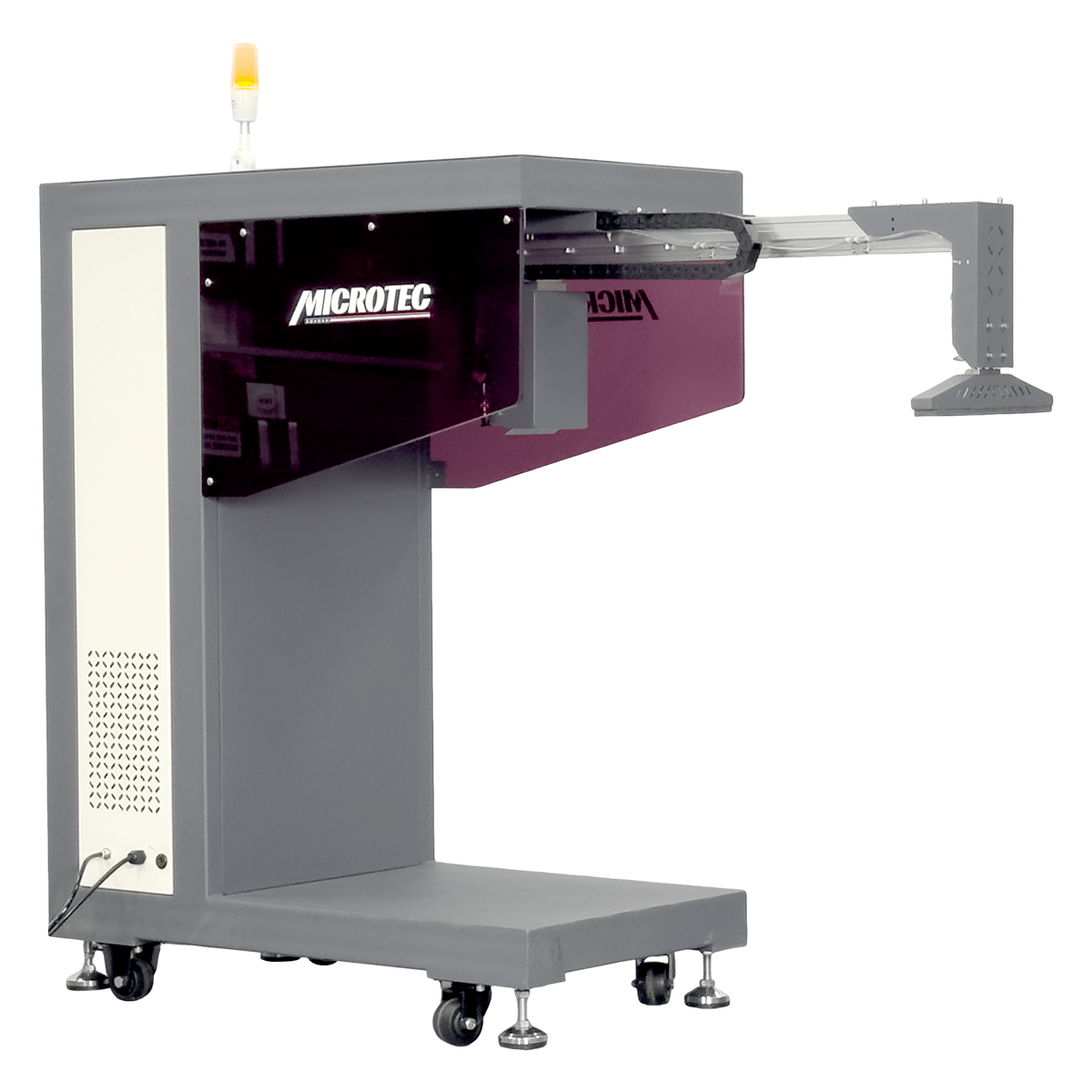

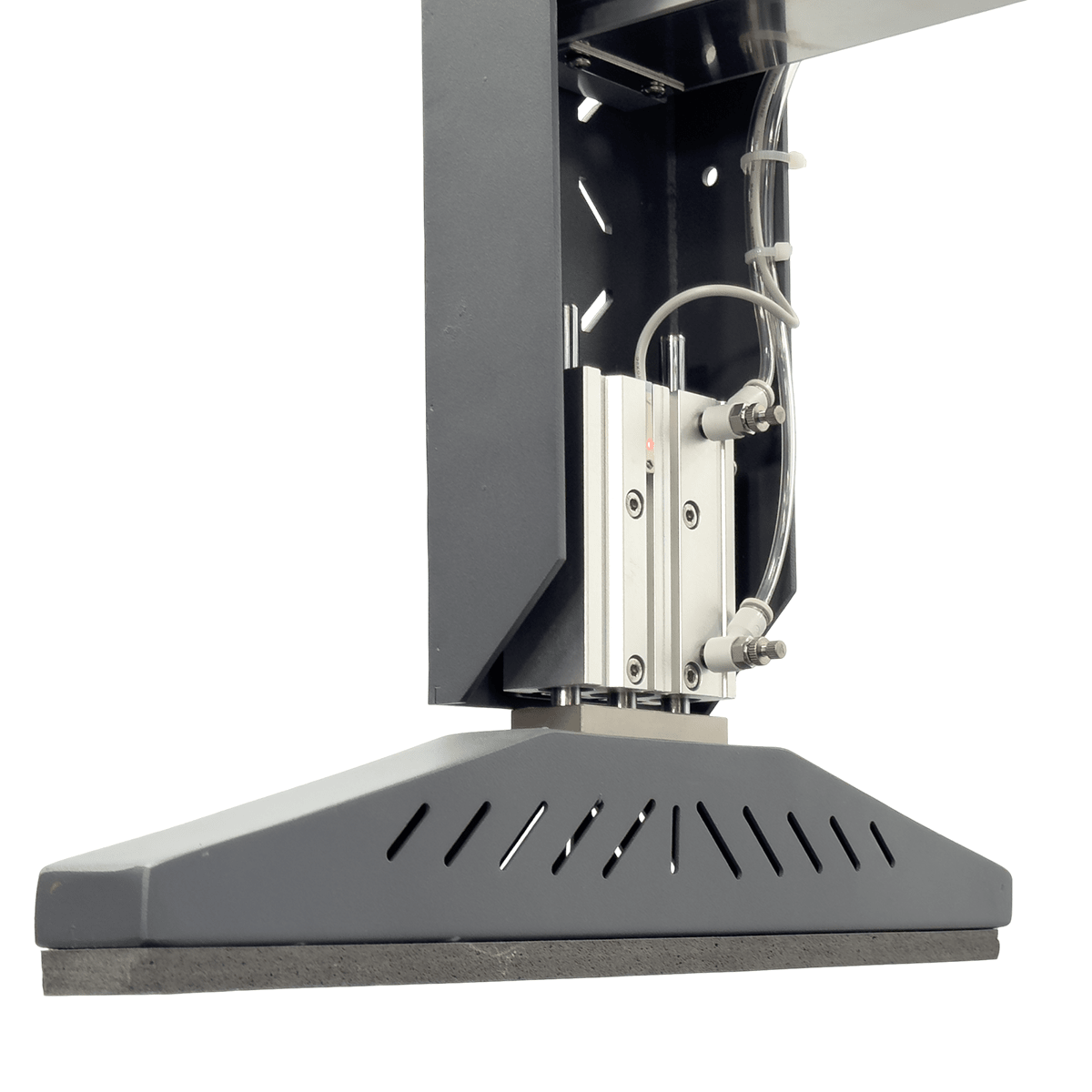

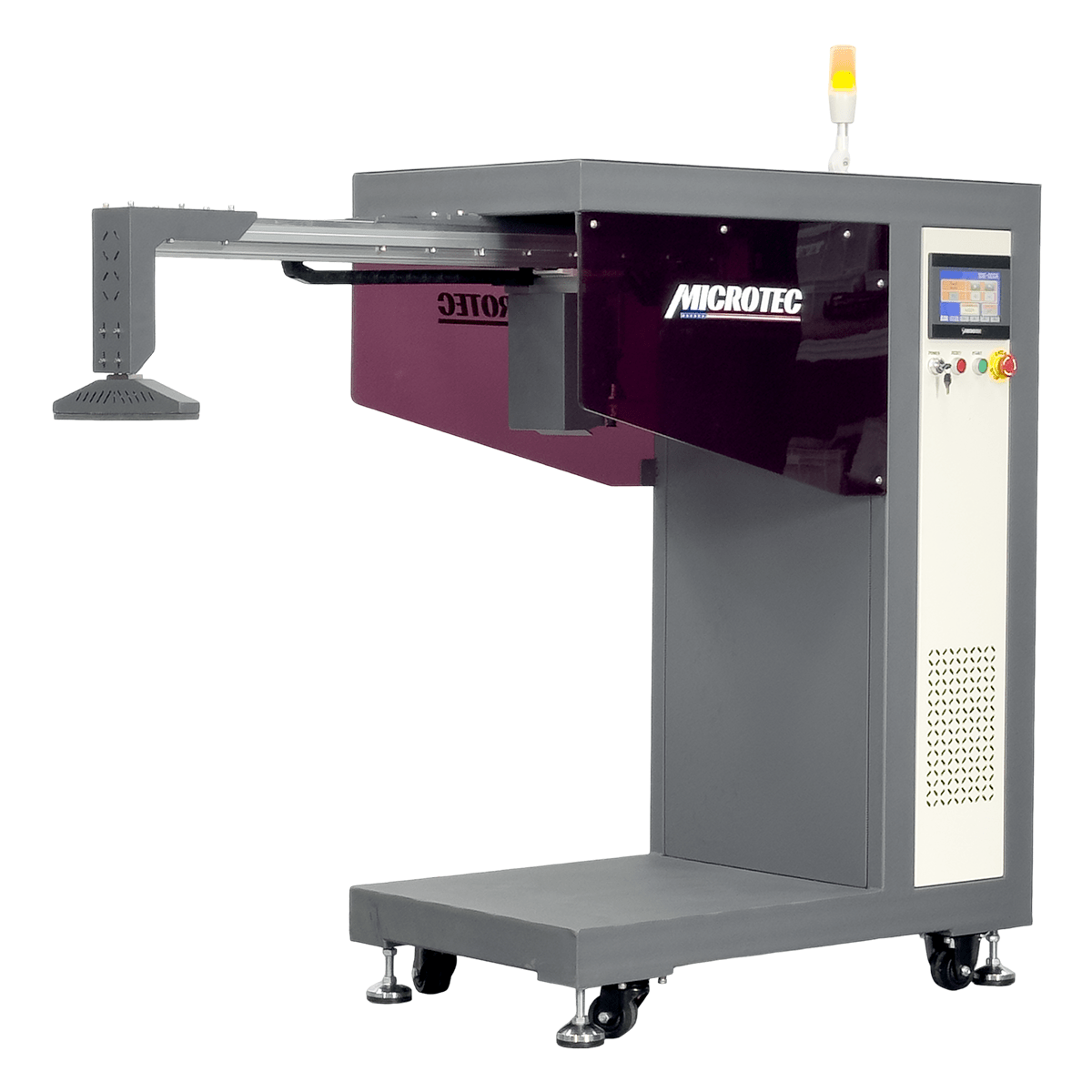

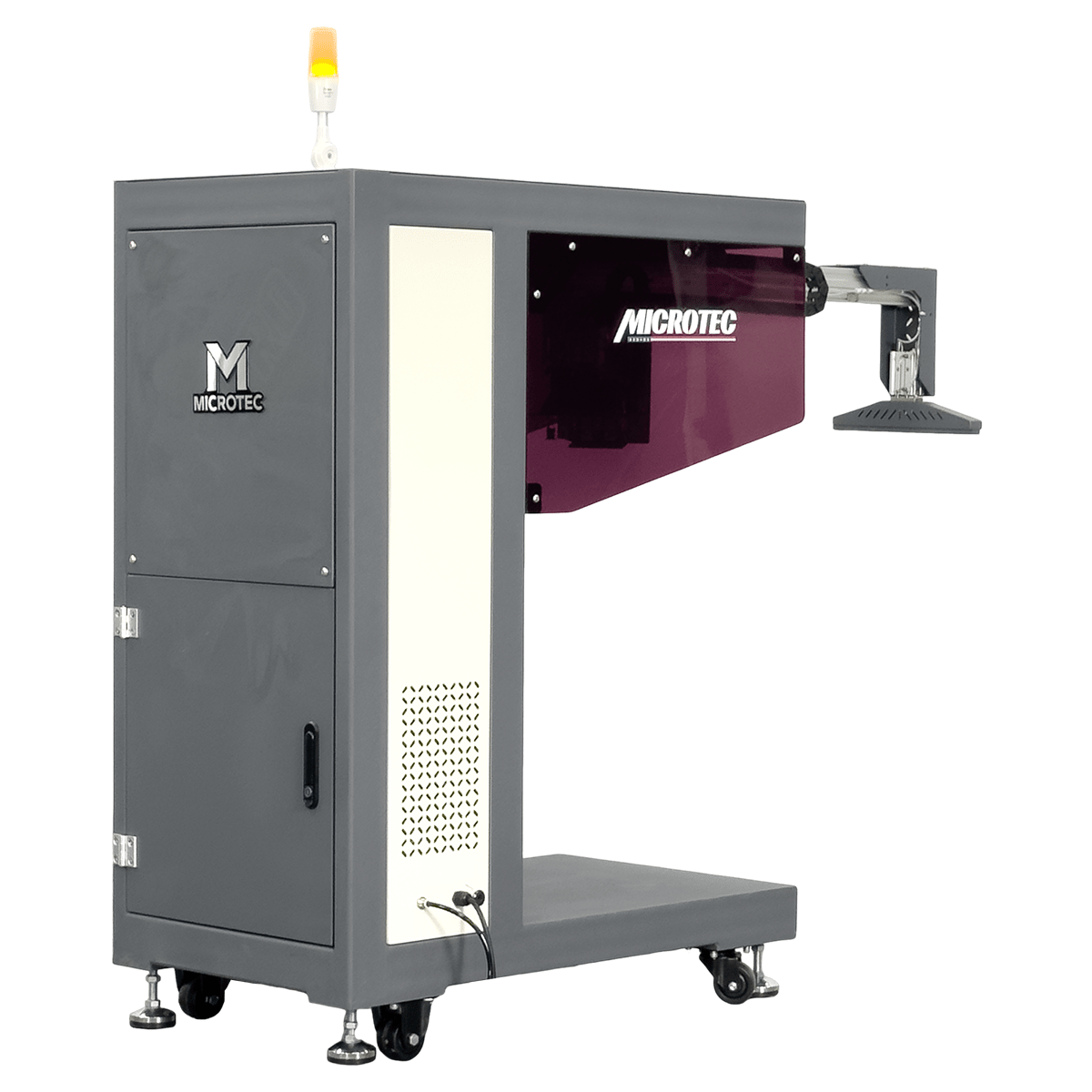

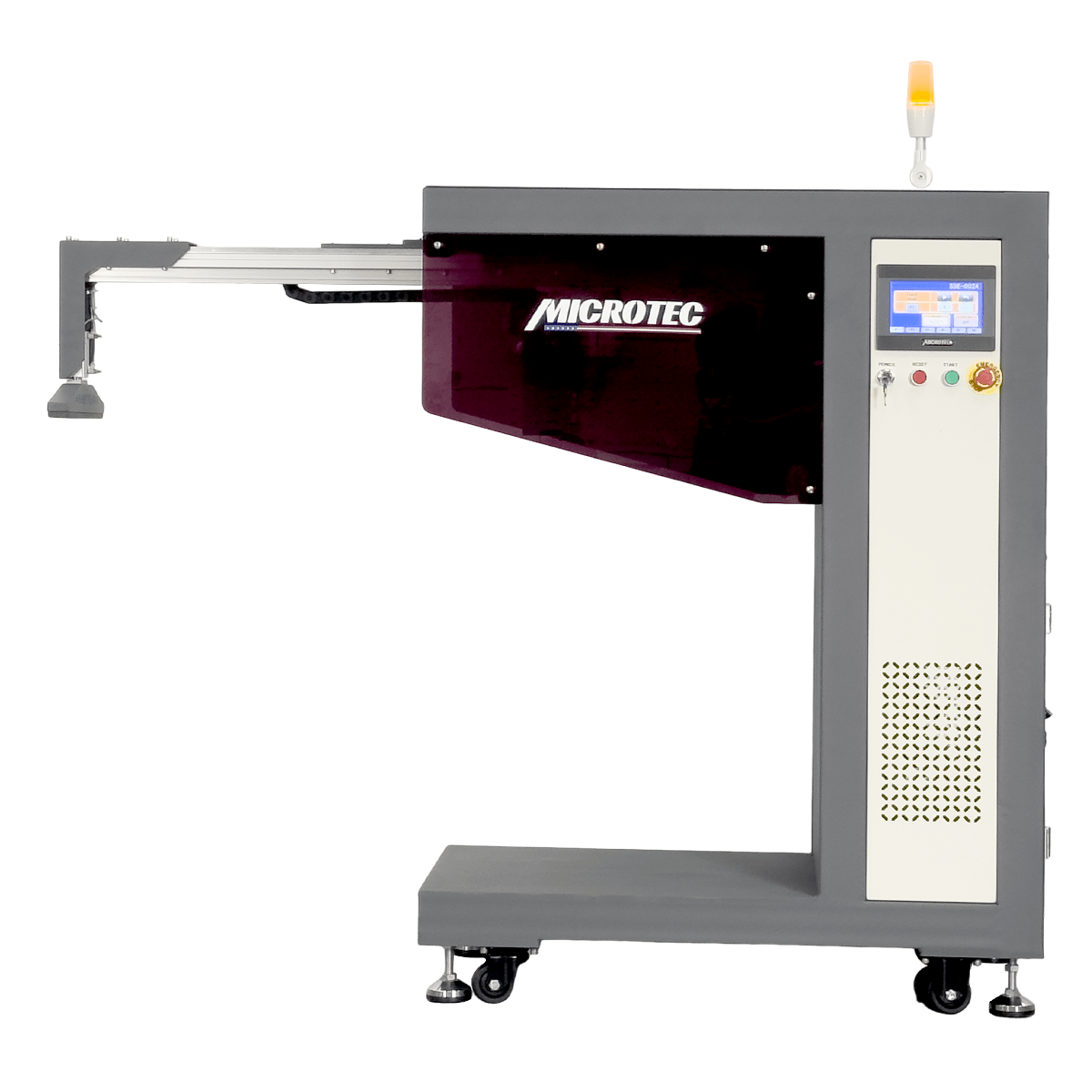

The MicroTec APEX X-Peel automates one of the most repetitive steps in DTF production. Using pneumatic power, it removes PET film from garments after pressing, accurately and consistently.
Operators can focus on loading garments while the X-Peel handles film removal in sync with the APEX X4, X6 or X8 carousel.
Key Features
- Automatic PET film peeling after heat pressing
- Adjustable speed and stroke length for different transfer sizes

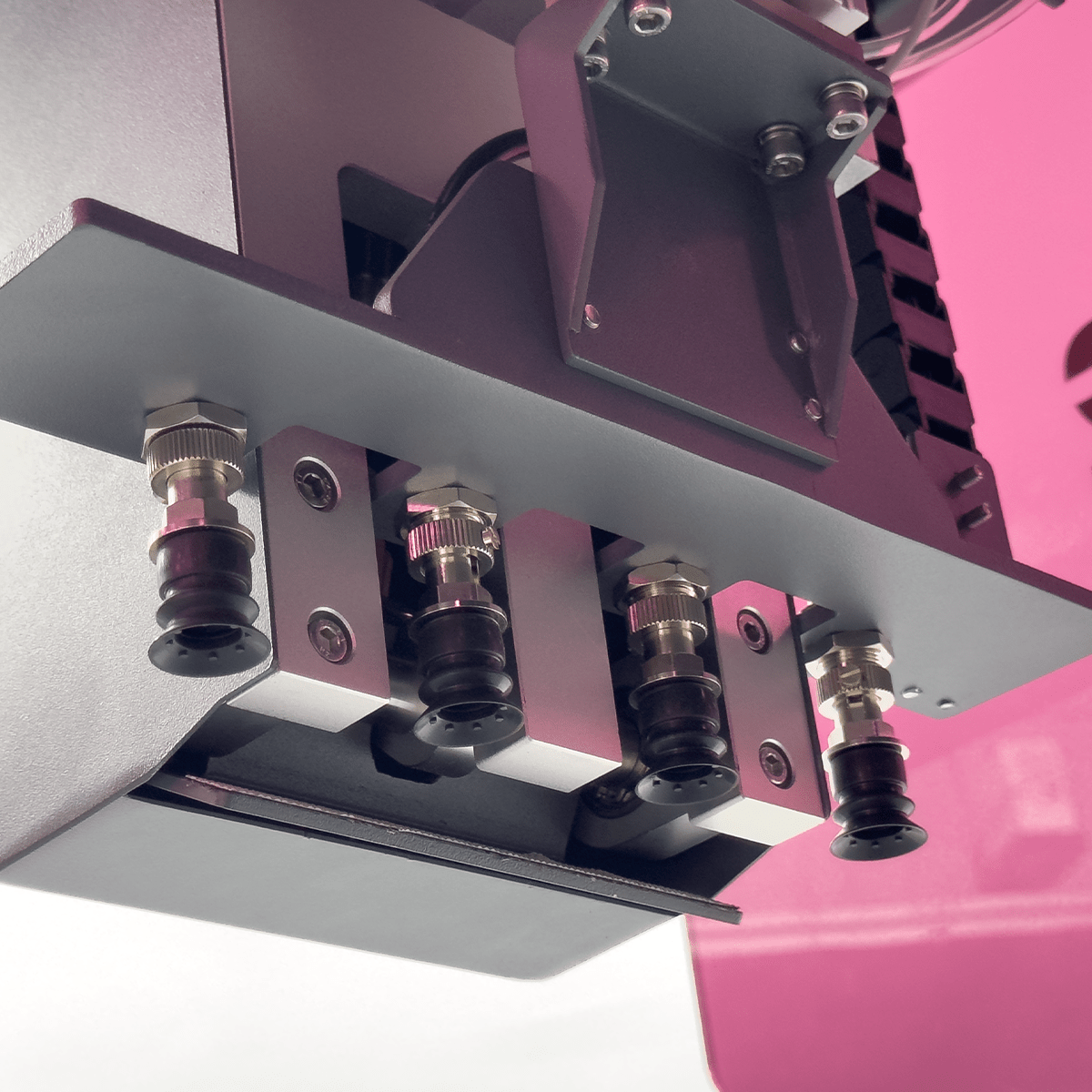

- Laser alignment marker for accurate film pick-up
- Reduces operator fatigue and manual handling
- Works with the APEX X4, X6 and X8 carousels
Specifications

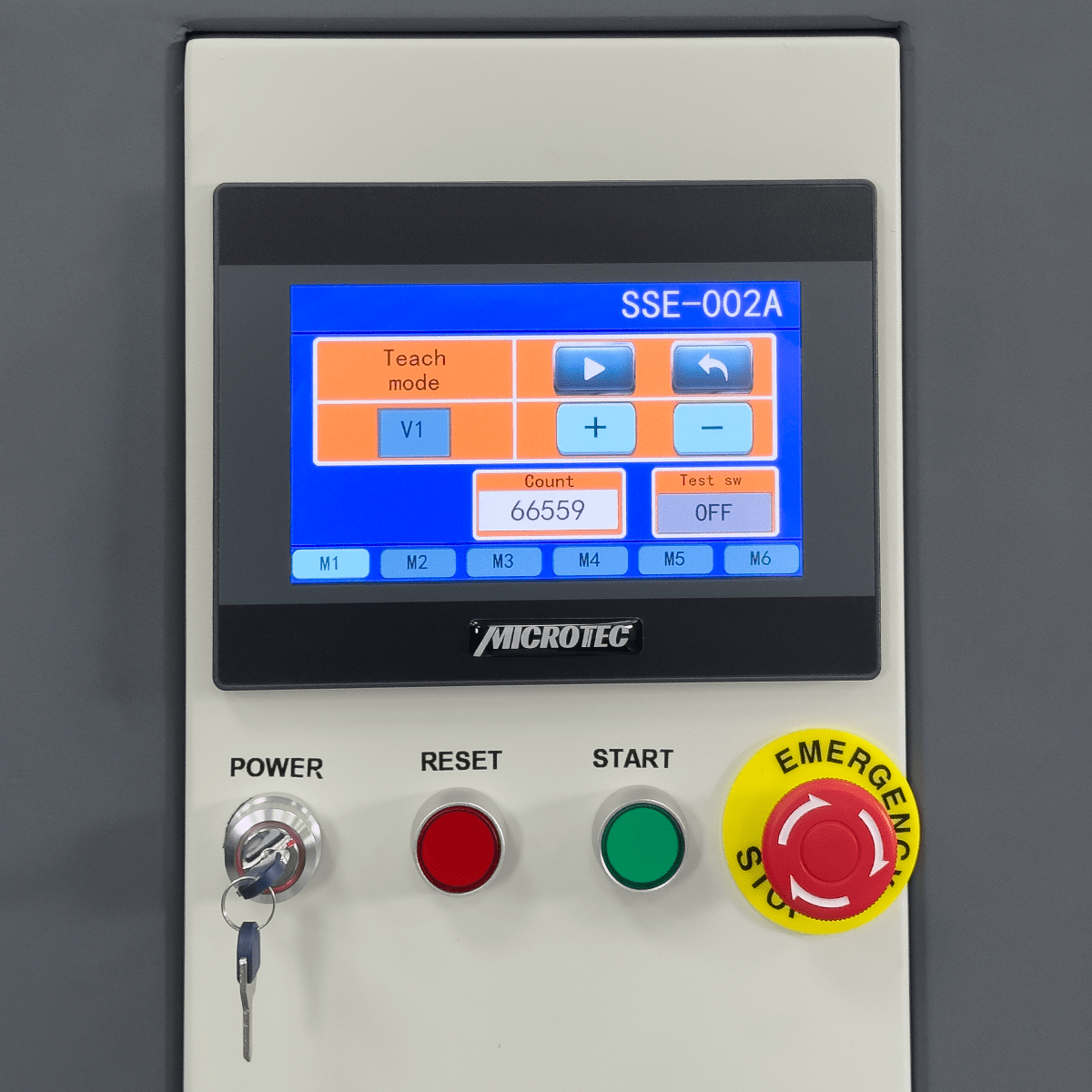

| Controller | PLC touchscreen controller |
| Feeding size | 5 x 5 cm to 40 x 50 cm |
| Air compressor required | Yes |
| Voltage | 220V |
| Power | 1.5 kW |
| Machine size | 165 x 65 x 170 cm |
| Packing size | 183 x 80 x 182 cm |
| Machine weight | 180 kg |
| Gross weight | 270 kg |
Good to Know
- Requires a compressed air supply.
- Freight shipment; contact us for shipping details.
- Supplied under the MicroTec brand.
