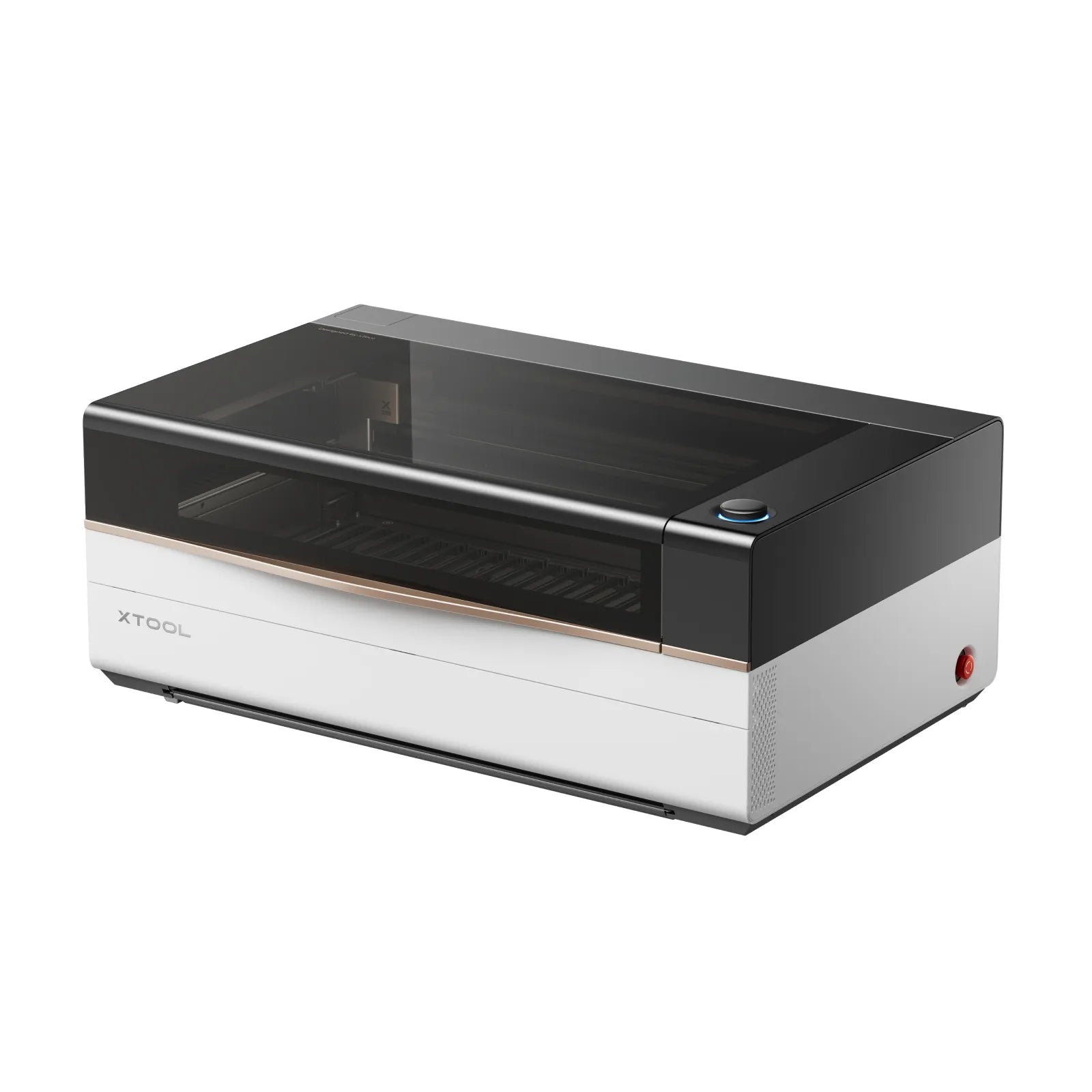

xTool P3 Laser Engraver
xTool P3 80W CO₂ Laser Cutter: Industrial Power Meets Intelligent Automation
The xTool P3 is a flagship 80W CO₂ laser cutter built for businesses, studios, makers, schools, sign shops, woodworkers, and production teams that need industrial-level cutting power without industrial-level complexity.
With a large 36" × 18" working area, 80W CO₂ laser power, smart 4-camera vision, LiDAR autofocus, AutoLift base, and xTool’s Automated Creation System™, the P3 is designed to help you cut, engrave, position, preview, and produce with greater speed and confidence.
From acrylic signs and wood products to leather goods, glass engraving, packaging, décor, displays, furniture components, and production runs, the xTool P3 gives growing businesses the workspace, automation, and power needed to scale.
Quick Specs
| Laser Type | 80W CO₂ Laser |
| Optional Laser Module | 5W IR Laser Module for Metal Engraving |
| Working Area | 36" × 18" (915 mm × 458 mm) |
| Maximum Speed | 1200 mm/s |
| Wood Cutting | Up to 20 mm Basswood in One Pass |
| Acrylic Cutting | Up to 25 mm Acrylic in One Pass |
| Maximum Processing Height | 8.66" (220 mm) |
| Camera System | 16MP SkyView Camera + Close-Range Camera + 2 Side Cameras |
| Autofocus | LiDAR Ranging System + AutoLift Base |
| Software | xTool Studio |
| Compatibility | Windows & macOS |
Compare Packages

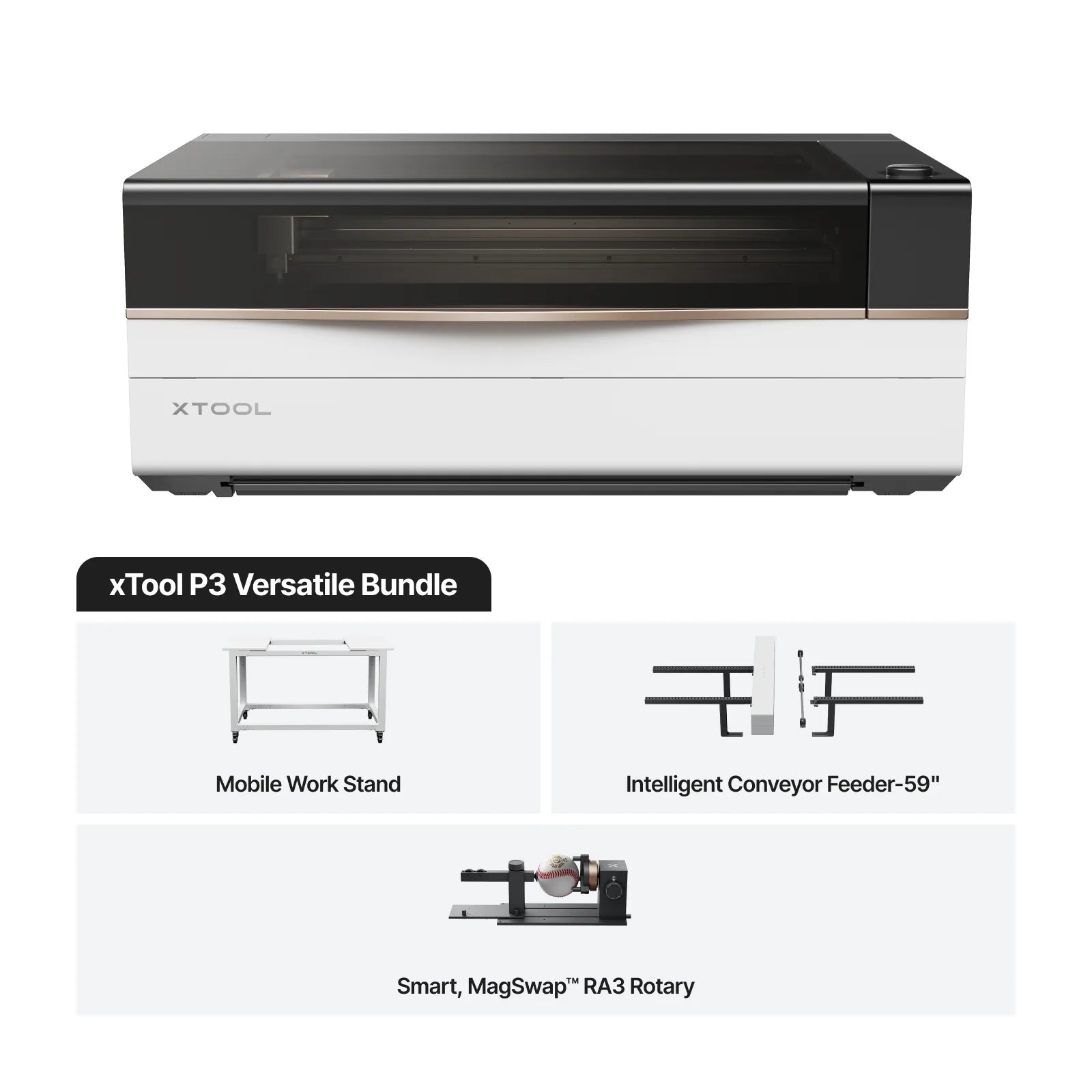

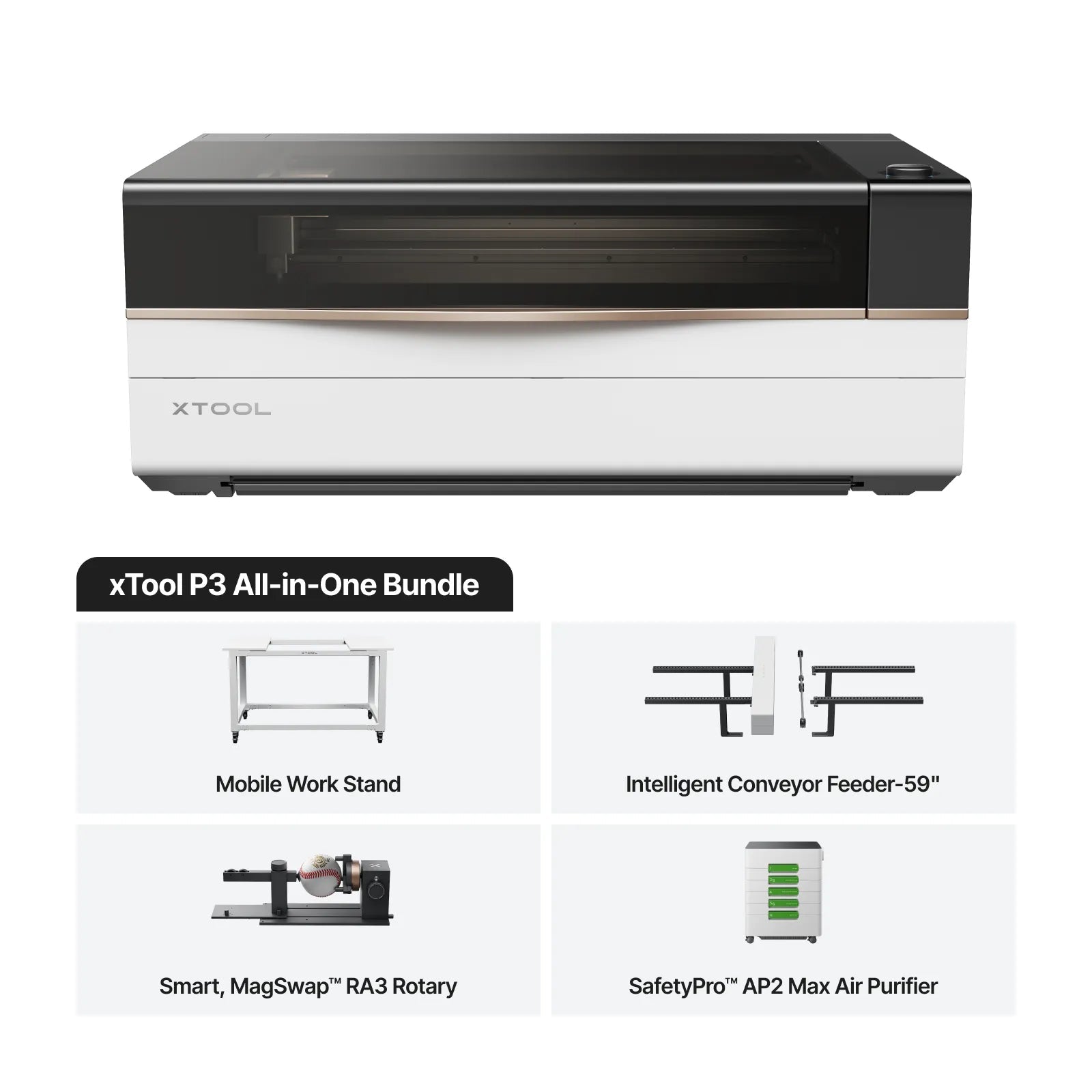

| Feature | P3 Standalone | P3 Versatile Bundle | P3 All-in-One Bundle |
|---|---|---|---|
| xTool P3 80W CO₂ Laser Cutter | ✔ | ✔ | ✔ |
| IF2 2.0 Inline Fan | ✔ | ✔ | ✔ |
| Expanded Workflow Accessories | Basic | Enhanced | Most Complete |
| Production Automation | Standard | Enhanced | Maximum |
| Best For | Existing shops or users who already own accessories | Growing businesses that want more production flexibility | Professional shops that want the most complete P3 setup |
Why Choose the xTool P3?
80W CO₂ Power for Serious Cutting
The P3’s 80W CO₂ laser delivers the power needed for cleaner, faster cuts on thick materials. It can cut up to 20 mm basswood and up to 25 mm acrylic in one pass, making it ideal for production work, signage, displays, décor, packaging, and custom products.
- Cut thicker materials faster
- Produce cleaner acrylic edges
- Reduce charring compared to lower-power systems
- Handle larger commercial projects
- Improve productivity for high-volume jobs
Large 36" × 18" Working Area
The P3 gives you xTool’s largest desktop laser workspace yet. With a 36" × 18" bed, you can work on larger signs, panels, templates, product batches, packaging pieces, and oversized creative projects without constantly repositioning material.
Automated Creation System™
xTool’s Automated Creation System™ helps simplify the laser workflow by combining smart vision, LiDAR ranging, motion control, autofocus, auto-positioning, and the AutoLift base into one seamless process.
- Auto-positioning
- Autofocus
- LiDAR ranging
- AutoLift base
- Smart camera preview
- Reduced manual setup
4-Camera Vision System
The P3 uses a 16MP SkyView panoramic camera, a close-range camera, and two side cameras to improve positioning, preview accuracy, and safety monitoring. This helps users align designs more confidently across large materials and detailed projects.
LiDAR Autofocus and AutoLift Base
The integrated LiDAR system measures material height with high accuracy, while the AutoLift base automatically positions your material at the optimal working height. This makes setup easier and helps produce more consistent results across different material thicknesses.
Built for Large-Format Production
When paired with the Intelligent Conveyor Feeder, the P3 can expand beyond the standard bed size and support longer materials for large-format production. This makes it a strong choice for signage, furniture components, long panels, décor, and batch production.
Smart Rotary Engraving with RA3
The optional MagSwap™ RA3 Rotary makes it easier to engrave tumblers, mugs, bottles, rings, ornaments, and other round or curved objects. With 360° LiDAR Mapping™, users can preview their design on the object before engraving.
Ideal Applications
- Acrylic signs
- Wood signage
- 3D signage
- Wall décor
- Retail displays
- Packaging prototypes
- Architectural models
- Custom furniture components
- Leather menus
- Wedding décor
- Corporate gifts
- Glass engraving
- Wood cutting
- Acrylic cutting
- Batch production
- Large-format creative projects
Materials You Can Cut and Engrave
Cuttable Materials
- Wood
- Acrylic
- Fabric
- Leather
- Paper
- Cardboard
- And more compatible CO₂ laser materials
Engravable Materials
- Glass
- Bamboo
- Ceramic
- Leather
- Wood
- Acrylic
- Coated materials
- Metal with compatible marking methods or optional IR module
Professional Features
- 80W CO₂ Laser Power
- 36" × 18" Working Area
- Up to 1200 mm/s Speed
- Automated Creation System™
- LiDAR Ranging System
- AutoLift Base
- 4-Camera Vision System
- Smart Camera Preview
- Class 1 Safety Certification
- Built-In Flame Detection
- Temperature Monitoring
- Dual-Side Camera Monitoring
- Compatible with Intelligent Conveyor Feeder
- Compatible with MagSwap™ RA3 Rotary
- Compatible with Optional 5W IR Laser Module
- Compatible with xTool Studio
Technical Specifications
| Laser Type | 80W CO₂ Laser |
| Optional Laser Module | 5W IR Laser Module |
| Processing Modes | Laser Cutting and Laser Engraving |
| Working Area | 36" × 18" (915 mm × 458 mm) |
| Maximum Working Speed | 47.2 ips (1200 mm/s) |
| Maximum Basswood Cutting | 0.79" (20 mm) in One Pass |
| Maximum Acrylic Cutting | 0.98" (25 mm) in One Pass |
| Maximum Processing Height | 8.66" (220 mm) |
| Maximum Rotary Engraving Diameter | 0–7.87" (0–200 mm) |
| Camera System | 16MP SkyView Camera + Close-Range Camera + 2 Side Cameras |
| Positioning Method | Dual-Camera Positioning |
| Focus Mode | Autofocus |
| Ranging System | LiDAR Ranging System |
| Positioning Precision | 0.0079" (0.2 mm) |
| Motion Accuracy | 0.00039" (0.01 mm) |
| Software | xTool Studio |
| Operating System | Windows / macOS |
| Connection | USB / WiFi |
| Supported Files | SVG, DXF, JPG, JPEG, PNG, BMP, TIF |
| Product Dimensions | 49.2" × 30.7" × 19.5" (1250 mm × 780 mm × 496 mm) |
| Product Weight | 231.5 lb (105 kg) |
| Maximum Machine Input Power | 1400 W |
Safety and Ventilation
The xTool P3 is designed with multi-layer safety protection, including Class 1 laser safety certification, smart detection, flame sensors, temperature monitoring, and camera-based visual monitoring.
An IF2 2.0 Inline Fan is included with the P3. For heavy-duty cutting, long production sessions, or indoor workflows, proper ventilation and air purification are strongly recommended.
Built for Business Growth
The xTool P3 is built for users who need more than a hobby laser. It combines the cutting power, bed size, speed, safety, and automation required for serious production while keeping the workflow approachable for growing businesses.
Whether you are upgrading from a diode laser, moving beyond a smaller CO₂ machine, or building a professional laser production workflow, the P3 gives you the power to take on bigger jobs, produce faster, and unlock higher-value projects.
