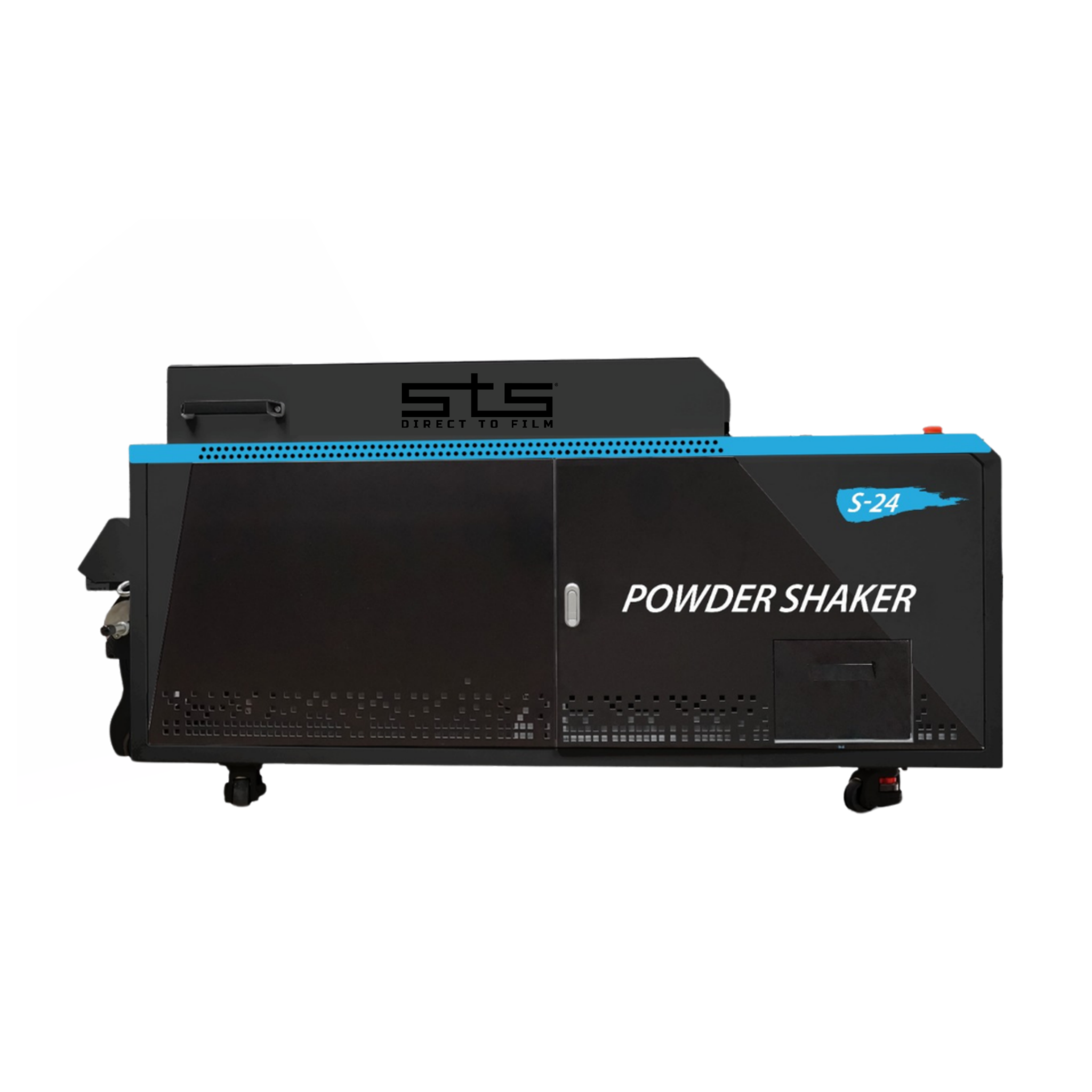

The S24 handles powder application on 24" (60cm) film automatically, so the coverage on your 500th transfer matches the coverage on your first. If you're still shaking film by hand, this is the point where that stops making sense.
The filtration is built around one specific problem: glycol off-gassing from DTF ink. That's what actually wears out filters early on most shakers, and it's the thing this unit is designed to handle, so you're not replacing filters every few weeks.
What it does
- Automatic powder application: Even coverage, every pass, no manual shake timing to guess at.
- Extended filter life: Filtration built around glycol off-gassing specifically, not general dust.
- HMI adjustable temperature: Set the cure temp your film and powder actually need.
- 5.5" touch screen: Straightforward controls, no digging through menus.
- Top and bottom infrared drying: Cures both sides of the film, faster and more evenly.
- Automatic TPU powder weight control: Consistent powder use, less overspend on excess powder.
- Vacuum conveying system: Moves powder through the unit instead of letting it settle.
- High voltage static filtration: Cuts down static buildup during the shake.
- Built-in HEPA + charcoal air purifier: Cleaner air in the shop, not just in the machine.
- Auto/manual interface: Run it hands-off, or take manual control when you need to.
- Tension feed/take-up reel: Keeps film handling smooth and consistent.
- Fits a standard 32" door: No special access needed to get it into your shop.
Full specifications
| Spec | Detail |
|---|---|
| Shaker width | 24" / 60cm |
| Temperature control | HMI adjustable |
| Display | 5.5" touch screen |
| Drying | Top and bottom infrared |
| Operation mode | Auto / manual |
| Powder control | Automatic TPU powder weight |
| Door clearance | Standard 32" door |
| Film handling | Tension feed / take-up reel |
| Powder handling | Vacuum conveying system |
| Static control | High voltage static electricity filtration |
| Air filtration | Built-in air purifier, charcoal + HEPA filter |
| Safety rating | UL field rated available |
Pairs with
Runs alongside the STS XPD-924D printer and STS inks. Printer, ink, powder, and shaker are built by the same company to run as one system, not four separate parts you're troubleshooting against each other.
Contact us about that bundle if you are interested.
Questions people actually ask
Yes. It's built for a standard 32" door, so shop placement isn't a project.
Yes, that's what the filtration is built around. The charcoal and HEPA air purifier also helps with general shop air quality.
Both. Auto/manual interface, so you pick.
Medium to large volume. If hand-shaking is already slowing your line down, this is the next step up.
