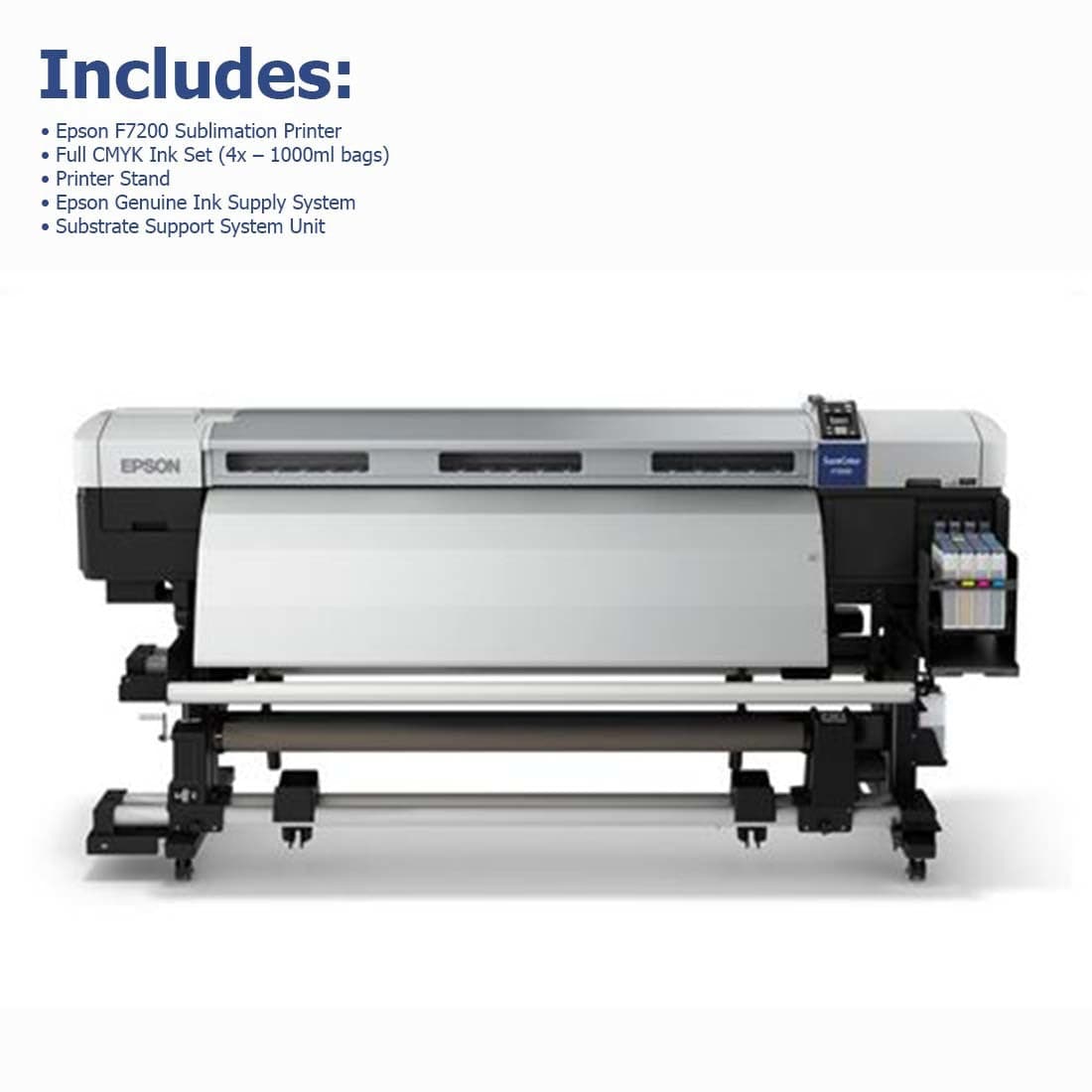

Engineered from the ground up for Dye-Sublimation industrial textile, roll-to-roll manufacturing, designed to run all day, every day, the Epson SureColor F7200 offers a range of features.
-
Fast print speeds — up to 634 square feet per hour*
*Print times are based upon print engine speeds only. Total throughput depends upon front-end driver/RIP, file size, printing resolution, ink coverage, network speed, etc. -
Astounding image quality — highly efficient UltraChrome® DS with High Density
Black Ink technology delivers extraordinary color saturation and high color contrast - True roll-to-roll support — high-accuracy take-up reel supports efficient calendar heat press transfer
- Rugged design, proven reliability — robust frame, plus proven ink and printhead technology
- Seamless workflow — Wasatch SoftRIP included
- Performance optimized Epson® DS Transfer Papers — Multi-purpose, Textile Adhesive and Production papers available
- Turnkey solution, fully supported by Epson — includes a one-year warranty; extended warranty plans available
- Exclusive Epson Rewards program available — accumulate points with every consumable purchase for trade-in options
The four-color Epson dye sublimation inks used in the Epson SureColor F7200 printer, when applied to polyester fabrics, pass the requirements of Oeko-Tex Standard 100 for human ecological requirements of Class 1 products for adults, children, and babies up to 36 months. Oeko-Tex Standard 100 specifies testing criteria for the presence of harmful substances within a textile product. The standard belongs to the International Association for Research and Testing in the field of Textile Ecology (Oeko-Tex) |
About Package | |
---|---|
;"> | |
Printer Nozzle Configuration720 nozzles per Color with Variable Droplet Size Resolution1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi |
Dimensions and weights include printer and stand103"(W) x 40"(D) x 52"(H) |
Print Engine Speeds |
|
Printer Nozzle Configuration720 nozzles per Color with Variable Droplet Size Resolution1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi |
Dimensions and weights include printer and stand103"(W) x 40"(D) x 52"(H) |
Print Engine Speeds |
|
;"> | |
Speed (720 x 360 dpi) | 634 SFPH |
Production (720 x 720 dpi) | 239 SFPH |
Speed (720 x 360 dpi) | 634 SFPH |
Production (720 x 720 dpi) | 239 SFPH |
;"> | |
Pack | (1000ml) |
HD Black | T741100 |
Cyan | T741200 |
Magenta | T741300 |
Yellow | T741400 |
Oeko-Tex 100 (Product Class 1)
The four color Epson dye sublimation inks used in the Epson SureColor SC-F7000/SC-F6000 series printers, when applied to polyester fabrics, pass the requirements of Oeko-Tex Standard 100 for human ecological requirements of Class 1 products for adults, children, and babies up to 36 months. Oeko-Tex Standard 100 specifies testing criteria for the presence of harmful substances within a textile product. The standard belongs to the International Association for Research and Testing in the field of Textile Ecology (Oeko-Tex)
Click For More Information
Pack
(1000ml)
HD Black
T741100
Cyan
T741200
Magenta
T741300
Yellow
T741400
Oeko-Tex 100 (Product Class 1)
The four color Epson dye sublimation inks used in the Epson SureColor SC-F7000/SC-F6000 series printers, when applied to polyester fabrics, pass the requirements of Oeko-Tex Standard 100 for human ecological requirements of Class 1 products for adults, children, and babies up to 36 months. Oeko-Tex Standard 100 specifies testing criteria for the presence of harmful substances within a textile product. The standard belongs to the International Association for Research and Testing in the field of Textile Ecology (Oeko-Tex)
Click For More Information
Maximum printable length
limited by application, OS, and driver/RIP used
Media Handling
Maximum paper width | 64-inch |
Minimum paper width | 12-inch roll |
Left and right margins | 0 to 5 mm each side (0.39" total) |
Maximum printable width | 63.60-inches |
Maximum printable length
limited by application, OS, and driver/RIP used
Media Handling
;"> | |
---|---|
Media input | |
Media input | |
;">Single roll-64" wide | |
Media core compatibility | User-adjustable roll media adapters accept either 2" or 3" cored media |
Maximum roll diameter | Up to 9.8" |
Input roll media weight | Up to 90 lbs. |
Media Weight | 75gsm and over 0.08 mm up to 0.50 mm |
Output Roll Media Diameter | Up to 11.8" |
Output Roll Media Weight | Up to 90 lbs |
Media Winding Accuracy | +/- 5mm or 0.19" |
Epson Genuine Ink Supply SystemSingle roll-64" wide
0.08 mm up to 0.50 mm
Epson Genuine Ink Supply System
Electrical Requirements
;"> | |
---|---|
Printer | |
Voltage | AC 100-240 V |
Frequency | 50-60Hz |
Current | 0.5-1A |
Power consumption | |
Operating | Approx. 460W |
Ready Standby |
Approx. 330W (Heater ON) Approx, 30W (Heater OFF) |
Sleep | Approx. 10W |
Power Off | 0.6W or less |
Standby
Approx, 30W (Heater OFF)
Peel | |
---|---|
Equipment | |
Image | |
Pressure | |
Application Temperature | |
Time |
