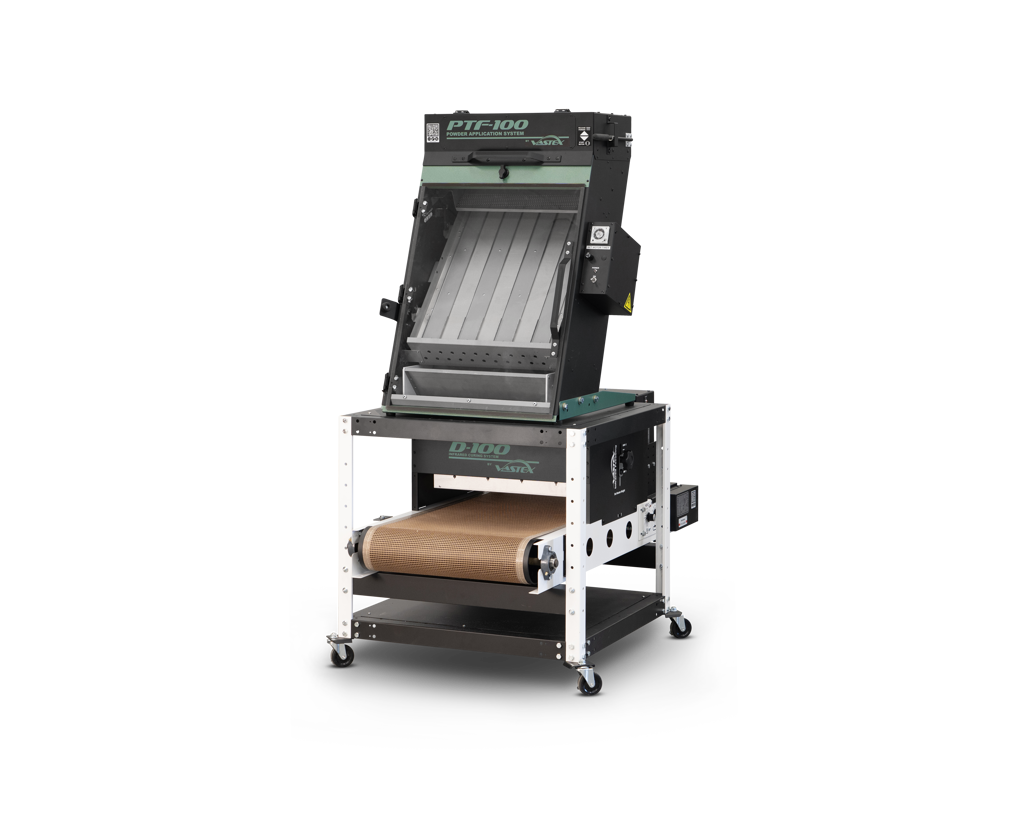

Vastex Powder Shaker and Oven Bundle PTF-100 D-100 DTF
PTF-COMBO-100 120V Powder-To-Film System
The PTF-COMBO-100 120V Powder-To-Film system, commonly known as a Powder Shaker, ensures uniform application of adhesive powder to DTF films, enhancing print quality and improving workplace safety. Unlike manual hand-coating methods that expose operators to adhesive dust and require constant attention, this automated system provides even coverage while minimizing waste and freeing up staff to focus on production efficiency.
Designed specifically for DTF printing, this tabletop unit features a durable steel enclosure mounted on a stand, along with a clear, angled polycarbonate door for easy access. It includes two interchangeable cartridges, each capable of holding approximately 3 lbs (1.4 kg) of adhesive powder. A rear-mounted exhaust system collects airborne dust and creates a controlled negative-pressure environment. The film tray, suspended on rubber hangers, is isolated from the system’s intense vibration, which effectively removes excess powder.
How It Works
To operate, a filled cartridge is inserted at the top, while an empty cartridge is placed at the bottom. The operator positions the wet DTF film on the tray, print side up, then securely closes the door. The amount of powder applied is controlled by adjusting the release handle’s duration and frequency.
Once activated, the top cartridge dispenses adhesive powder, ensuring complete and even coverage. After coating, the operator engages the actuator, triggering a timed vibration cycle to shake off any excess powder. When empty, the upper cartridge can be quickly swapped with the lower cartridge, which collects the excess powder, reducing exposure and eliminating waste—allowing for uninterrupted operation until refilling is necessary.
Features & Compatibility
- Made in the USA
- Handles film sizes up to 16 x 20 in. (406 to 508 mm)
- Pairs well with Vastex D-100 or D-1000 tabletop conveyor dryers, which feature rear-mounted exhaust hoods to remove glycol fumes from the workspace
- Vastex also offers heat presses and mobile utility stands to optimize shop layouts for maximum efficiency
Key Benefits
ECONOMICAL
- Interchangeable cartridges reduce waste and enable quick, mess-free refills
VERSATILE
- Supports film sizes up to 16 x 20 in.
- Compatible with various DTF printers, including Roland BY-20, BN-20D, and more
CONSISTENT
- Adjustable powder deflection angle and timer settings for repeatable results
STURDY
- Powder-coated stainless steel construction and polycarbonate door ensure long-term durability
DUST-FREE
- Sealed design prevents mess and airborne contamination
Specifications
- Dimensions: 26.8 in. (68 cm) H x 32.3 in. (82 cm) W x 32.3 in. (82 cm) D
- Weight: 55 lbs (25 kg)
- Flat top design accommodates Vastex PTF-100 Powder-To-Film System and other compact tabletop equipment up to 250 lbs (113 kg)
D-100 Tabletop Conveyor Dryer
An entry-level tabletop dryer, the D-100 features an 18″ (45.7 cm) wide conveyor belt, capable of curing:
- 110+ plastisol-printed garments per hour
- 50+ discharge-printed garments per hour
- DTF adhesives at high speeds
Its adjustable heater height, tilt, temperature, and belt speed provide complete operator control.
Key Features
✔ SMART – Teflon-coated fiberglass belt with precision tracking system
✔ BELT WIDTH – 18″ (46 cm), ideal for standard garments
✔ HEATER WIDTH – 16″ (41 cm), ensuring efficient curing
✔ ADJUSTABLE – Speed, temperature, heater height, and tilt
✔ FAST – Up to 110+ shirts/hour with plastisol, 50+ with discharge
✔ PRECISE – Infrared heater with a tight coil pattern and heat shields for even heating
✔ VALUABLE – Industry-leading warranty, premium build quality, and excellent service
✔ COMPACT – Small footprint, taking up less than 8 sq. ft. (2.44 sq. m)
