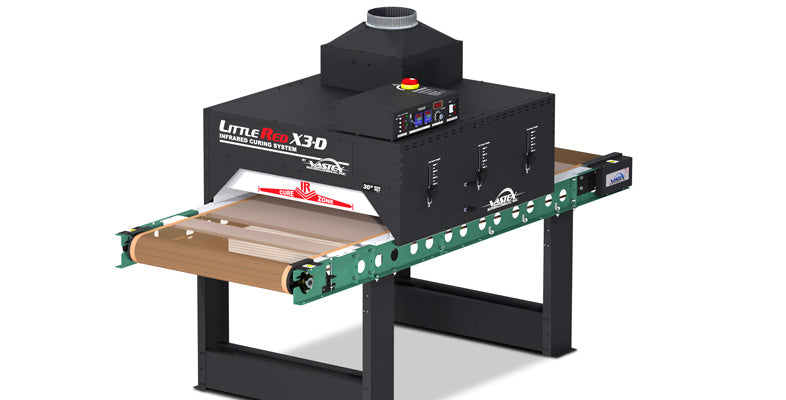

Vastex LR-X3D-30 DTF Conveyor Dryer 30" Belt - 88" (224cm) Long
The LittleRed® X3-D infrared dryer is a versatile, high-performance solution for curing DTG-printed textiles, plastisol, water-based, discharge-printed garments, and adhesive-coated DTF images at higher rates than conventional dryers. Its modular design allows for easy expansion with additional chambers and conveyor length as production demands increase.
Optimized Performance & Speed
Available in 30-inch (76 cm), 54-inch (137 cm), and 78-inch (198 cm) belt widths, it features a high-powered pre-heating zone that quickly raises ink temperatures past 300°F (149°C) within the first few inches of conveyor travel. This maximizes dwell time at optimal curing temperatures, allowing faster conveyor speeds and increased output.
Production Capacity by Model
LittleRed X3-D-30 (30 in./76 cm belt width)
360+ plastisol-printed garments/hr
185+ water-based or discharge-printed garments/hr
51+ DTG garments/hr (digital white ink @ 3 min dwell time)
61+ DTG garments/hr (@ 2.5 min dwell time)
LittleRed X3-D-54 (54 in./137 cm belt width)
720+ plastisol-printed garments/hr
370+ water-based or discharge-printed garments/hr
123+ DTG garments/hr (@ 3 min dwell time)
103+ DTG garments/hr (@ 2.5 min dwell time)
LittleRed X3-D-78 (78 in./198 cm belt width - accommodates up to three garment rows)
1080+ plastisol-printed garments/hr
555+ water-based or discharge-printed garments/hr
185+ DTG garments/hr (@ 3 min dwell time)
155+ DTG garments/hr (@ 2.5 min dwell time)
Efficient & Powerful Design
Power Output:
X3-D-30 – 8,900W @ 240V
X3-D-54 – 17,800W @ 240V
X3-D-78 – 26,700W @ 240V
Heating Chamber: 41 inches (104 cm) long, equipped with a targeted exhaust system to rapidly remove moisture and contaminants, while cooling the outer surface and controls.
Adjustable Belt-to-Heater Clearance: 2 – 7 inches (5 – 18 cm), independently adjustable on each side for precise curing control.
Expandable Configuration: The LR-X3D-30-2 and LR-X3D-54-2 models include a second X3 chamber for increased capacity, ideal for handling longer cure times required by Kornit printers.
Reliability & Precision
? 15-year industry-leading heater warranty
? High-density, medium-wavelength infrared heat for consistent curing without cold spots
? Dual digital PID temperature controls accurate to ±1°F
? Patented low-friction belt aligner and DC belt speed control with digital display
? Heavy-duty X-Series Conveyor Belt Roller Tracking System with a Teflon-coated fiberglass belt and HD belt motor
Expandable for Growing Production
The modular design enables additional chambers and belt extensions, ensuring scalability as production increases.
