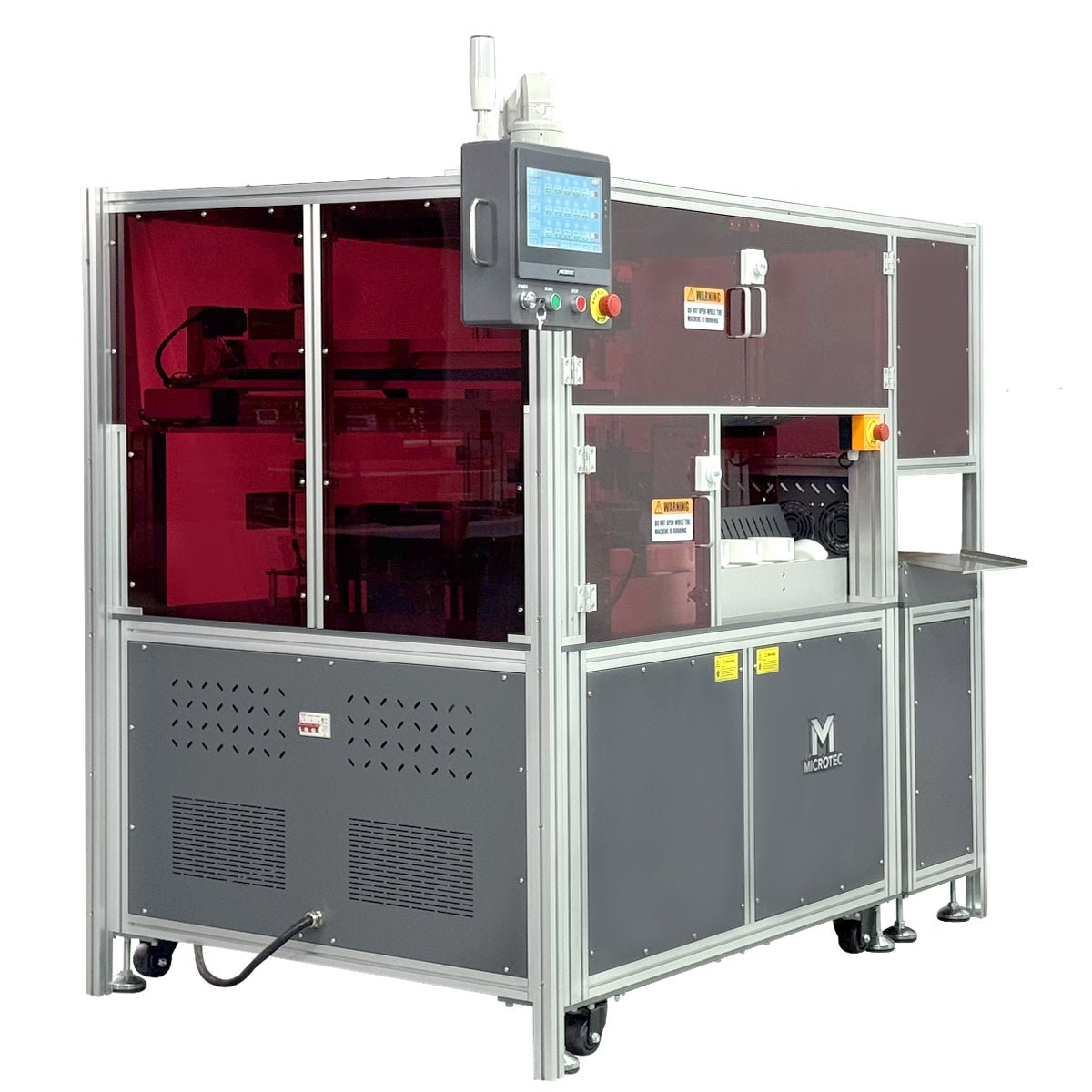

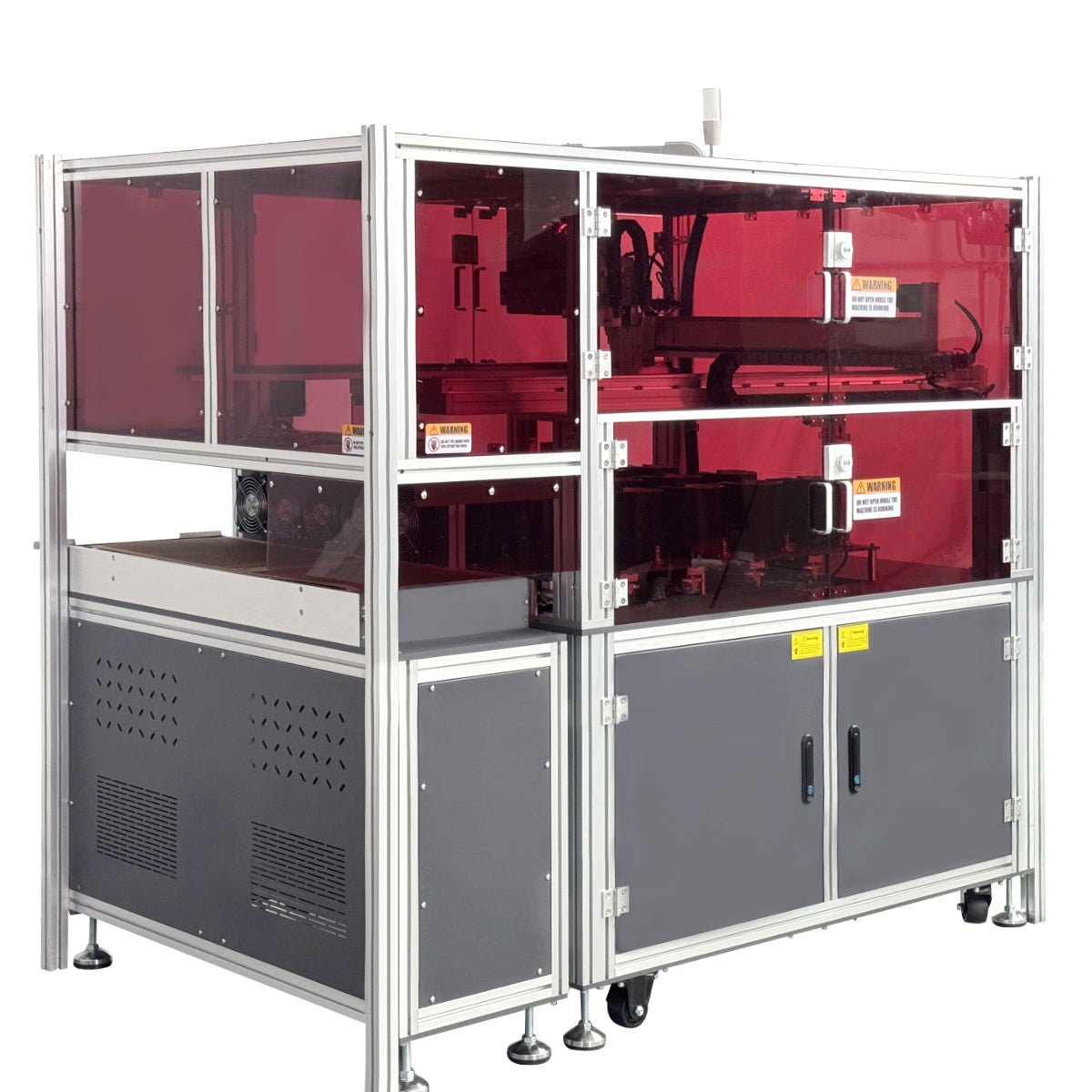

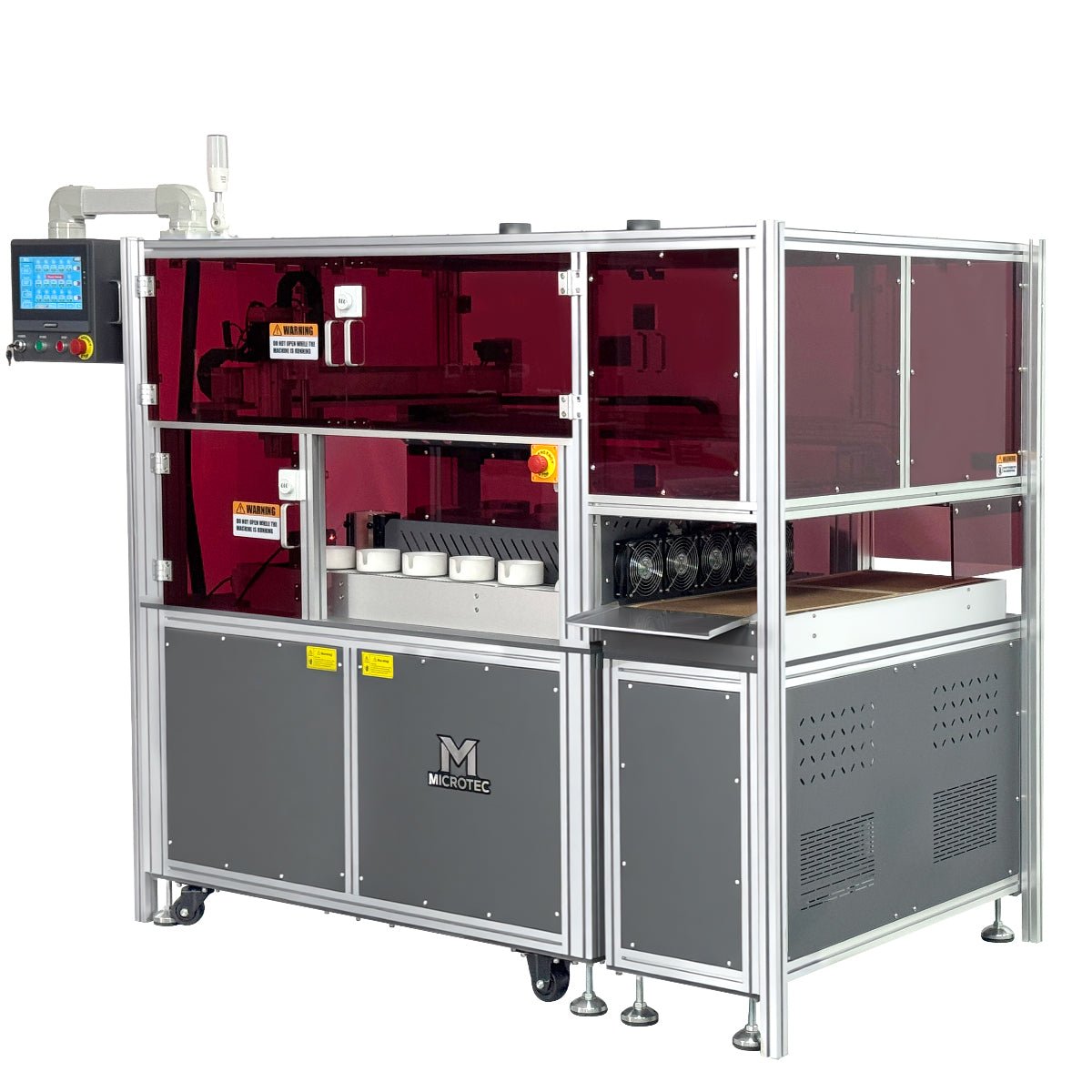

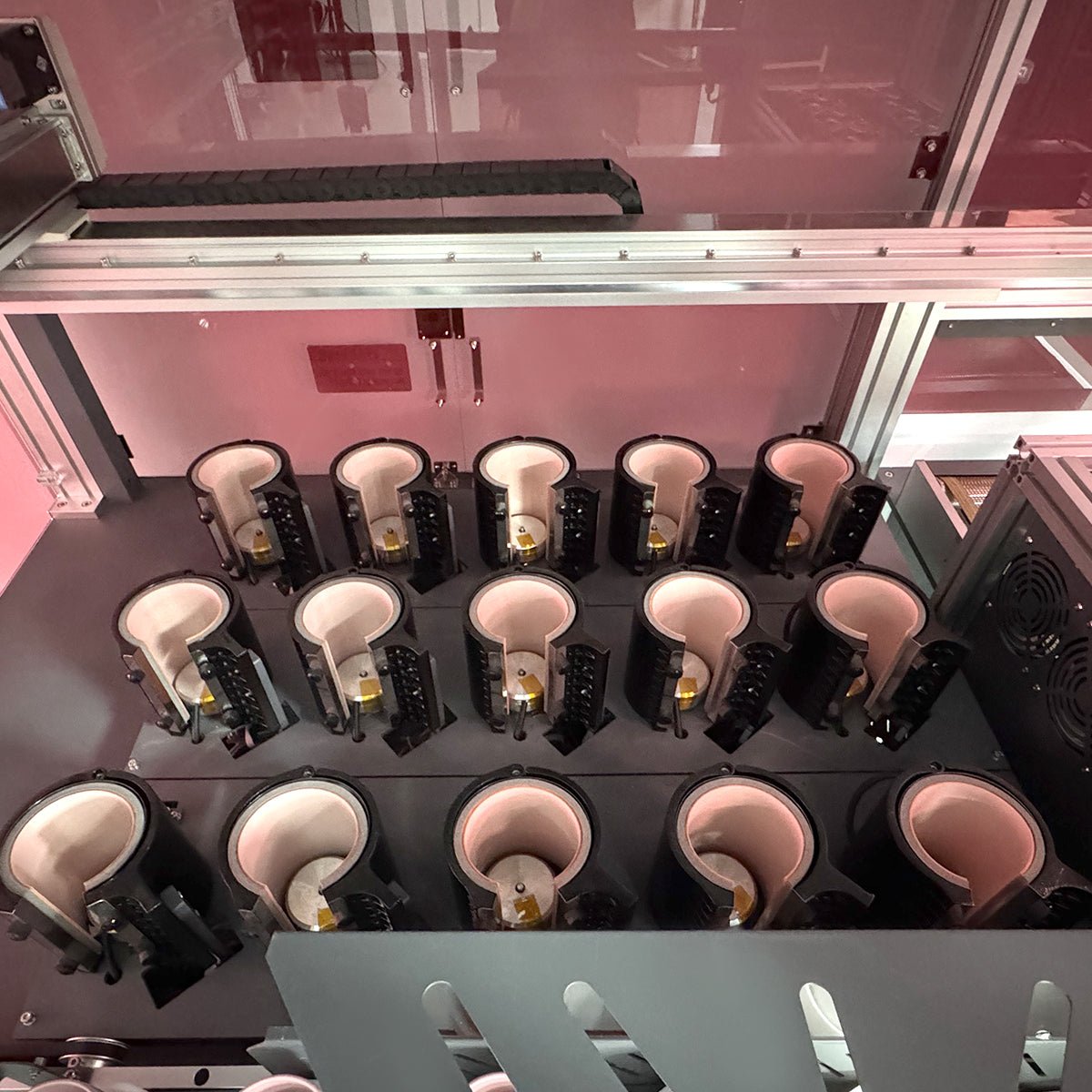

The MicroTec APEX M15 is a 15-station robotic mug heat press built for high-volume print-on-demand production. It handles feeding, positioning, heating, pressing, transfer movement and cooling of 11 oz mugs with minimal operator involvement.

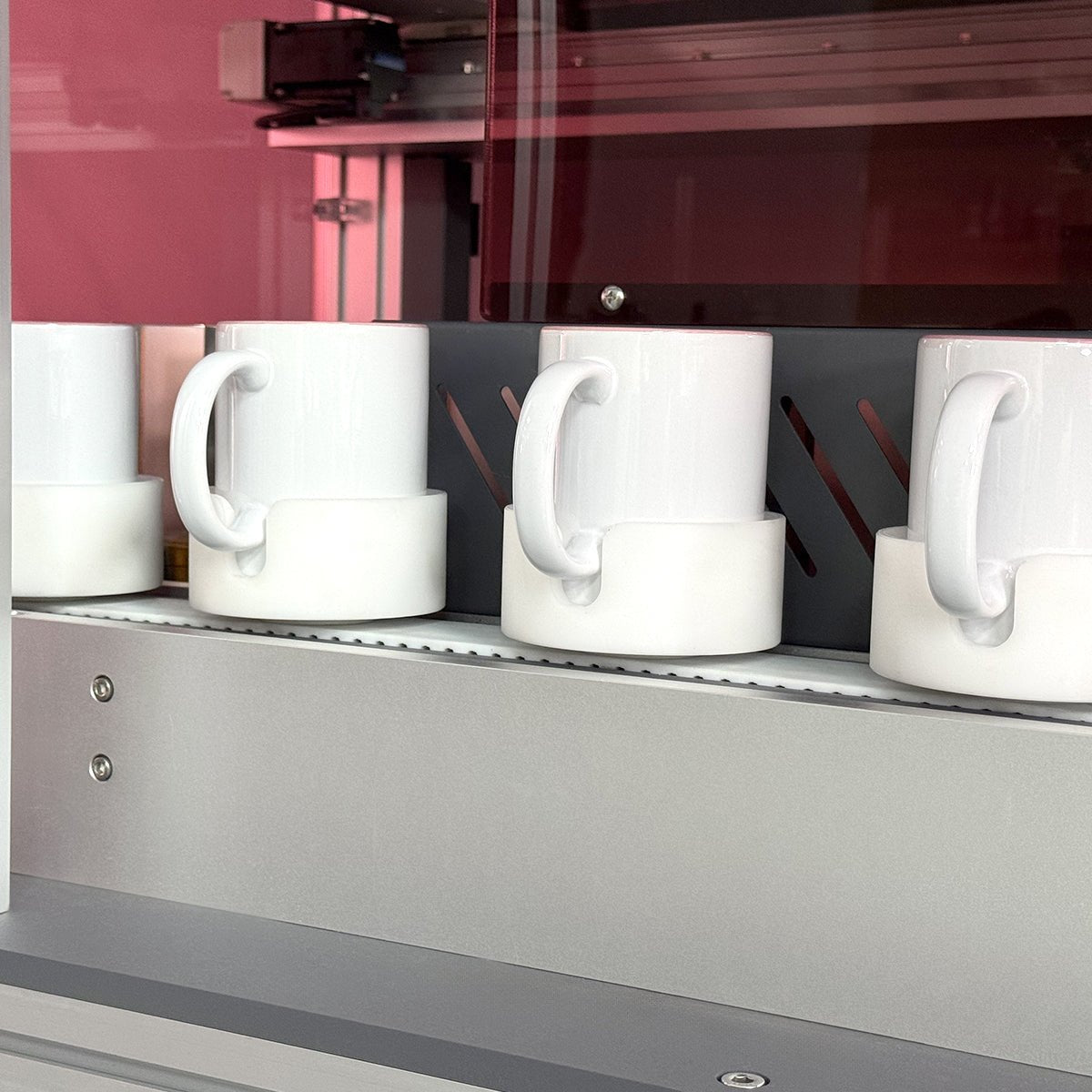

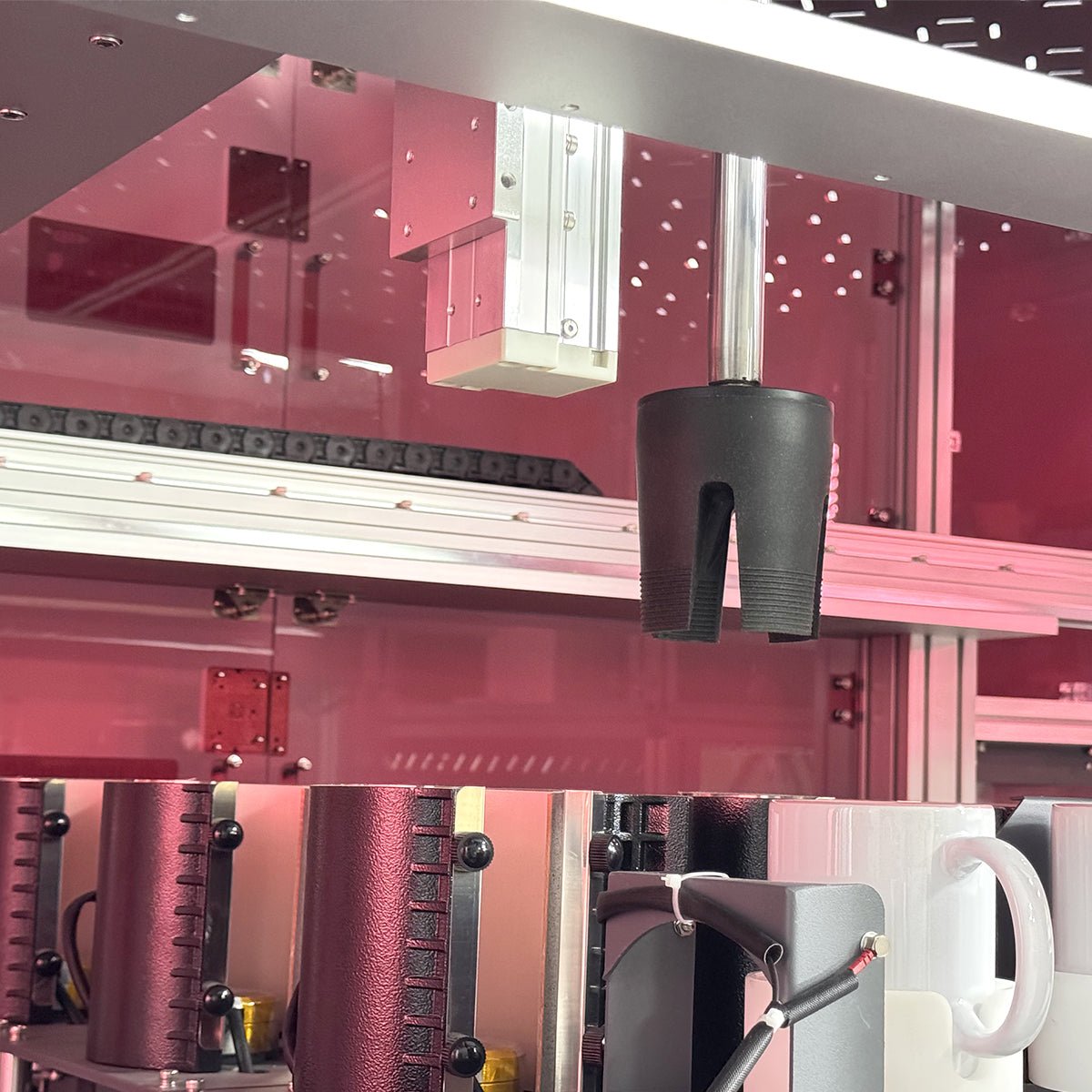

Robotic gripping claws on a high-precision guide rail move each mug smoothly through the line, and batch modes of 5, 10 or 15 mugs per cycle let you run small custom jobs or large orders on the same machine.
Key Features
- Produces 250 to 270 mugs per hour
- Robotic handling with mechanical gripping claws and a precision guide rail
- Batch modes of 5, 10 or 15 mugs per cycle

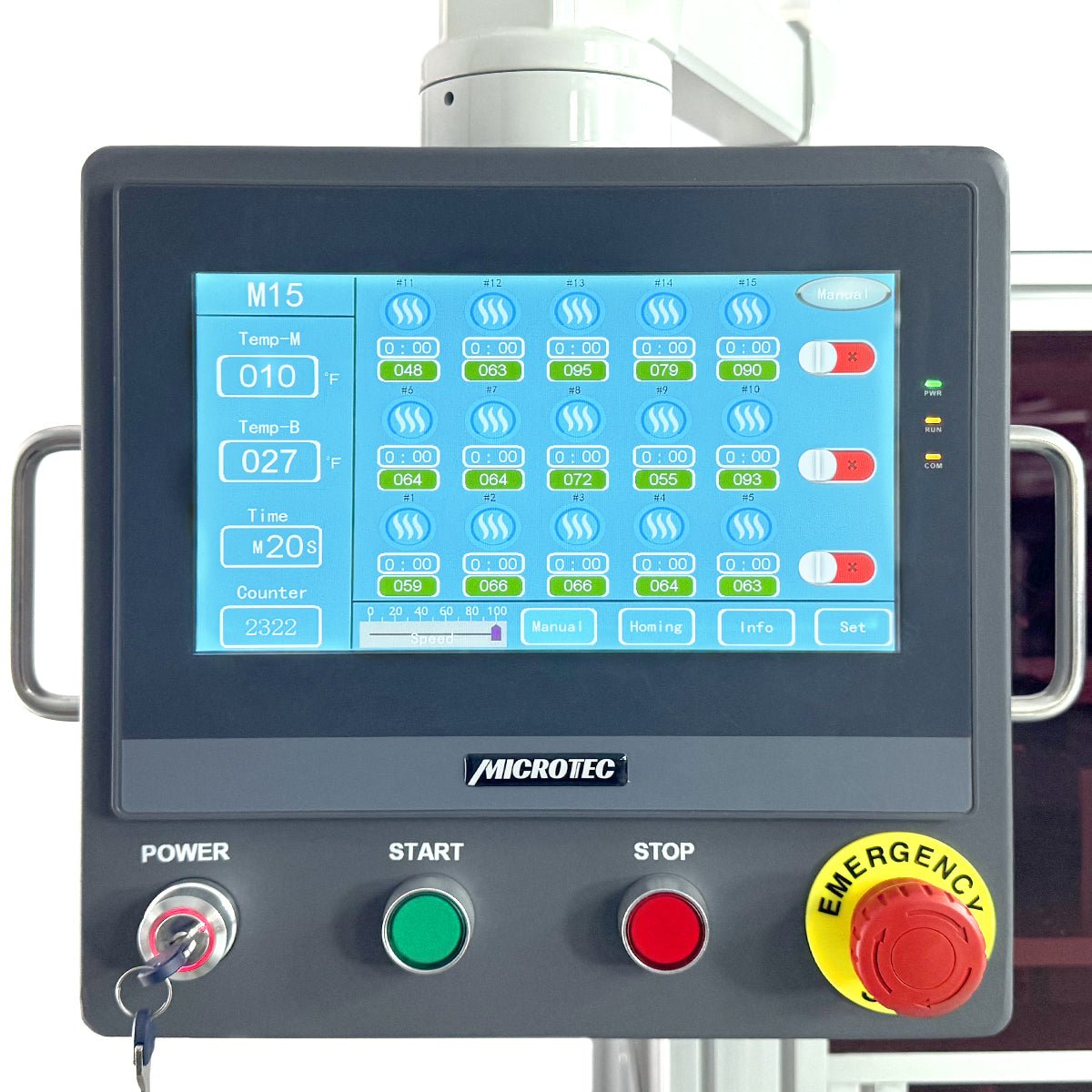

- Touchscreen PLC controller for simple setup and production management
- Bottom heating for richer color on the mug base

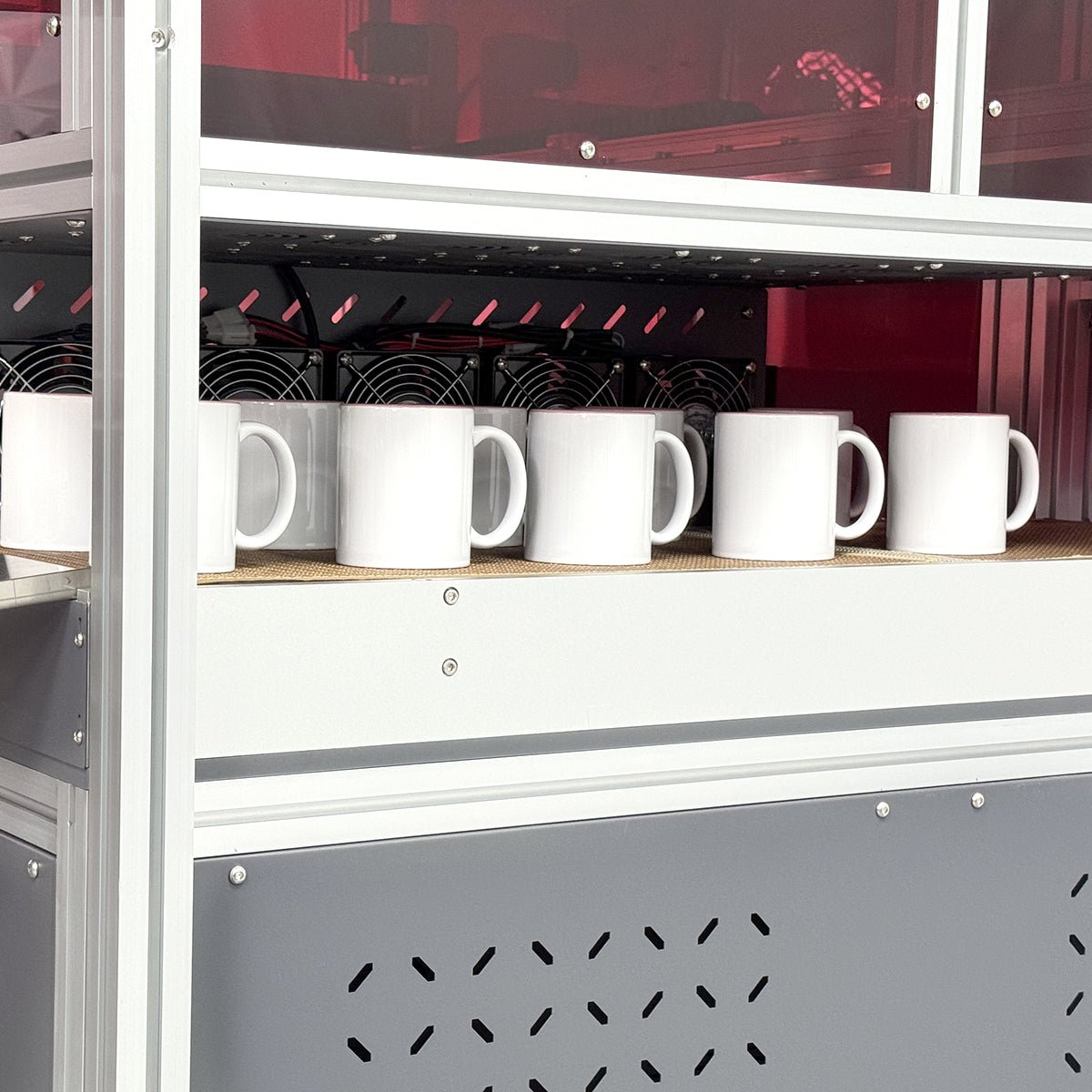

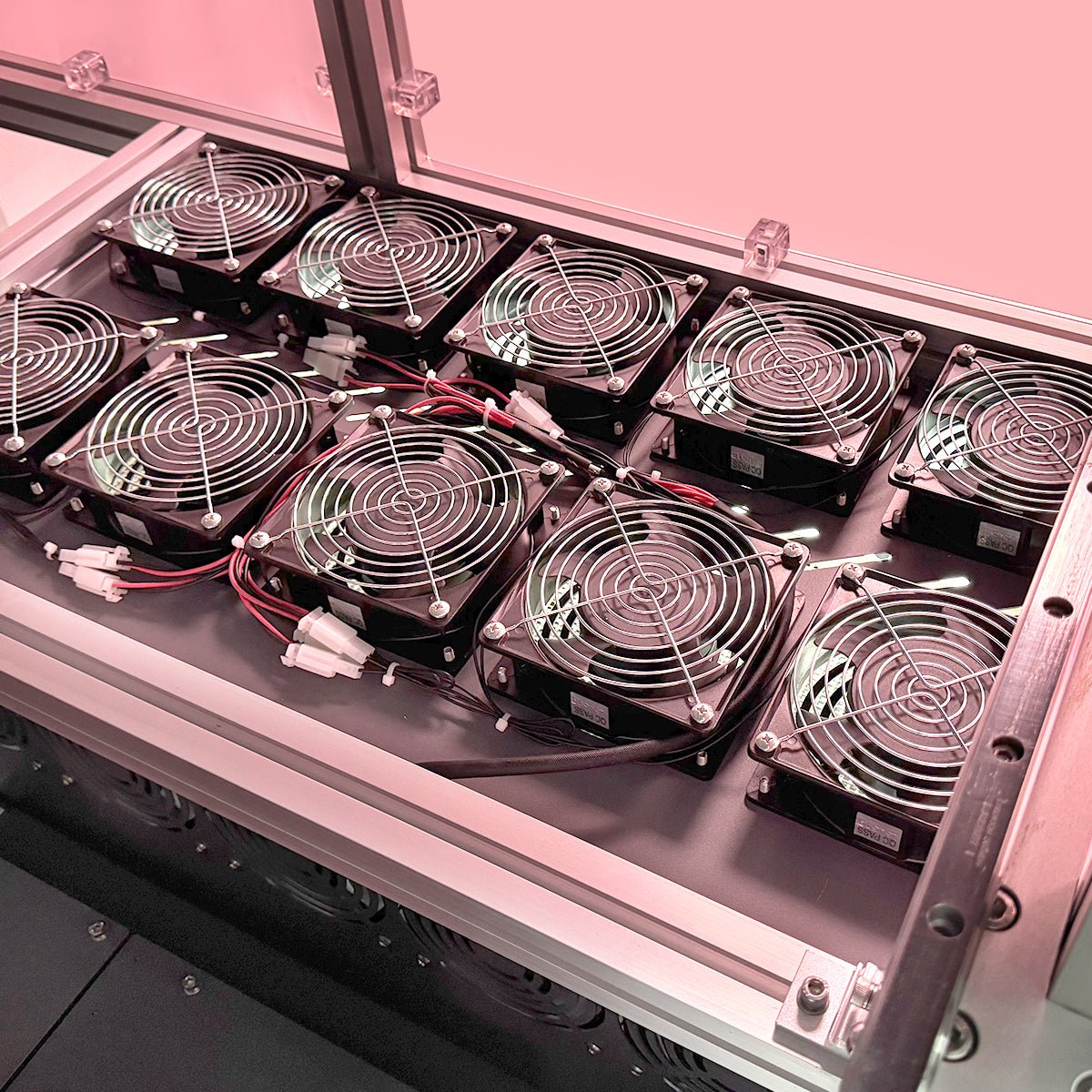

- Integrated cold-air cooling so mugs are ready to handle and pack
Specifications
| Machine type | Automatic mug heat press |
| Mug heater | 11 oz |
| Mug capacity options | 5 / 10 / 15 pcs |
| Controller | PLC controller |
| Speed | 250 to 270 pcs/hour |
| Voltage | 220V / 380V |
| Power | 6 kW |
| Frequency | 50 to 60 Hz |
| Time range | 0 to 599 sec |
| Maximum temperature | 225°C |
| Temperature accuracy | ±5°C |
| Machine size | 1700 x 1100 x 1800 mm |
| Packing size | 1924 x 1224 x 1946 mm |
| Net weight | 516 kg |
| Gross weight | 738 kg |
Good to Know
- Freight shipment; contact us for shipping, installation and training options.
- Supplied under the MicroTec brand.
