Mutoh XpertJet 1462UF

XpertJet 1462UF

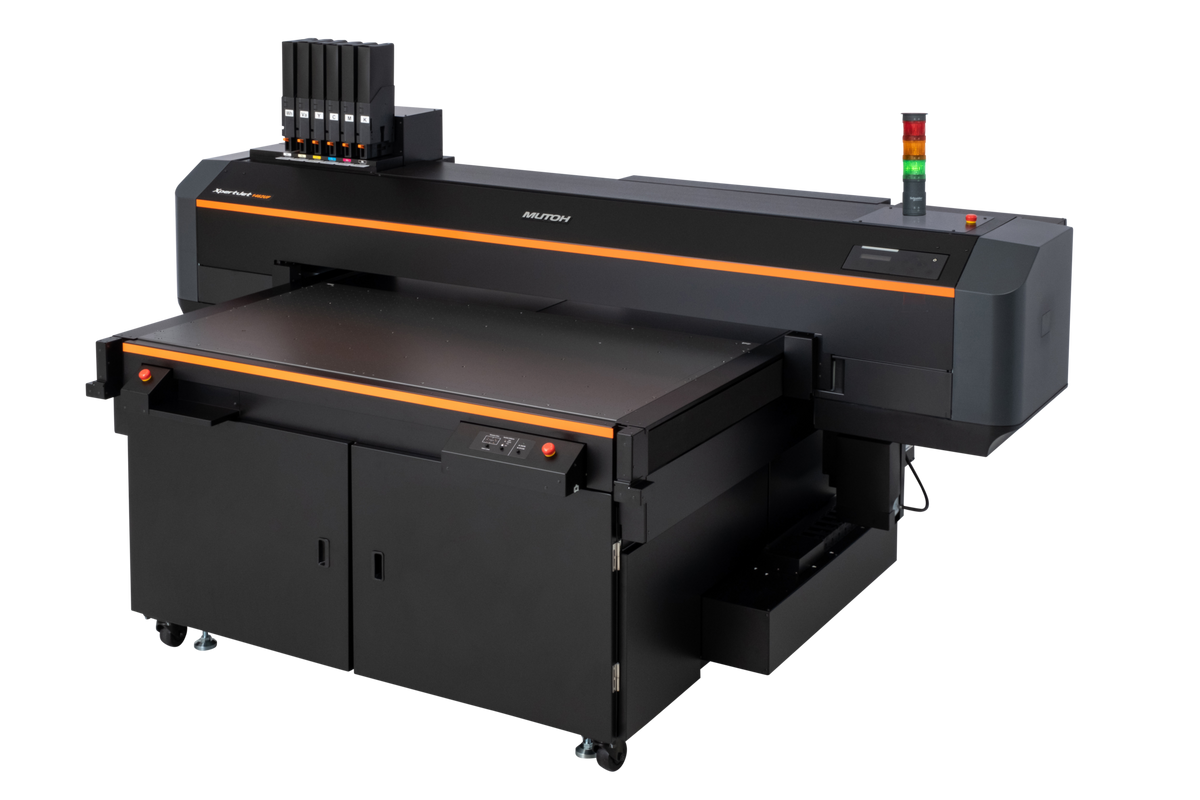

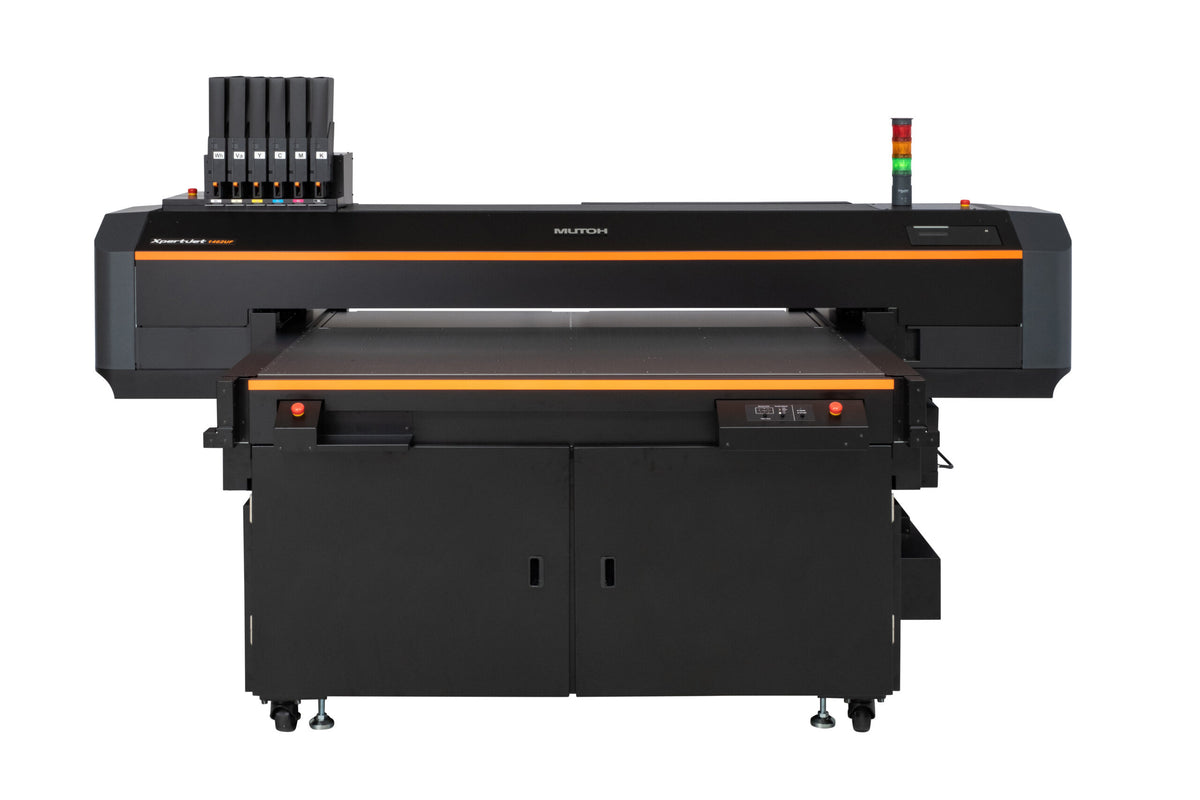

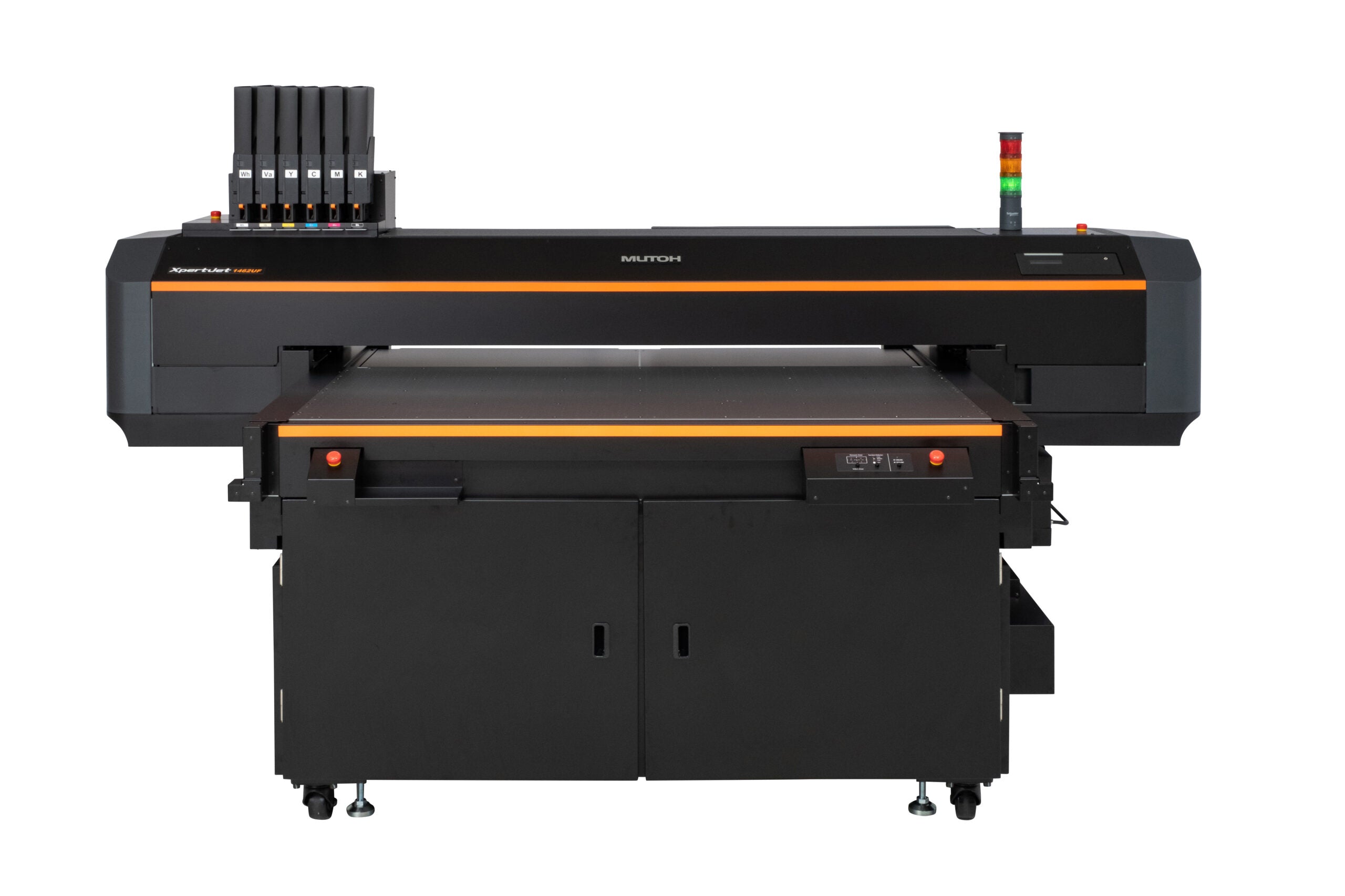

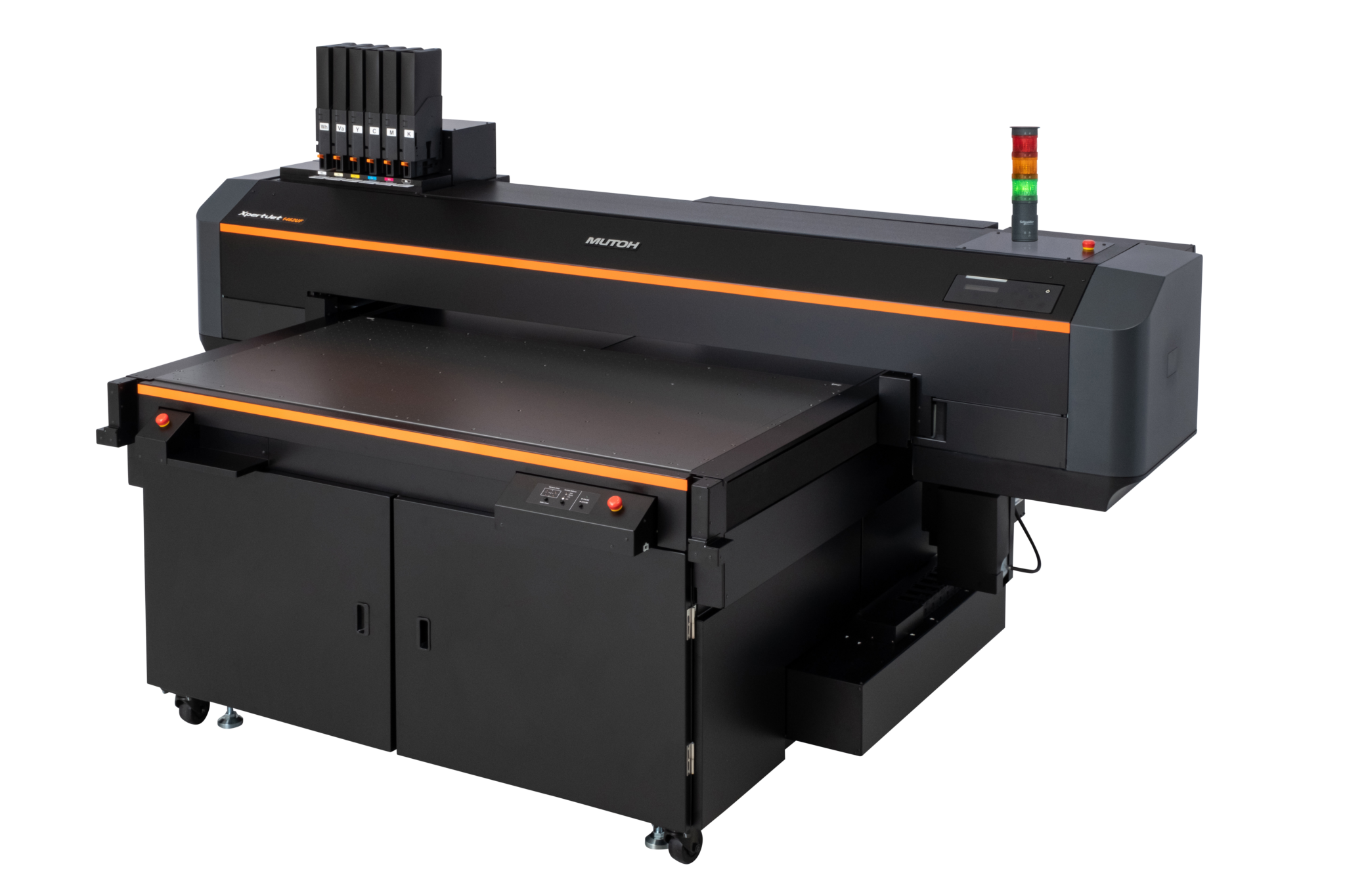

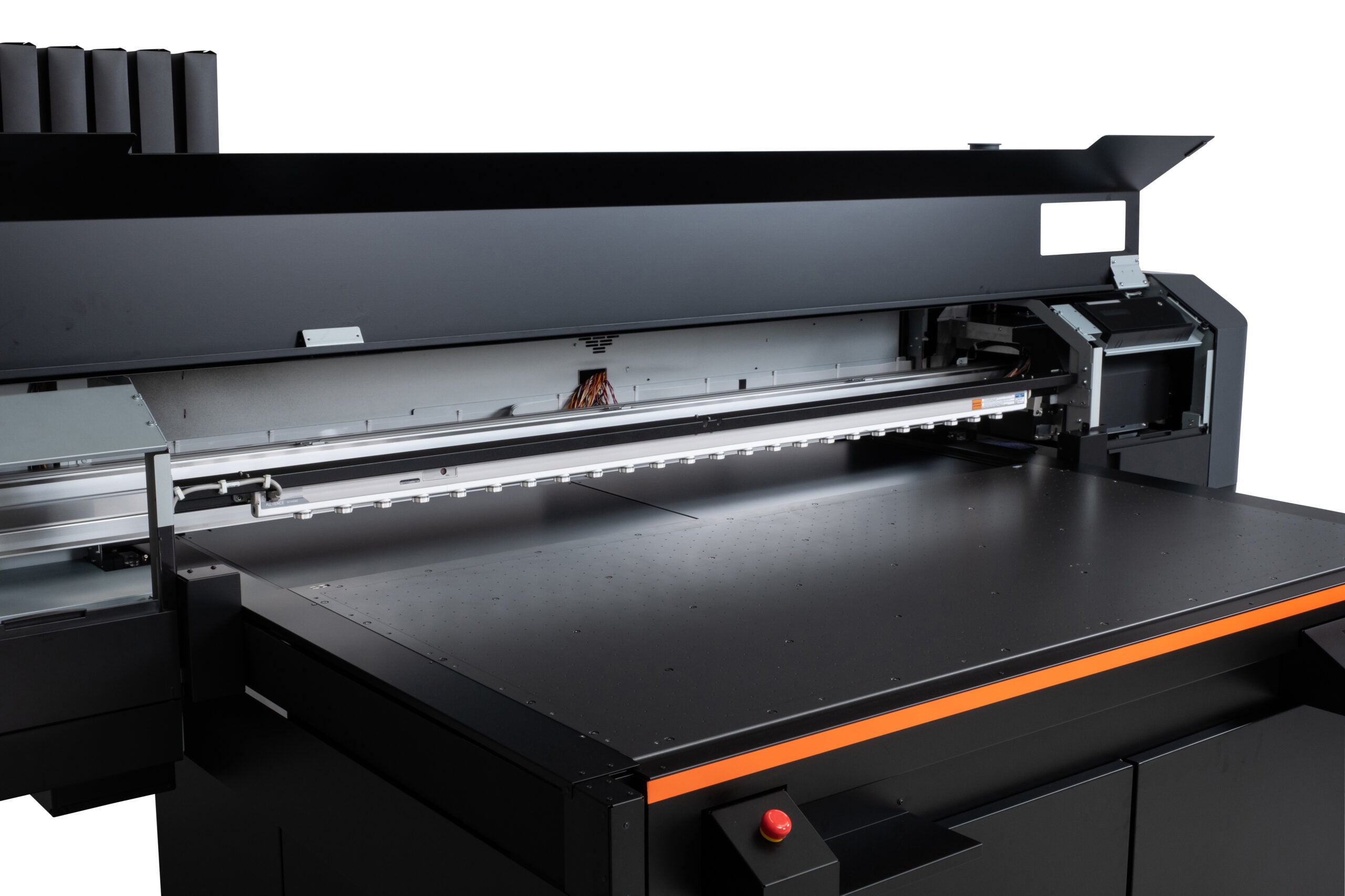

The Mutoh XpertJet 1462UF is a UV-LED flatbed printer with a moving gantry. It features a large 55" x 27" printable surface area, two 4" UV-LED lamps and two piezo drop-on-demand printheads in a staggered configuration, and it prints on objects up to 5.9" thick. It produces ADA-compliant braille and 2.5D layered prints with fine textures that add value to any print job, and Mutoh's Local Dimming Control Technology lets you add glossy finishes easily in one pass.

With Mutoh's Made in Japan quality and proprietary features such as the Automatic Nozzle Detection Unit and the Nozzle Area Select function, the XPJ-1462UF is built for print shops that want reliability, high quality and fast speeds, with versatile applications from braille to personalization.

Quick Specs

Why Choose the XpertJet 1462UF

• Large bed, thick objects. The moving-gantry design gives you a 55" x 27" printable surface area and prints on objects up to 5.9" thick.
• Two printheads, two lamps. Two 4" UV-LED lamps enable fast curing for bi-directional printing, and the staggered dual printheads allow faster printing of 2-layer, 2.5D texture and ADA-compliant braille signage.
• Accurate dot placement. The highly rigid, precision-built chassis and rail mechanism ensure accurate dot placement for reliable, high-quality printing.
• Built-in nozzle reliability. The automatic nozzle checking unit detects missing nozzles and performs a nozzle cleaning. If clogged nozzles do not recover, Nozzle Area Select temporarily prints using a selected area of active nozzles.

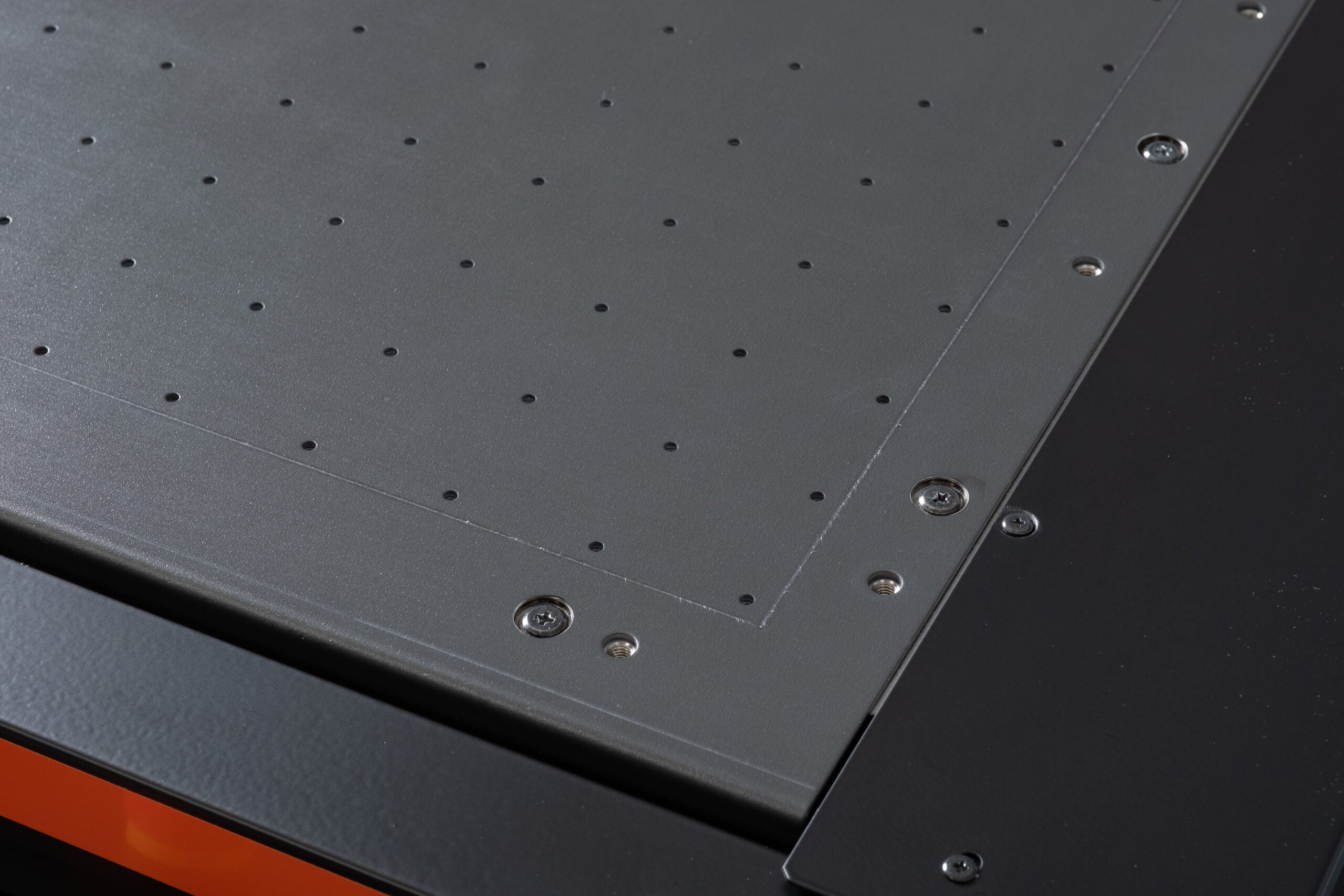

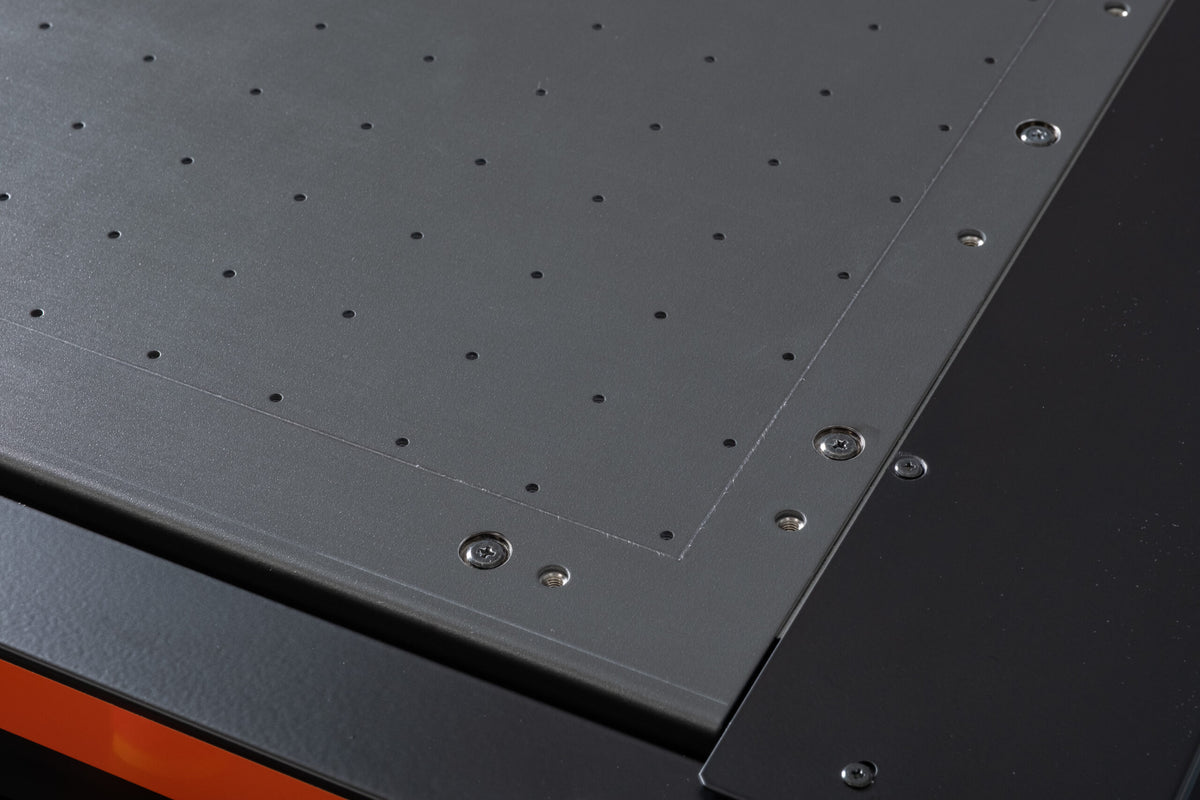

• Ready for jigs. The 4-zone vacuum table has pre-drilled jig holes, laser-etched guide lines and a ferromagnetic bed. Vacuum holes and screw holes outside the markings can be used to secure custom jigs.
• One-pass gloss. Mutoh's Local Dimming Control Technology adds glossy finishes in one pass.

Key Features

• 55" x 27" printing area
• Two 4" UV-LED lamps
• Staggered dual printhead configuration
• Up to 5.9" thick material height
• Laser height detection sensor
• Rigid chassis and bed
• Laser-etched guide lines
• 4-zone vacuum table unit
• Pre-drilled jig holes
• Ferromagnetic table bed
• Comes pre-assembled
• Available with UH21 hard/rigid ink, 6 colors: CMYK + White + Varnish
• Automatic nozzle check unit
• Nozzle Area Select
• UV-LED Local Dimming Control Technology
• MUTOH VerteLith™ RIP software optimizes printer performance and is bundled with Flexi DESIGN MUTOH Edition
• Mutoh UV inks produce bright, vibrant colors with durable adhesion and meet California Proposition 65 and the CPSIA (Consumer Product Safety Improvement Act)
• UH21 inks are ideal for acrylic, plastic, metal, wood, paper and glass substrates
• Multiple layers of white and varnish UH21 inks add texture and gloss effects as well as ADA-compliant braille
• Optional ionizer

Applications

From braille to personalization: variable data pieces, signage, ADA braille signage, and texture and gloss varnish effects. UH21 inks are ideal for acrylic, plastic, metal, wood, paper and glass substrates.
