HydrAton 1642

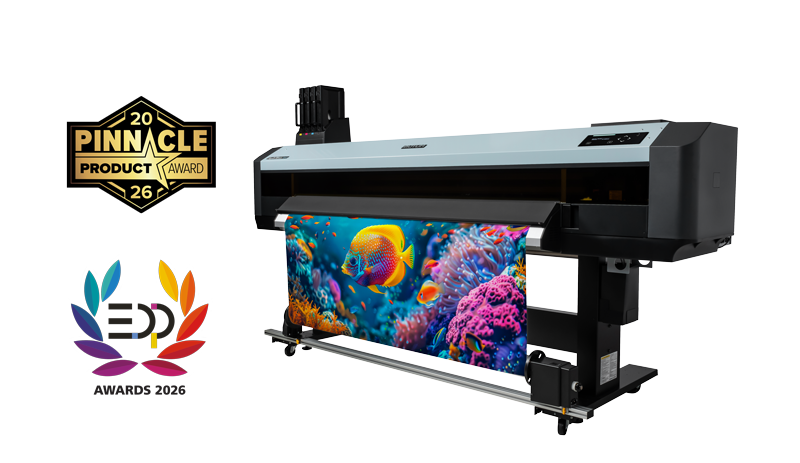

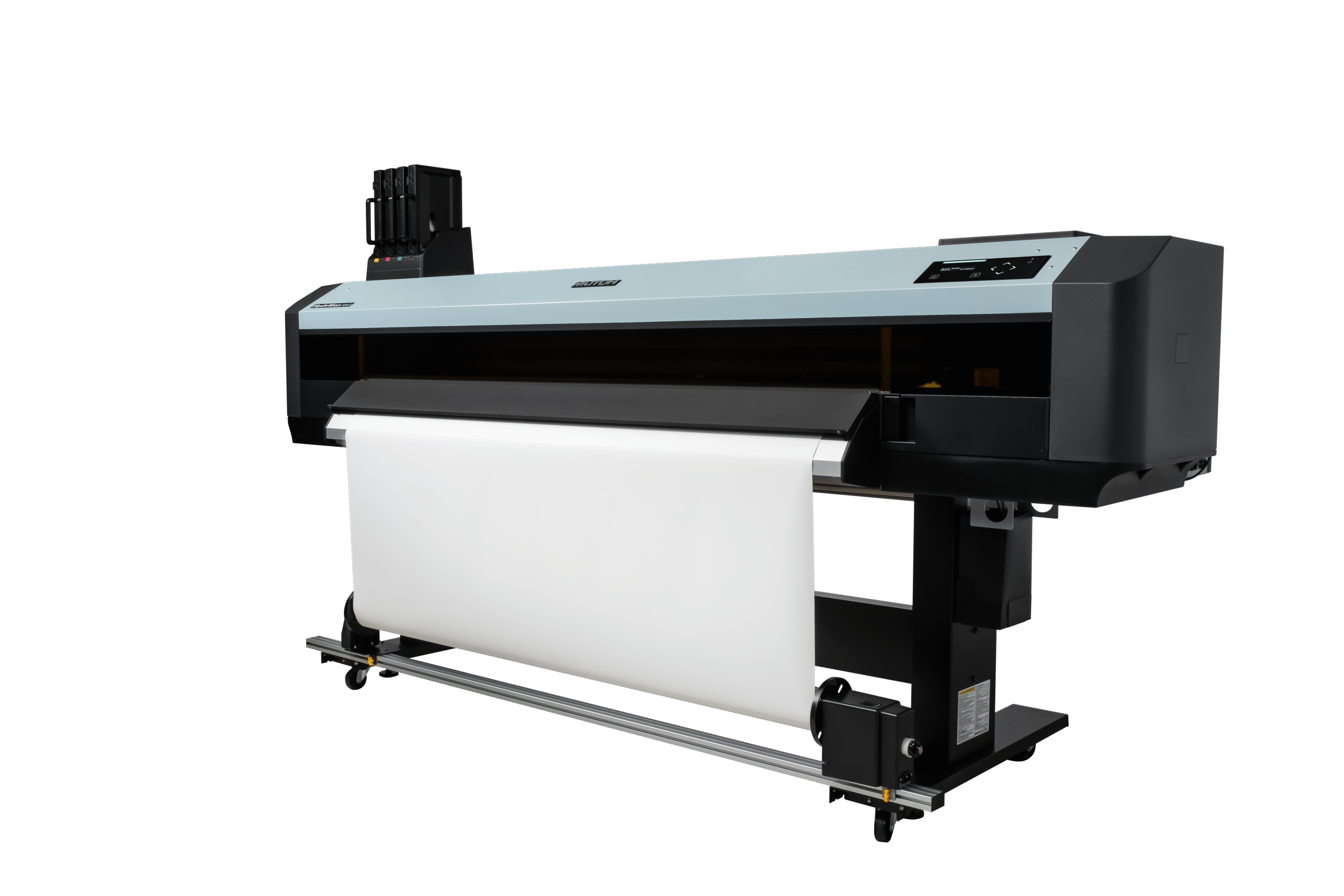

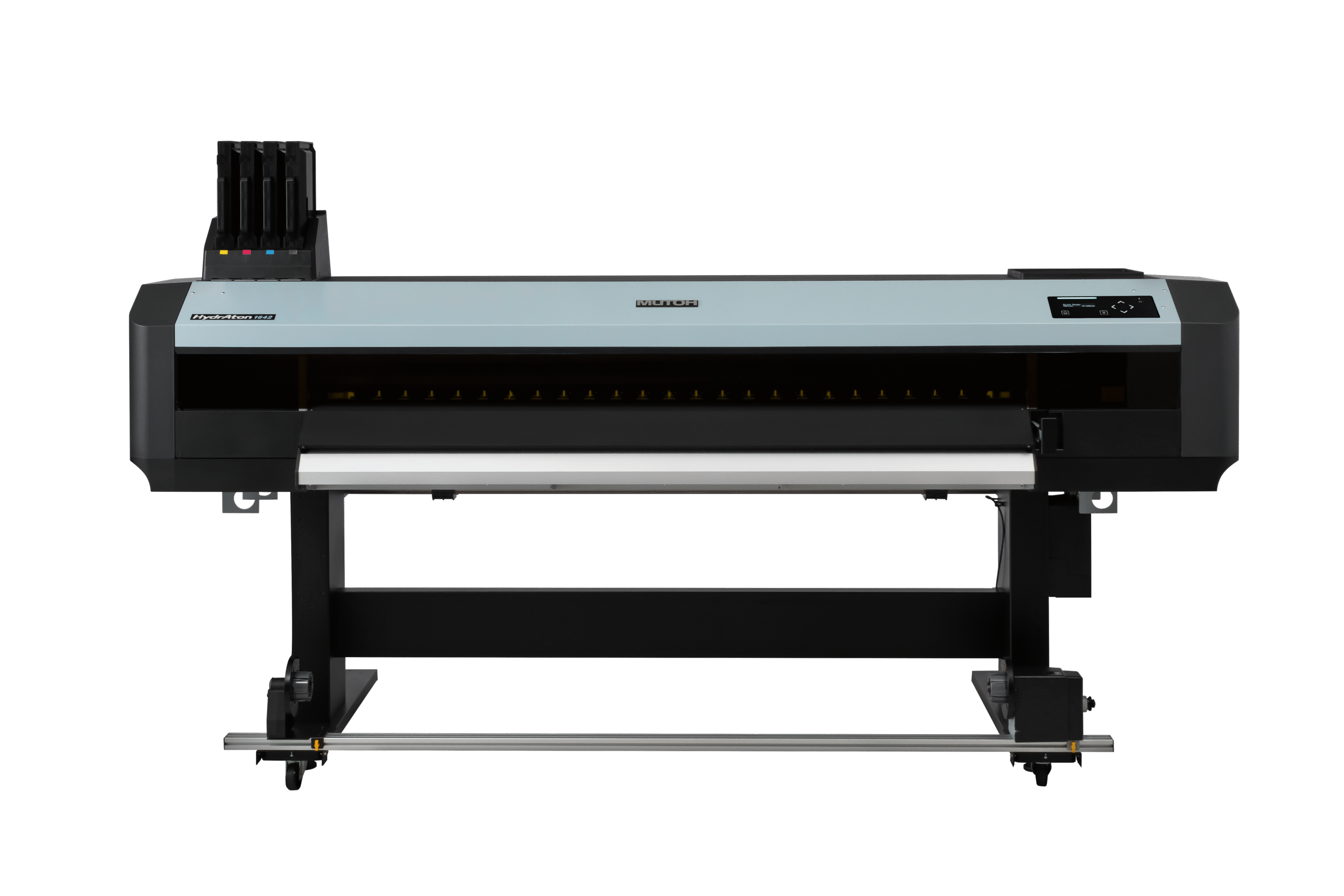

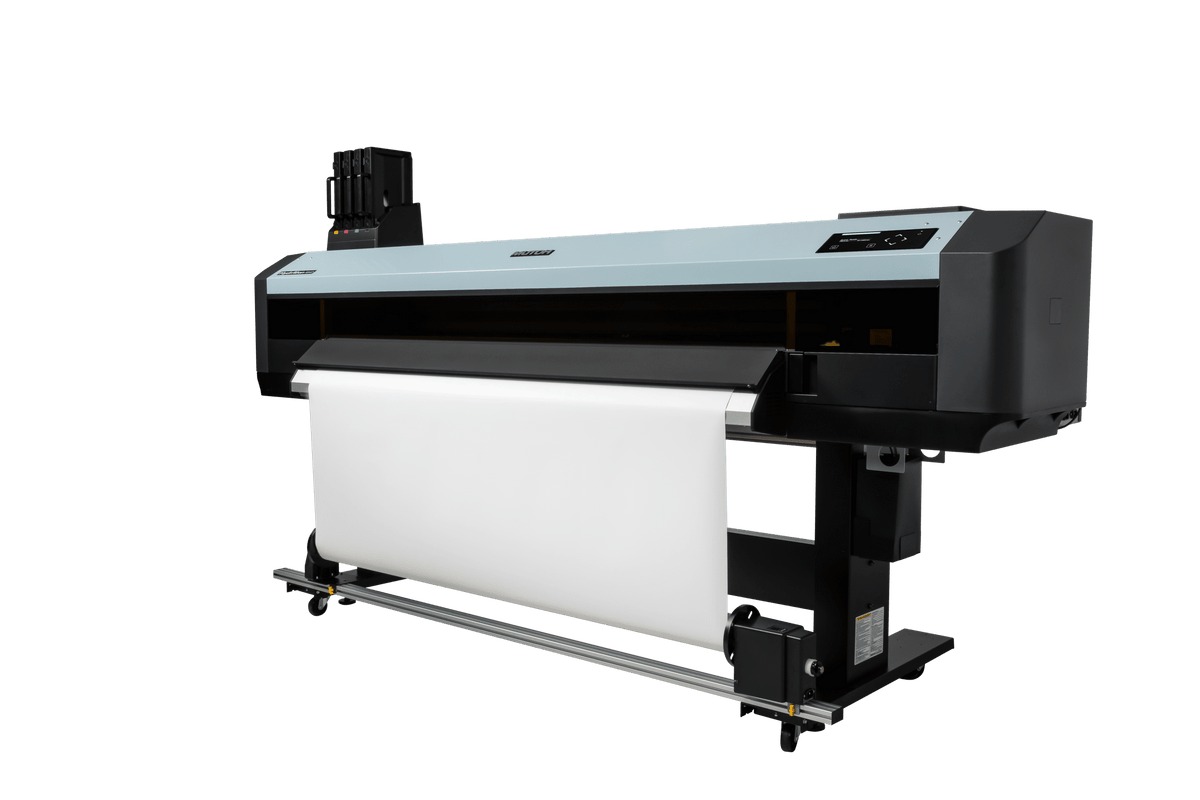

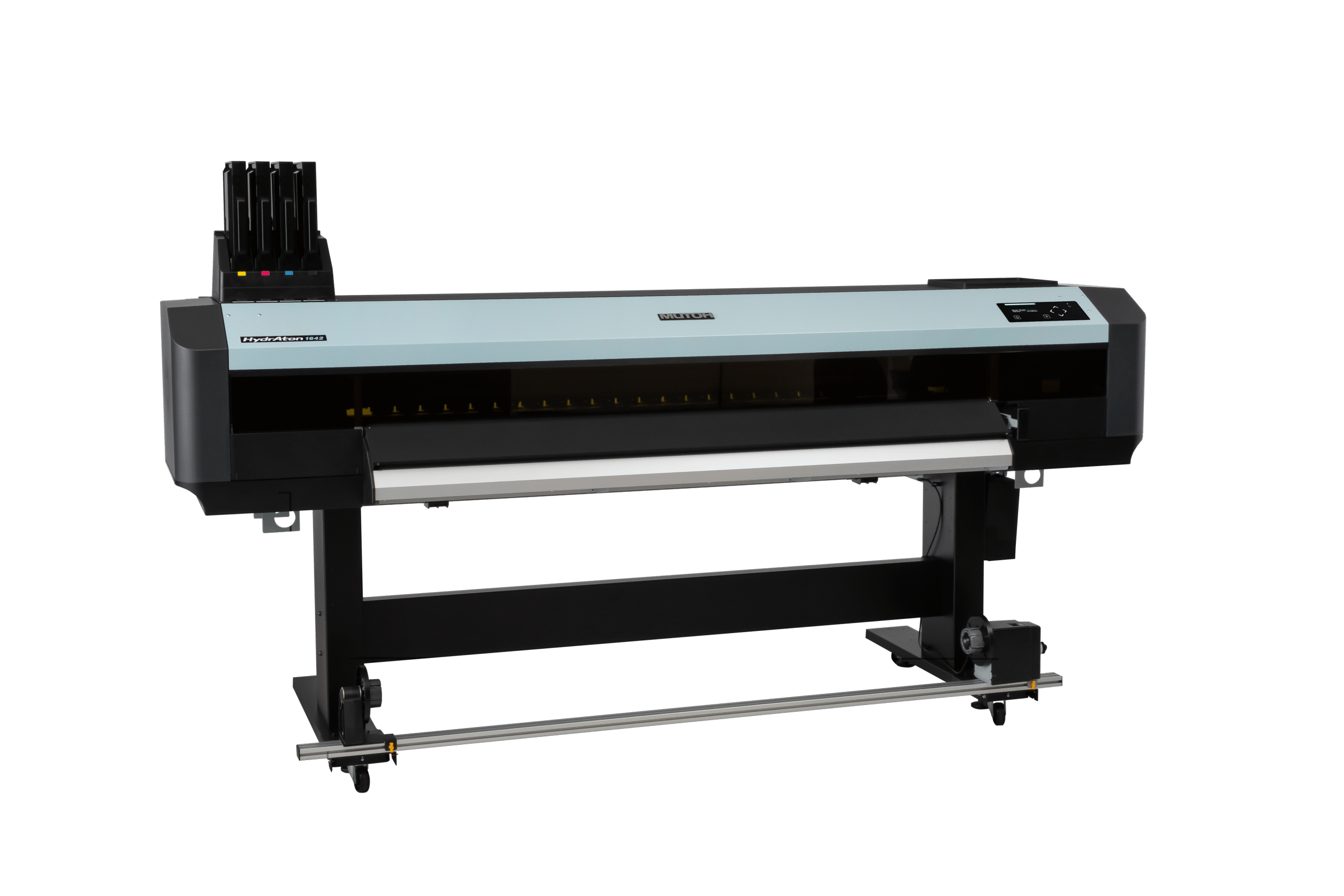

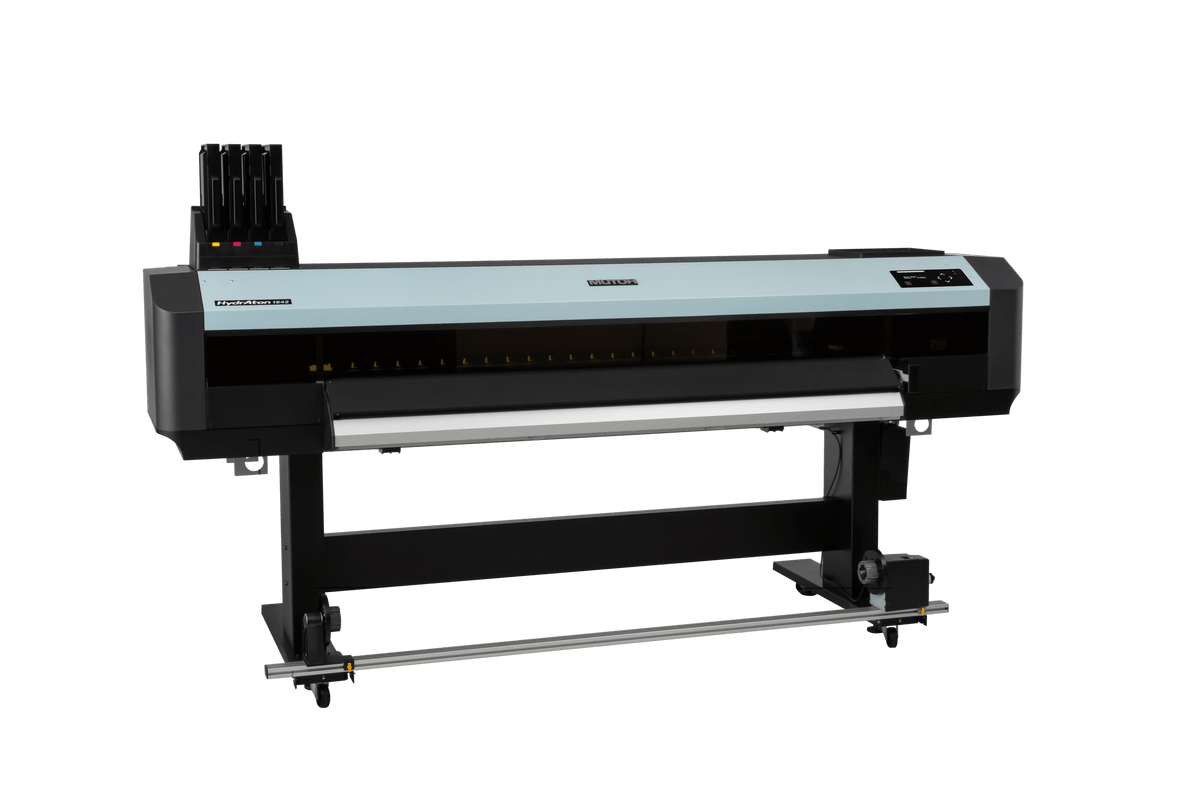

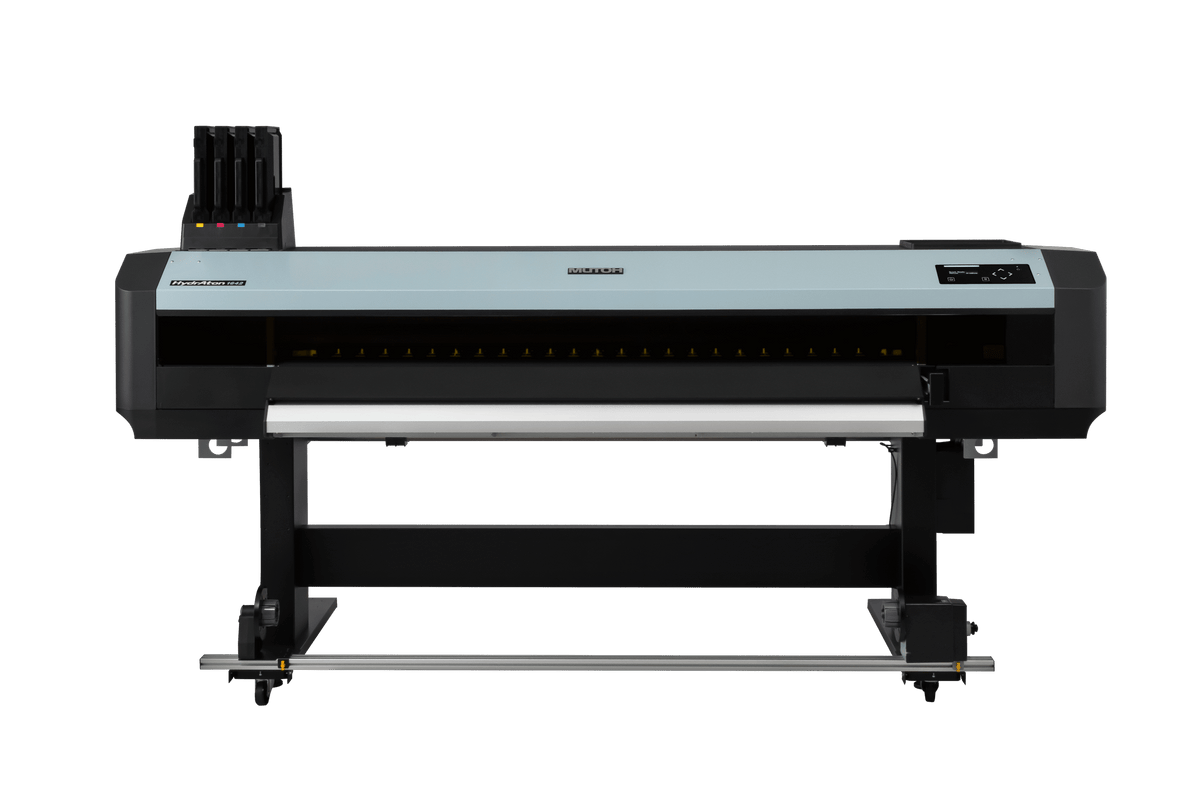

The HydrAton 1642 is a 64", dual-printhead, water-based UV roll-to-roll printer that introduces a new category of roll-to-roll printing. It is built around AQUAFUZE™ ink, a highly safe UV-curable water-based ink made using Fujifilm Group's proprietary technology for stable water dispersion of photopolymers. AQUAFUZE™ combines water-based safety with UV-level durability to deliver vibrant graphics, reduced environmental impact and reliable performance across interior graphics, signage, décor and specialty substrates.
Blending water-dispersed print chemistry with UV curing, the HydrAton 1642 produces prints with low odor and low VOCs, with no need for aggressive pre-coatings, making it suitable for sensitive environments. Two AccuFine HD print heads in a staggered configuration support high-density output and stable drop delivery, and the bundled MUTOH VerteLith™ RIP adds tiling, step and repeat, and bleed processing for full control over layout and print accuracy.
Quick Specs
| Specification | Details |
|---|---|
| Print Width | 63.5" max (media 19.7" to 64") |
| Printer Type | Water-based UV roll-to-roll |
| Print Technology | On-demand piezo, 2 AccuFine HD print heads (staggered) |
| Ink | AQUAFUZE™ water-based UV-curable, 4-color CMYK |
| Max Resolution | 1,200 x 2,400 dpi |
| Ink Capacity | 1L ink bags |
| Connectivity | Gigabit Ethernet (1000BASE-T) |
| RIP Software | MUTOH VerteLith™ (included) |
| Dimensions (W x D x H) | 109" x 35" x 56" (body) |
Why Choose the HydrAton 1642
- Safe for people and spaces. GREENGUARD Gold certified ink with low VOC, nearly odorless output, free from GHS hazard symbols and Substances of Very High Concern (SVHC). Ideal for schools, offices and healthcare facilities.
- UV-grade durability. Strong resistance to abrasion, chemicals and cleaning agents, with long-lasting color stability and easy-to-maintain surfaces.
- Energy and media friendly. Inks cure at a low 30-50°C, reducing energy costs and media shrinkage, while thin ink layers preserve the natural look and texture of each substrate.
- High precision printing. AccuFine HD printheads deliver up to 1,200 x 2,400 dpi with consistent accuracy in both feed and scan directions.
- Streamlined workflow. No primers, optimizers or UV-specific laminates required. Compatible with standard solvent lamination films without silvering, with same day lamination for quick turnaround.
Key Features
- GREENGUARD Gold certified AQUAFUZE™ ink technology: low VOC, nearly odorless output, free from GHS hazard symbols and Substances of Very High Concern (SVHC)
- New AccuFine HD printheads: faster print speeds without sacrificing image quality, up to 1,200 x 2,400 dpi resolution
- Two print heads in a staggered configuration for high-density output and stable drop delivery
- Automatic Bi-D adjustment and automatic media feed adjustment calibrate for each media type, reducing operator workload
- Media roll balance management: barcode-based tracking for efficient media usage and less waste
- Automatic start/stop technology with standard 66 lb take-up unit for uninterrupted, hands-off operation
- Low-temperature drying and curing at 30-50°C
- Durable finishes without overcoats, with thin ink layers that preserve substrate texture
- Strong scratch resistance and adhesion
- Prints across uncoated, coated and specialty media types
- No primers, optimizers or UV-specific laminates required; compatible with standard solvent lamination films, no silvering
- Same day lamination for a quick turnaround
- Tiling, step and repeat, and bleed processing via the bundled VerteLith™ RIP
Applications
Wallpaper and décor, signage, banners, vehicle graphics and other interior graphics on specialty substrates. Suited to indoor environments such as schools, offices and healthcare facilities.
Full Specifications
| Printing Method | On-demand piezo drive system |
| Print Heads | 2 (AccuFine HD, staggered) |
| Print Head Height | Low: 1.5mm. Middle: 2mm. High: 2.5mm |
| Max Resolution | 1,200 x 2,400 dpi |
| Max Print Width | 63.5" |
| Roll Media Width | Max: 64". Min: 19.7" |
| Max Media Thickness | 0.0393" |
| Roll Diameter | 7.87" or less |
| Core Diameter | 2" or 3" |
| Roll Weight | 66 lb or less |
| Curing Temperature | 30-50°C |
| Ink Type | AQUAFUZE™ ink (water-based UV-curable) |
| Ink Set | 4-color (CMYK) |
| Ink Volume | 1L ink bag |
| Interface | Gigabit Ethernet (1000BASE-T) |
| Power Requirements | Voltage: AC 100-120V / AC 200V or 240V ±10%. Frequency: 50/60Hz ±1Hz |
| Power Consumption | Operation: 1.4kW or less. Maximum: 2.7kW or less |
| Dimensions (W x D x H) | Body: 109" x 35" x 56". With ink case installed: 109" x 35" x 63" |
| Weight | Printer body: 322 lb. Stand: 70.5 lb. Take-up unit: 17.5 lb |
| RIP Software | Mutoh's genuine VerteLith™ RIP software (included), bundled with Flexi DESIGN MUTOH Edition |
