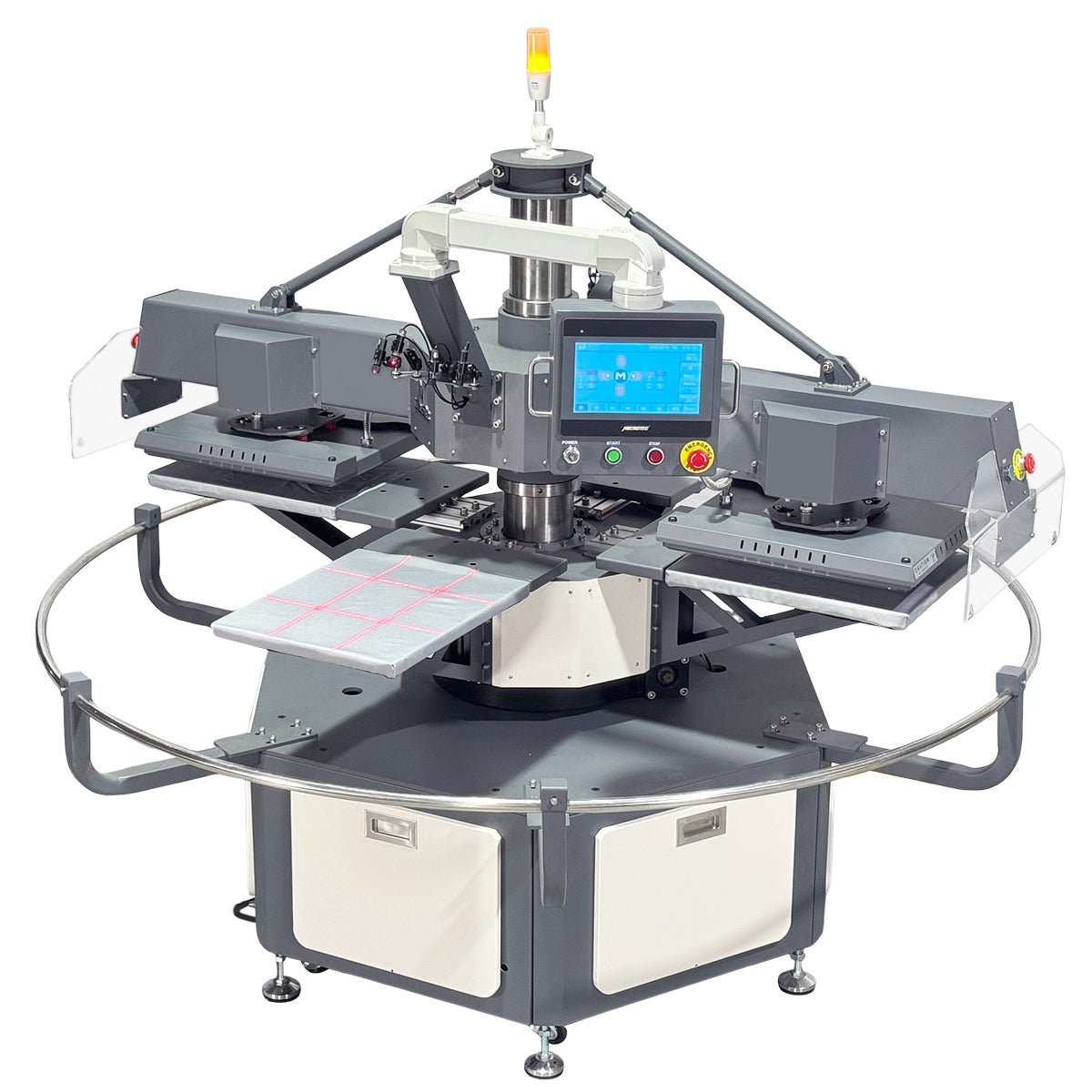

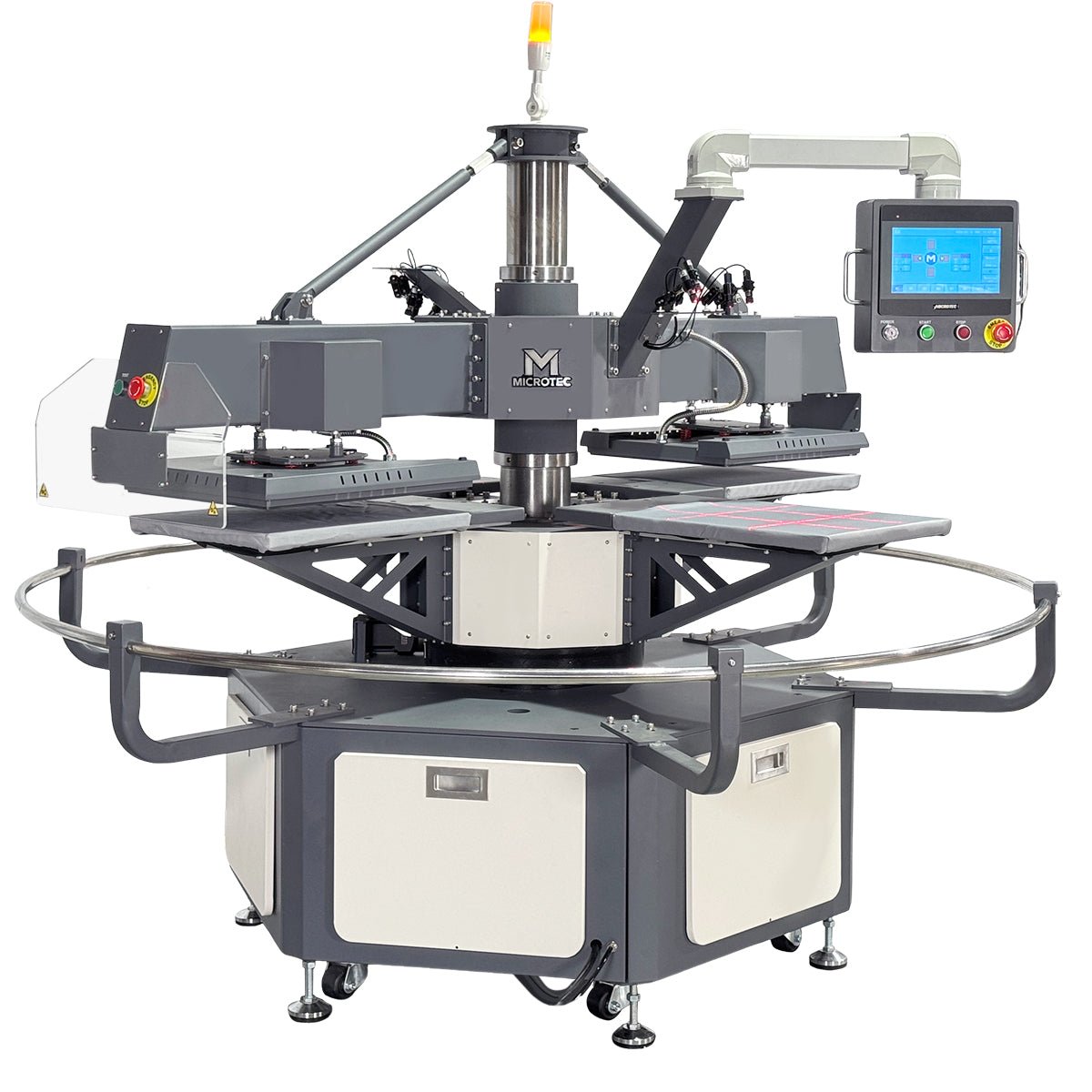

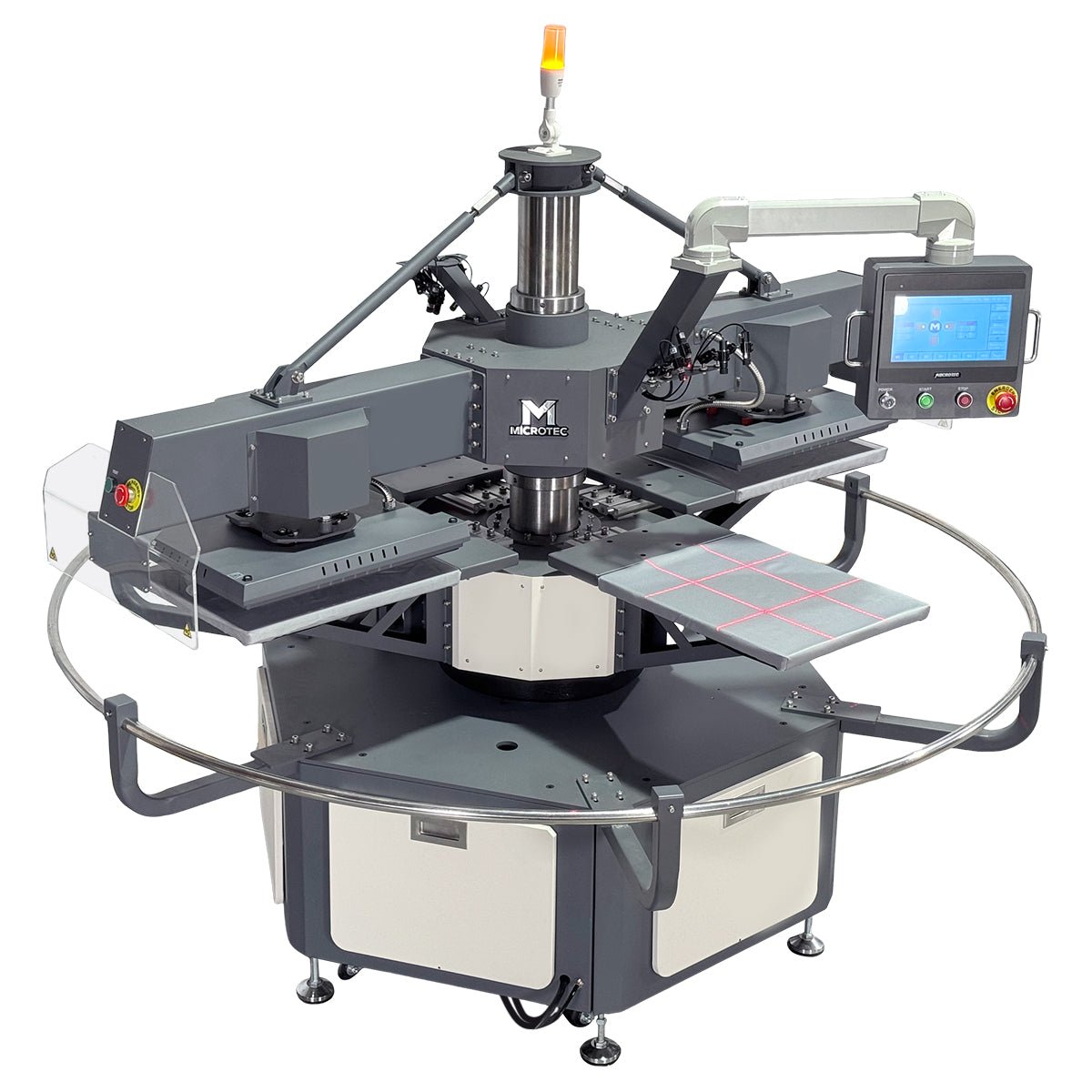

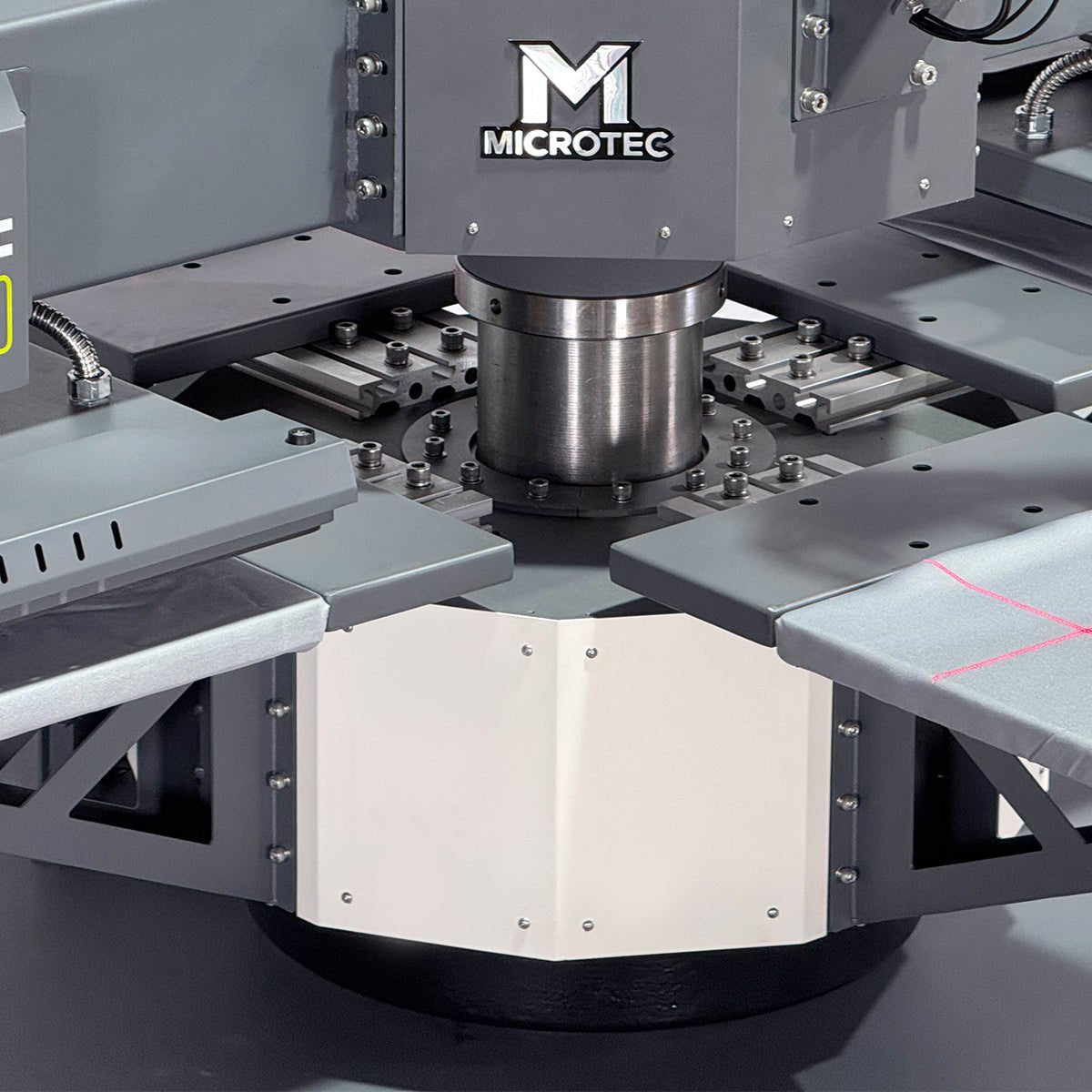

The MicroTec APEX X4 is a fully automatic carousel heat press with 2 heat press heads and 4 rotary-positioned stations, built for high-volume DTF and heat transfer production.
Laser positioning, a touchscreen PLC controller and heavy-duty steel construction keep output fast and repeatable. The most compact carousel in the APEX range.
Paired with the APEX X-Feed, X-Peel and X-Pull, it becomes an integrated DTF line with automatic feeding, film peeling and garment collection.
Key Features
- 2 heads, 4 stations, 16" x 20" (40 x 50 cm) platens

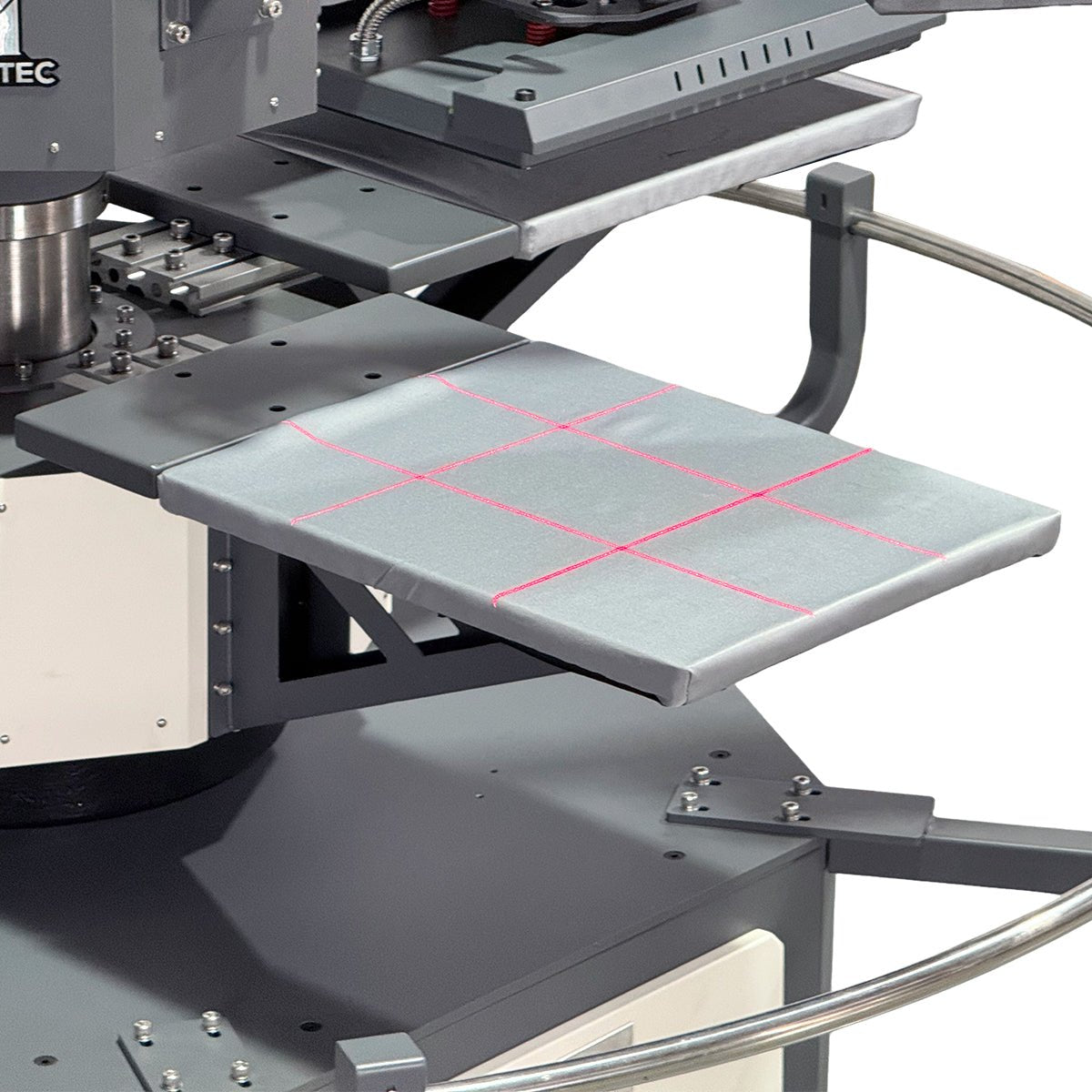

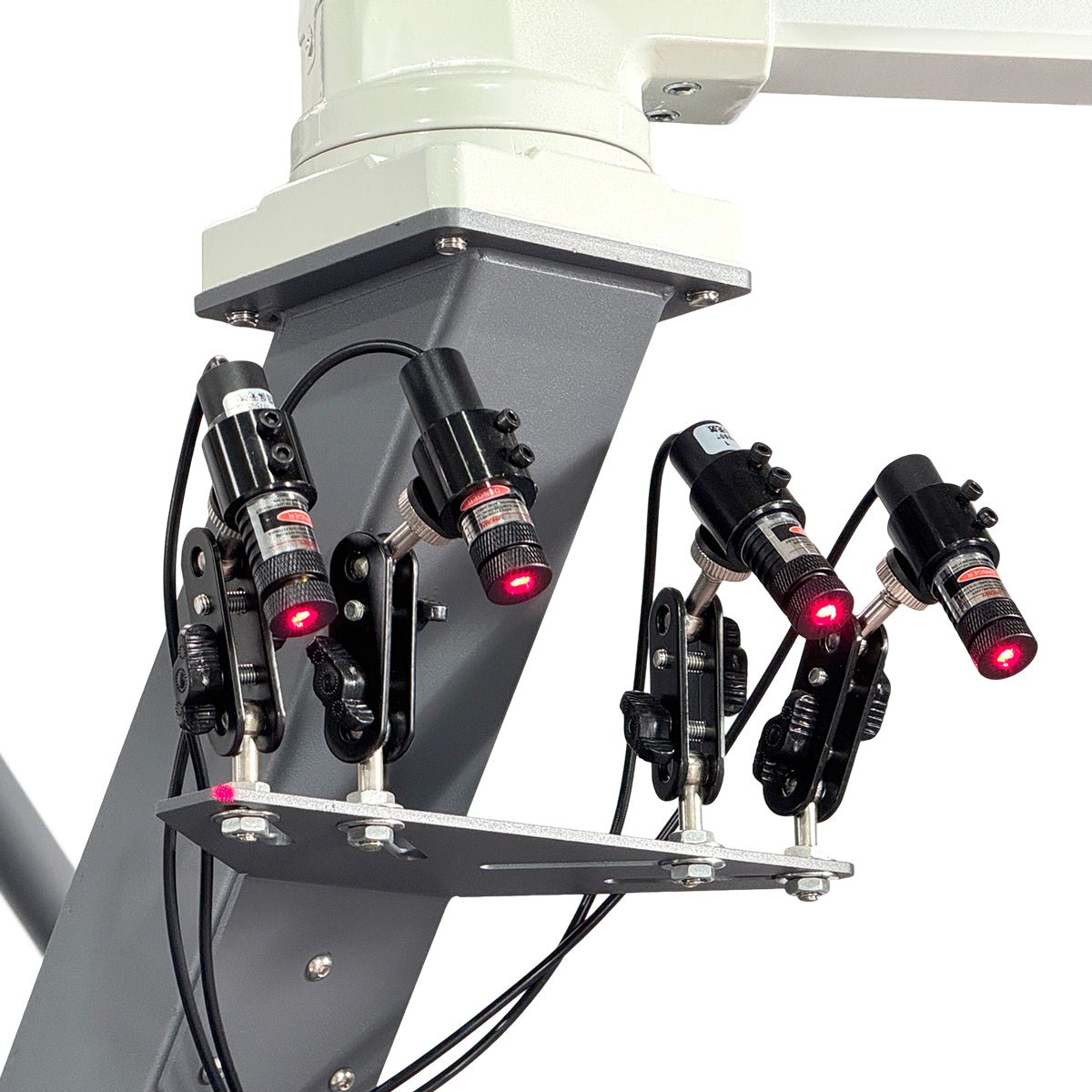

- Laser positioning for accurate garment placement

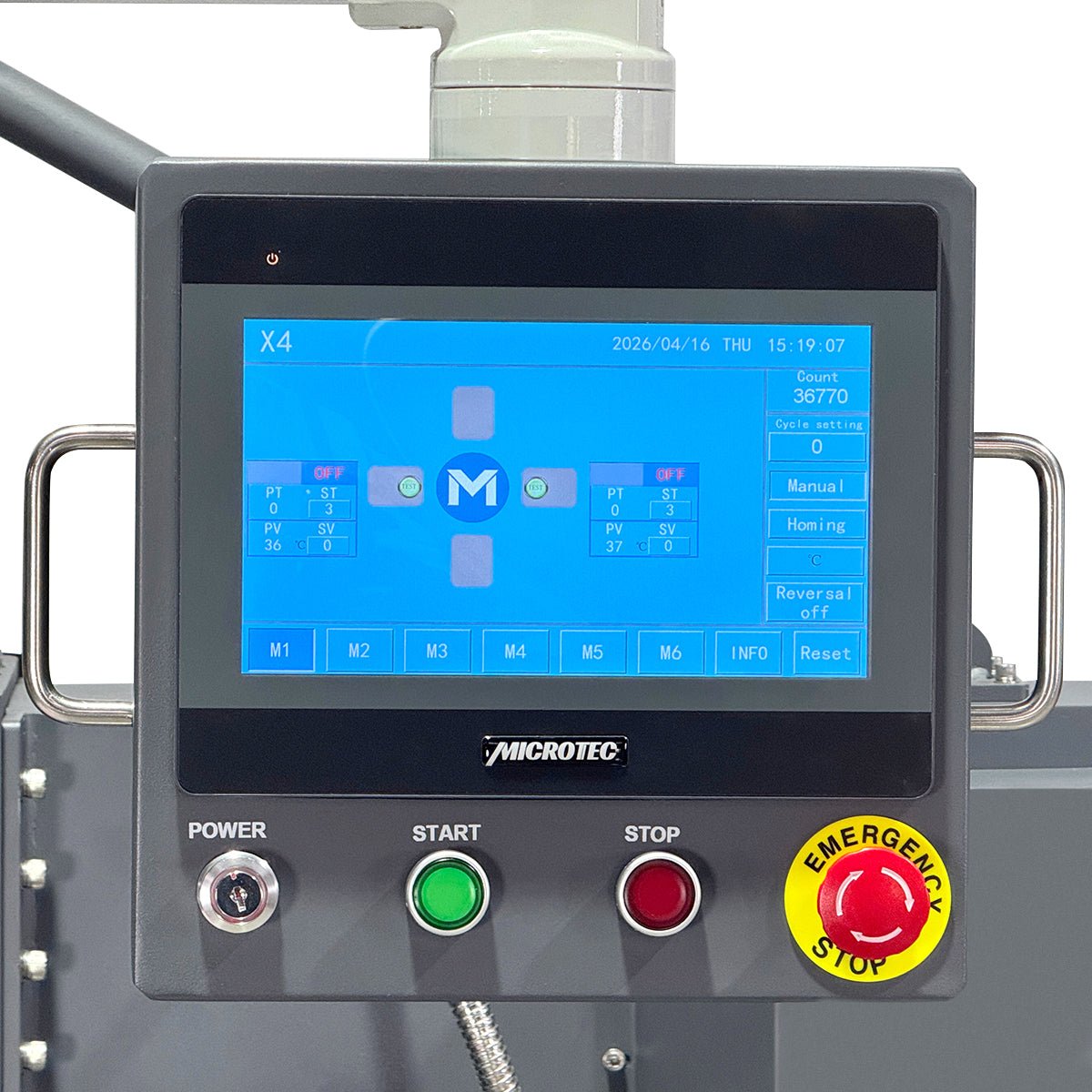

- Touchscreen PLC controller
- Integrated DTF transfer workflow with auto feeding, auto film peeling and auto collection
- Heavy-duty steel frame for continuous industrial use
Specifications
| Machine type | Full automatic carousel, laser positioning |
| Platen size | 16" x 20" (40 x 50 cm) |
| Under plate | 4 pcs 40 x 50 cm, rotary-positioned |
| Controller | PLC touchscreen controller |
| Air compressor required | Yes |
| Voltage | 220V single phase |
| Power | 6 kW |
| Time range | 0 to 999 sec |
| Maximum temperature | 220°C |
| Machine size | 215 x 215 x 180 cm |
| Packing size | 220 x 220 x 190 cm |
| Net weight | 750 kg |
Good to Know
- Requires a compressed air supply.
- Freight shipment; contact us for shipping, installation and training options.
- Supplied under the MicroTec brand.
