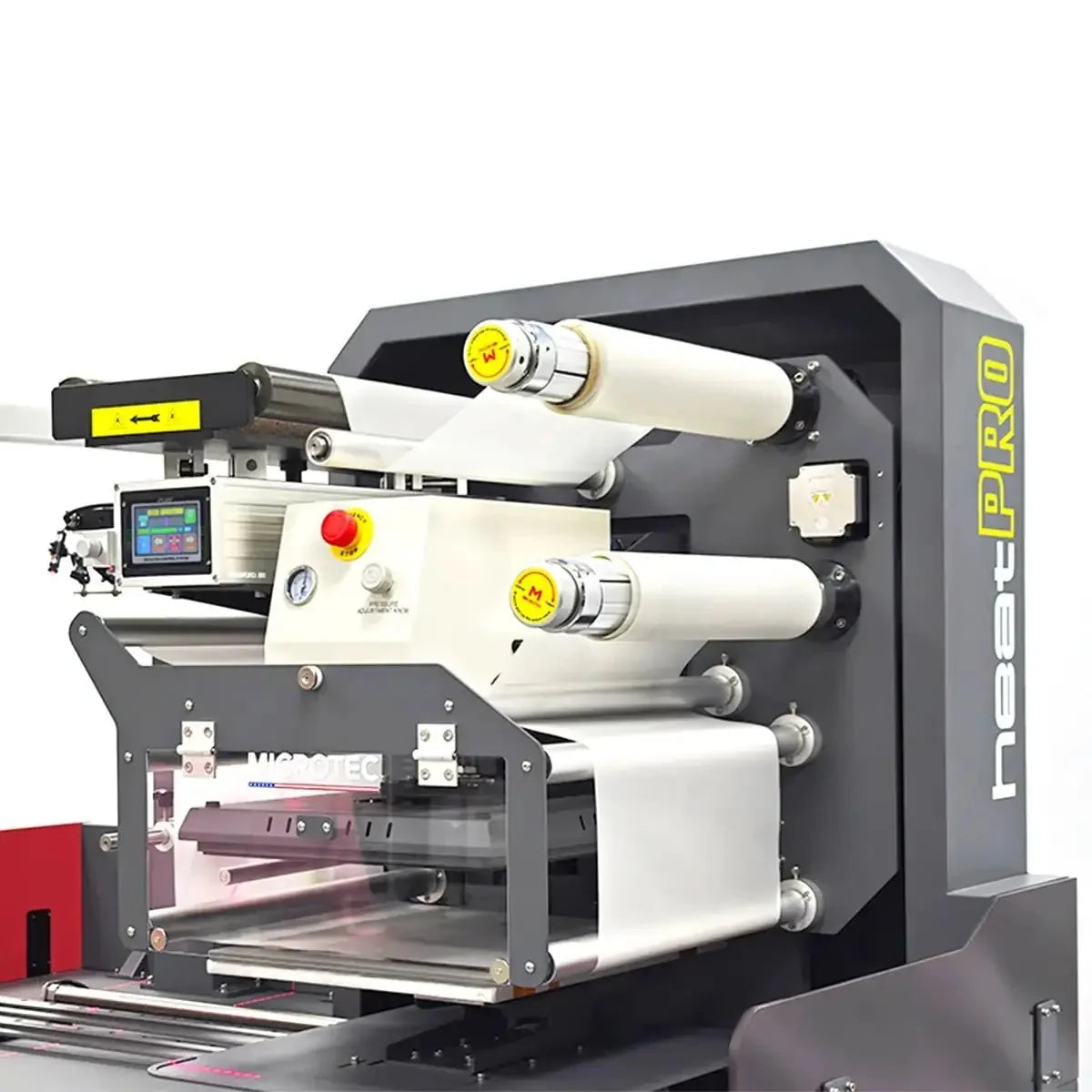

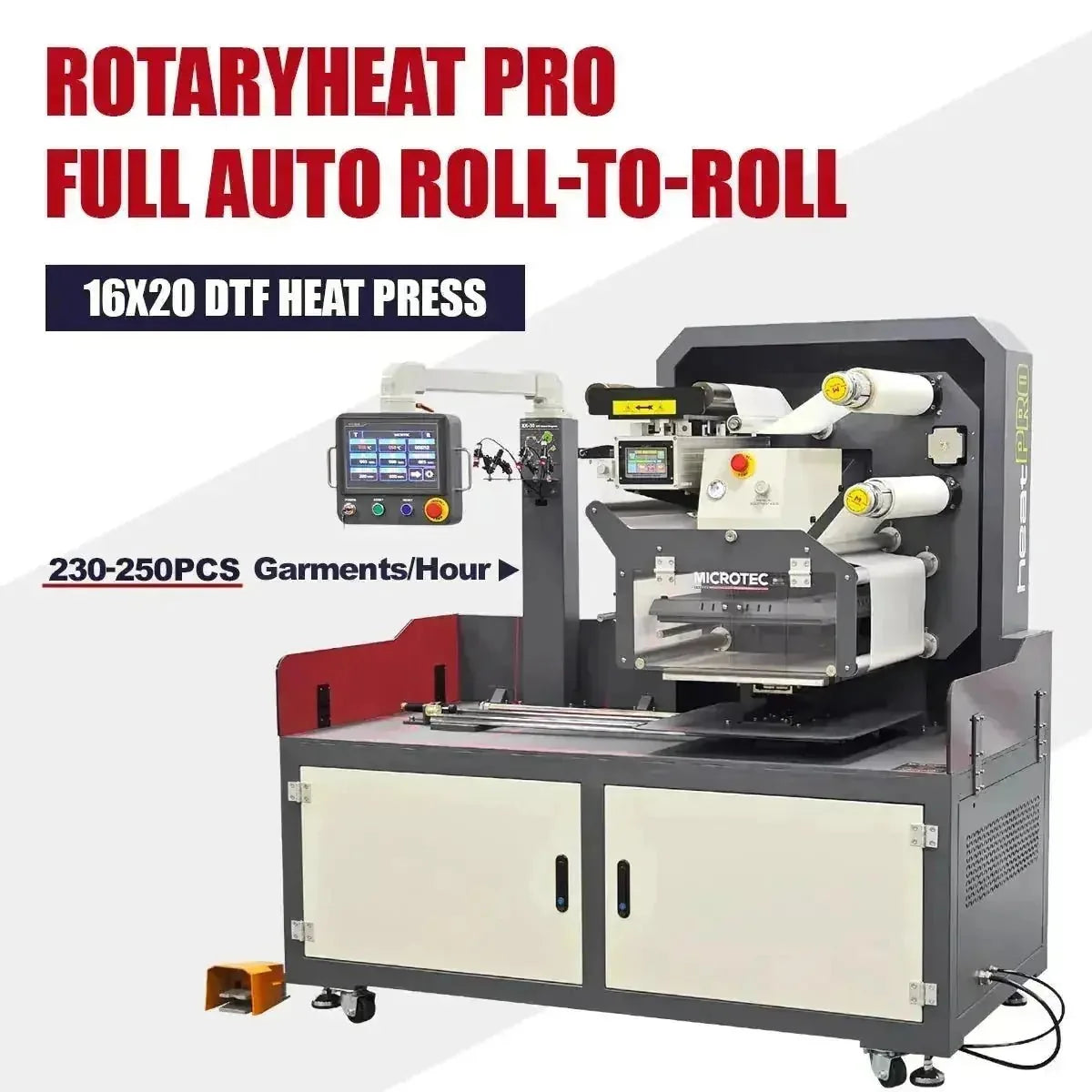

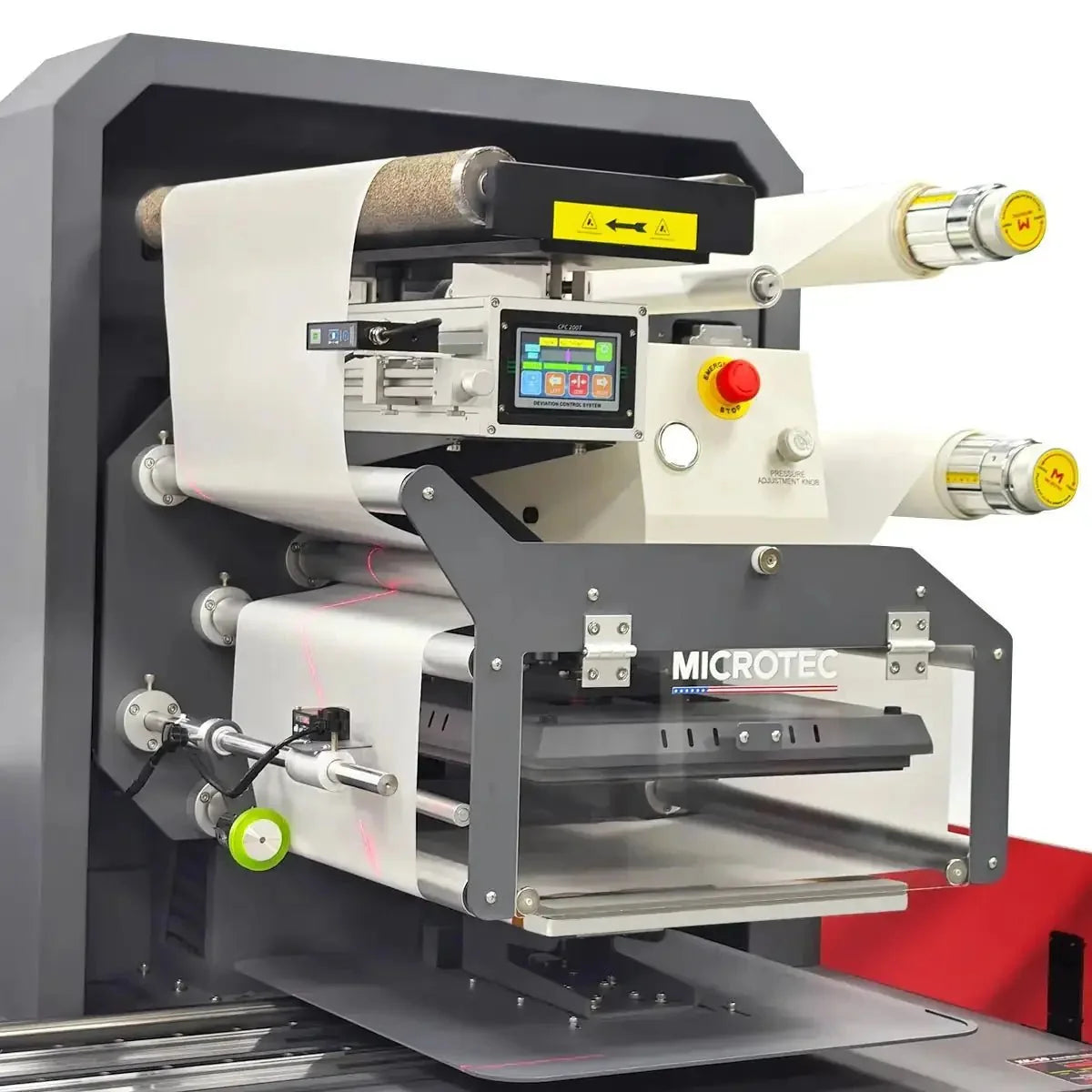

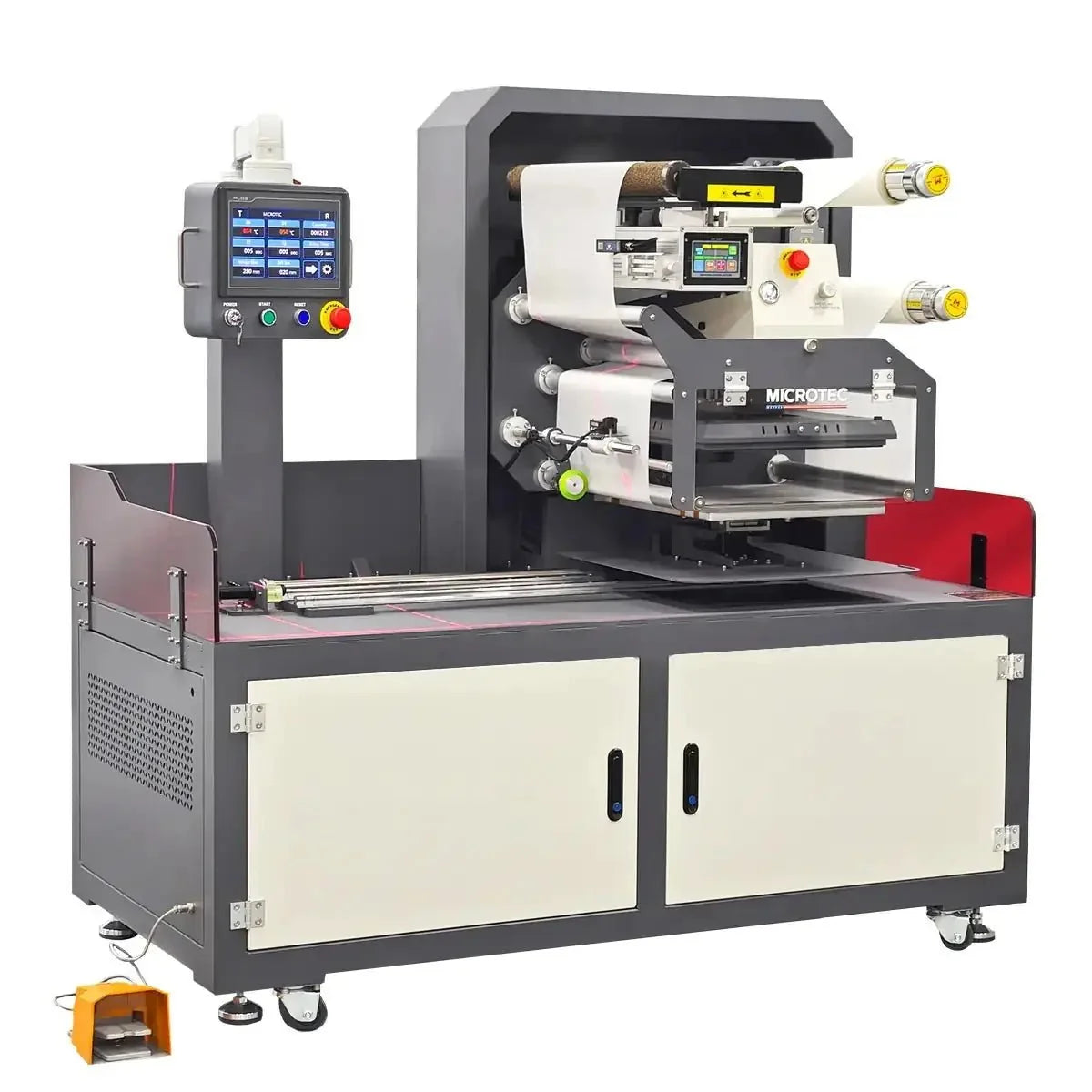

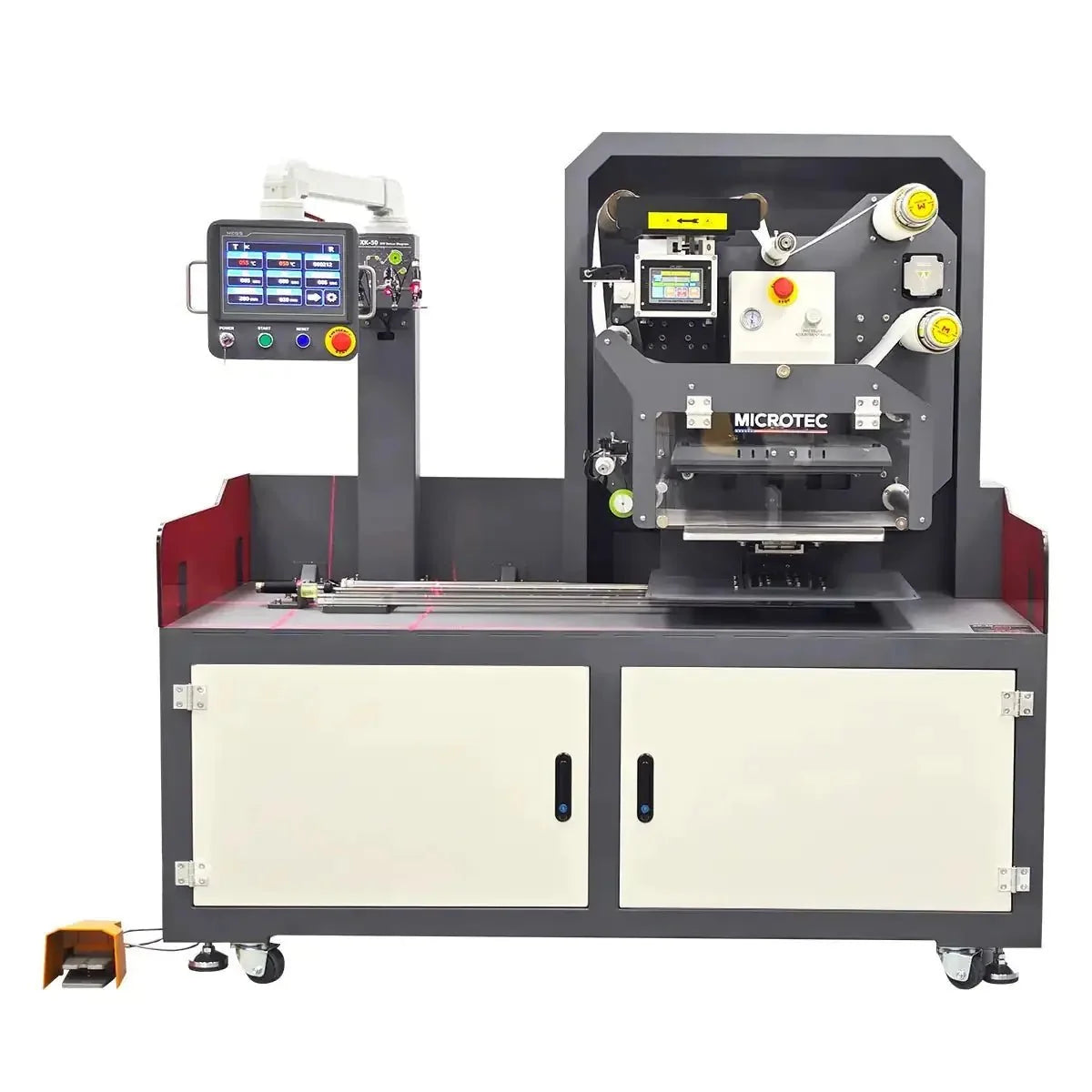

The MicroTec APEX Max 16" x 20" is a full auto continuous roll-to-roll DTF heat press. It automates film feeding, alignment, pressing, peeling and correction, producing around 230 to 250 garments per hour.
A left-right sliding garment base lets operators load the next piece while the machine keeps pressing.

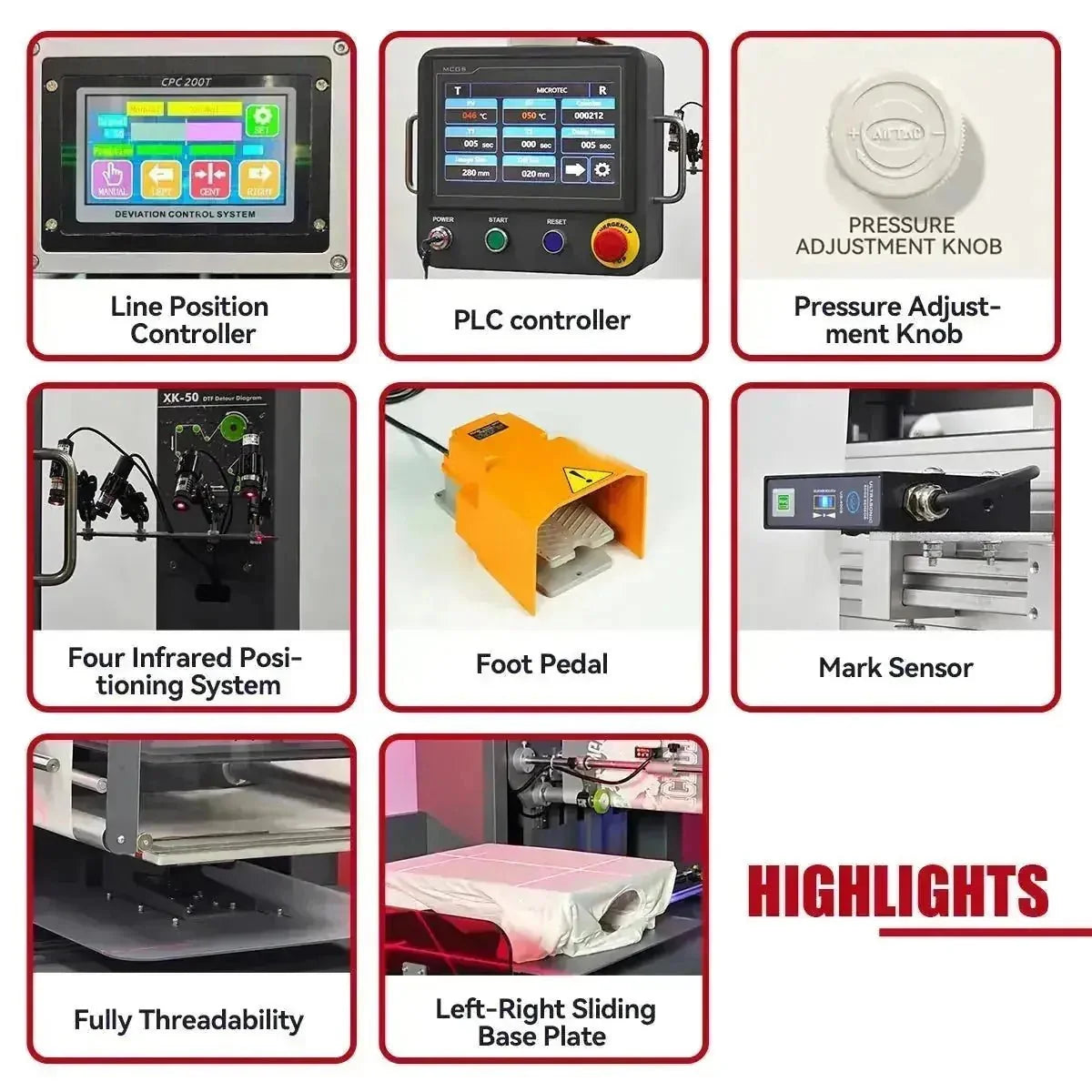

Key Features

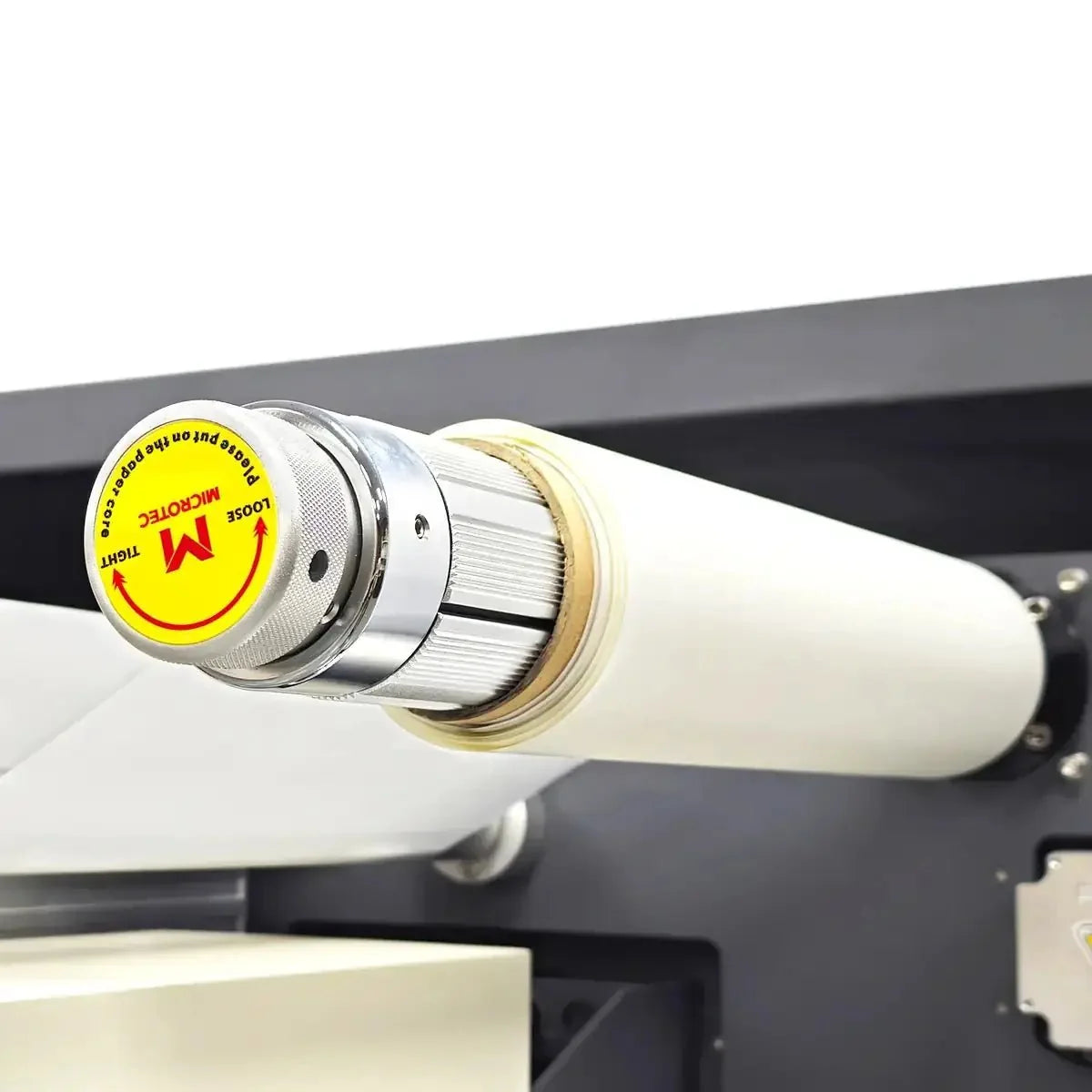

- Full auto continuous roll-to-roll pressing
- Around 230 to 250 garments per hour
- 16" x 20" (40 x 50 cm) platen

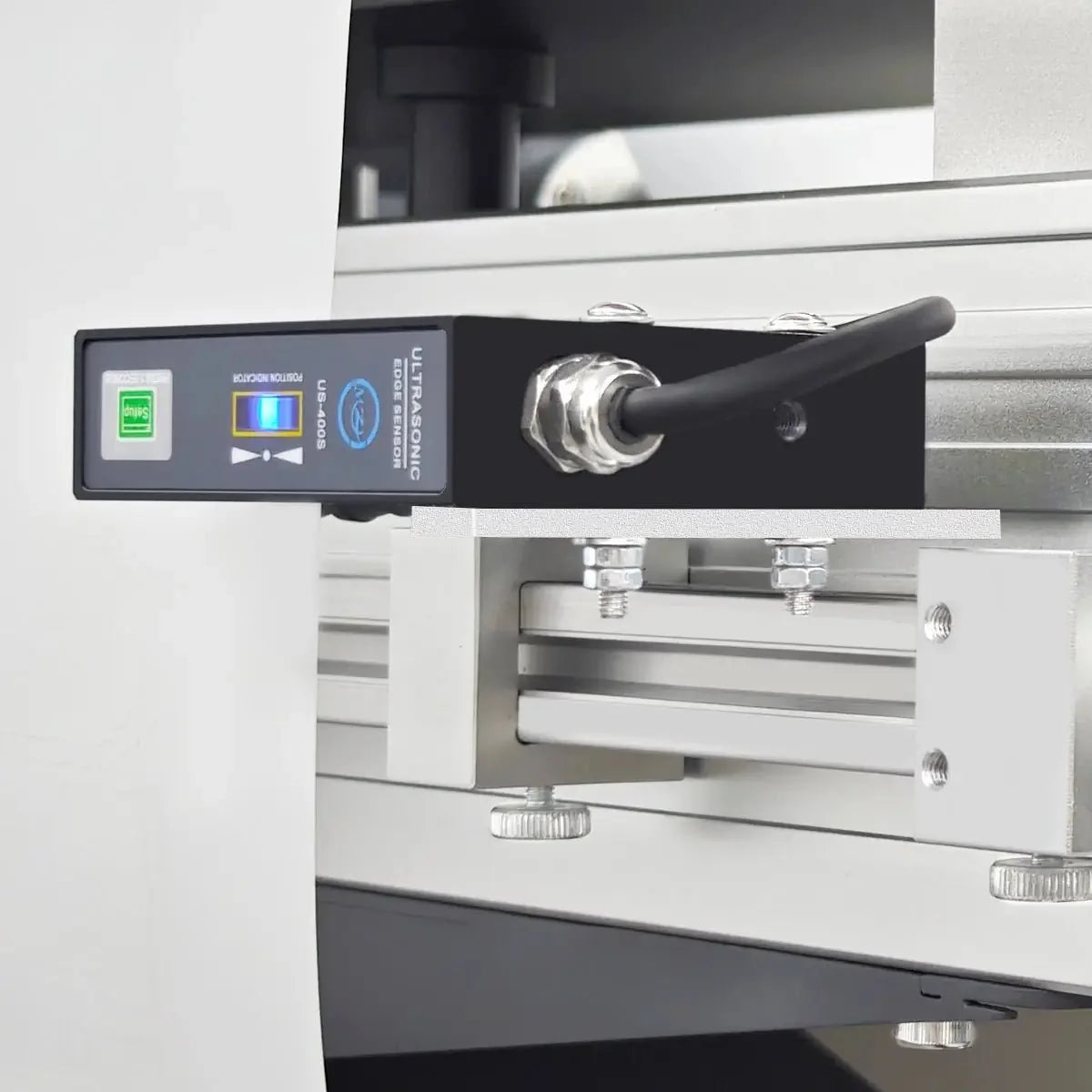

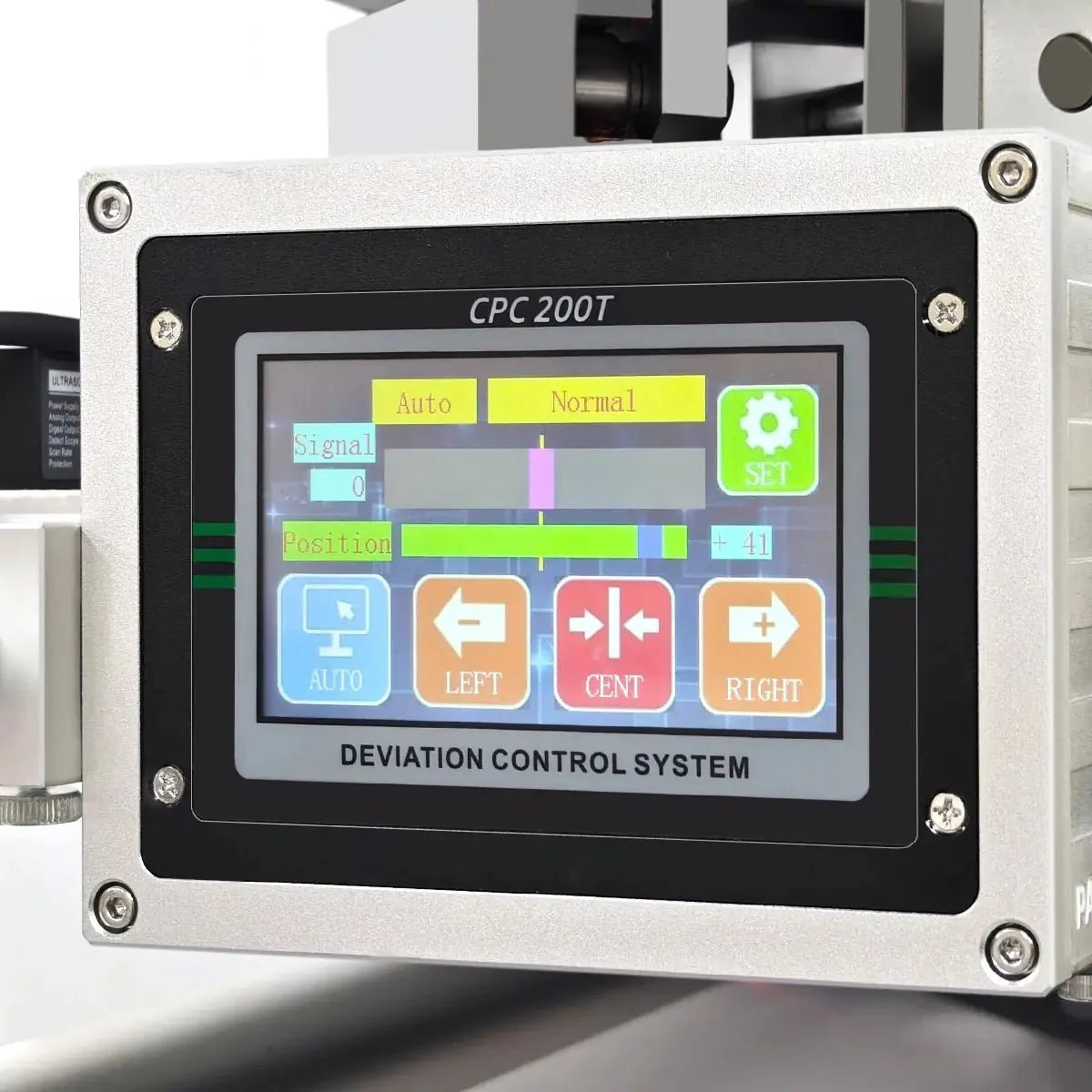

- Automatic film correction keeps transfers on position
- Prints on articles up to 30 mm thick
- Runs on 220V single phase
Specifications
| Machine type | Full auto continuous heat press |
| Platen size | 16" x 20" (40 x 50 cm) |
| Voltage | 220V single phase |
| Maximum temperature | 200°C (±5°C accuracy) |
| Printable articles | Up to 30 mm thickness |
| Power | 2.8 kW |
| Dimensions | 179 x 90 x 178 cm |
| Packing size | 196 x 108 x 206 cm |
Good to Know
- Freight shipment; contact us for shipping details.
- Supplied under the MicroTec brand.
