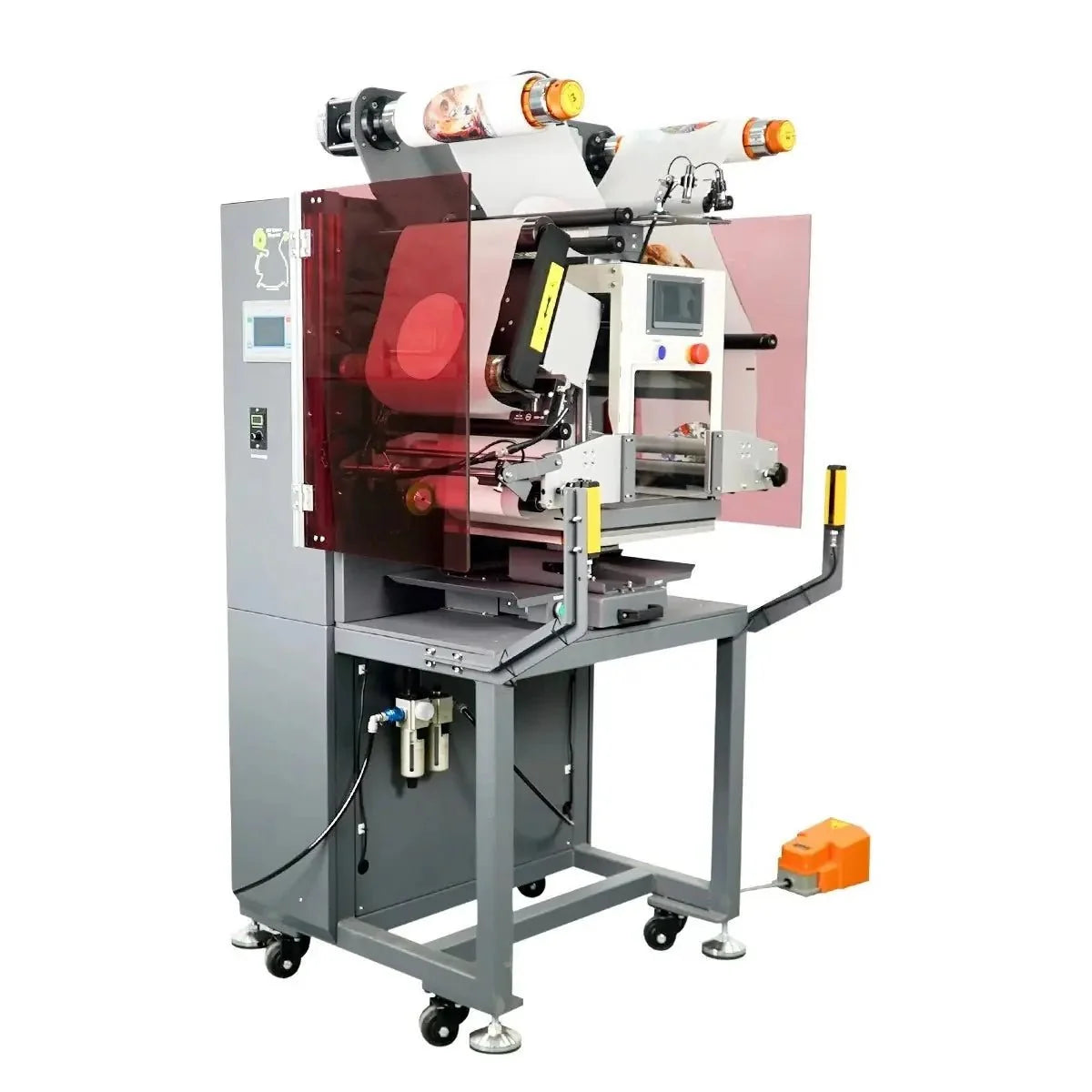

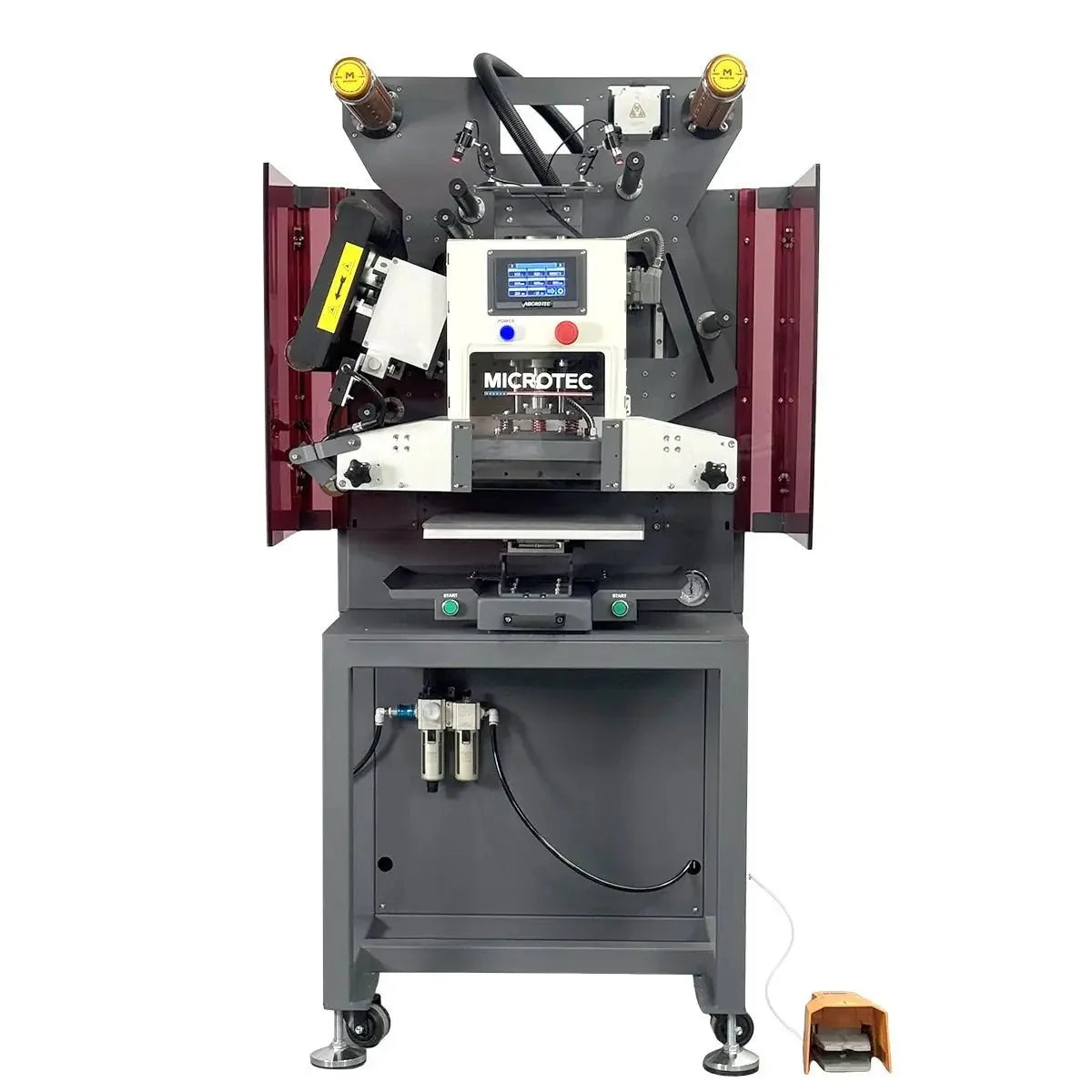

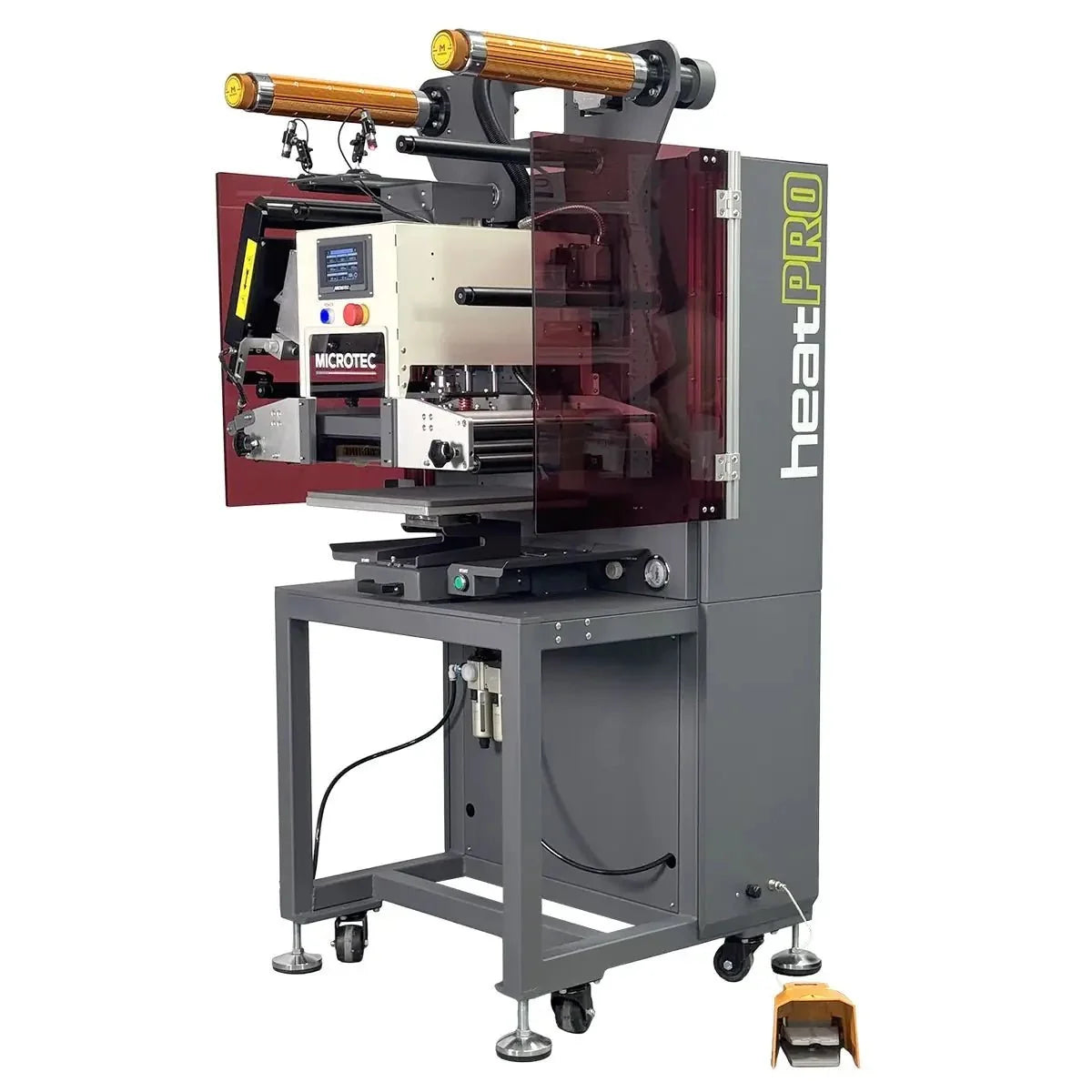

The MicroTec APEX Max 15" x 15" is a fully automatic roll-to-roll DTF heat press. It feeds, aligns, presses and peels the transfer film for you, so there is no manual film placement or peeling.

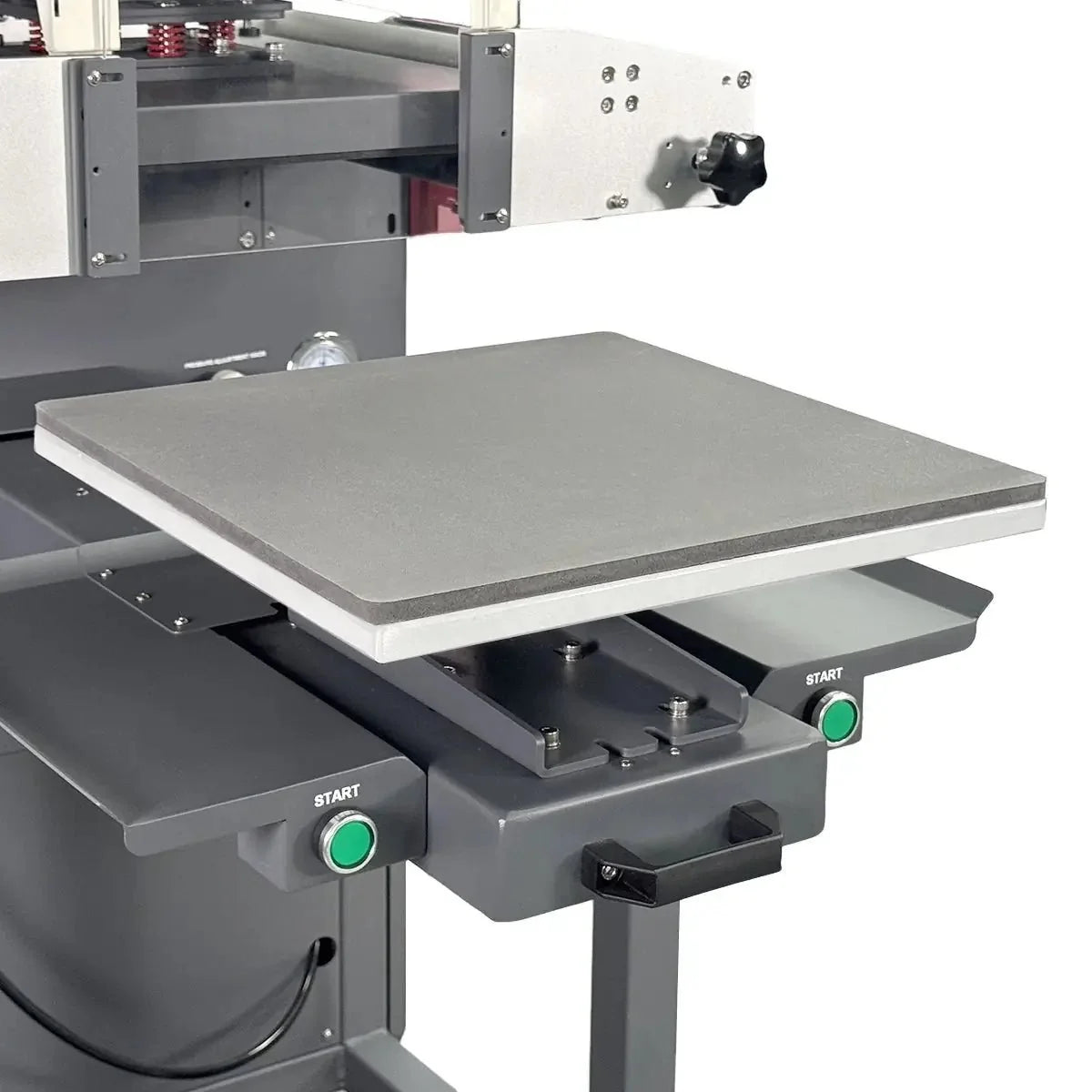

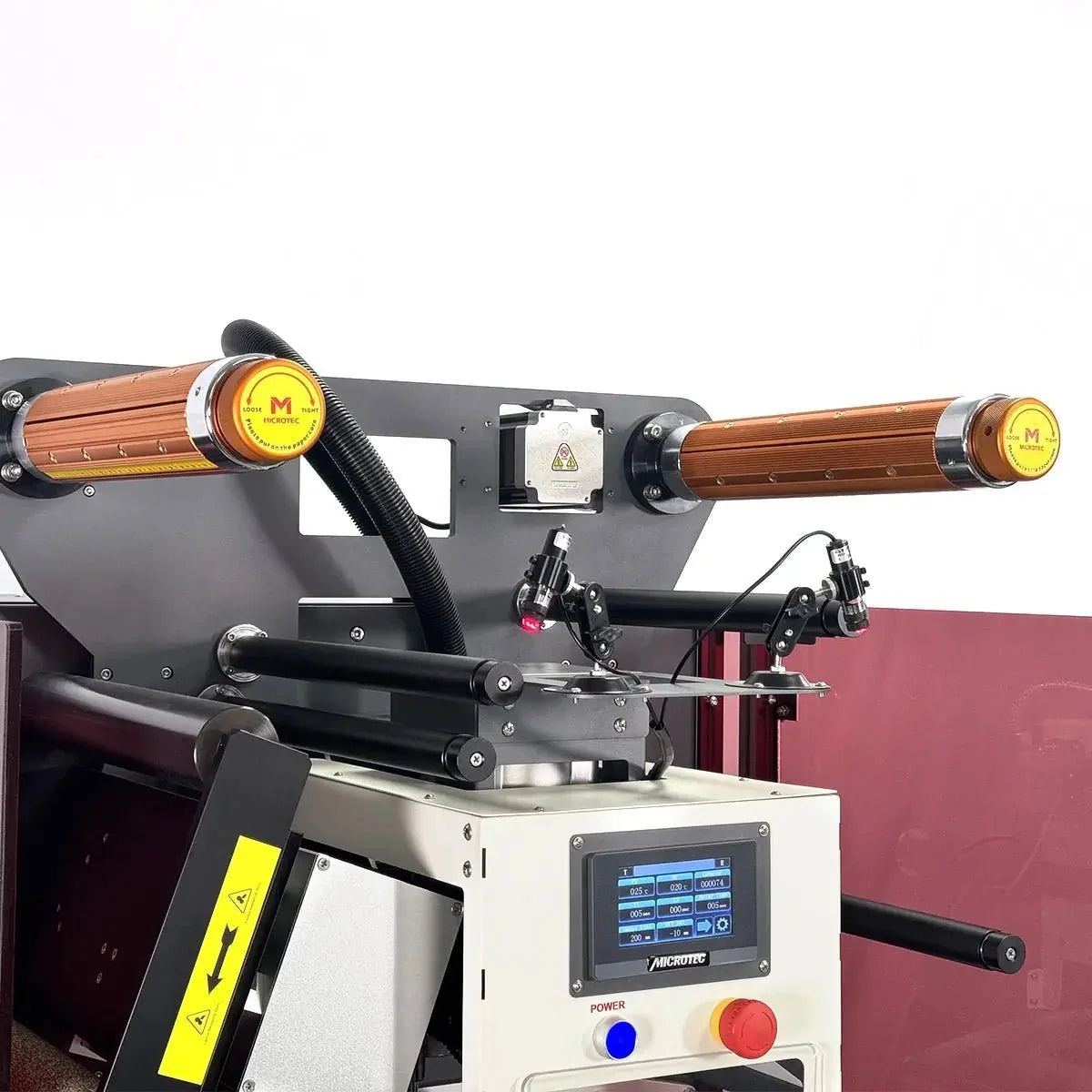

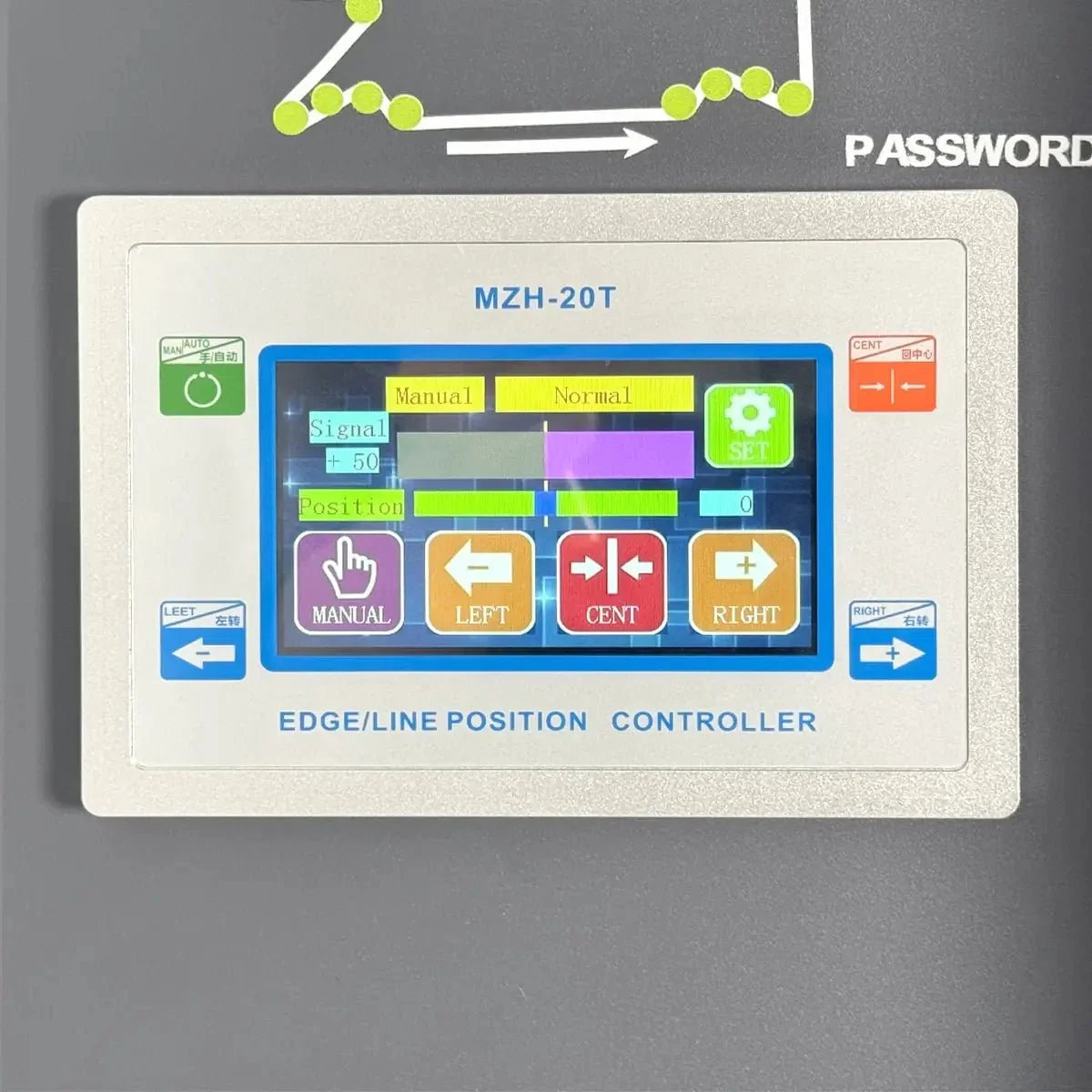

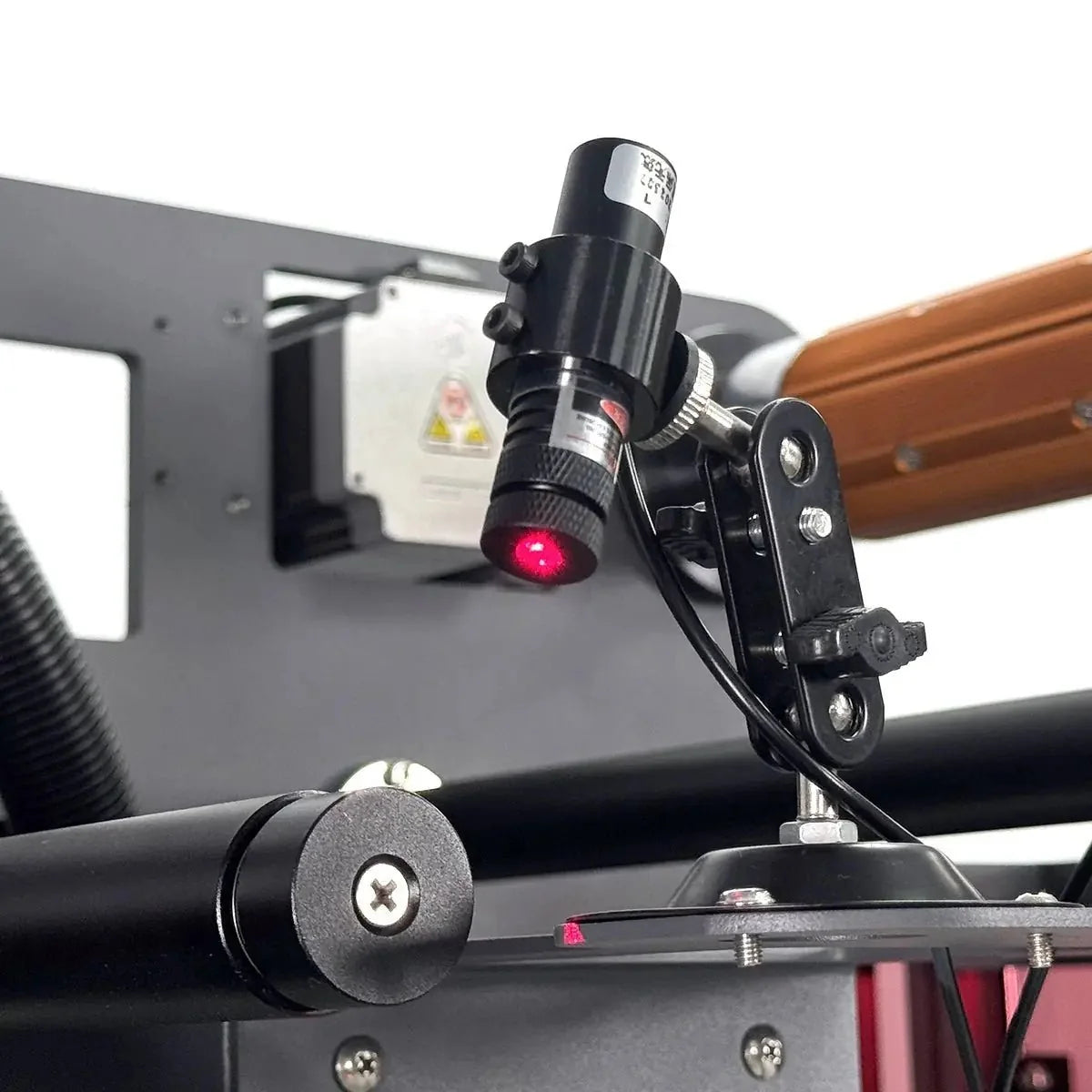

An automatic film correction system keeps the roll running in position, and the quick-change lower platen makes switching between products fast.
Key Features
- Automatic feeding, alignment, pressing and peeling
- 15" x 15" (38 x 38 cm) heat platen

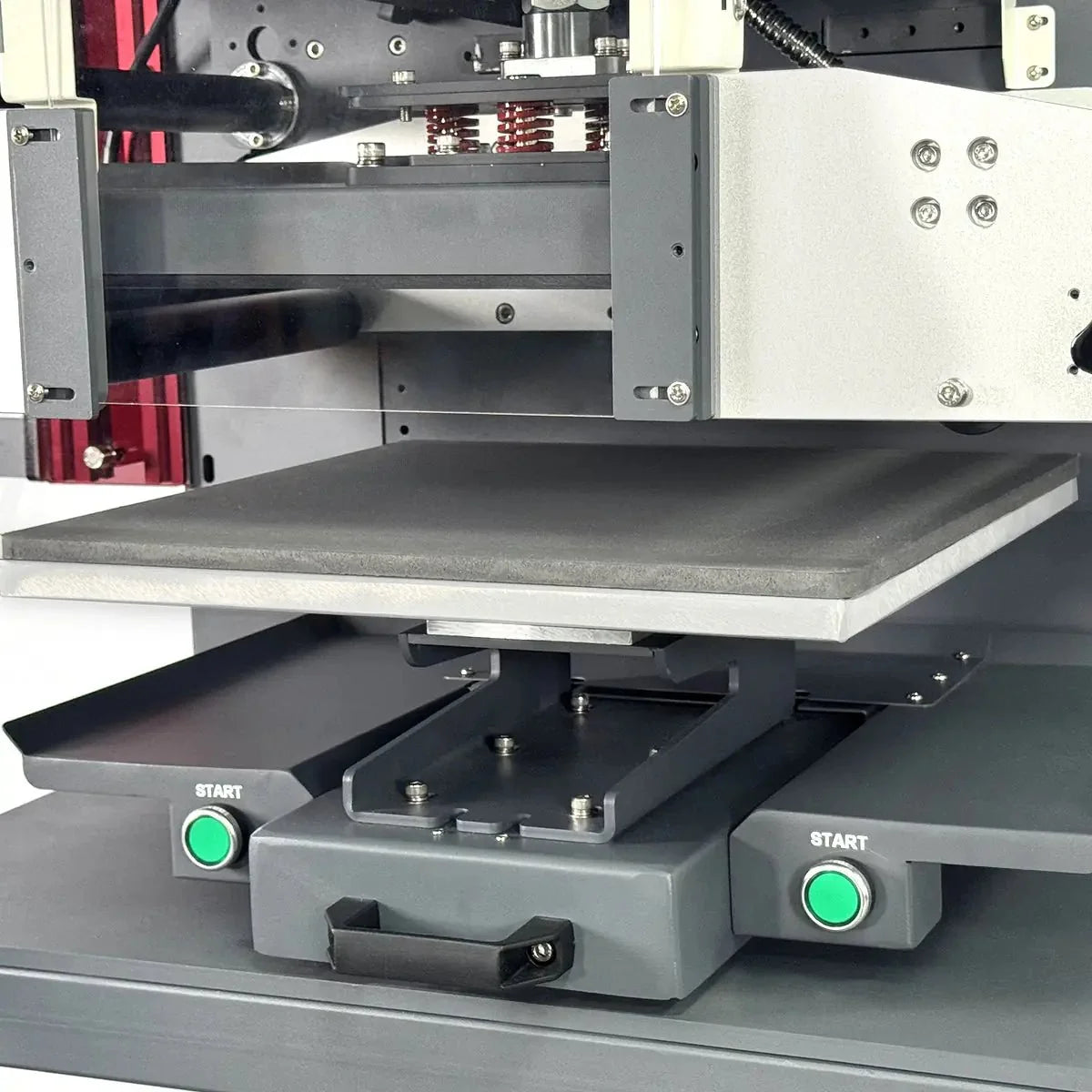

- Quick-change lower platen

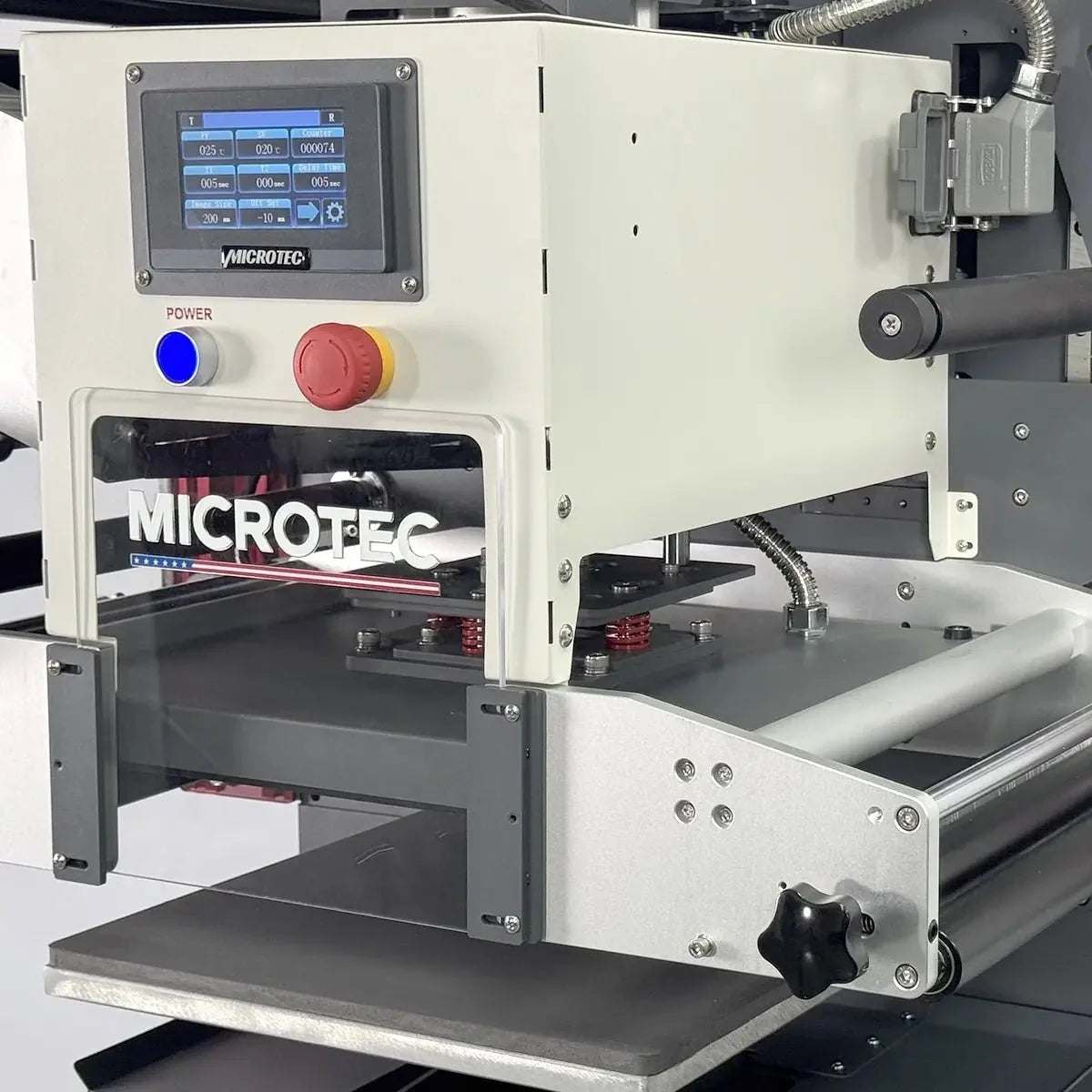

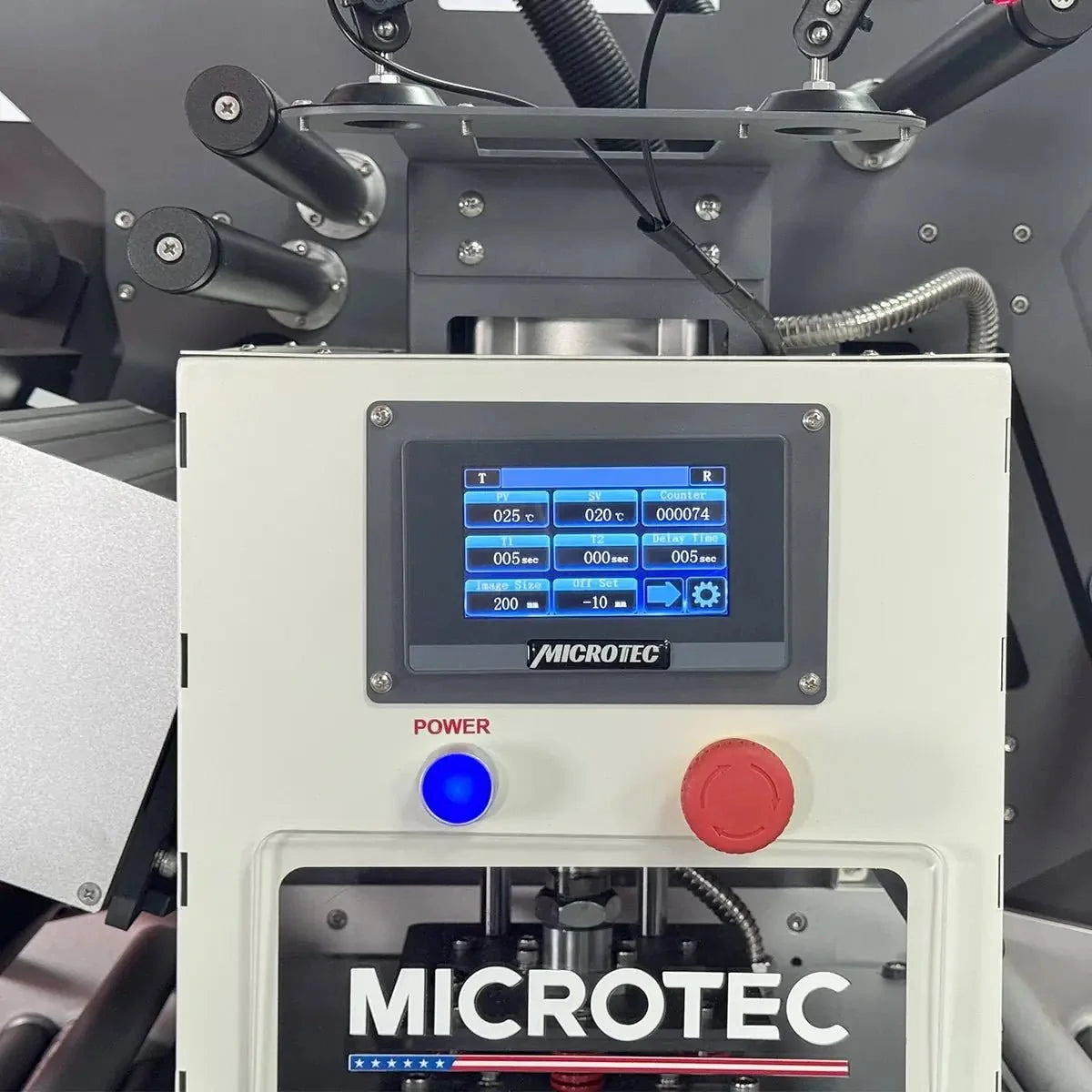

- PLC control with auto-tension adjustment
- Prints on articles up to 10 cm thick
Specifications
| Machine type | Auto feeding, alignment, pressing and peeling |
| Platen size | 15" x 15" (38 x 38 cm) |
| Under plate | Quick-change lower platen |
| Controller | PLC control with auto-tension adjustment |
| Printable articles | Up to 10 cm thickness |
| Air compressor required | Yes (0.6 MPa) |
| Voltage | 220V |
| Power | 1.8 kW |
| Time range | 0 to 999 sec |
| Maximum temperature | 220°C |
| Machine size | 91 x 71 x 180 cm |
| Packing size | 114 x 101 x 200 cm |
| Gross weight | 550 kg (wooden package) |
Good to Know
- Requires a compressed air supply.
- Freight shipment; contact us for shipping details.
- Supplied under the MicroTec brand.
