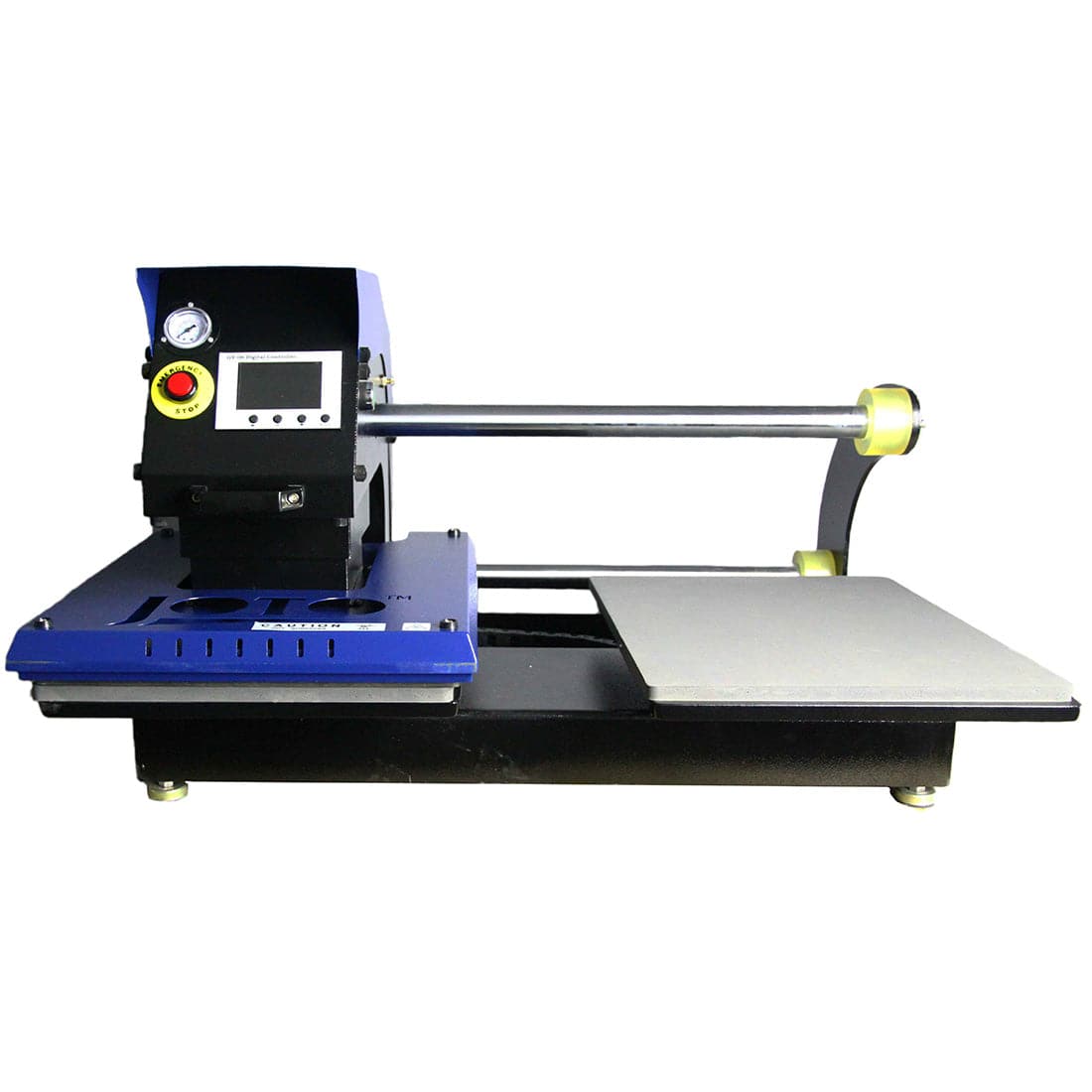

Joto Pneumatic Shuttle Press 16" x 20"

Regular price $2,695.00


Duo base plates for high volume. 2 x base plates Platen Size: 15.75" x 19.75.
Air Operated, One Year Warranty, Fully Digital Temperature and Time Controls.

Joto Pneumatic Shuttle Press 16" x 20" - Joto Imaging Supplies US
Joto Pneumatic Shuttle Press 16" x 20"

The Pneumatic Double Base Heat Press is built for high-volume shops.  No need to wait for the substrate to be done.  You can press one item while preparing and positioning the next item on the neighboring base plate.  This will significantly increase productivity in your shop!

Additionally, this press comes with an auto-release feature preventing overcooking.  Simply close the press, and it will auto-open once the timer counts down to 0.  This press is also equipped with a warning sound when the transfer is done.

This press is fully digital with compressed air pressure adjustment.  This heat press is ideally suited for pressing thick sublimation items as well as heat transfer flex.  Due to the horizontal sliding head heat platen, consistent pressure can be achieved with thicker substrates that clamshell models normally have trouble pressing.


  • Fully digital Temperature and Time Controls
  • Auto Open Feature
  • Slide design makes positioning garments very easy
  • Adjustable compressed air pressure
  • Max temperature of 410F (205C)
  • Temperature can be displayed in Celsius or Fahrenheit
  • Platen Size Available in 15.75" x 19.75"
  • One-year warranty on the entire press & parts
  • Five-year warranty on heating platen
Air Compressor Yes
Amps 15A
Available Platen Sizes 15.75" x 19.75"
Brand Joto
Compatible Technology Heat Presses
Controller GY-06 Digital Controller
Dependent Quantity No
Dimension 39.4" x 22.8" x 29.5" (100cm x 58cm x 75cm)
Dye Blocking No
Environment +5°C - +35°C / 30
FCC Attribute Yes
Features Air Operated
Gas Spring Control No
Gross Weight 215lbs (97kg)
Ink Configuration CMY&HDK
Machine Type Pneumatic Double Base Heat Press
Max Pressure 4.98 lbs/in² (350g/cm²)
Max Temperature 437F (225°C)
Packing Size 41.34” x 37.4” x 27.56” (105cm x 95cm x 70cm)
Platen Size 16" x 20"
Power 1200W
Pressure Setting Setting of pneumatic pressure
Printable Articles Up to 1.20” (30mm) Thickness
Scope of Delivery Transfer Press|Power Cable|Mounting for Compressor|Manual
Self-Weeding No
SIP Attribute Yes
Time Range 0-999 seconds
Type of Press Shuttle
Voltage 120V/14amp
Warranty <p><strong>STATEMENT OF WARRANTY</strong></p> <p>&nbsp;</p> <p align="center"><strong>Joto Pneumatic Shuttle Press 16" x 20" <br>(E-HP-JSP-1620M)<br><br></strong></p> <p>Joto warrants to the original purchaser Joto’s Pneumatic Shuttle Press 16" x 20" (E-HP-JSP-1620M) heat press or component that such heat press or component is free from defects in materials and workmanship, subject to the limitations set forth below.</p> <p><strong>IN LIEU OF ALL WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH JOTO HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE FOLLOWING
Application Temperature
