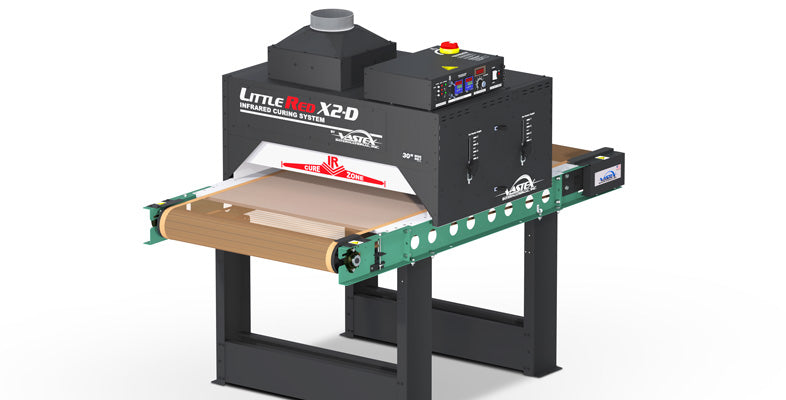

Vastex LittleRed X2D-30 – High-Output DTF & DTG Conveyor Dryer
Boost your garment production with the Vastex LittleRed X2D-30, a compact yet powerful conveyor dryer designed for DTF powder curing, DTG white ink printing, and water-based or plastisol applications. Built for small to mid-sized print shops, this dryer delivers industry-leading performance, energy efficiency, and modular expandability to grow with your business.
Featuring a 30” Teflon-coated fiberglass belt, dual infrared heaters, and a tilting heater system for specialty substrates like caps, the X2D-30 ensures fast, even curing in a space-saving design.
Financing Options:
Get the equipment you need now and pay over time. With QuickSpark’s simple financing, you can qualify for purchases starting at just $1,000, all with low monthly payments that fit your budget.
- Keep your cash flow steady
- Start generating income immediately
- Easy online application, instant decisions
Key Features:
- High-output conveyor dryer for DTF, DTG, water-based, discharge, and plastisol inks
- 30” (76 cm) belt width with Teflon-coated fiberglass for smooth garment flow
- Dual 24” infrared heaters with closely spaced coils for even heat distribution
- Tilting heater design for caps and irregular substrates
- Adjustable heater clearance from 2”–7” (5–18 cm) per side
- Dual Digital PID controls (±1°F) for precise temperature regulation
- Industrial-grade steel frame and modular design for long-term scalability
- Locking caster option available for mobile setups
High-Speed Performance:
- Plastisol: 240+ garments/hour
- Water-based/Discharge: 122+ garments/hour
- DTG White Ink: 34 garments/hour @ 3-minute dwell
- Capable of curing hats using tilting heater system
Product Specifications:
- Belt Width: 30” (76 cm)
- Conveyor Length: 66” (168 cm)
- Heating Chamber: 27” (69 cm) with two 24” infrared elements
- Total Power: 6,300W @ 240V
- Temperature Control: Dual Digital PID (±1°F)
- Exhaust System: High-powered for moisture and fume removal
- Belt Type: Teflon-coated fiberglass
- Construction: Heavy-duty steel frame
- Warranty: 15-year heater warranty (industry-leading)
Performance-Boosting Design:
- Preheat zone rapidly raises temperatures above 300°F (149°C)
- Medium-wavelength infrared heat ensures uniform curing with no cold spots
- Modular design allows adding heating chambers and belt extensions as you scale
- Optional exhaust hood (EXH) for improved fume management during DTF curing
Perfect For:
- DTF adhesive curing
- DTG white ink and hybrid printing
- Water-based and discharge ink applications
- Small to mid-size garment decorators
- Hat and specialty substrate curing
Handling & Storage Recommendations:
- Install in a well-ventilated area for optimal performance and safety
- Perform regular maintenance checks for belt alignment and heater integrity
- Ensure electrical setup meets power requirements before operation
