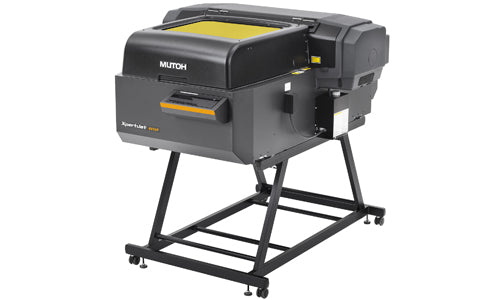

Mutoh XpertJet 661UF

XpertJet 661UF

The XpertJet 661UF UV-LED flatbed printer includes a larger printable surface area, an updated touchscreen panel, an improved LED lamp and more. The XPJ-661UF allows for layered printing to create fine textured prints and braille, all of which instantly add value to any print. Combined with Mutoh's Local Dimming Control Technology, you can add glossy finishes easily in one pass.

Mutoh's exclusive StartRight™ Kit training tool is included. It features project application guides with lessons, video instruction, sample output, blanks and a sample jig with inserts, plus instruction on the Flexi DESIGN MUTOH Edition and MUTOH VerteLith™ RIP print environments, so you can get the printer up and running quickly and add creative, textured signage to your shop. The award-winning MUTOH VerteLith™ RIP software optimizes all of the capabilities of the XPJ-661UF, increasing productivity and profitability.

Quick Specs

Why Choose the XpertJet 661UF

• Gloss, matte and color in one pass. Mutoh's UV-LED Lamp Local Dimming Control Technology prints glossy, semi-glossy and matte varnish together with color and/or white in a single table movement. It shortens print time, improves productivity and reduces grain, banding and layer misalignment.
• Textures and ADA braille. Add multiple layers of white and varnish US11 and UH21 inks for texture and gloss effects. Layer white and varnish UH21 inks to produce ADA-compliant braille.
• Automatic table height control. The table adjusts automatically for objects from 0 to 5.91 inches thick, and the included vacuum table offers five vacuum power settings.
• Up and running fast. The included StartRight™ Kit gives you project application guides, lessons, video instruction, sample output, blanks and a sample jig with inserts.
• Easier maintenance. A redesigned area around the UV-LED lamp improves access, and a new removable, replaceable UV lamp filter makes cleaning easier.
• Genuine Mutoh RIP software. MUTOH VerteLith™ RIP software optimizes printer performance and is bundled with Flexi DESIGN MUTOH Edition.

Key Features

• MUTOH VerteLith™ RIP software optimizes printer performance and is bundled with Flexi DESIGN MUTOH Edition
• 19.02" x 23.39" max printable size
• UV-LED Lamp Local Dimming Control Technology
• CMYK + White and Varnish
• Print directly on a variety of substrates up to 5.91 inches thick
• Print braille and other matte and glossy textures
• Automatic table height adjustment
• Vacuum table included, with five vacuum power control settings
• Stand included (working height: 48.11")
• LED touch panel provides a high-quality display and improves panel operation
• Print Resume Function to pause and resume printing
• Partial Nozzle Block Activation allows temporary printing using only active nozzle blocks if nozzles are clogged
• Variable data printing changes data or text from one printed piece to the next without stopping the printing process
• Density test pattern: easily print matte and glossy varnish by selecting a density, and reduce white mottling by optimizing ink density

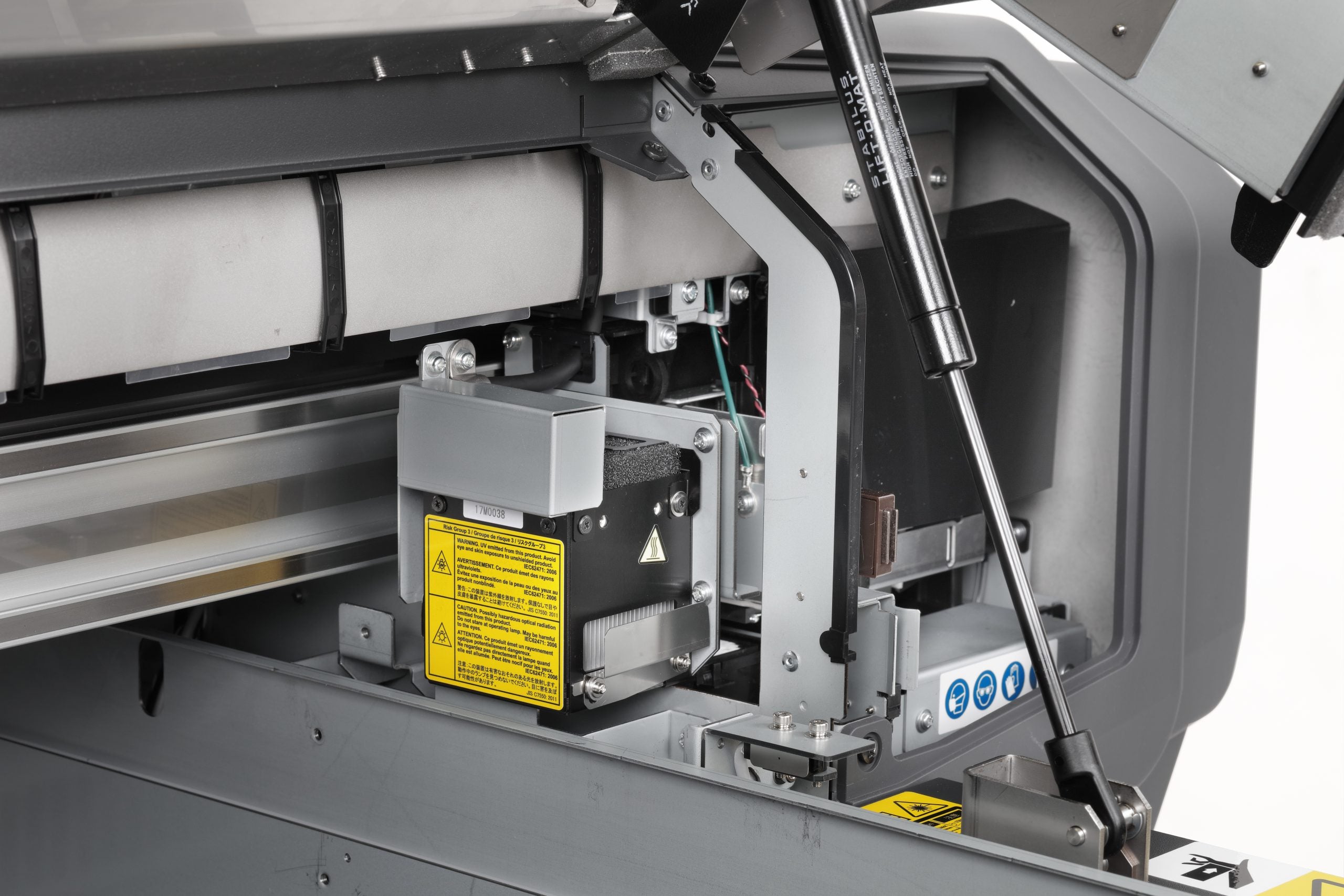

• Redesigned area around the UV-LED lamp for easier maintenance access
• New removable, replaceable UV lamp filter for easier cleaning
• Optional rotary unit for printing on cylindrical objects
• StartRight™ Kit training tool included
• Mutoh UV inks produce bright, vibrant colors with durable adhesion and meet California Proposition 65 and the CPSIA (Consumer Product Safety Improvement Act)
• US11 and UH21 inks, when used properly, are very durable and work on a large variety of substrates

Applications

Gloss and matte varnish effects, rich textures, variable data printing such as name badges, and braille signage. With the optional rotary unit, the XpertJet 661UF also prints on cylindrical objects.
