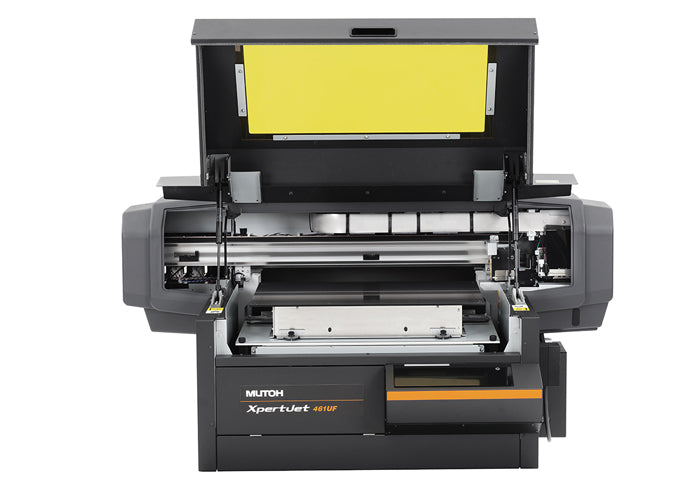

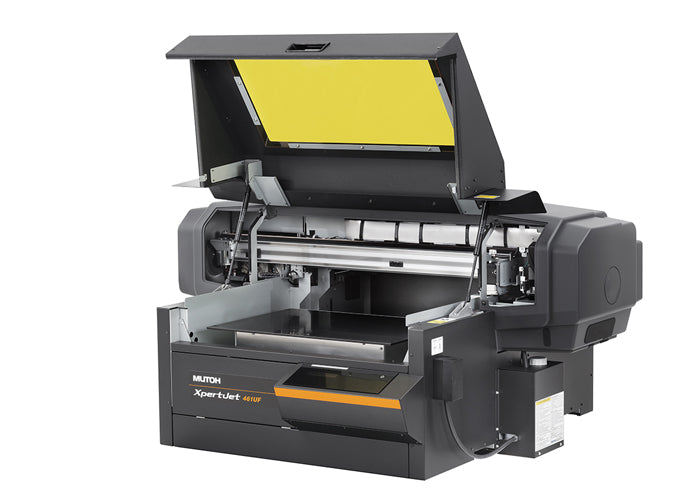

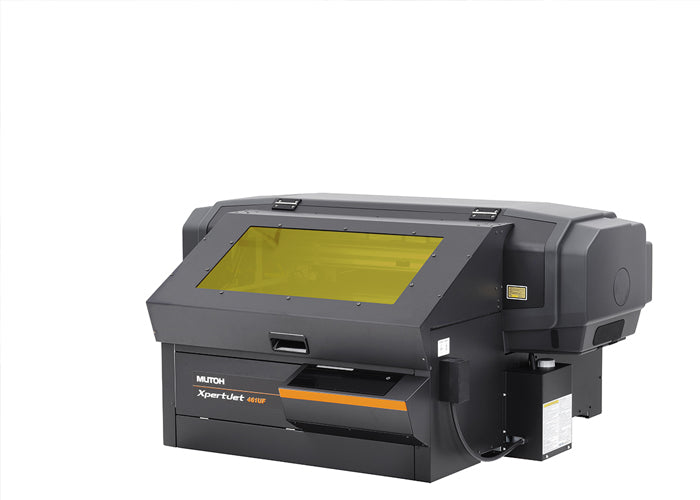

XpertJet 461UF
The XpertJet 461UF is a compact UV-LED flatbed printer with a larger printable surface area, a larger window for safe viewing, an updated touchscreen panel, an improved LED lamp and an optional vacuum table that allows increased printing depth.
The XPJ-461UF allows for finer texture layers that instantly add value to any print. Combined with Mutoh's Local Dimming Control Technology, you can add high-gloss finishes easily in one pass. The award-winning MUTOH VerteLith™ RIP software optimizes all of the capabilities of the XPJ-461UF, increasing productivity and profitability.
Quick Specs
| Specification | Details |
|---|---|
| Max Print Size | 19.02" x 12.95" |
| Printing Method | Drop-on-demand Micro Piezo Inkjet Technology |
| Ink | UV-LED ink (hard ink: UH21 / US11) |
| Ink Set | 4-color (CMYK) or 6-color (CMYK + White + Clear) |
| Max Print Resolution | 1440 dpi |
| Media Height | Up to 2.76" (up to 5.91" with the bed removed) |
| Interface | Gigabit Ethernet (1000BASE-T) |
| RIP Software | MUTOH VerteLith™ RIP software |
| Dimensions (W x D x H) | 46.77" x 38.27" x 23.5" |
Why Choose the XpertJet 461UF
- One-pass gloss with Local Dimming Control. Mutoh's patented Local Dimming Control Technology lets you add high-gloss finishes in one pass. It also shortens print time, improves productivity and reduces grain, banding and layer misalignment.
- Textures and ADA braille. Add multiple layers of white and varnish US11 and UH21 inks for texture and gloss effects. Layer white and varnish UH21 inks to produce ADA-compliant braille.
- Print on thick objects. The removable bed lets you print directly on a variety of substrates up to 5.91 inches thick.
- Durable inks for many substrates. US11 and UH21 inks are ideal for acrylic, plastic, metal, wood, paper and glass. Mutoh UV inks produce bright, vibrant colors with durable adhesion and meet California Proposition 65 and the CPSIA.
- Fewer interruptions. Partial Nozzle Block Activation keeps you printing with only active nozzle blocks if nozzles are clogged, the Print Resume Function lets you pause and resume a print, and the redesigned area around the UV-LED lamp makes maintenance easier.

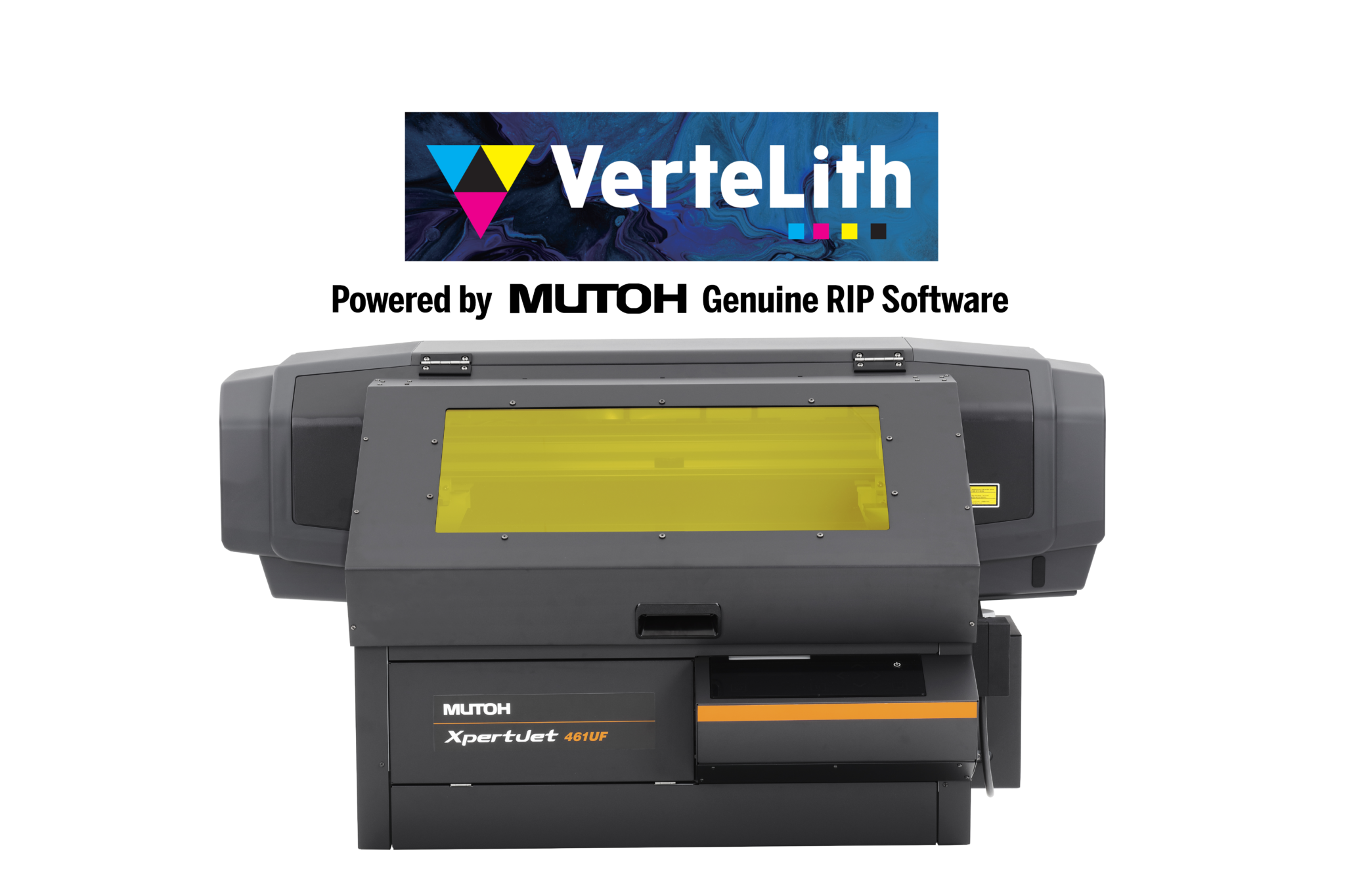

- Genuine Mutoh RIP software. MUTOH VerteLith™ RIP software optimizes printer performance and is bundled with Flexi DESIGN MUTOH Edition.
Key Features
- MUTOH VerteLith™ RIP software optimizes printer performance and is bundled with Flexi DESIGN MUTOH Edition
- 19" x 13" UV printer
- Up to 6-color configuration: CMYK + White and Varnish
- Print directly on a variety of substrates up to 5.91 inches thick
- Small-footprint tabletop printer with removable bed
- Patented UV-LED Local Dimming Control Technology
- Optional vacuum table
- LED touch panel provides a high-quality display and improves panel operation
- Partial Nozzle Block Activation allows temporary printing using only active nozzle blocks if nozzles are clogged
- Print Resume Function to pause and resume printing
- Redesigned area around the UV-LED lamp for easier maintenance access
- High-precision rails on both sides keep the table horizontal for consistent print quality
- Mutoh UV inks produce bright, vibrant colors with durable adhesion and meet California Proposition 65 and the CPSIA (Consumer Product Safety Improvement Act)
- US11 and UH21 inks are ideal for acrylic, plastic, metal, wood, paper and glass substrates
- Multiple layers of white and varnish US11 and UH21 inks add texture and gloss effects
- Multiple layers of white and varnish UH21 inks produce ADA-compliant braille
Applications
Print directly on acrylic, plastic, metal, wood, paper and glass. The XpertJet 461UF is built for variable printing, rich textures, gloss and matte varnish effects, and ADA braille signage.
Full Specifications
| Printing Method | Drop-on-demand Micro Piezo Inkjet Technology |
| Max Print Resolution | 1440 dpi / 1080 dpi / 720 dpi (6 modes total) |
| Max Print Size | 19.02" x 12.95" |
| Media Size | 20.5" x 14.9" |
| Media Height | Up to 2.76" |
| Max Print Height (bed removed) | 5.91" |
| Media Weight | Up to 11.02 lbs (with standard table); up to 17.64 lbs (without standard table) |
| Vacuum Table | Optional |
| Ink Type | UV-LED ink (hard ink: UH21 / US11) |
| Ink Set | 4-color (CMYK); 6-color (CMYK, White, Clear) |
| Ink Volume | 220 mL (cartridge) / 800 mL (bag); White: 500 mL. Bulk ink requires an additional adaptor. |
| No. of Ink Slots | 6 |
| Interface | Gigabit Ethernet (1000BASE-T) |
| Power Requirements | AC 100-120V ±10%, 50/60Hz ±1Hz |
| Power Consumption | Sleep mode: 20W or less; ready to print: 40W or less; operation: 195W or less |
| Printable Environment | Temperature: 68-89.6°F; humidity: 40-60% RH (non-condensing) |
| Recommended Environment | Temperature: 71.6-86°F |
| Dimensions (W x D x H) | 46.77" x 38.27" x 23.5" |
| Dimensions, Front Cover Open (W x D x H) | 46.77" x 38.27" x 39.8" |
| RIP Software | MUTOH VerteLith™ RIP software |
