Joto Cap and Flat Press

Regular price $695.00

E-HP-JCH-51M

Heat Press for hats and other small items, Great for pocket logos!

Joto Cap and Flat Press - Joto Imaging Supplies US

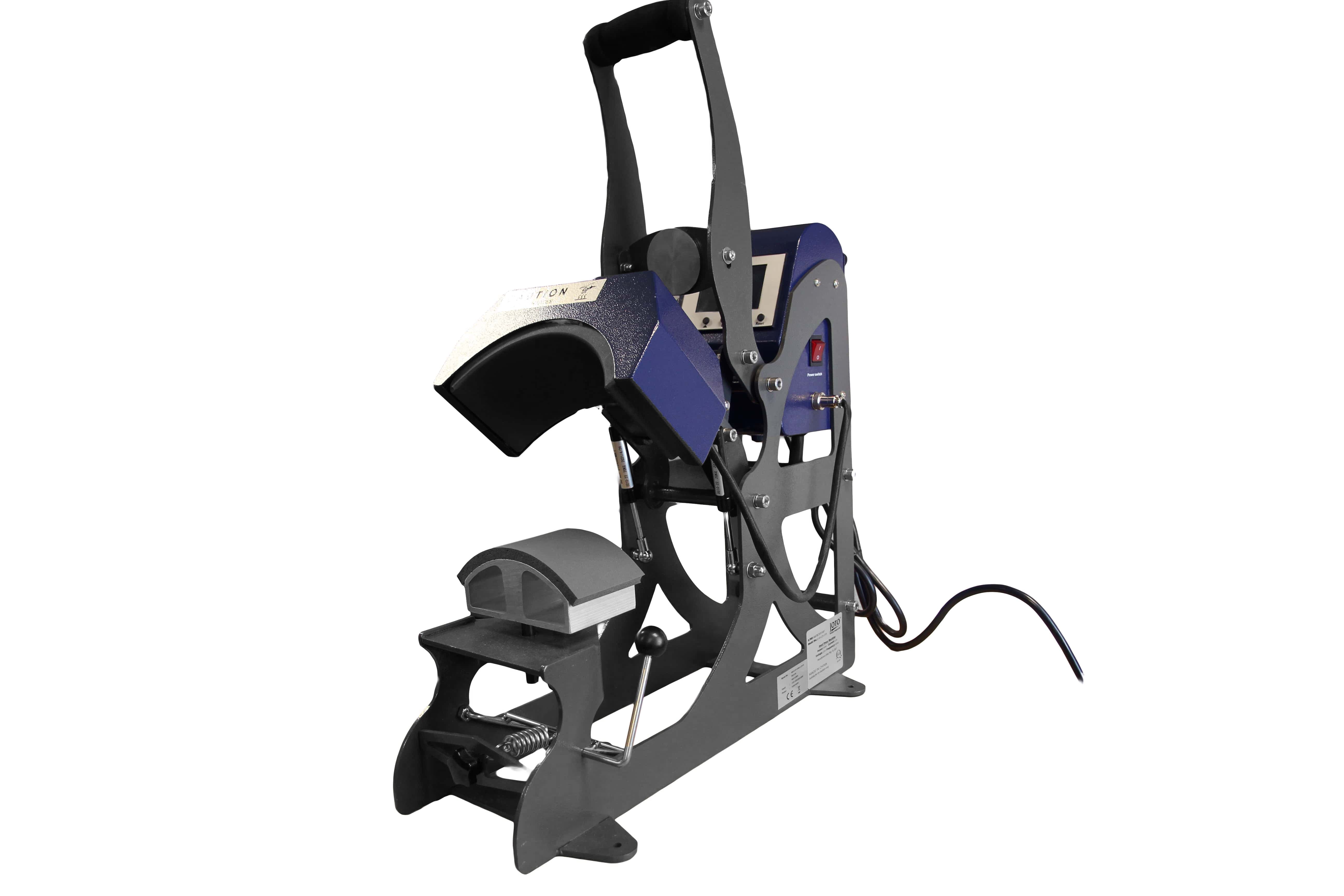

Joto Cap and Flat Press

With Joto's new auto clam cap & flat press, it is not necessary to wait by the press, while the transfer is pressed.  Simply close the press, and it will auto open once the timer counts down to 0.  This press is also equipped with a warning sound when the transfer is done.

This press is specially designed for pressing onto baseball caps, and other small items and is ideally suited for sublimation and heat transfer vinyl.

Features:

  • Fully digital Temperature and Time controls
  • Magnetic Auto Open Feature
  • Space Saving Clam Shell Design
  • Adjustable Pressure
  • Interchangeable Platen and Base Plates
  • Able to do both caps and small flat items
  • Max temperature of 437F (225C)
  • Temperature can be display in Celsius, or Fahrenheit
  • Printable Size: 3.15" x 5.12"  (80mm x 130mm x 10mm)

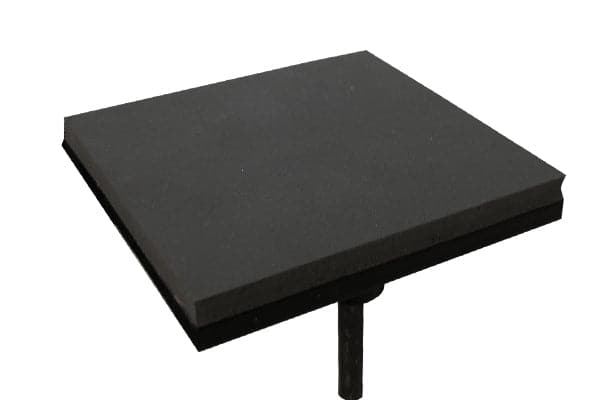

  • Includes Flat base and a Cap base
  • Also includes two heat platens:  Flat Heat Platen, Curved Cap Platen
  • One-year warranty on press
  • Five year warranty on heating element
Air Compressor No
Amps 15A
Brand Joto
Compatible Technology Heat Presses
Controller GY-04 Digital Controller
Dependent Quantity No
Dimension 20.7" x 19.7" x 9.8" (526 x 500 x 250mm)
Dye Blocking No
FCC Attribute Yes
Features Auto Open & Interchangeable Platens
Gas Spring Control No
Gross Weight 55.1lbs (25kg)
Ink Configuration CMY&HDK
Max Temperature 437°C
Packing Size 620mm x 600mm x 350mm
Platen Size Cap/Pocket 3.15" x 5.12"
Power 0.6KW
Self-Weeding No
SIP Attribute Yes
Time Range 0-999 seconds
Type of Press Clam Shell
Voltage 120V
Warranty <p><strong>STATEMENT OF WARRANTY</strong></p> <p>&nbsp;</p> <p align="center"><strong>Joto Cap and Flat Press (E-HP-JCH-51M)<br><br></strong></p> <p>Joto warrants to the original purchaser Joto’s Cap and Flat (E-HP-JCH-51M) heat press or component that such heat press or component is free from defects in materials and workmanship, subject to the limitations set forth below.</p> <p><strong>IN LIEU OF ALL WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH JOTO HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE FOLLOWING
