Uninet DTF Xpress / Slim Shaker Bundle

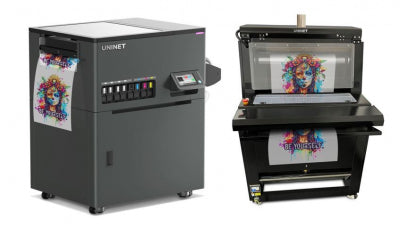

This bundle pairs the UNINET DTF Xpress 17" DTF printer with UNINET's 17" Vertical SlimShaker, an automatic powder applicator and curing machine with a 12.7 sq ft footprint, compared with about 31.5 sq ft for a typical 24" horizontal shaker. It ships with ProRIP software, ink, powder and film so you can start producing right away.
Quick Specs
| Print Width | Up to 17 inches |
| Print Speed | Up to 42 linear ft (60 sq ft) per hour at 600 x 600 dpi |
| Resolution | Up to 1,200 x 1,200 dpi |
| Print Heads | 8 industrial-grade Ricoh piezo printheads (4 color + 2 white channels) |
| Connectivity | Ethernet, Wi-Fi, USB memory (Type A) |
| Power Supply | 110V (printer) / 220V dedicated line (SlimShaker) |
| Warranty | 2 years (UNINET) |
| UNINET Part Number | ICPDTFXPRESSB1 |
| SKU | E-UNI-DTF-XPSL-BL |
What Is Included
| DTF Xpress Printer | 17" 8-head auto-maintenance DTF printer |
| 17" Vertical SlimShaker | Automatic powder application and curing, roll to roll |
| ProRIP Software | Runs on a normal network / router setup |
| Virtual Onboarding | Live setup session with a UNINET technician |
| Ink Cartridges | 200ml CMYKW + Cleaning |
| Transfer Powder | Included |
| Transfer Film Roll | 17" x 328 ft (100m) |
| Starter Bundle | Cleaning liquid, foam applicators, lint-free wipes and maintenance grease |
| Warranty | 2 years (UNINET) |
A fume extractor is not included. UNINET recommends adding one for proper fume extraction during curing.
About the Vertical SlimShaker
The SlimShaker applies powder and cures in a vertical, space-saving design with the same curing area as a long horizontal shaker. It cures DTF film rolls and works in-line with any roll-to-roll DTF printer.
Vertical Space-Saving Design: The lowest footprint of any UNINET shaker; fits through a standard 36" door frame when unassembled.
Automatic Powder Application: Pour powder into the powdering section and it is applied evenly, with variable speed control.
Automatic Powder Removal and Re-Use: Excess powder is shaken off and recirculated automatically.
Dual Heat Zones: Finer heat control and better temperature regulation.
Vacuum Belt Drive: Reduces friction and static build-up.
Advanced Take-Up System: An extra tension bar rolls finished film up more cleanly.
Easy-Attach Fume Exhaust Port: Connect any fume extractor to the built-in exhaust port.
SlimShaker Specifications
| Rated Voltage / Amps | 220V / 40A |
| Electrical Requirements | Dedicated 220V line installed by a professional: 30A 240V 2-pole outlet, 30A 240V 2-pole circuit breaker, 9-gauge circuit wiring, grounded three-prong plug (do not use an adapter) |
| Footprint | 12.7 sq ft |
| Dimensions (uncrated) | 57" x 32" x 61" |
| Dimensions (crated) | 53" x 38" x 70" |
| Weight | 485 lb uncrated / 617 lb crated |
DTF Xpress Printer Features
Patented Wet-Cap Mechanism: An automatic wet-cap keeps nozzles healthy with every print, so white ink clogs stop being a daily problem.
Industrial Ricoh Printheads: UNINET uses Ricoh industrial-grade heads with Bulk Piston Piezo technology for better reliability and a longer service life than the film-type piezo heads found in many DTF machines.
Independent 4-Zone Heater: Four separately controlled heater zones dry each color and white layer properly, whatever the ink volume.
Adjustable 7-Inch Touchscreen: Check ink levels and parts status, browse stored files and watch print progress at a glance.
Cloud Support: 24/7 cloud connection downloads software updates and sends daily status reports to UNINET for fast diagnostics, free with the machine.
Flexible Connectivity: Print over Ethernet, Wi-Fi or a USB memory stick, and reprint past jobs from 32 GB of onboard storage without a PC.
Status LED and Alarm: A bright status light is visible across the shop; it blinks red and sounds an alarm when the machine needs attention right away.
Dual Feeding Mechanism: Front and rear rollers keep film flat and under steady tension, which minimizes the risk of costly head strikes.
Automatic Inline Cutter: Trims automatically at the end of each page or when the job is done.
Motorized Unwinder: Smart sensors detect low media and sync with the feed system to prevent waste.
Integrated Safety System: Monitors temperature, humidity, electrical and mechanical performance, and pauses or stops the machine if anything is off. Film guides and a vacuum print area help prevent head strikes and film buckling.
Temperature and Humidity Monitoring: Six sensors read the room continuously, and the software adjusts jetting and drying for a cold, dry shop or a hot, humid one.
Compact Design: Fits through a standard 32" doorway.
Printer Specifications
| Technology | Inkjet system |
| Head Type | Piezo-electric drop-on-demand |
| Number of Print Heads | Color: 4 channels, White: 2 channels |
| Resolution | Up to 1,200 x 1,200 dpi |
| Media Width | Up to 17 inches |
| Print Speed | 42 linear ft (60 sq ft) / hr at 600 x 600 dpi 27 linear ft / hr at 600 x 1,200 dpi 13 linear ft / hr at 1,200 x 1,200 dpi |
| Power Supply (Printer) | 110V |
| Power Consumption | Standby: 100W / Max operation: 570W |
| Connectivity | Ethernet, USB Memory (Type A), Wi-Fi |
| Onboard Storage | 32 GB |
| Min / Max Print Length | Roll to roll: 1 in to 38 in |
| Warranty | 2 years (UNINET) |
Safety Notice: Work in a well-ventilated area and use appropriate protective equipment when operating DTF equipment. Recommended PPE includes full body covering, N95 respirator or equivalent, safety goggles, and gloves. TPU adhesive powder may become airborne during handling prior to curing. UNINET strongly recommends a dedicated fume extractor for curing operations. DTF equipment is intended for commercial use, not residential or in-home settings. Humidity above 50% is recommended to minimize the risk of ink clogs and film buckling.
Shipping Note: This bundle ships on a skid. Confirm that the delivery address can accept skid deliveries via truck. Customers are responsible for brokerage, duties, and taxes associated with customs clearance. A flat-rate shipping charge applies to this item. Contact us for details.
