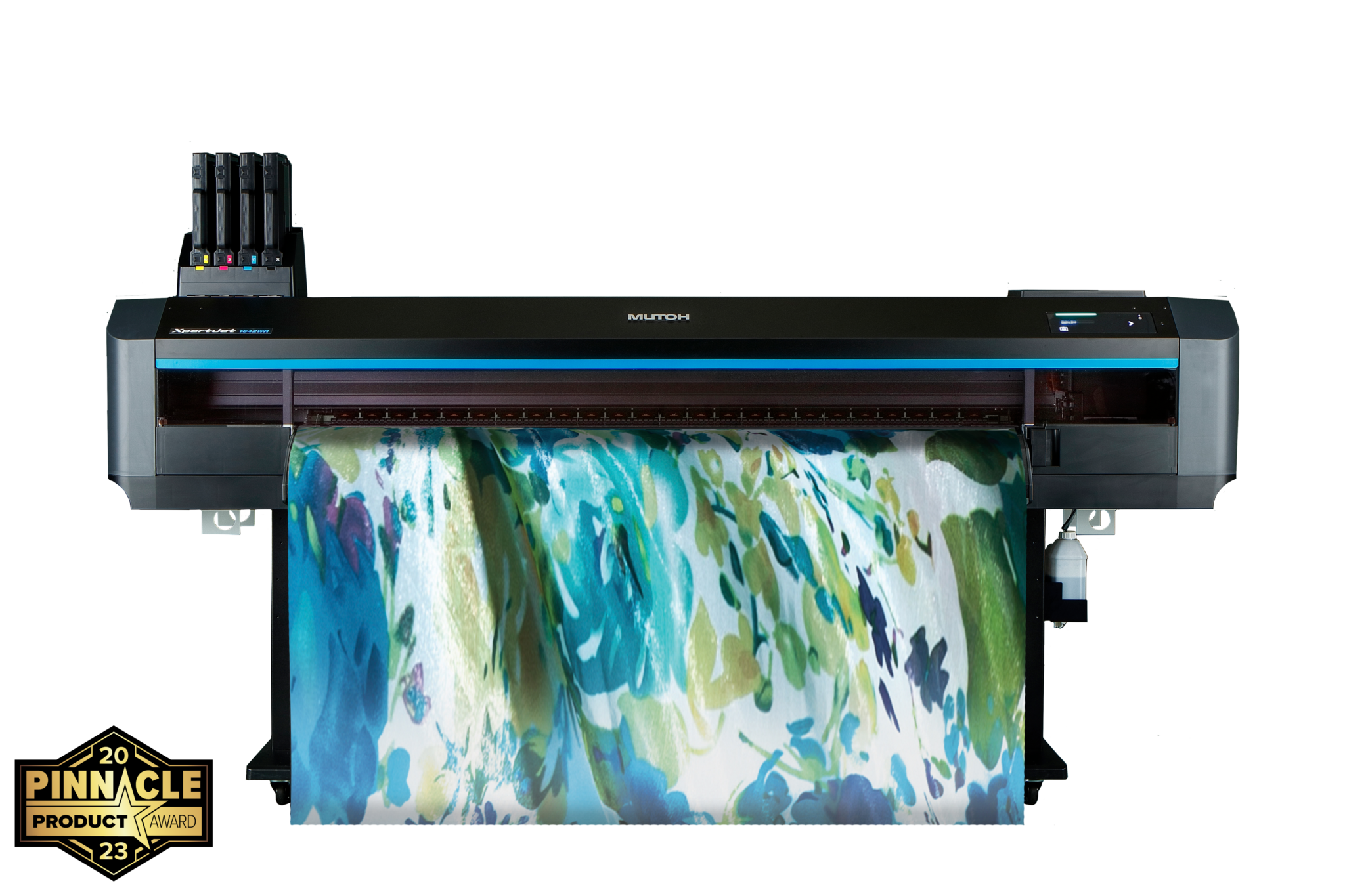

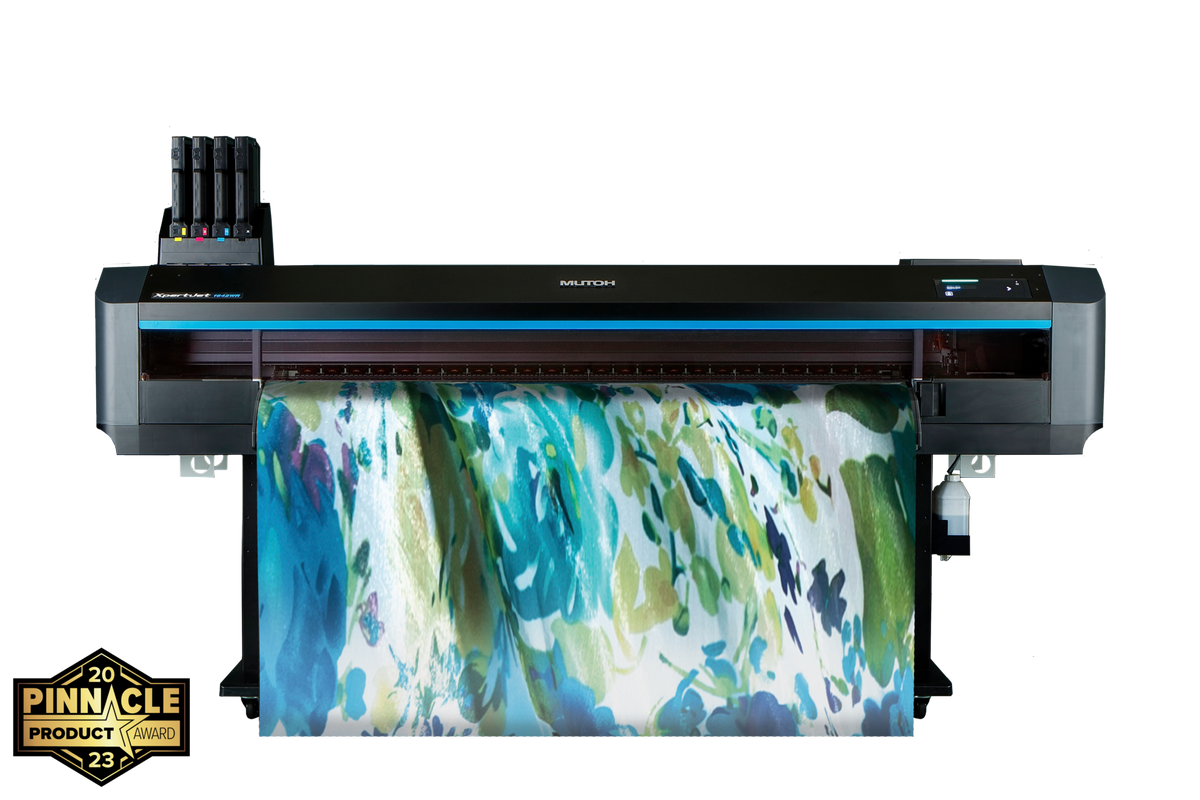

Mutoh XpertJet 1642WR Pro

XpertJet 1642WR Pro

The Mutoh XpertJet 1642WR Pro is a high-speed 64" dye-sublimation inkjet printer with an updated platform that inherits the properties of the XpertJet series. It features dual extra-wide MUTOH AccuFine print heads with best-in-class dot placement accuracy, enabling high print speeds and quality.

Mutoh's original DH21 dye-sublimation transfer ink provides optimum media transfer, achieving high-density colors with less ink consumption. Fast ink-drying times enable printing on thinner and lighter transfer papers, while excellent jetting and color stability support prolonged print times. DH21 ink is available in a CMYK configuration in 1,000ml or 2,200ml capacity ink bags.

Quick Specs

Why Choose the XpertJet 1642WR Pro

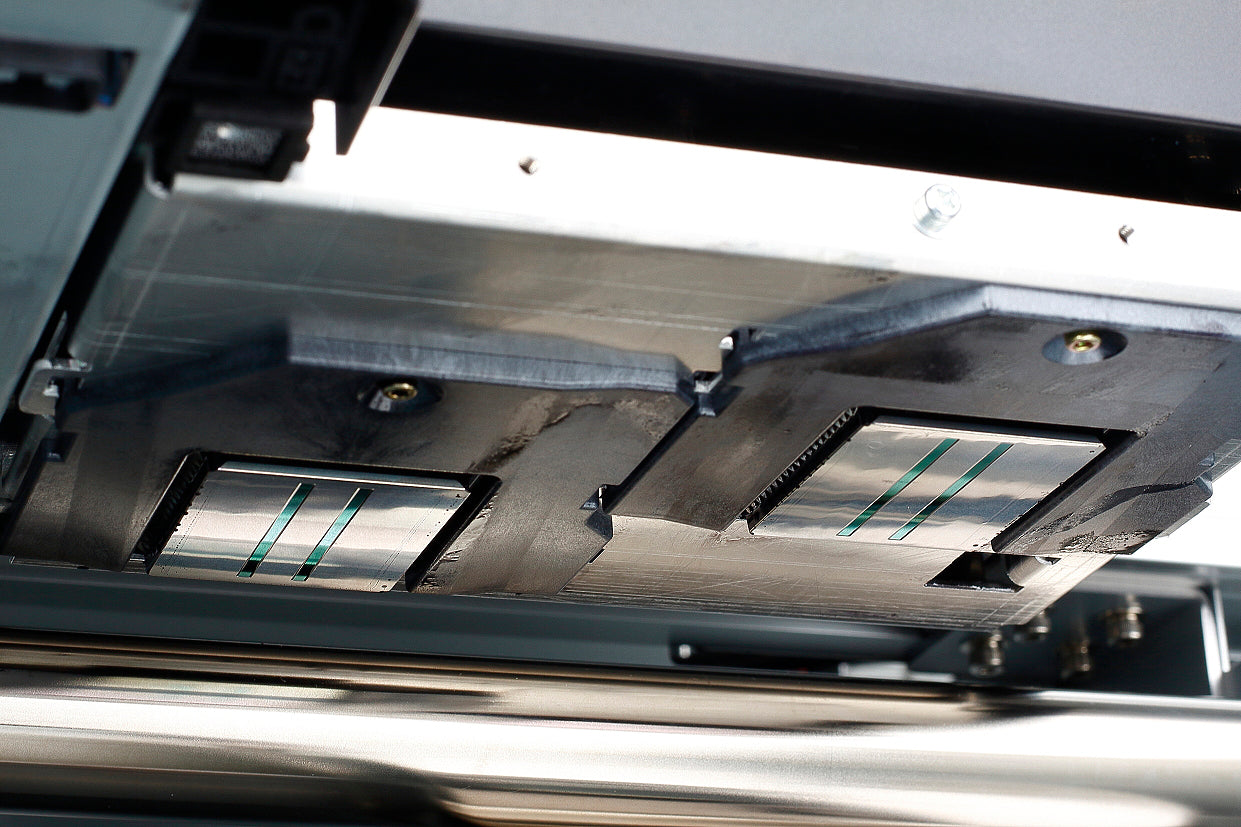

• Production speeds up to 802 sq ft/hr. New extra-wide piezo MUTOH AccuFine dual print heads deliver best-in-class dot placement accuracy at high print speeds.
• DH21 dye-sublimation transfer ink. Achieves high-density colors with less ink consumption, and its fast drying times enable printing on thinner and lighter transfer papers.
• Smooth media handling. A unique multi-stage pressure mechanism and Feed Master feed even thin paper roll media smoothly.

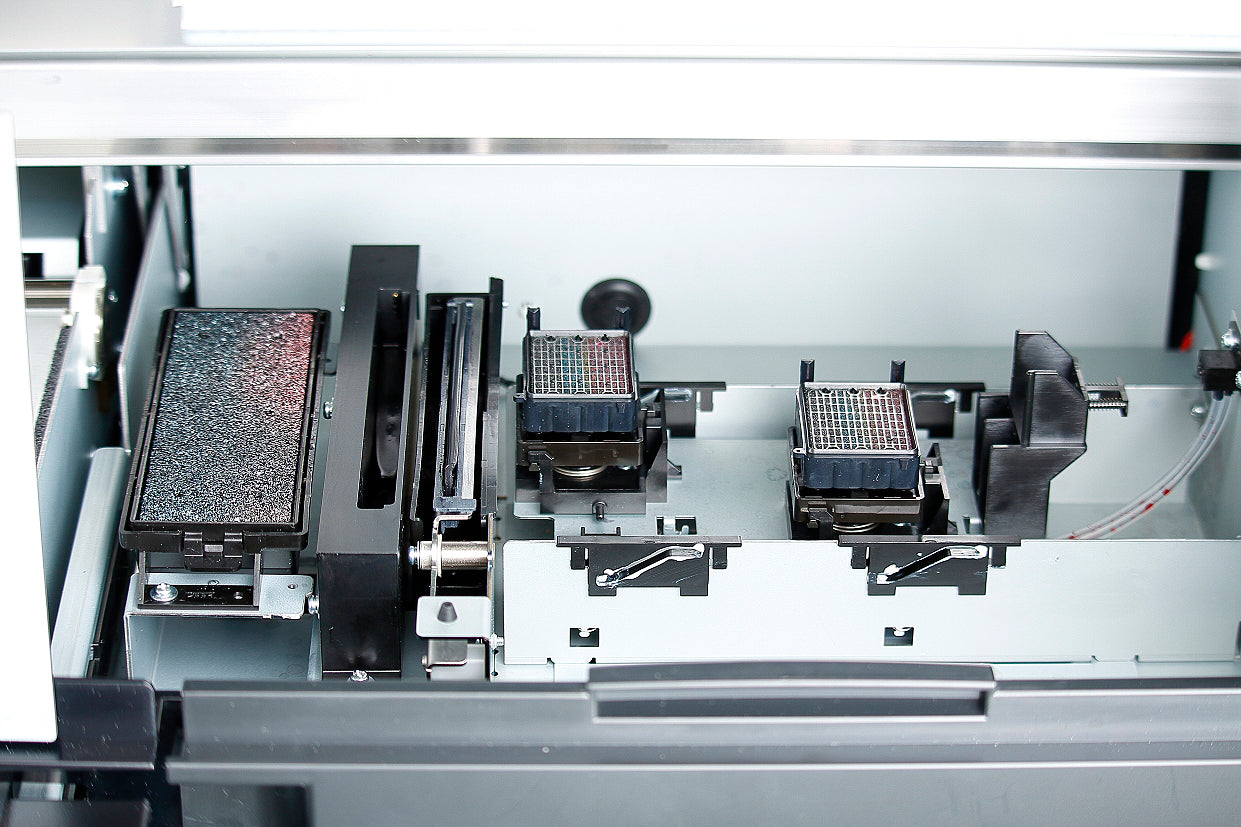

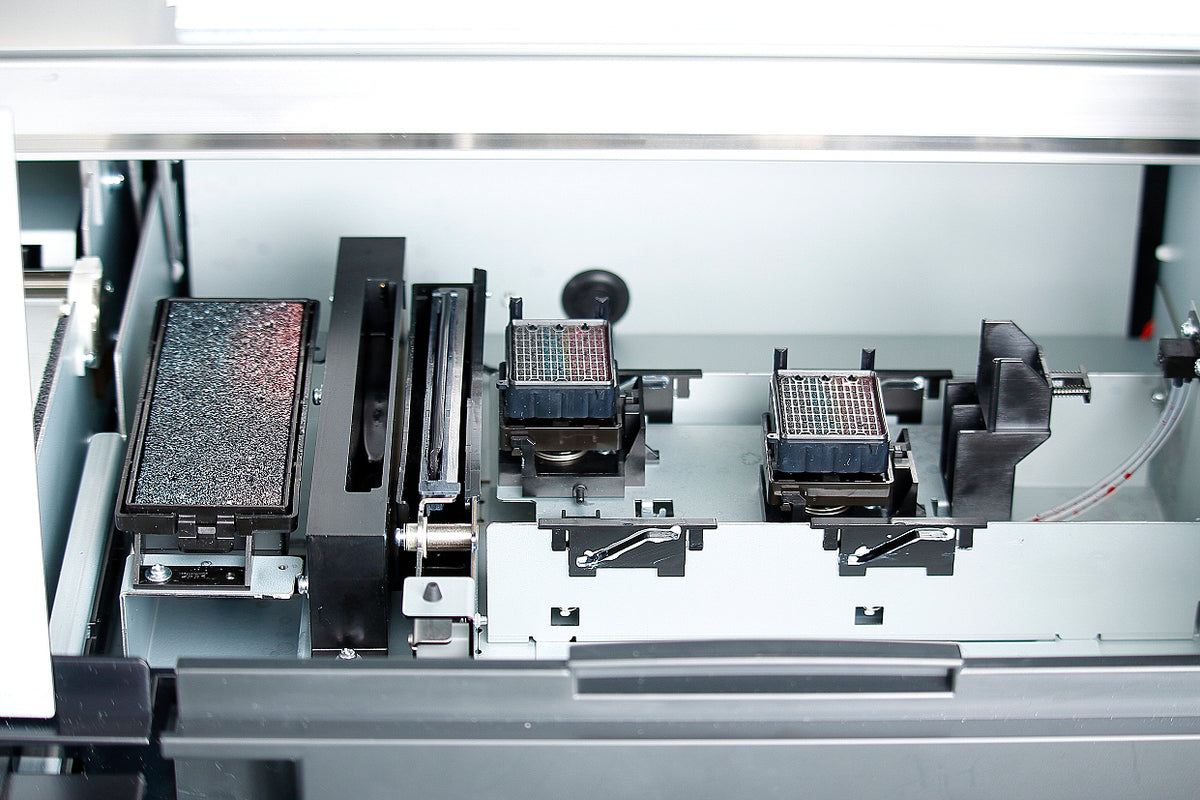

• Automatic Nozzle Area Select. Keeps production moving by printing with blocks of active nozzles if clogged nozzles fail to recover.

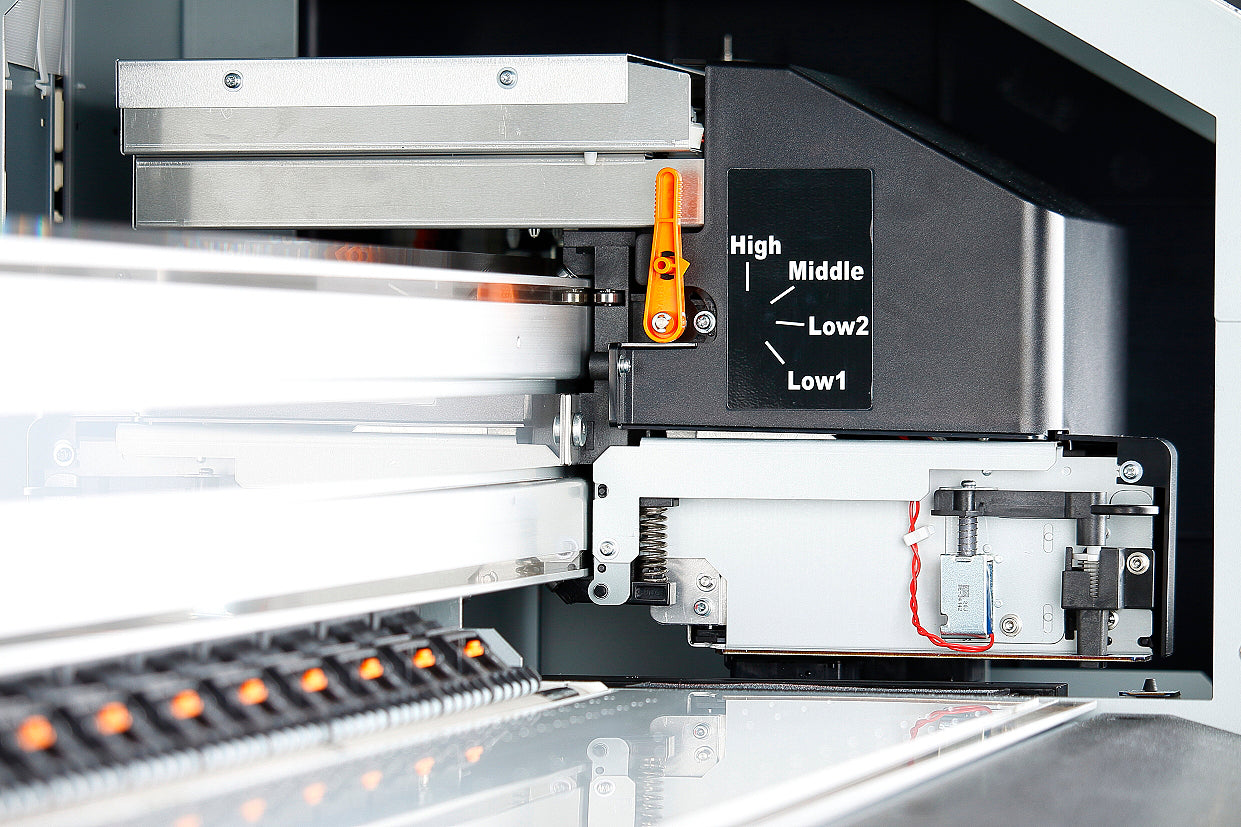

• Protects the print heads. Four-stage head heights let you set the optimal print head height to reduce the risk of head contact.
• Heavy-duty take-up option. An optional heavy-duty 220 lb take-up system is available for roll output.

Key Features

• New extra-wide piezo MUTOH AccuFine dual print heads achieve maximum production speeds up to 802 sq ft/hr.
• Unique multi-stage pressure mechanism feeds even thin paper roll media smoothly.
• Feed Master.
• DropMaster2: automatic bi-directional alignment with a built-in sensor.
• Nozzle Area Select.
• Media Tracker prints a barcode before media is removed. When the media is loaded again, a built-in sensor reads the barcode and recognizes the amount of media remaining.
• Internal LED lighting allows the operator to easily check print status.
• Four-stage head heights allow optimal print head height to reduce the risk of print head contact.
• DH21 dye-sublimation ink.
• Optional heavy-duty 220 lb take-up system.

Applications

High-quality graphics on a wide range of materials, such as trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and promotional items.
