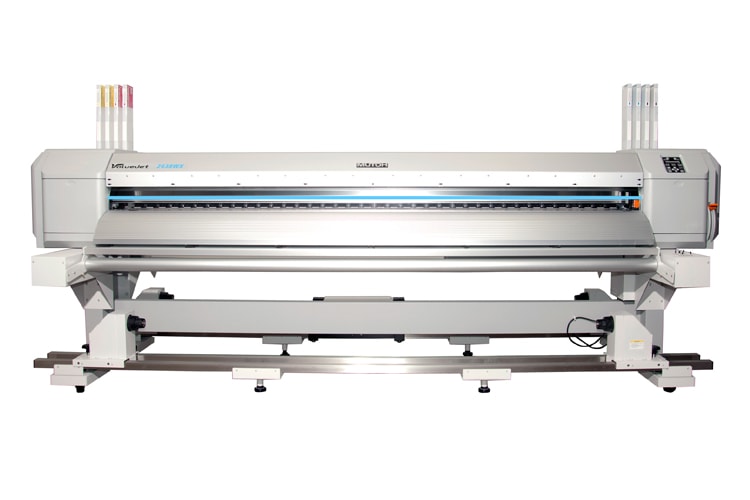

ValueJet 2638WX
Mutoh's ValueJet 2638WX is a 104" grand format dye-sublimation printer with a staggered dual-head design for faster production speeds. It creates super-wide images with unmatched quality, with print speeds up to 1,168 sq ft per hour and print widths of over eight feet.

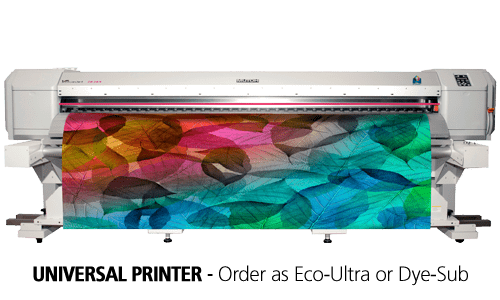

The VJ2638WX not only saves you time and money, it also produces high-quality images for a number of popular applications, such as designs and patterns for trade show graphics, flags, banners, custom clothing, interior design, point of purchase displays and more. It is a universal printer: it can be ordered with a dye-sub or Eco-Ultra ink configuration.
Quick Specs
| Specification | Details |
|---|---|
| Print Width | 103.6" (104" max media width) |
| Technology | Dye-sublimation, drop-on-demand piezo drive |
| Print Heads | 2 staggered (up to 8 colors) |
| Ink | Aqueous / Dye-Sub (can also be ordered as Eco-Ultra) |
| Max Resolution | 1440 dpi |
| Max Print Speed | 1,168 sq ft/hr (360 x 360 dpi) |
| RIP Software | Wasatch SoftRIP |
| Dimensions (W x D x H) | 146" x 34.9" x 49.65" |
| Weight | Printer 534 lbs / Stand 91 lbs |
Why Choose the ValueJet 2638WX
- Faster production with staggered dual heads. Two staggered print heads with up to eight colors print up to 1,168 sq ft per hour.
- Over eight feet of print width. Print up to 103.6" wide on media up to 104" for super-wide soft signage, flags and banners.
- No manual head adjustments. DropMaster dot placement technology eliminates manual head adjustments.
- Banding eliminated. Mutoh's patented Intelligent Interweave (i2) print technique eliminates banding.

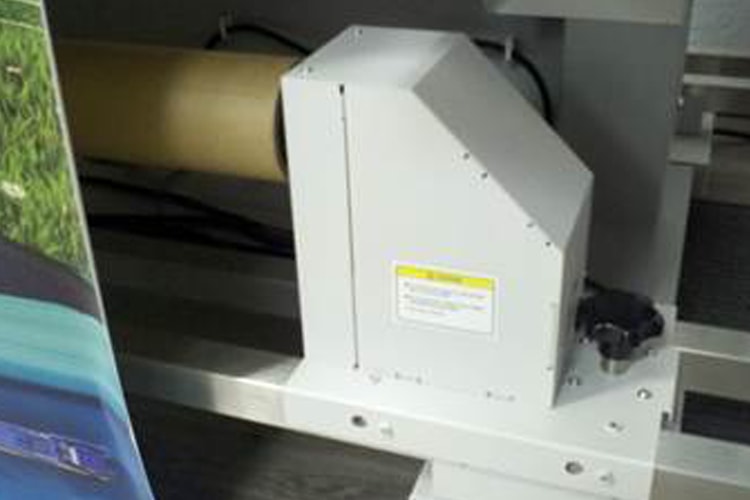

- Built for big rolls. A heavy-duty take-up system and media support cradle are included, with support for media rolls up to 220.5 lbs.
- Open and flexible. Open ink architecture and an open architecture software RIP, with the option to order the printer with Eco-Ultra or dye-sub ink.
Key Features
- 104" dye-sublimation printer
- Up to eight colors
- Print speeds up to 1,168 sq ft/hr
- Staggered dual print heads
- Universal printer: can be ordered with Eco-Ultra or dye-sub ink configuration
- Open ink architecture
- Open architecture software RIP
- DropMaster ink placement technology
- Intelligent Interweave (i2) print technique eliminates banding
- VSM (ValueJet Status Monitor)
- Automatic sheet off function
- Heavy-duty take-up system and media support cradle included
- Easy-to-use control panel
Applications
Designs and patterns for trade show graphics, flags, banners, custom clothing and apparel, interior design, point of purchase displays, promotional items and other soft signage applications.
Full Specifications
| Print Method | Drop-on-demand, piezo drive method |
| Number of Print Heads | 2 staggered (up to 8 colors) |
| Number of Nozzles | (180 x 8 rows) x 2 heads |
| Variable Dot | Yes |
| Minimum Droplet Size | 3.5 pl |
| Print Modes | 1440 / 1080 / 540 / 720 / 360 dpi, 29 modes |
| Maximum Resolution | 1440 dpi |
| Maximum Print Speed / Resolution | 1,168 sq ft/hr / 360 x 360 |
| Head Height | Low: 1.5 mm / Medium: 2.5 mm / High: 4.0 mm |
| Maximum Media Width | 104" |
| Maximum Print Width | 103.6" |
| Maximum Media Roll Weight | 220.5 lbs |
| Media Roll Diameter / Core | 9.8" maximum / 3" or 2" core |
| Media Support Cradle | Standard |
| Heavy-Duty Take-Up System | Standard |
| Media Auto Cut | Standard |
| Ink Type | Aqueous / Dye-Sub (can also be ordered as Eco-Ultra) |
| RIP Software | Wasatch SoftRIP |
| Power Requirements | 2 x 100-120V or 200-240V / 20 A |
| Operating Temperature | 68°F - 89.6°F |
| Operating Humidity | 40% - 60% |
| Dimensions (W x D x H) | 146" x 34.9" x 49.65" |
| Weight | Printer 534 lbs / Stand 91 lbs |
| Limited Warranty | 1 year on-site |
