ValueJet 1638UH Mark II

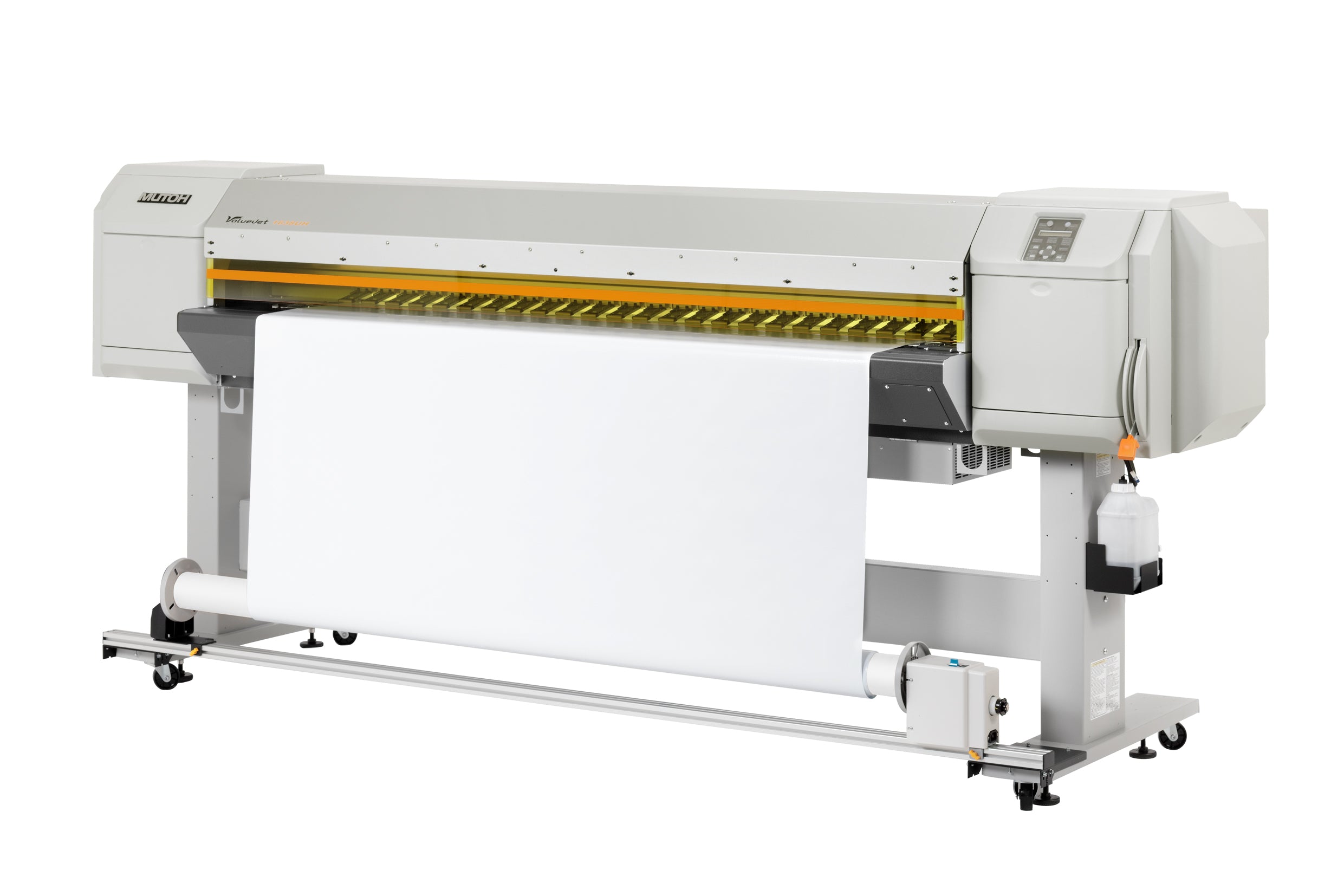

The ValueJet 1638UH Mark II UV-LED hybrid printer represents the next generation of UV-LED printers and is ideally suited for the production of high-quality graphics. Its included tables give it the power of hybrid media, so it prints on both soft and rigid media.
The VJ-1638UH Mark II features staggered dual printheads with UV-LED lamps on both sides for greater productivity, the ability to print with Mutoh UV-LED flexible (US11) or rigid (UH21) inks, and multi-layer capability. A Media Thickness Detection Sensor detects media automatically, and media retainer guides automatically set the position of rigid media. It is powered by Mutoh's genuine VerteLith™ RIP software, bundled with Flexi DESIGN MUTOH Edition, which optimizes all of the printer's capabilities and produces the best possible gradients, skin tones and vivid colors.
Quick Specs
| Specification | Details |
|---|---|
| Print Width | 63.6" max printable (64" media width) |
| Printer Type | UV-LED hybrid, roll and rigid media |
| Print Technology | Drop-on-demand Micro Piezo inkjet, 2 staggered printheads |
| Ink | UV-LED ink: flexible US11 or rigid UH21 |
| Ink Configurations | 4-color (CMYK), 5-color (CMYKWh/Va), 6-color (CMYKWhVa) |
| Max Resolution | 1440 x 1440 dpi |
| Connectivity | Gigabit Ethernet (1000BASE-T) |
| RIP Software | MUTOH VerteLith™ with Flexi DESIGN MUTOH Edition |
| Dimensions (W x D x H) | 117.4" x 32.2" x 49.6" (including stand) |
Why Choose the ValueJet 1638UH Mark II

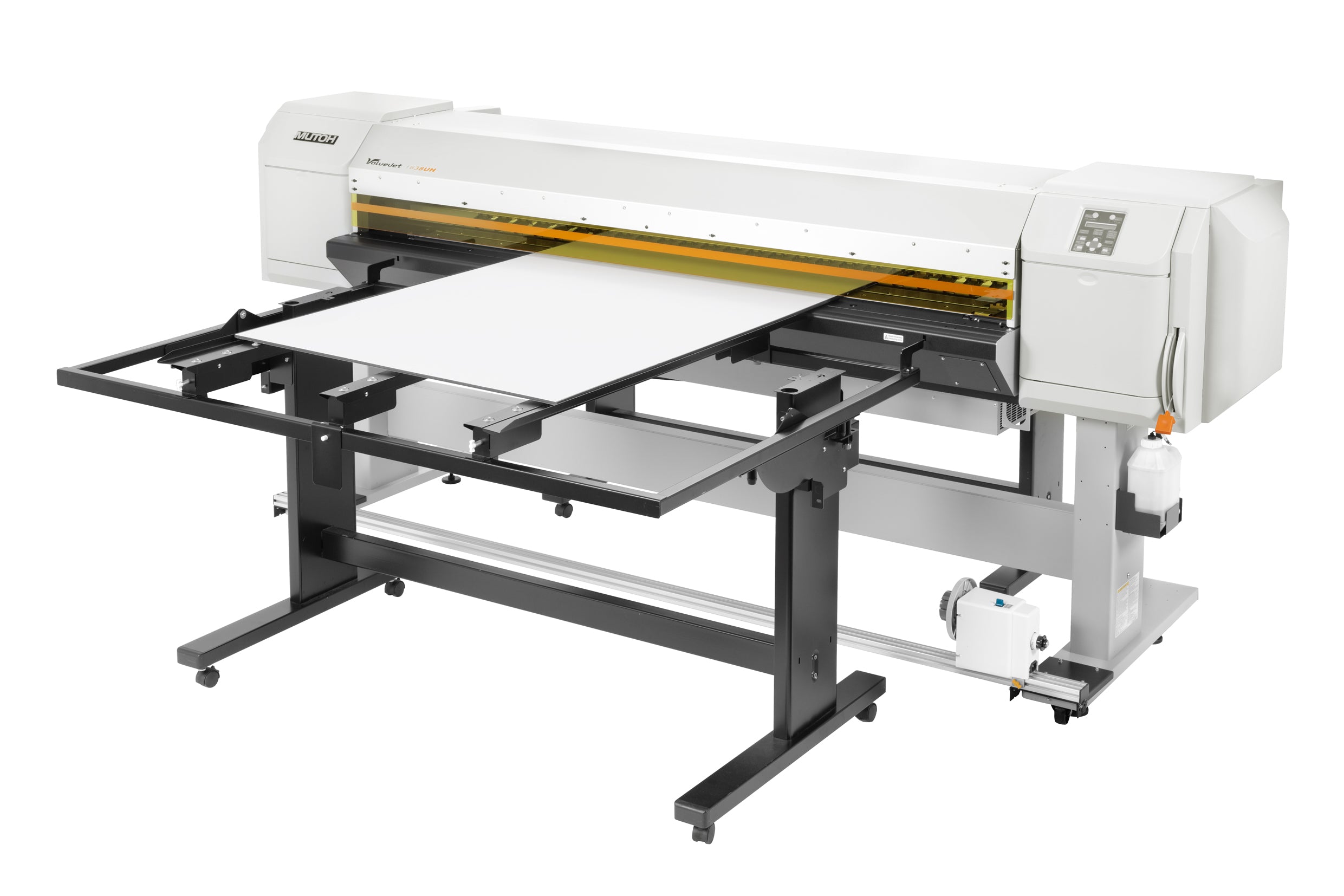

- Prints on roll and rigid materials. Included tables for rigid material let one printer handle both soft and rigid media up to 0.5" thick.
- Staggered dual printheads. Two staggered printheads with UV-LED lamps on both sides deliver greater productivity.
- Flexible or rigid UV-LED inks. Print with Mutoh US11 flexible or UH21 rigid inks, in up to a 6-color configuration with white and varnish.
- Multi-layer white and varnish. Add multiple layers of white and varnish to create texture and gloss effects.
- Automatic media handling. A Media Thickness Detection Sensor detects media thickness automatically, and media retainer guides set the position of rigid media.
- Powered by VerteLith™ RIP. Mutoh's genuine RIP software, bundled with Flexi DESIGN MUTOH Edition, adds layer printing with auto-generation of spot colors, white and varnish.
Key Features
- Flexibility to print on roll/rigid materials
- Staggered dual printheads with UV-LED lamps on both sides
- Up to 6-color configuration
- Media Thickness Detection Sensor automatically detects media thickness

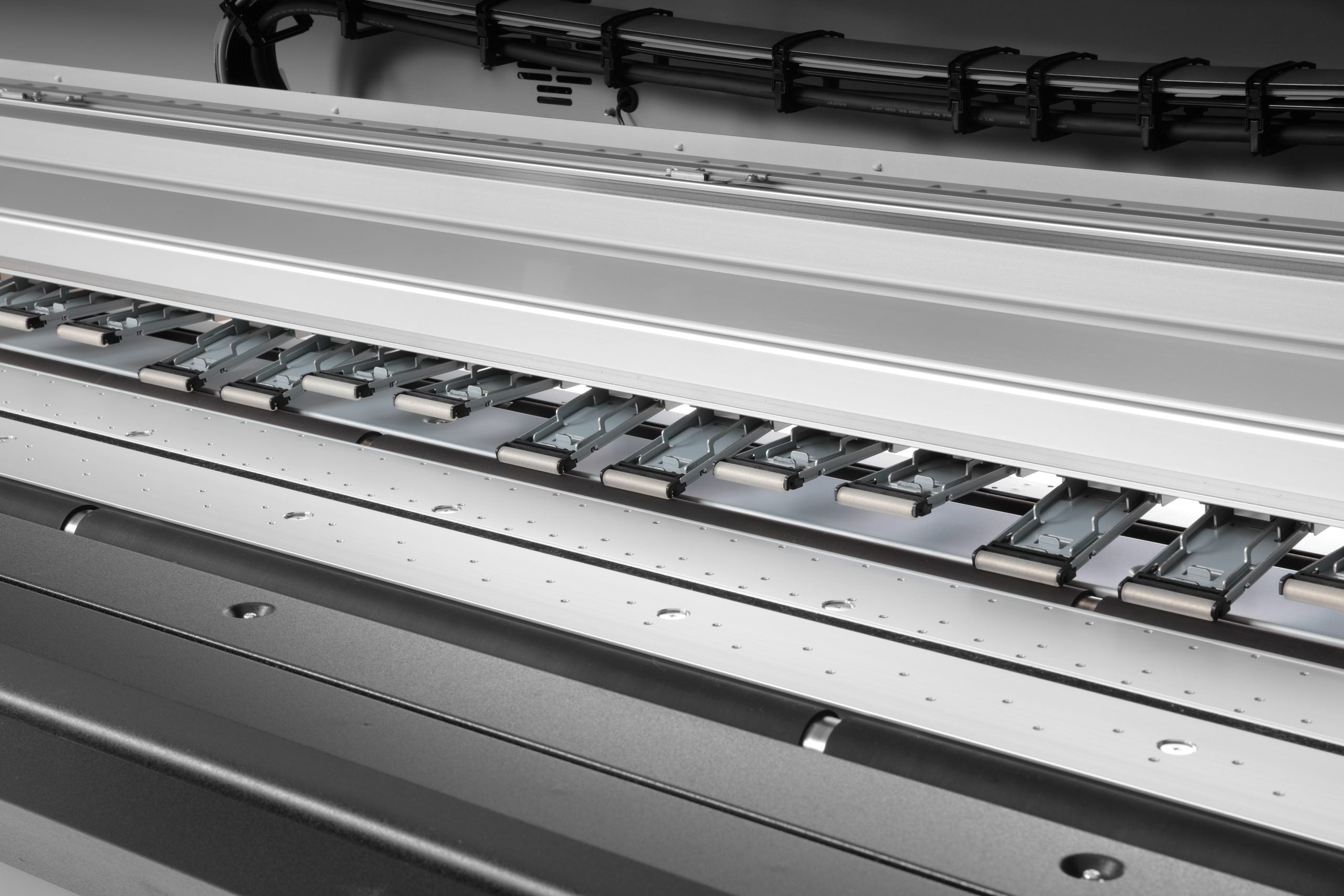

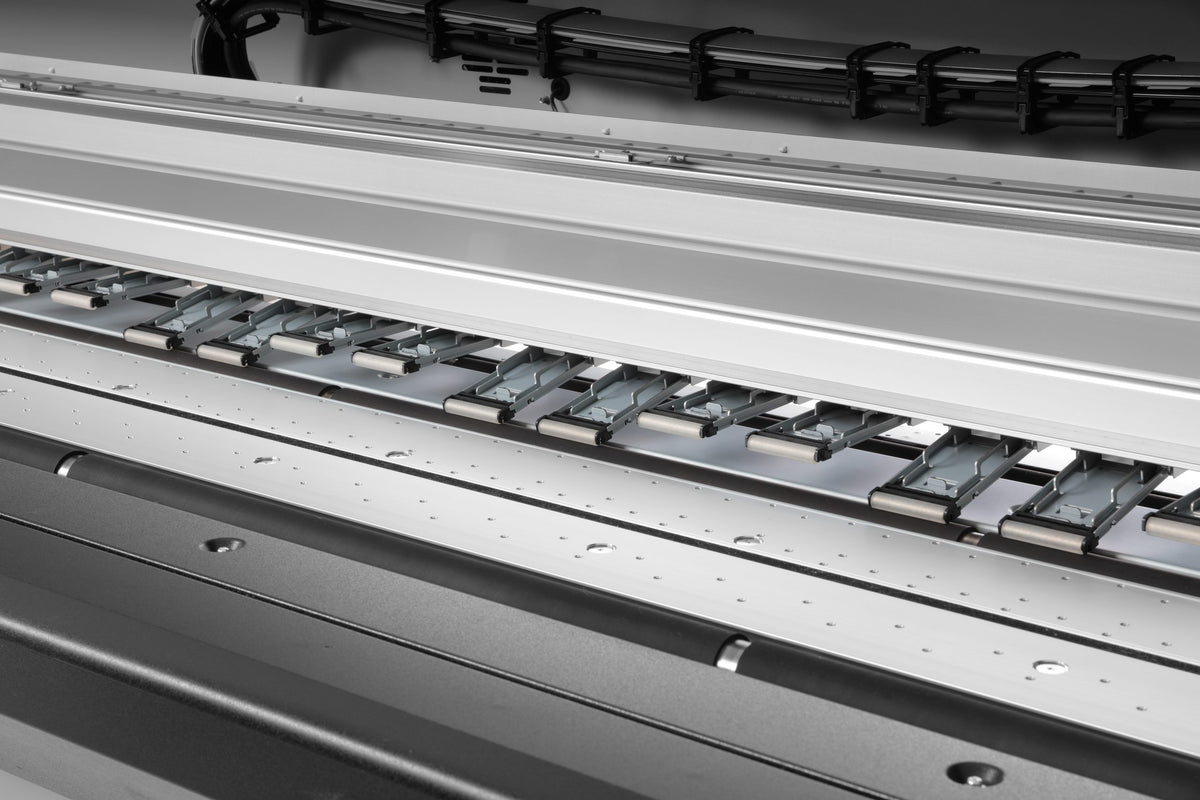

- Media retainer sets position of rigid media
- Laser origin pointer
- 0.5" thick media height
- Included tables for rigid material
- Optional take-up unit
- Mutoh UV-LED inks: rigid UH21 and flexible US11
- White and varnish ink options
- Add multiple layers of white and varnish US11 and UH21 inks for texture and gloss effects
- Mutoh UV inks meet California Proposition 65 and the CPSIA (Consumer Product Safety Improvement Act)
- MUTOH VerteLith™ RIP bundled with Flexi DESIGN MUTOH Edition: auto-generation of named Pantone coated/uncoated spot colors, MUTOH Clear Tone half tone technology, MUTOH CMYK wide color gamut ICC profile, automated layout processing and printing, soft proof, "what-you-see-is-what-you-get" RIP preview, printing layers with auto-generation of spot colors/white/varnish, automated multi-layer printing, tab customization, color management, finishing bleed processing and printing log
Applications
Counter displays, POP displays, yard signage and banners. US11 and UH21 inks are ideal for acrylic, plastic, vinyl, canvas, metal, wood, paper and glass substrates and media.
Full Specifications
| Printing Method | Drop-on-demand Micro Piezo Inkjet Technology |
| Printheads | 2 (staggered) |
| Printhead Height | Automatic |
| Max Print Resolution | 1440 x 1440 dpi |
| Print Modes | 1440 / 1080 / 720 / 360 dpi |
| UV Lamp | UV-LED, 2 pcs |
| Media Width | 64" |
| Max Printable Width | 63.6" |
| Max Media Thickness | 0.5" |
| Height Adjustment | Automatic |
| Media Capacity | Roll: Ø 5.9" diameter, 2" and 3" cores, 66 lb. Rigid media: 33 lb max |
| Ink Type | UV-LED ink (flexible US11 or rigid UH21) |
| Ink Set | 4-color (CMYK), 5-color (CMYKWh/Va), 6-color (CMYKWhVa) |
| Ink Volume | 220 mL (CMYKWhVa), 500 mL (Wh), 800 mL (CMYKVa). 500/800 mL ink bags require an optional adapter |
| Ink Slots | 8 |
| Interface | Gigabit Ethernet (1000BASE-T) |
| Power Requirements | AC 100-120V ±10%, 50/60Hz ±1Hz |
| Power Consumption | Operation: 77W or less. Standby: 52W or less |
| Printable Environment | Temperature: 68-89.6°F. Humidity: 40-60% RH (non-condensing) |
| Recommended Environment | Temperature: 71.6-86°F |
| Dimensions (W x D x H) | Printer including stand: 117.4" x 32.2" x 49.6". With media feed table: 117.4" x 107" x 49.6" |
| Weight | Body: 352.7 lb. Stand: 81.57 lb |
| RIP Software | Mutoh's genuine VerteLith™ RIP software, bundled with Flexi DESIGN MUTOH Edition |
