ValueCut 2 Vinyl Cutter
Mutoh's ValueCut 2 multi-purpose cutting plotter line offers all the functionality professional sign makers need for a variety of jobs: traditional vinyl cutting for lettering, contour cutting of pre-printed stickers, and cut-through for creating individual stickers. Ideal for home, office and professional users, the ValueCut series gives you the finest cutting quality with superior tracking.
Choose from three models to match the most common needs: the VC2-600 (24" cut width), VC2-1300 (52" cut width) or VC2-1800 (72" cut width). All models come standard with a roll support system for easy handling and perfect tracking, plus multi-segment registration for accurate long-run cut jobs. The VC2-1300 and VC2-1800 also come with a floor stand and media catch basket, which are both optional on the VC2-600.
Quick Specs
| Specification | Details |
|---|---|
| Cutting Width | 24" (VC2-600) / 52" (VC2-1300) / 72" (VC2-1800) |
| Type | Roller-type cutting plotter, DC servo control |
| Cutting Force | 5-600 g (5 g/step) |
| Max. Cutting Speed | 60.2" (1530 mm)/sec (diagonal) |
| Max. Cutting Length | 164 ft (50 m) |
| Interfaces | Ethernet, USB 2.0, Serial (RS-232C) |
| Memory | 32 MB (16 MB when using AAS) |
| Software | SAi Flexi Starter |
| Dimensions (W x D x H) | 37.4" x 19.1" x 16.2" / 69.8" x 25.6" x 43.7" / 85.4" x 29.7" x 44.4" |
Why Choose the ValueCut 2 Vinyl Cutter
- Print and cut at the same time. A separate printer and cutter workflow lets you print and cut simultaneously, so one operation does not stop the other and production keeps moving.

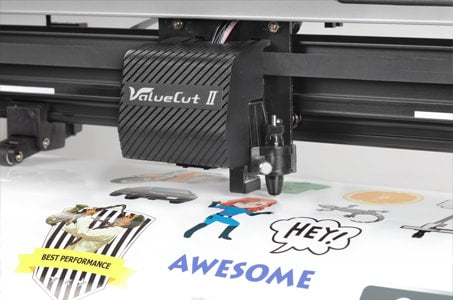

- Reliable contour cutting. Mutoh's unique job recognition feature aligns contour and cut data so you can reliably contour cut pre-printed graphics.
- Accurate long jobs. Multi-segment registration cuts long jobs with superior accuracy.
- Repeat jobs in one click. The standard AAS Copy feature runs repeated contour cut jobs with one click from your RIP software.
- Cut transparent media. Disable the media sensor to cut transparent media with ease.
- Run several cutters from one computer. The Ethernet port lets you run multiple cutters from the same computer over longer distances.
Key Features

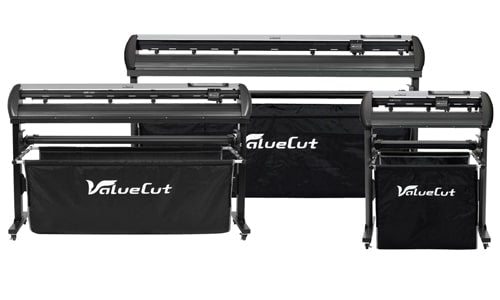

- Three models with 24", 52" and 72" cutting widths

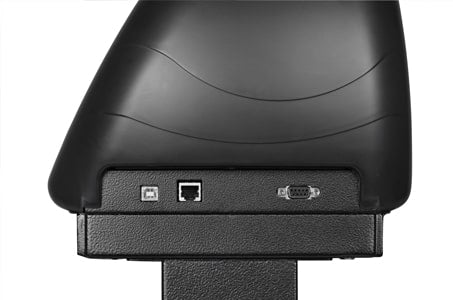

- USB, Ethernet and serial port connections
- Media sensor disablement to cut transparent media
- Intuitive job recognition and alignment of contour and cut data
- Multi-segment registration for accurate long-run cut jobs
- AAS Copy feature for repeated cut jobs with one click from the RIP
- Versatile roll support system for easy handling and perfect tracking
- Floor stand and catch basket included on VC2-1300 and VC2-1800 (optional on VC2-600)
- Flexi Starter software
- Includes cutting holder, spare cutter blade, oil ball point pen, media cutter, cutter pad and roll media mount system
- Two-year limited warranty
Applications
Traditional vinyl cutting for lettering, contour cutting of pre-printed stickers, and cut-through cutting to create individual stickers, for sign makers and home, office and professional users.
Full Specifications
| Specification | VC2-600 | VC2-1300 | VC2-1800 |
|---|---|---|---|
| Operation Method | Roller type | ||
| Max. Cutting Width | 24" (610 mm) | 52" (1320 mm) | 72" (1830 mm) |
| Max. Media Width | 30.3" (770 mm) | 62.7" (1594 mm) | 1900 mm |
| Min. Media Width | 1.97" (50 mm) | 11.8" (300 mm) | |
| Max. Cutting Length | 164 ft (50 m) (accuracy not assured over this length) | ||
| Number of Pinch Rollers | 3 | 4 | 6 |
| Acceptable Material Thickness | 0.03" (0.8 mm) | ||
| Drive Motor | DC servo control | ||
| Cutting Force | 5-600 g (5 g/step) | ||
| Max. Cutting Speed | 60.2" (1530 mm)/sec (diagonal direction) | ||
| Max. Acceleration | 4.2 G | ||
| Offset | 0-1.0 mm (0.025 mm/step) | ||
| Memory | 32 MB (16 MB when using AAS) | ||
| Interfaces | Ethernet, USB 2.0 (Full Speed), Serial (RS-232C) | ||
| Command Type | HP-GL, HP-GL/2 | ||
| Mechanical Resolution | 0.006 mm | ||
| Software Resolution | 0.025 mm | ||
| Distance Accuracy | ±0.254 mm or ±0.1%, whichever is greater (with Mutoh-certified media and cutting conditions) | ||
| Repeatability | ±0.1 mm (with Mutoh-certified media and cutting conditions) | ||

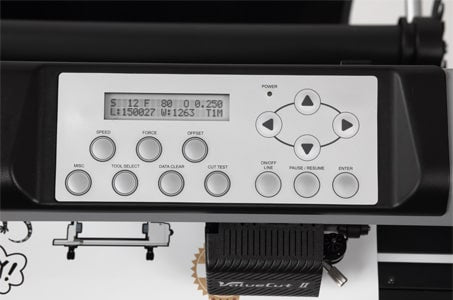

| Control Panel | LCD (20 digits x 2 lines), 14 keys | ||
| Number of Attachable Pens | 1 | ||
| Available Tools | Cutter, oil ball point pen | ||
| Operating Temperature | 59°F - 86°F (15°C - 30°C) | ||
| Operating Humidity | 25% - 75% | ||
| Power Supply | AC 100-240V, 50/60 Hz | ||
| Power Consumption | Max. 110 W | ||
| Dimensions (W x D x H, excluding basket) | 37.4" x 19.1" x 16.2" | 69.8" x 25.6" x 43.7" | 85.4" x 29.7" x 44.4" |
| Shipping Weight | 68.3 lbs (31 kg) | 168.6 lbs (76.5 kg) | 209.4 lbs (95 kg) |
| Stand and Media Basket | Optional | Standard | |
| Software | SAi Flexi Starter (CD-ROM included) | ||
| Standard Accessories | Cutting holder, spare cutter blade, oil ball point pen, media cutter, cutter pad x 1, roll media mount system | ||
| Warranty | 2 year limited warranty | ||
