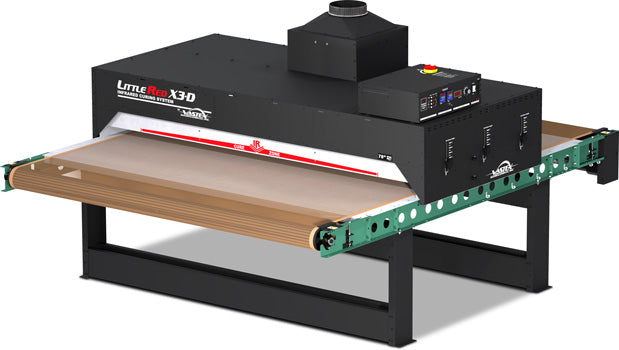

Vastex LR-X3D-78 DTF Conveyor Dryer 78" Belt - 88" (224cm) Long
Vastex LittleRed X3D-78 Conveyor Dryer
78” Wide Industrial Infrared Dryer for High-Volume DTF, DTG & Screen Printing
Power through demanding production runs with the Vastex LittleRed X3D-78, a premium infrared conveyor dryer engineered for DTF, DTG, and screen printing workflows at industrial scale. With a massive 78” wide belt and 41” heating chamber, this dryer delivers unmatched curing speed, efficiency, and consistency for shops running multiple garment rows or large-format projects.
Ideal for curing DTF films, DTG white ink, plastisol, water-based, and discharge prints, the X3D-78 ensures high-throughput output without sacrificing precision or flexibility.
Key Features:
- 78” Wide Teflon-Coated Belt: Accommodates up to three garment lanes simultaneously
- 41” Heating Chamber: Long dwell time for complete, deep curing
- 26,700W Power Output: Reaches over 300°F (149°C) within inches of belt entry
- Adjustable Heater Clearance: 2"–7" for different garment thicknesses and raised designs
- Dual PID Temp Controls: Accurate to ±1°F for perfect curing temperatures
- DC Belt Motor: Smooth, adjustable speed with digital display
- Targeted Exhaust System: Removes fumes and moisture while cooling internal electronics
- Patented Belt Aligner: X-Series tracking system keeps belt aligned and tensioned
- Heavy-Duty Construction: Steel frame for long-term durability in industrial settings
- 15-Year Heater Warranty: Best-in-class reliability
Personalization Options:
Expand your dryer as your business grows by adding heating chambers, belt extensions, or exhaust hoods. Compatible with major DTG platforms like Kornit®, Brother®, and Epson® for a fully scalable curing setup.
Printing Compatibility:
- Perfect for DTF adhesive film curing
- Supports white ink curing on DTG garments with extended dwell times
- Compatible with plastisol, water-based, and discharge screen print inks
- Ideal for all-over prints and multilane garment production
Product Specifications:
- Belt Width: 78" (198 cm)
- Heating Chamber Length: 41" (104 cm)
- Total Power: 26,700W @ 240V (3-phase optional)
- Temperature Control: Dual PID with ±1°F accuracy
- Adjustable Heater Height: 2"–7"
- Conveyor: Teflon-coated fiberglass with patented tracking system
- Warranty: 15-Year Heater Warranty
- Certifications: CE Certified
Important Usage Notes:
- Use exhaust system to eliminate fumes and moisture during DTF or DTG curing
- Adjust heater clearance based on fabric thickness or ink type
- Perform regular maintenance on belt tension and alignment for uninterrupted production
Perfect For:
- High-speed DTF and DTG garment production
- Multilane curing of plastisol, water-based, and discharge inks
- Large-format apparel decorators and contract printers
- Shops using Kornit®, Epson®, Brother® and other industrial DTG systems
- Production environments requiring expandability and unmatched curing speed
Handling & Storage Recommendations:
- Install on a level, ventilated surface with proper power connection
- Allow dryer to fully cool before performing any maintenance or transport
- Clean belt routinely to prevent buildup from adhesives and ink residue
