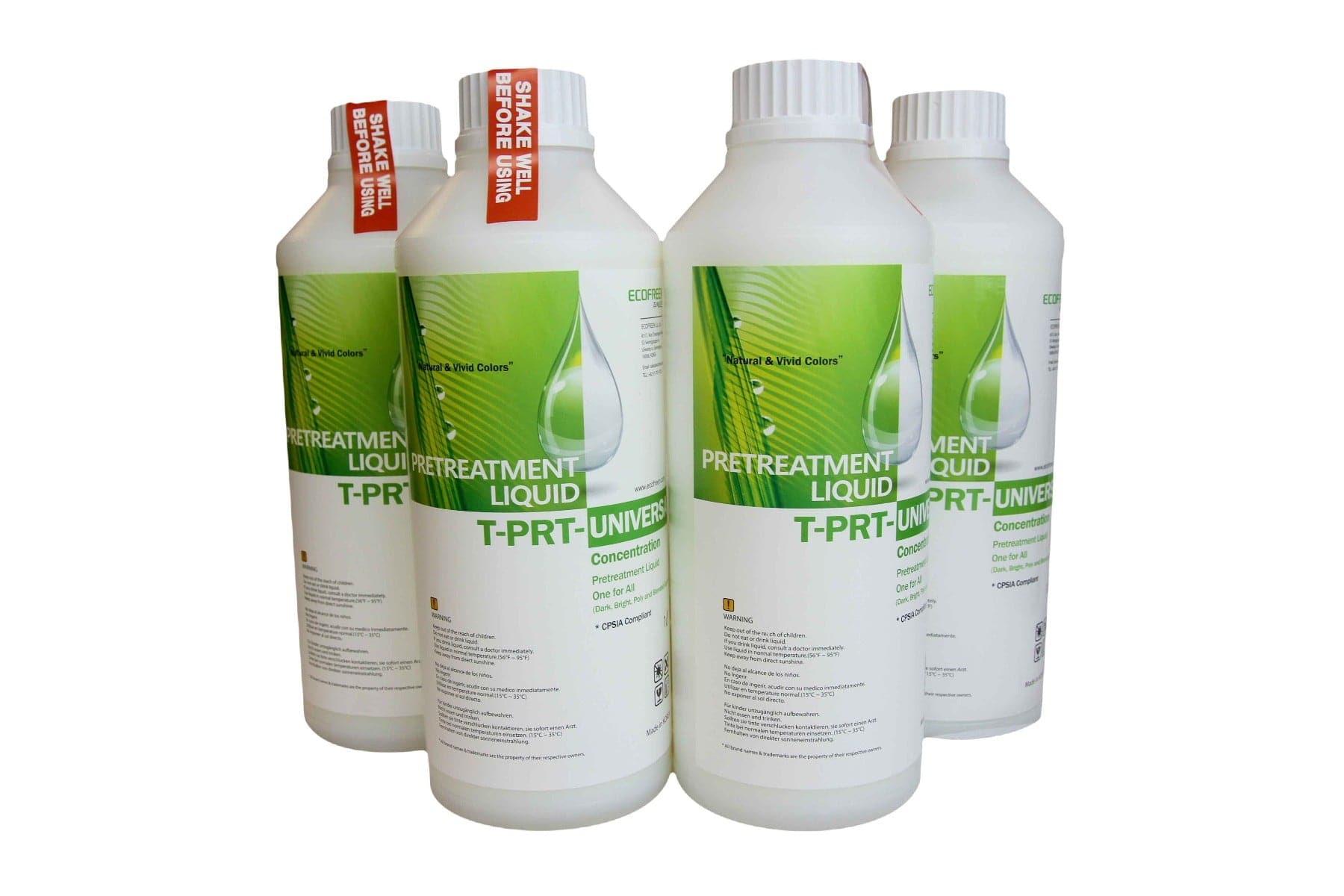

Universal Pretreatment Fluid

Name: Universal Pretreatment Fluid
Brand: Joto Imaging Supplies
SKU: I-PRETREAT-EUNI-1L
Price: 143.80 USD
Availability: InStock

$143.80

I-PRETREAT-EUNI-1L

Select size

4L (4 x 1L Bottles) 4L (4 x 1L Bottles)
20L 20L
5 Gallons (1 x 18.92L jug) 5 Gallons (1 x 18.92L jug)

Product variants

Select quantity

Universal Pretreat Liquid is a Concentrated Pretreatment Liquid for ALL! (Dark, Bright, Poly, and Blended Garment). It needs to be diluted with purified water.
For dark and blended garments, the blended mixture makes about 3L, for polyester garments about 2L of the blended mixture, and for bright garments about 10L of the blended mixture.

Universal Pretreatment Fluid

$143.80

Features:

Produces Vivid and Bright Colors
Excellent Results on Sweatshirts and Hoodies!
No Yellowing! No Stains!
Outstanding Washing Durability!
Super Soft with a Great Hand!
Available in 4L (4x 1L bottles) and 5 Gallon Jug.

Dilute Universal Liquid with purified water as the following ratio:

Universal 1L	+	Water 2L	=	Dark and Blended 3L
Universal 1L	+	Water 1L	=	Polyester 2L
Universal 1L	+	Water 9L	=	Light 10L

Brand	EcoFreen
Compatible Technology	Direct To Garment
Dilution Guide	<p>Dilute Universal Liquid with purified water as the following ratio
FCC Attribute	Yes
HP Settings	<table style="border-color
;">Garment	Light Cotton	Dark Cotton	Polyester	Blended (Hoodie)
Garment	Light Cotton	Dark Cotton	Polyester	Blended (Hoodie)
20
;">Quantity	10-20g	20-35g	30g	50g
Quantity	10-20g	20-35g	30g	50g
20
;" align="center" valign="middle">Speed Level on Mister-T1/ T2	Speed Level 5	Speed Level 4 or 5	Speed Level 4	Speed Level 1
Speed Level on Mister-T1/ T2	Speed Level 5	Speed Level 4 or 5	Speed Level 4	Speed Level 1
20
;">Spraying Direction on Mister- T1/T2	Uni- Direction	Bi- Direction	Bi- Direction	Bi- Direction
Spraying Direction on Mister- T1/T2	Uni- Direction	Bi- Direction	Bi- Direction	Bi- Direction
20
;">Time	35-45 seconds	60-70 seconds	90 seconds	90-120 seconds
Time	35-45 seconds	60-70 seconds	90 seconds	90-120 seconds
20
;">Temperature	320-338˚F (160-170˚C)	320-338˚F (160-170˚C)	320˚F (160˚C)	320-338˚F (160-170˚C)
Temperature	320-338˚F (160-170˚C)	320-338˚F (160-170˚C)	320˚F (160˚C)	320-338˚F (160-170˚C)
20
Ink HP Settings	<table border="0"> <tbody> <tr> <td style="width
;">Garment	Light Cotton	Dark Cotton	Polyester	Blended (Hoodie)
Garment	Light Cotton	Dark Cotton	Polyester	Blended (Hoodie)
20
;">Time	45-55 seconds	90-100 seconds	90 seconds	90-120 seconds
Time	45-55 seconds	90-100 seconds	90 seconds	90-120 seconds
20
;">Temperature	320-338˚F (160-170˚C)	320-338˚F (160-170˚C)	320˚F (160˚C)	320-338˚F (160-170˚C)
Temperature	320-338˚F (160-170˚C)	320-338˚F (160-170˚C)	320˚F (160˚C)	320-338˚F (160-170˚C)
20
;">Pressure	1.0-2.0 Bars (14-29 PSI)	7.0-8.0 Bars (101-116 PSI)	7.0-8.0 Bars (101-116 PSI)	7.0-8.0 Bars (101-116 PSI)

Note Pressure

1.0-2.0 Bars
(14-29 PSI)

7.0-8.0 Bars
(101-116 PSI)

Note">The above settings are a starting point and can be changed depending on the type of fabric. We recommend testing the product using the settings above and adjust it accordingly. Some testing may be required for new brands of shirts.</p> SIP Attribute Yes
